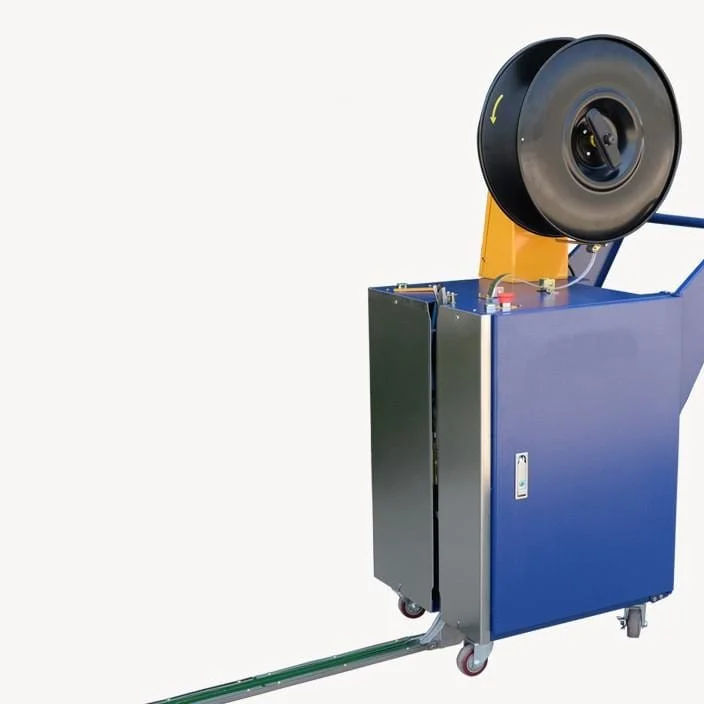

The KPW-1300 semi-automatic pallet strapping machine is the industrial machine dedicated to strapping large and heavy pallets with PP strap — the task for which the manual strap-tensioning tool is too slow, too tiring and too inconsistent at volumes of a few dozen pallets per day.
With a tensioning force adjustable up to 60 kg, a cycle of 1,5 seconds per strap, a footprint of 1870×550×1530 mm and single-phase power supply at 220V, the KPW-1300 semi-automatic pallet strapping machine installs in any warehouse or shipping area without infrastructure works, replacing the exhausting manual labour of operators who must strap dozens or hundreds of pallets daily before loading into the truck. Key Advantages of the KPW-1300 Semi-Automatic Pallet Strapping Machine
• Tensioning force up to 60 kg — enough for any industrial pallet — the KPW-1300 semi-automatic pallet strapping machine tensions the PP strap to the force set from the panel, uniformly and reproducibly; at 60 kg maximum force, the strap stays fixed even on pallets with heavy goods, handled with a forklift or transported over long distances by truck.
• Complete cycle 1,5 seconds per strap — no manual effort — the operator guides the PP strap around the pallet and inserts it into the working head; the KPW-1300 semi-automatic pallet strapping machine tensions, heat-seals and cuts automatically in 1,5 seconds; a pallet with 3–4 straps is completely strapped in under 10 seconds of active operation.
• Compatible with pallets of any size — the KPW-1300 semi-automatic pallet strapping machine imposes no limitations on pallet size; the machine is positioned adjacent to the pallet and the strap is guided manually around it, whether the pallet is 800×600mm or 1200×1000mm.
• Single-phase power 220V, 0,5 kW — starts from any socket — the KPW-1300 semi-automatic pallet strapping machine requires no three-phase electrical panel; the low consumption of 0,5 kW allows simultaneous operation with other equipment on the same circuit without capacity issues.
• Fixed lateral sealing point at ~550–600 mm from the ground — the fixed position of the sealing head of the KPW-1300 semi-automatic pallet strapping machine simplifies operator movement; the strap is always inserted and sealed at the same height, without repositioning or adjustment for each new pallet.
• Robust construction for intensive use — the metal frame of the KPW-1300 semi-automatic pallet strapping machine is dimensioned for full shifts in high-flow warehouses; at 150 kg of its own weight, the machine is stable on the floor without the need for fixing and withstands the vibrations and loads typical of the industrial environment.
• Standard PP strap 6–15 mm — cheap consumables, locally available — the KPW-1300 semi-automatic pallet strapping machine uses PP straps available from any packaging supplier in Romania; no proprietary consumables are required, and the cost per strap is significantly lower than solutions with metal strap or clips.
• Thermal sealing without staples — a clean and secure joint — the PP strap ends are thermally welded by the KPW-1300 semi-automatic pallet strapping machine without metal components; the joint withstands the tensile forces of transport and presents no sharp edges that could injure operators when opening the pallet at the destination.
Technical Specifications — KPW-1300 Semi-Automatic Pallet Strapping Machine
| Parameter | Value |
|---|---|
| Model | KPW-1300 |
| Operation type | Semi-automatic (manual strap guiding, automatic tensioning/sealing/cutting) |
| Cycle speed per strap | ~1,5 seconds |
| Maximum tensioning force | Up to 60 kg (adjustable) |
| Accepted PP strap width | 6–15 mm |
| Accepted PP strap thickness | 0,5–1,0 mm |
| Compatible strap type | PP (polypropylene) |
| Minimum load height | ~60 mm |
| Sealing point height from ground | ~542–600 mm |
| Machine footprint (L × W × H) | ~1.870 × 550 × 1.530 mm |
| Net weight | ~150 kg |
| Installed power | ~0,5 kW |
| Power supply | 110V / 220V, 50/60Hz, single-phase |
| Accepted pallet size | Unlimited (manual strap guiding) |
How the KPW-1300 Semi-Automatic Pallet Strapping Machine Works
The working principle of the KPW-1300 semi-automatic pallet strapping machine combines manual strap guiding with full automation of tensioning, sealing and cutting — eliminating the intense physical effort of manual tightening while retaining the flexibility to position the strap exactly where it is needed on the pallet.
• Strap preparation — the operator pulls the PP strap from the coil mounted in the KPW-1300 semi-automatic pallet strapping machine and guides it manually around the pallet, at the desired height and position relative to the goods.
• Insertion into the working head — both ends of the strap wrapped around the pallet are inserted into the gripping slot of the KPW-1300 semi-automatic pallet strapping machine; the operator does not need to hold or maintain tension in the strap at this point.
• Automatic tension–seal–cut cycle — pressing the button or pedal triggers the automatic sequence; the KPW-1300 semi-automatic pallet strapping machine tensions the strap to the set force, thermally welds the ends and cuts the strap from the coil in 1,5 seconds.
• Repositioning for the next strap — the operator moves the KPW-1300 semi-automatic pallet strapping machine to the adjacent side of the pallet or changes the strap height and repeats the cycle; a standard pallet with 3 horizontal straps and one vertical is completely strapped in about one minute, including the movements.
Applications — Where the KPW-1300 Semi-Automatic Pallet Strapping Machine Is Needed
• Logistics warehouses and distribution centres — the KPW-1300 semi-automatic pallet strapping machine is the pallet-preparation station before shipping; pallets finished with PP strap withstand forklift handling during loading and do not come apart during transport, reducing claims for goods damaged in transit.
• Manufacturers with daily pallet shipments — production companies that ship palletized goods daily — building materials, food, chemicals, industrial components — use the KPW-1300 semi-automatic pallet strapping machine to ensure that every pallet leaves the factory correctly consolidated, without depending on the skill or energy of the operator doing the strapping.
• Food and beverage industry — bottle crates, can boxes and packages of food products stacked on pallets are consolidated with the KPW-1300 semi-automatic pallet strapping machine; the adjustable tension allows setting the optimal force that keeps the pallets stable without deforming the sensitive packaging in the upper layers.
• Building materials and ceramics — pallets with floor tiles, wall tiles, bricks, metal profiles and heavy building materials require PP straps tensioned to high forces to prevent the upper layers from slipping; the KPW-1300 semi-automatic pallet strapping machine ensures uniform tensioning at 60 kg along the entire strap length, impossible to achieve manually.
• Chemical and pharmaceutical industry — pallets with products packed in cans, vials or boxes are strapped with the KPW-1300 semi-automatic pallet strapping machine as an additional safety measure on top of stretch film; the fixed PP strap prevents vertical displacement of the layers even if the film has loosened in transit.
• 3PL operators and warehousing service providers — companies that offer third-party warehousing and shipping services use the KPW-1300 semi-automatic pallet strapping machine to standardize the pallet-preparation process regardless of the client's goods type; a single machine serves all the pallet categories in the portfolio.
PP Strap for the KPW-1300 Semi-Automatic Pallet Strapping Machine
The KPW-1300 semi-automatic pallet strapping machine uses PP (polypropylene) strap 9, 12 or 15 mm wide — the most common formats available from industrial packaging suppliers in Romania — and 0,5–1,0 mm thick.
For heavy pallets with dense goods (building materials, metal products, chemicals), 15 mm strap at the maximum thickness of 1 mm provides the tensile strength needed to keep the pallet consolidated through repeated forklift handling. For pallets with light goods or sensitive packaging, 9 mm strap at reduced tension is sufficient and lowers the cost per pallet. The KPW-1300 semi-automatic pallet strapping machine accepts all these variants without mechanical adjustment of the guide — changing the strap width is done directly from the mounted coil. Frequently Asked Questions about the KPW-1300 Semi-Automatic Pallet Strapping Machine
What maximum pallet dimensions can the KPW-1300 strap?
The KPW-1300 semi-automatic pallet strapping machine has no upper limit on pallet size — the strap is guided manually by the operator around the pallet, regardless of its dimensions. The machine moves on castors around the pallet to allow the operator to strap even the hard-to-reach sides without moving the pallet. Can the KPW-1300 semi-automatic pallet strapping machine also apply vertical straps?
Yes. The KPW-1300 semi-automatic pallet strapping machine allows straps to be applied both horizontally and vertically on the pallet — the operator guides the strap in the desired direction and inserts it into the working head; the machine tensions and seals identically regardless of the strap orientation relative to the pallet. How often does the strap coil need to be changed?
A standard 17 kg coil of 12 mm wide PP strap contains approximately 2.000–3.000 metres of strap, enough for 300–500 pallets with 4 straps each. Changing the coil on the KPW-1300 semi-automatic pallet strapping machine takes a few minutes without tools, without a prolonged production stop. What is the difference compared with a manual PP strap-tensioning tool?
The manual tool requires the operator to apply the clamping force with their arms on each strap — tiring, inconsistent from strap to strap and slow compared with the KPW-1300 semi-automatic pallet strapping machine, which automatically delivers 60 kg of uniform force in 1,5 seconds. At 50 pallets per day with 4 straps each, the difference in time and physical effort is significant over the long term. Why Choose UZINEX for the KPW-1300 Semi-Automatic Pallet Strapping Machine
UZINEX delivers the KPW-1300 semi-automatic pallet strapping machine with the complete service package that ensures correct operation from day one and long-term production continuity, including all the support elements that turn the purchase of an industrial machine from a transaction into a technical partnership.
• Free transport and commissioning included — the KPW-1300 semi-automatic pallet strapping machine is delivered free anywhere in Romania; installation and functional verification at the client's site are included, and operators receive complete training on use and adjustment on the delivery day.
• Extended 60-month warranty — full coverage for manufacturing defects of the semi-automatic pallet strapping machine; spare parts — sealing head, tensioning mechanisms, strap guides — are kept permanently in stock for rapid resolution of service situations.
• National service network with 24–48h response — UZINEX service engineers intervene on site anywhere in Romania; for a warehouse that ships pallets daily, any unplanned stop of the semi-automatic pallet strapping machine directly affects the shipping flow, and UZINEX guarantees minimization of this downtime.
• User manuals with Artificial Intelligence — the documentation of the KPW-1300 semi-automatic pallet strapping machine is accessible through an AI interface for fast diagnosis of unusual situations and step-by-step guidance through adjustments, without requiring the service technician for minor issues solvable by the trained operator.
• Financing through credit and leasing — flexible financing solutions for purchasing the KPW-1300 semi-automatic pallet strapping machine; at 50 pallets per day, the reduction in strapping time and operator physical effort quickly translates into labour savings that cover the monthly instalment.
• Complete range of strapping machines — UZINEX offers the right solution for every strapping need: from semi-automatic tabletop machines for small parcels to fully automatic arch lines for large industrial volumes; the KPW-1300 semi-automatic pallet strapping machine integrates naturally into any packaging flow, alongside the wrapping and box-sealing machines from the same range.
The KPW-1300 semi-automatic pallet strapping machine is the concrete investment for any warehouse or production hall where manual pallet strapping with the tool and twine has reached the limit of speed, consistency and physical endurance of the operators — replacing the effort with an automatic cycle of 1,5 seconds, reproducibly identical from the first to the last pallet of the day.
