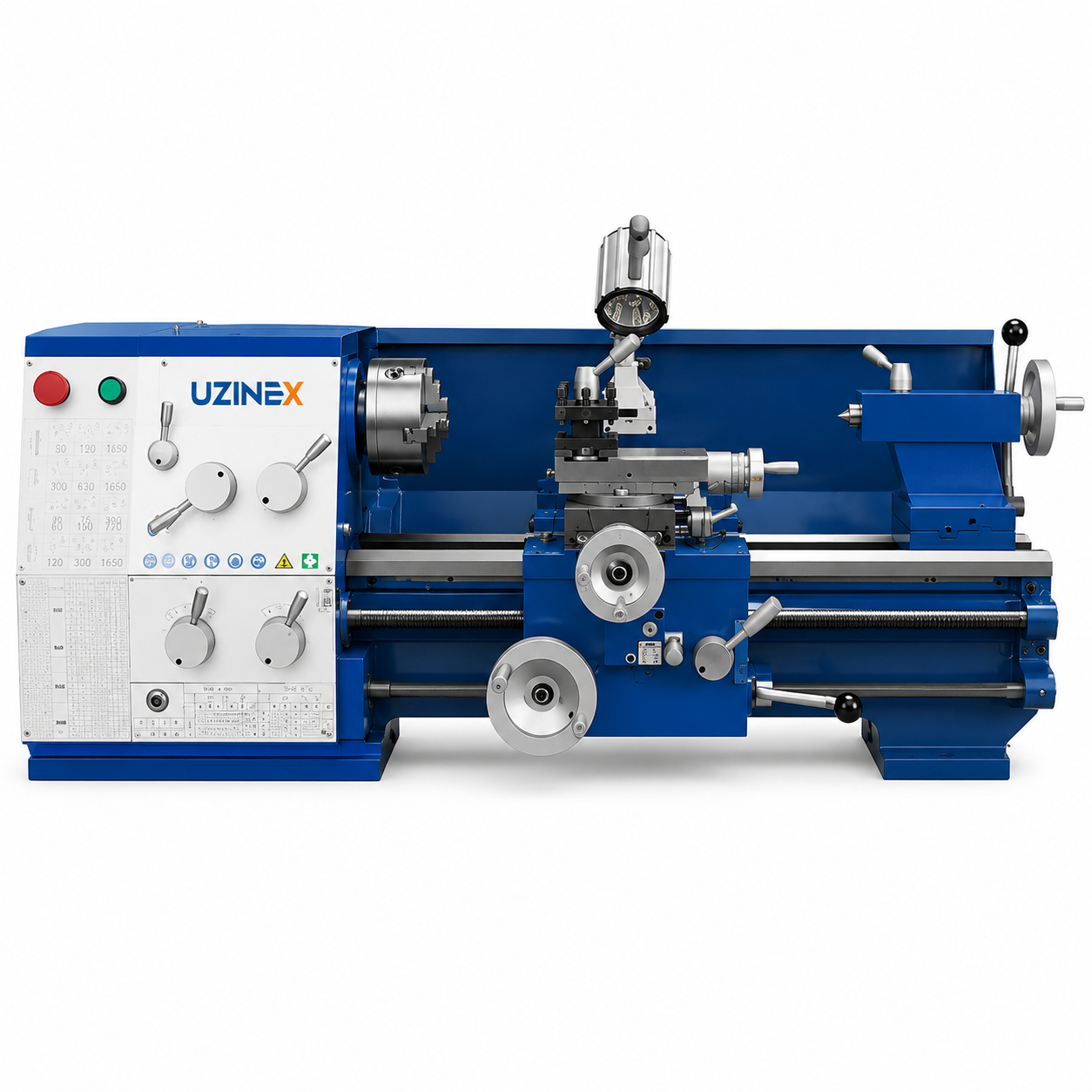

The professional mini lathe for metal threading is the reference equipment for fine-mechanics workshops, engineering laboratories and manufacturers specializing in precision metal components. With a robust construction and a powerful 1.1 kW motor, this equipment performs advanced operations with industrial accuracy: metric and inch threading, external and internal turning, grooving and facing. The distance between centers of 600 mm and the maximum machining diameter of 320 mm over the bed allow the machining of parts of varied dimensions, from small components to medium parts of high complexity.
The variable speed range with 12 steps (60–1600 rpm) and the 45 different thread types (metric and inch) make the professional mini lathe for metal threading a versatile solution for any application. The MT5 and MT3 tapers, the 38 mm main spindle bore and the concentricity precision of ≤ 0.015 mm guarantee superior-quality finishes and industrial repeatability. Main advantages — Professional Mini Lathe with Advanced Threading
• Powerful and Stable 1.1 kW Motor: Provides constant force for intensive threading and cutting operations, with energy stability under any working conditions.
• 12 Selectable Speed Steps (60–1600 rpm): Maximum versatility for adaptation to any metallic material: steel, aluminum, brass, cast iron, stainless steel and special alloys.
• 45 Thread Types — Metric and Inch: The professional mini lathe supports 22 metric threads (0,2–7 mm) and 23 inch threads (2 1/2–48 TPI), covering almost any industrial threading specification.
• Concentricity Precision ≤ 0.015 mm: The guaranteed main spindle runout provides laboratory-grade precision, essential for high-performance components.
• MT5 and MT3 Taper System: Secure and standard-compatible fixing of chucks, centers and tools, allowing interchangeability with standard industrial accessories.
• 38 mm Spindle Bore: Allows the passage of large-diameter bars and the machining of parts with extended lengths without internal-diameter limitations.

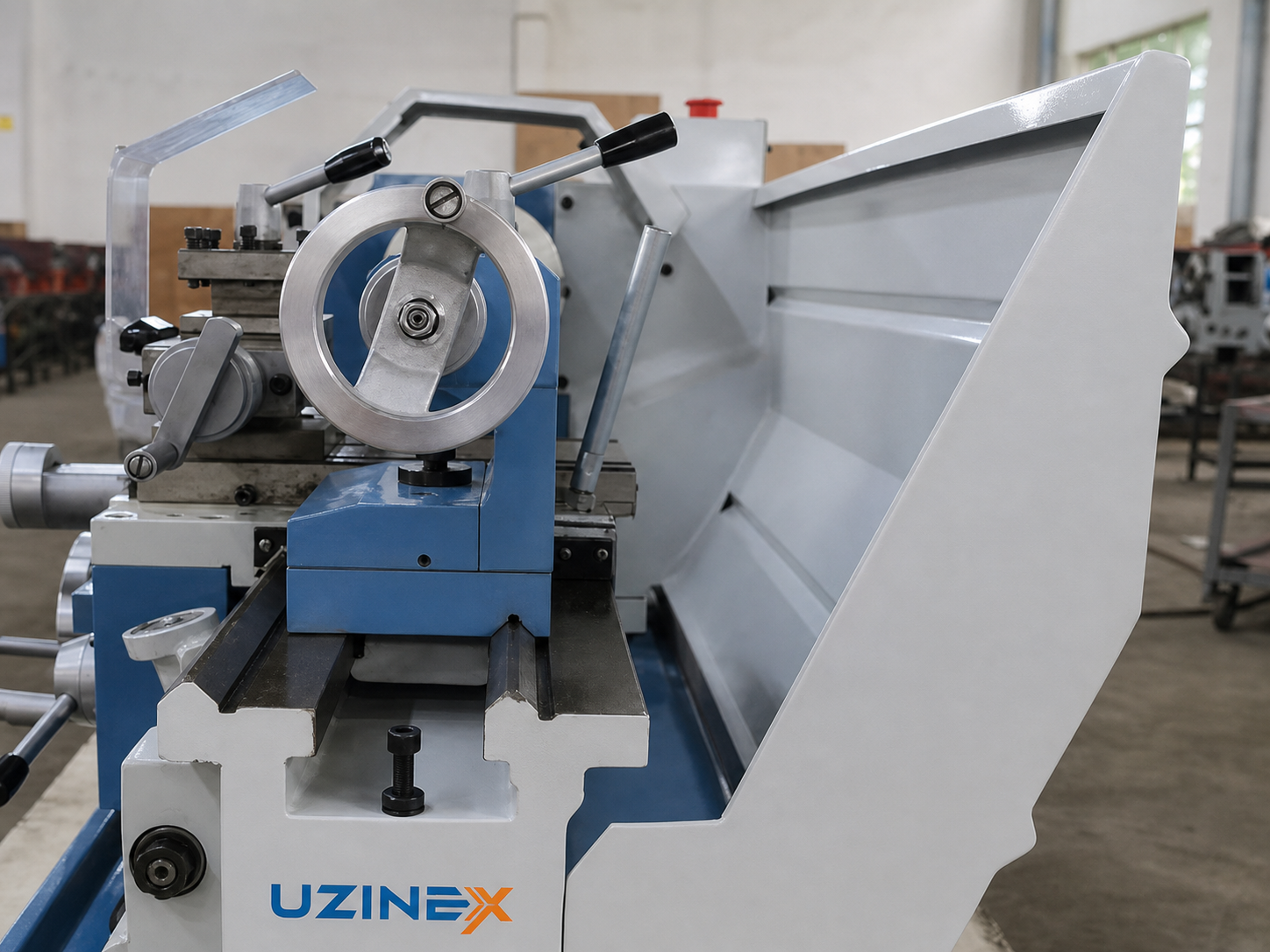

• Extended Travel of the Top and Cross Slide: The top slide travel of 100 mm and cross travel of 160 mm allow tapered and stepped turning operations with maximum flexibility.
• Dual Voltage 220V/380V: Flexible connection to a single-phase or three-phase supply, adapting to the electrical infrastructure of your workshop.
Technical Specifications — Professional Mini Lathe for Machining Metal Parts
| Specification | Value |
|---|---|
| Distance between centers | 600 mm |
| Swing over bed | 320 mm |
| Swing over cross slide | 200 mm |
| Main spindle bore taper | MT5 |
| Main spindle bore | 38 mm |
| Main spindle speed range | 60–1600 rpm (12 trepte) |
| Metric threading | 0,2–7 mm (22 tipuri) |
| Inch threading (TPI) | 2 1/2–48 TPI (23 tipuri) |
| Top slide travel | 100 mm |
| Cross slide travel | 160 mm |
| Tailstock quill travel | 80 mm |
| Quill taper | MT3 |
| Motor and voltage | 1.1 kW, 220V single-phase or 380V three-phase |
| Guaranteed spindle runout | ≤ 0.015 mm |
| Net/gross weight | 300 kg / 340 kg |
| Packaging dimensions | 1500 × 760 × 700 mm |
The professional mini lathe includes a universal three-jaw self-centering chuck, a top slide adjustable to multiple angles, standard-compatible MT5 and MT3 tapers, and a control panel with easy selection of the 12 speed steps. Applications — Professional Mini Lathe for Threading and Precise Machining
This professional mini lathe for metal threading is indispensable in the fine-mechanics industry. Workshops manufacturing components for vehicles (small engine parts, threaded shafts, sleeves) appreciate its precision and versatility. Research laboratories and universities use the professional mini lathe for prototypes and experimental validation of metal parts.
Manufacturers of watches and specialized jewelry benefit from its ability to execute extremely fine threads with laboratory-grade precision. Repair and restoration of vintage machines and collections benefit from its versatility in reproducing spare parts to archived specifications. The light aerospace sector uses the lathe for microcomponents from heavy and sensitive alloys. Compatible Materials — Diversified Threading and Cutting
Carbon and Stainless Steel
The professional mini lathe turns ordinary and stainless steels with guaranteed precision, with 12 speed steps adjustable to different thermal conductivities and hardnesses. Aluminum and Light Alloys
Machining aluminum and light alloys is fast and efficient, with increased speeds (up to 1600 rpm) and fine automatic feed for a smooth finish. Brass, Bronze and Non-Ferrous Metals
Threading and turning of brass, bronze and copper are safe and precise, with controlled feed and stability guaranteed by the ≤ 0.015 mm runout. Work Process — How the Professional Mini Lathe Works
• Workpiece Clamping and Setup: The part is mounted in the universal self-centering chuck. The operator selects the speed from the 12 steps (60–1600 rpm) and the desired threading type from the 45 options (metric/inch).

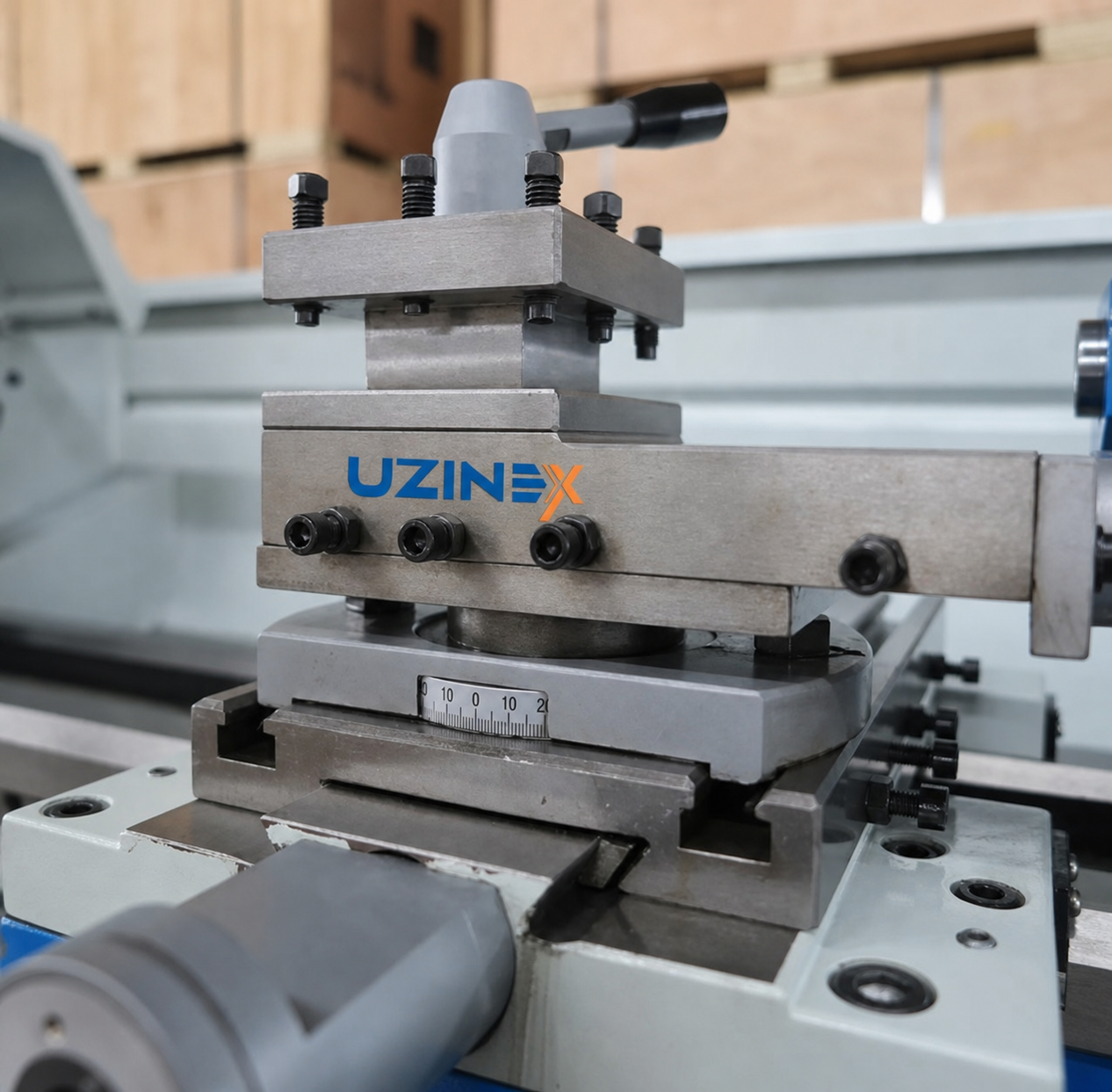

• Tool Mounting: The cutting tool or threading tip is fixed in the adjustable top slide, adjustable to precise angles for threading, tapered turning or other operations.
• Automatic Cutting and Threading: The part rotates at the selected speed, and the automatic threading system advances the tool according to the correct algorithm for the chosen thread type.
• Precision and Finish: The spindle runout of ≤ 0.015 mm and the ground surface of the slide ensure concentricity and a high-quality finish, compatible with tight ISO tolerances.
• Measurement and Validation: After threading, the part is measured with a thread caliper or using a template gauge to validate the pitch and cylindricity.
• Unloading and Repeating: The finished part is easily removed from the adjustable chuck, and the next one is mounted, optimizing the production rhythm.
The simple control panel and the selector strips for speeds and threads allow quick changes without complicated disassembly, increasing cycle efficiency. Frequently Asked Questions — Professional Mini Lathe for Threading
What is the difference between the professional mini lathe and the universal mini lathe?
The professional mini lathe is specialized for threading, with 45 thread types (metric and inch) and high concentricity precision of ≤ 0.015 mm. The universal mini lathe is more versatile but more generic, with fewer thread types. The professional one is for serious threading, the universal one for hobby and varied work. Can I thread inch and metric threads on the same lathe?
Yes! The professional mini lathe supports 22 metric threads (0,2–7 mm) and 23 inch threads (2 1/2–48 TPI), a total of 45 types. Select the desired type on the control panel, and the system adapts automatically. What maximum part diameter and length can be machined?
Maximum diameter 320 mm over the bed and 200 mm over the cross slide. Maximum length 600 mm between centers. The 38 mm bore allows the passage of large-diameter bars. What is the guaranteed precision?
Main spindle runout ≤ 0.015 mm and chuck concentricity ≤ 0.05 mm, ensuring laboratory-grade precision for threads and parts with tight tolerances of ISO 6g or better. Is the professional mini lathe easy to use?
Extremely easy! The control panel with 12 selectable steps, the self-centering chuck and the slide adjustable to multiple angles make operation intuitive even for operators with minimal experience. The AI manuals provide detailed guidance. What are the electrical supply options?
The professional mini lathe connects to 220V single-phase (standard household supply) or 380V three-phase (industrial supply). Choose the version corresponding to your workshop's infrastructure. Why Choose UZINEX for the Professional Mini Lathe
30+ Years of Experience in Fine Mechanics: UZINEX has supplied hundreds of professional mini lathes to watchmaking, jewelry and engineering workshops. In-depth knowledge of the requirements of precise threading and dedicated technical support.
Fast and Reliable Technical Support: A national network of technicians available 24/7, with the ability to intervene within 24–48 hours for installation, calibration and urgent repairs.
Spare Parts Permanently in Stock: Constant availability of components (chuck, centers, MT5/MT3 tapers, guide bars) to minimize downtime.
Free On-Site Transport and Installation: UZINEX covers transport throughout Romania and performs commissioning, calibration and complete testing at no additional cost.
Accessible Financing and PNRR Certification: The professional mini lathe is eligible for credit programs with easy installments and PNRR modernization funds for digitalization and automation.
Smart Documentation and AI Assistance: Manuals in Romanian, video tutorials and an artificial-intelligence diagnostic system for fast and efficient assistance.
The UZINEX professional mini lathe with advanced threading is the choice for manufacturers of precision components and specialized workshops. Invest in laboratory-grade threading, industrial versatility and certified reliability — invest in a machine tool that will deliver quality and productivity for decades. Discover more at: Professional Mini Lathes | Technology consultancy
