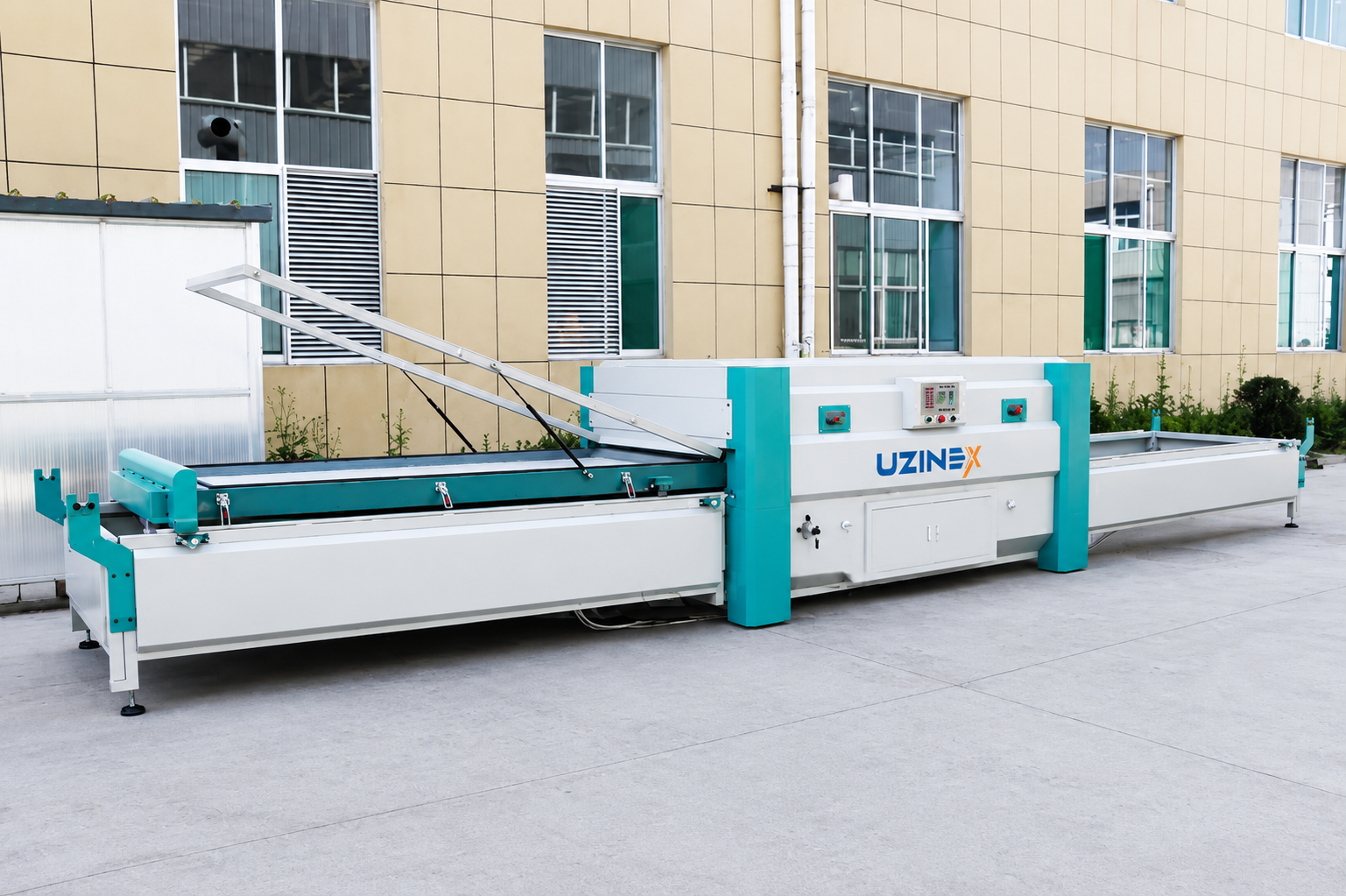

The automatic vacuum press for furniture production is the lamination and veneering equipment using hot pressing with vacuum, intended for furniture manufacturers, decorative panel producers and interior decoration workshops that apply veneer, PVC, foil and other covering materials onto chipboard, MDF and solid wood panels. The automatic vacuum press for furniture production has a work table of 2550×1300mm (alternative version 2550×1150mm), a maximum processing height of 60mm, a total power of 21–30kW with an actual consumption of 6–8kW, a maximum temperature of 185°C and a weight of 1,6 tonnes.
The automatic vacuum press for furniture production is equipped with an infrared heating system with imported insulation material for uniform heat distribution, a vacuum pump with stable performance and fast pumping speed, a work table made of special steel resistant to high temperatures and corrosion, and an automatic digital display system for monitoring and controlling the pressing parameters. The special adhesive used together with the hot-pressing technology ensures durable adhesion over the entire panel surface. Transport, installation and commissioning included. 60-month warranty.
Technical specifications — automatic vacuum press for furniture production
| Parameter | Value |
|---|---|
| Work table dimensions | 2.550 × 1.300 mm / 2.550 × 1.150 mm |
| Overall machine dimensions | 9.700 × 1.780 × 1.400 mm |
| Maximum processing height | 60 mm |
| Total power | 21 – 30 kW |
| Actual energy consumption | 6 – 8 kW |
| Maximum temperature | 185°C |
| Total weight | 1,6 tonnes |
| Heating system | Infrared + imported insulation material |
| Work table | Special steel resistant to temperature and corrosion |
| Control | Automatic digital display |
| Vacuum pump | Stable performance, fast pumping speed |
Compatible materials
| Category | Materials |
|---|---|
| Covering materials | Natural veneer, engineered veneer, PVC, decorative foil, ABS |
| Panel substrate | Chipboard, MDF, solid wood, composite panels |
| Specific applications | Furniture fronts, cabinet doors, sound-insulating panels, interior decorations |
The automatic vacuum press for furniture production is configured at the quotation stage according to panel dimensions and the covering materials used. Free technical consultancy available.
Advantages of the automatic vacuum press for furniture production
• Infrared heating and uniform heat distribution — the automatic vacuum press for furniture production uses an infrared heating system combined with imported insulation material, ensuring uniform heat distribution over the entire 2550×1300mm table surface. Temperature uniformity is critical for lamination quality — areas with uneven temperature produce bubbles, delamination or visible deformation on the finished surface of the furniture front or cabinet door. The automatic vacuum press for furniture production eliminates this risk through its carefully designed thermal construction.
• Actual consumption 6–8kW from an installed power of 21–30kW — real energy efficiency — the automatic vacuum press for furniture production has a favourable ratio between installed power (21–30kW) and actual consumption in production (6–8kW), thanks to efficient thermal insulation and the infrared heating system that transfers heat directly into the part without significant losses to the environment. The energy cost per pressing cycle of the automatic vacuum press for furniture production is proportional to the actual consumption, not to the installed power.
• Table made of special steel resistant to 185°C and corrosion — durability and dimensional stability — the automatic vacuum press for furniture production has a work table built from special steel treated for resistance to temperatures of up to 185°C and to the corrosion caused by the adhesives and solvents used in the lamination process. This construction guarantees that the automatic vacuum press for furniture production maintains table flatness and vacuum pressure precision over the entire surface throughout the life of the equipment.
• Vacuum pump with fast pumping speed — reduced cycle time — the automatic vacuum press for furniture production has a vacuum pump with stable performance and fast air evacuation speed, reducing the pumping time per cycle to a minimum. The total cycle time of the automatic vacuum press for furniture production — panel loading, vacuum pumping, hot pressing, depressurisation, unloading — determines the hourly productivity of the veneering line and is directly influenced by the vacuum pump speed.
• Automatic digital display with a minimal failure rate — simplified operation — the automatic vacuum press for furniture production has an automatic digital display system for monitoring and setting the pressing parameters: temperature, cycle time and vacuum pressure. The digital interface of the automatic vacuum press for furniture production allows exact reproduction of the parameters optimised for each combination of covering material and substrate, eliminating the variability that arises with manual adjustment and ensuring consistent quality across the entire series production.
• Wide material compatibility — veneer, PVC, foil, ABS on chipboard, MDF and solid wood — the automatic vacuum press for furniture production processes a wide range of substrate-covering combinations, from the classic veneering of solid wood furniture fronts to the application of PVC foil on MDF panels for kitchen furniture and decorative foil on sound-insulating panels. This versatility makes the automatic vacuum press for furniture production a single piece of equipment that covers several stages and product lines of the furniture factory. 60-month UZINEX warranty, national technical support in 24–48 hours.
Applications — automatic vacuum press for furniture production
Manufacturers of kitchen, dressing-room and living-room furniture use the automatic vacuum press for furniture production to apply thermo-formed PVC foil and decorative foil on MDF fronts milled with 3D profiles — an application impossible on a conventional flat-membrane press. The vacuum created by the automatic vacuum press for furniture production allows the foil to follow exactly the contour of the milled profile, including on the curved surfaces and inner corners of fronts with ornamental detail.
Manufacturers of interior doors and decorative wall panels use the automatic vacuum press for furniture production to apply natural or engineered veneer onto large surfaces with thermo-active adhesive. The uniform vacuum pressure of the automatic vacuum press for furniture production over the entire 2550×1300mm surface eliminates the bubbles and local delamination that occur with roller pressing or rigid membranes.
Manufacturers of sound-insulating and acoustic panels use the automatic vacuum press for furniture production to laminate sound-absorbing materials with decorative faces of veneer, fabric or foil — applications with specific geometry and combinations of materials with different compressibility properties, for which uniform vacuum pressing is the only method that ensures complete adhesion without deformation.
Frequently asked questions about the automatic vacuum press for furniture production
Can the automatic vacuum press for furniture production apply PVC foil on fronts with milled 3D profiles?
Yes. The automatic vacuum press for furniture production is the standard equipment for applying thermo-formed PVC foil on MDF fronts with milled profiles — this is the primary application for which the vacuum press is superior to any other pressing method. The foil is heated uniformly by the infrared of the automatic vacuum press for furniture production and conforms to the profile under the action of the vacuum.
What adhesive is used on the automatic vacuum press for furniture production?
The automatic vacuum press for furniture production uses thermo-active adhesive (hot-melt or thermally activated adhesive) applied to the substrate or to the covering material before being placed in the press. The specific type of adhesive is established according to the substrate-covering combination. At the quotation stage, UZINEX provides adhesive recommendations for the materials in the client's specific production.
Is the automatic vacuum press for furniture production eligible for European funding?
Yes. UZINEX is a member of the Enterprise Europe Network and delivers equipment for projects with EU funds — NRRP, the Regional Programme, the Just Transition Programme. The automatic vacuum press for furniture production can be included in SEAP/SICAP. Leasing and credit options on the UZINEX credit and leasing page.
Why UZINEX for the automatic vacuum press for furniture production
• Configuration included — at the quotation stage, UZINEX recommends the table size and the optimal pressing parameters for the materials and product range in your specific production.
• Transport, installation and commissioning included — installation at the client's location and complete operator training.
• 60-month warranty — extended coverage for series furniture production.
• Spare parts in stock — components quickly available in Romania, with no waiting times.
• National technical support in 24–48 hours — technicians with national coverage.
• Eligible for European funding — complete technical documentation for NRRP, Regional Programme and other active programmes.
UZINEX automatic vacuum press for furniture production — table 2550×1300mm / 2550×1150mm, height 60mm, power 21–30kW / actual consumption 6–8kW, max temperature 185°C, infrared heating, vacuum pump with fast pumping, special anti-corrosive steel table, automatic digital display, compatible with veneer/PVC/foil/ABS on chipboard/MDF/solid wood, 60-month warranty, transport, installation and commissioning included throughout Romania.
