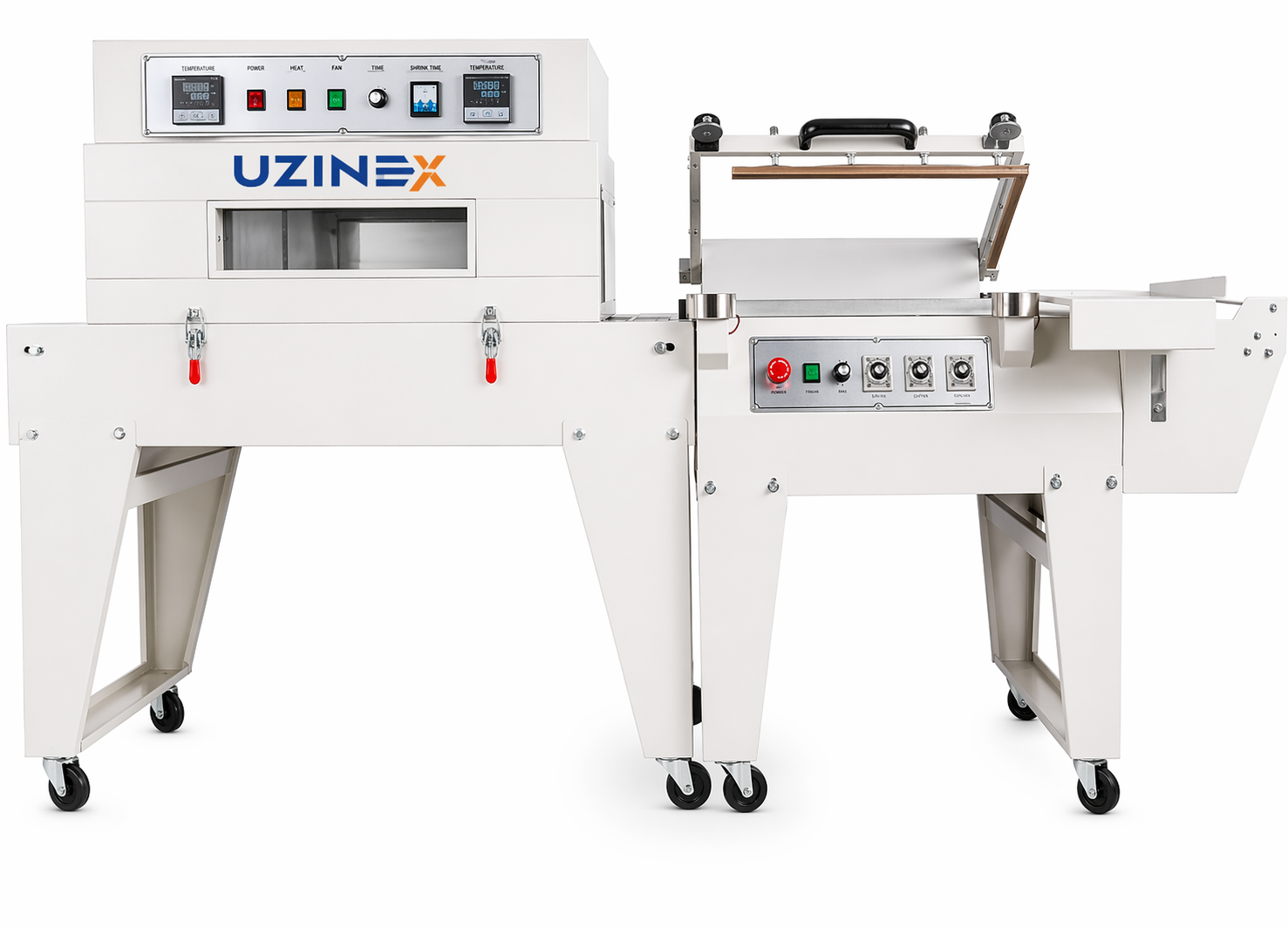

Semi-Automatic L-Bar Sealer with Shrink Function KPW-450L

The semi-automatic L-bar sealer with shrink function KPW-450L is shrink-wrap packaging equipment with manual actuation per cycle and an integrated shrink tunnel, fitted with an L-shaped sealing bar of 450 × 350 mm — covering products with a cross width of up to 350 mm, compared with 200 mm on the KPW-4020 model.

The semi-automatic L-bar sealer with shrink function KPW-450L operates at 2,5 kW and 220V single-phase, with a tunnel temperature adjustable between 0 and 250°C, a sealing time adjustable between 0,5 and 2 seconds per cycle, a weight of 70–80 kg and a compact footprint of 900 × 600 × 1.200 mm.

The semi-automatic L-bar sealer with shrink function KPW-450L occupies a clearly distinct segment compared with the other semi-automatic L-sealers in the UZINEX range: the wider 450 × 350 mm bar makes it suitable for wide products — food trays, flat box sets, cosmetic products in wide packaging, large-format books or accessories up to 350 mm wide — which the KPW-4020 Tunnel with its 400 × 200 mm bar cannot fully cover on the cross axis. Key Advantages of the Semi-Automatic L-Bar Sealer with Shrink Function KPW-450L

• Sealing bar 450 × 350 mm — the largest cross width among the KPW semi-automatic units — the semi-automatic L-bar sealer with shrink function KPW-450L has a bar with a cross dimension of 350 mm, compared with 200 mm on the KPW-4020 model; the difference is decisive for wide products: a 280 mm wide food tray, a 250 mm cosmetics box or an A4-format book (210 mm wide) are comfortably packaged by the semi-automatic L-bar sealer with shrink function KPW-450L, whereas the same products would partly extend beyond the sealing zone of the KPW-4020.

• 70–80 kg — the lightest in the category of semi-automatic L-sealers with a tunnel — the semi-automatic L-bar sealer with shrink function KPW-450L, weighing 70–80 kg, is lighter than the KPW-4020 model (80–100 kg) and much lighter than the automatic FL450 models (150–250 kg); a single operator can move the semi-automatic L-bar sealer with shrink function KPW-450L without lifting equipment, allowing rapid relocation between stations or use in production spaces with a variable layout.

• Footprint 900 × 600 × 1.200 mm — the smallest footprint in the range — the semi-automatic L-bar sealer with shrink function KPW-450L occupies 0,54 m² on the workshop floor — less than any other L-sealer with an integrated tunnel in the range; for packaging stations in small spaces (workshops, compact warehouses, mobile packaging stands), the reduced footprint makes the difference between installable and not installable.

• Sealing time 0,5–2 seconds — fine adjustment for each type of film — the semi-automatic L-bar sealer with shrink function KPW-450L allows the sealing cycle duration to be adjusted from 0,5 to 2 seconds; thin POF film (15–20 µm) seals optimally at 0,5–0,8 seconds, while thicker PE film (50–80 µm) requires 1,5–2 seconds for a complete seal; fine adjustment of the sealing time prevents overheating of thin films and ensures complete fusion of thick films.

• Tunnel with adjustable temperature 0–250°C — full film coverage — the semi-automatic L-bar sealer with shrink function KPW-450L has a shrink tunnel with electronically controlled temperature settable from 0 to 250°C; the 0–250°C range covers POF film (shrinking at 100–130°C), PE (130–160°C) and PVC (100–120°C); starting from 0°C, the temperature can be set precisely for each type of film without overheating and without film waste during calibration.

• Stainless steel frame — easy hygiene and corrosion resistance — the semi-automatic L-bar sealer with shrink function KPW-450L has a stainless steel structure resistant to cleaning products, moisture and the solvents used in the disinfection of food and pharmaceutical packaging areas; the smooth surfaces allow quick wiping between different product batches.

• Overheating shutdown system — automatic protection of the bar and the products — the semi-automatic L-bar sealer with shrink function KPW-450L automatically stops operation when an overload or overheating of the sealing bar is detected; the automatic protection prevents damage to the bar's heating elements under intensive use and protects heat-sensitive products from any thermal anomalies.

• 2,5 kW at 220V single-phase — standard outlet, no investment in electrical infrastructure — the semi-automatic L-bar sealer with shrink function KPW-450L consumes 2,5 kW at 220V/50Hz single-phase; it connects to any standard outlet in the workshop or warehouse without dedicated circuits, three-phase panels or special electrical permits, allowing immediate installation anywhere an outlet is available.

Technical Specifications — Semi-Automatic L-Bar Sealer with Shrink Function KPW-450L

KPW-450L versus KPW-4020 Tunnel — How to Choose Between the Two Semi-Automatic Sealers

The semi-automatic L-bar sealer with shrink function KPW-450L and the KPW-4020 Tunnel model are both semi-automatic L-sealers with an integrated shrink tunnel, 2,5 kW and 220V — but with completely different sealing zones that make them suitable for different types of products:

• KPW-450L (the semi-automatic L-bar sealer with shrink function) — the 450 × 350 mm bar covers wide products with a cross width of up to 350 mm; ideal for food trays, large-format books, wide cosmetic sets, products in flat packaging wider than 200 mm; the weight of 70–80 kg and the 900 × 600 × 1.200 mm footprint make it the most compact and easiest to move in the range.

• KPW-4020 Tunnel — the 400 × 200 mm bar covers narrow and long products with a cross width of up to 200 mm; ideal for cylindrical products, narrow boxes, small individual products; the smaller sealing zone on the cross axis makes it insufficient for the wide products handled by the semi-automatic L-bar sealer with shrink function KPW-450L.

• The quick selection rule — measure the maximum width of the packaged product; if it exceeds 200 mm, the semi-automatic L-bar sealer with shrink function KPW-450L is the only semi-automatic unit in the range that covers that dimension; if it is below 200 mm, either of the two models is sufficient and the choice is made according to product length and the preferred machine footprint.

Applications — What Products the Semi-Automatic L-Bar Sealer with Shrink Function KPW-450L Packages

• Food industry — wide trays and flat products — the semi-automatic L-bar sealer with shrink function KPW-450L packages, in PE or POF shrink film, trays with fresh fruit and vegetables, seafood, portioned meat in wide trays and pastry products on a flat backing; the 350 mm wide bar covers standard supermarket trays 220–280 mm wide, which the semi-automatic units with a narrower 200 mm bar do not fully cover.

• Printers and publishers — large-format books, albums and materials — the semi-automatic L-bar sealer with shrink function KPW-450L packages A4-format books (210 mm wide), photo albums, wall calendars and catalogues up to 350 mm wide in transparent POF film; the 450 × 350 mm bar covers all standard publication formats without repositioning the product in the film.

• Cosmetics and pharmaceuticals — boxes and sets with wider standardized dimensions — the semi-automatic L-bar sealer with shrink function KPW-450L produces tamper-evident packaging on cosmetic product boxes and sets up to 350 mm wide; care sets, perfumes in wide boxes, gift kits and individual cosmetic displays are attractively packaged with transparent POF film that showcases the product on the shelf.

• Toys and seasonal products in wide formats — the semi-automatic L-bar sealer with shrink function KPW-450L packages board game boxes, puzzles, educational kits and seasonal products up to 350 mm wide in shrink film; the wide 450 × 350 mm bar also covers non-standard toy formats that exceed the 200 mm width of the smaller semi-automatic units.

• Flat industrial products — boards, panels, wide components — the semi-automatic L-bar sealer with shrink function KPW-450L packages flat components up to 350 mm wide (electronic boards, thin panels, wide accessories) in PE or POF film for protection against moisture and dust in storage and transport; the product length is not limited by the bar width, but by the manual technique of feeding the film.

• E-commerce — wide flat products for premium presentation — the semi-automatic L-bar sealer with shrink function KPW-450L is used by online stores that ship wide flat products (small pictures, boards, maps, posters rolled in a flat tube) with a layer of shrink packaging for protection and presentation; the 450 × 350 mm bar covers standard formats of posters and folded maps without two-stage sealing.

The Semi-Automatic L-Bar Sealer with Shrink Function KPW-450L versus Manual Sealing with a Film Gun

The semi-automatic L-bar sealer with shrink function KPW-450L replaces the manual method using a shrink-film gun employed in small packaging workshops, offering concrete advantages over each limitation of the manual approach:

• Uniform sealing vs. manual variability — the semi-automatic L-bar sealer with shrink function KPW-450L applies the L-seams at the same temperature, the same pressure and the same dimensions on every cycle; manual sealing with a gun produces seams of varying widths, with uneven overlaps and variable temperatures that generate packages with an inconsistent appearance from one package to another.

• Uniform shrinking through a tunnel vs. uneven shrinking with a hot-air gun — the semi-automatic L-bar sealer with shrink function KPW-450L passes the product through the temperature-controlled tunnel, shrinking the film uniformly over all surfaces simultaneously; a manually applied hot-air gun produces uneven shrinking — overheated zones and insufficiently shrunk zones — visible as wrinkles or bubbles on the package surface.

• A speed of 0,5–2 seconds per seal vs. 15–30 seconds manually — the semi-automatic L-bar sealer with shrink function KPW-450L seals and automatically triggers the bar in 0,5–2 seconds per cycle; completing with the tunnel adds a few extra seconds; total per package: 10–20 seconds on the KPW-450L versus 30–60 seconds for the complete manual method (sealing + shrinking with a gun).

• No risk of burning the film or the product — the semi-automatic L-bar sealer with shrink function KPW-450L eliminates the risk of localized overheating through electronic temperature control; a hot-air gun applied manually for too long on the same spot burns the film or damages heat-sensitive products (chocolate, cosmetic products with heat-sensitive components, films printed with inks that migrate under excessive heat).

Frequently Asked Questions about the Semi-Automatic L-Bar Sealer with Shrink Function KPW-450L

What is the difference between the semi-automatic L-bar sealer with shrink function KPW-450L and the KPW-4020 Tunnel model?

The semi-automatic L-bar sealer with shrink function KPW-450L has a 450 × 350 mm bar compared with 400 × 200 mm on the KPW-4020 Tunnel; the essential difference is the cross width: 350 mm versus 200 mm; the KPW-450L covers wide products up to 350 mm wide that the KPW-4020 cannot fully seal; both are semi-automatic with 2,5 kW and an integrated tunnel, but the KPW-450L is lighter (70–80 kg versus 80–100 kg) and more compact (900 × 600 × 1.200 mm). Can the semi-automatic L-bar sealer with shrink function KPW-450L package products longer than 450 mm?

The bar of the semi-automatic L-bar sealer with shrink function KPW-450L seals over a length of 450 mm per cycle; products longer than 450 mm require either two sealing cycles (repositioning the product) or a wider roll of film to wrap the product lengthwise; for products longer than 450 mm in a continuous flow, the automatic FL450/FL550 models or the sleeve wrapping machines are the suitable alternatives. Which type of film is recommended for food trays on the semi-automatic L-bar sealer with shrink function KPW-450L?

The semi-automatic L-bar sealer with shrink function KPW-450L uses for food trays POF (polyolefin) film approved for food contact, with high transparency and low sealing temperatures (100–130°C) that protect fresh, heat-sensitive products; PE film is the alternative for trays with heavier products or for applications with higher mechanical-strength requirements; UZINEX engineers confirm the optimal type of film at commissioning. Does the semi-automatic L-bar sealer with shrink function KPW-450L require compressed air?

No. The semi-automatic L-bar sealer with shrink function KPW-450L operates exclusively on electricity at 220V/50Hz single-phase; there are no pneumatic components and no compressed-air installation is required; the only connection needed is to the standard 220V electrical outlet available in the packaging area. Why Choose UZINEX for the Semi-Automatic L-Bar Sealer with Shrink Function KPW-450L

The semi-automatic L-bar sealer with shrink function KPW-450L combines the wide 450 × 350 mm bar with the most compact footprint and the lowest weight in the category of semi-automatic units with a tunnel; correct calibration of the bar and tunnel temperature for the customer's specific film and products directly determines the quality of every package produced.

• Pre-purchase consultancy — KPW-450L or KPW-4020 Tunnel, based on your product dimensions — UZINEX engineers measure the cross width of the packaged products and confirm that the semi-automatic L-bar sealer with shrink function KPW-450L with its 350 mm bar covers all formats, or recommend the KPW-4020 if the maximum width is below 200 mm; the correct choice from the first purchase avoids undersizing the equipment relative to the product portfolio.

• Free shipping and commissioning included — the semi-automatic L-bar sealer with shrink function KPW-450L is delivered free of charge anywhere in Romania; at commissioning, UZINEX engineers calibrate the bar and tunnel temperature for the customer's film and products, run sealing and shrinking trials on the current formats and train the operator in the use and daily maintenance of the equipment.

• Extended 60-month warranty and spare parts in stock — the semi-automatic L-bar sealer with shrink function KPW-450L benefits from a 60-month warranty; the wear components — the L sealing bar heating elements, the teflon strips, the tunnel heating elements — are kept permanently in stock at UZINEX for rapid intervention.

• National service with 24–48h response — UZINEX service engineers intervene on site anywhere in Romania; even for entry-level equipment, UZINEX handles service requests with the same priority as for high-power industrial equipment.

• Financing through credit and leasing — financing solutions available for the purchase of the semi-automatic L-bar sealer with shrink function KPW-450L; the equipment qualifies for EU-funded projects as an investment in packaging equipment.

• Complete range for shrink packaging at any level of automation — UZINEX offers complete solutions for shrink packaging: the semi-automatic L-bar sealer with shrink function KPW-450L for wide products at low-medium volume, the KPW-4020 Tunnel for narrow products at low-medium volume, the automatic FL450-2/FL450/FL550 models for large volumes, the BSE6040A tunnel for industrial shrinking and the sleeve wrapping machines for long products.

The semi-automatic L-bar sealer with shrink function KPW-450L is the choice for operators packaging wide products up to 350 mm wide in POF, PE or PVC shrink film — the wide 450 × 350 mm bar, the compact 900 × 600 × 1.200 mm footprint, the 70–80 kg weight for maximum mobility and the integrated tunnel with adjustable 0–250°C temperature, all at 2,5 kW and 220V single-phase.
