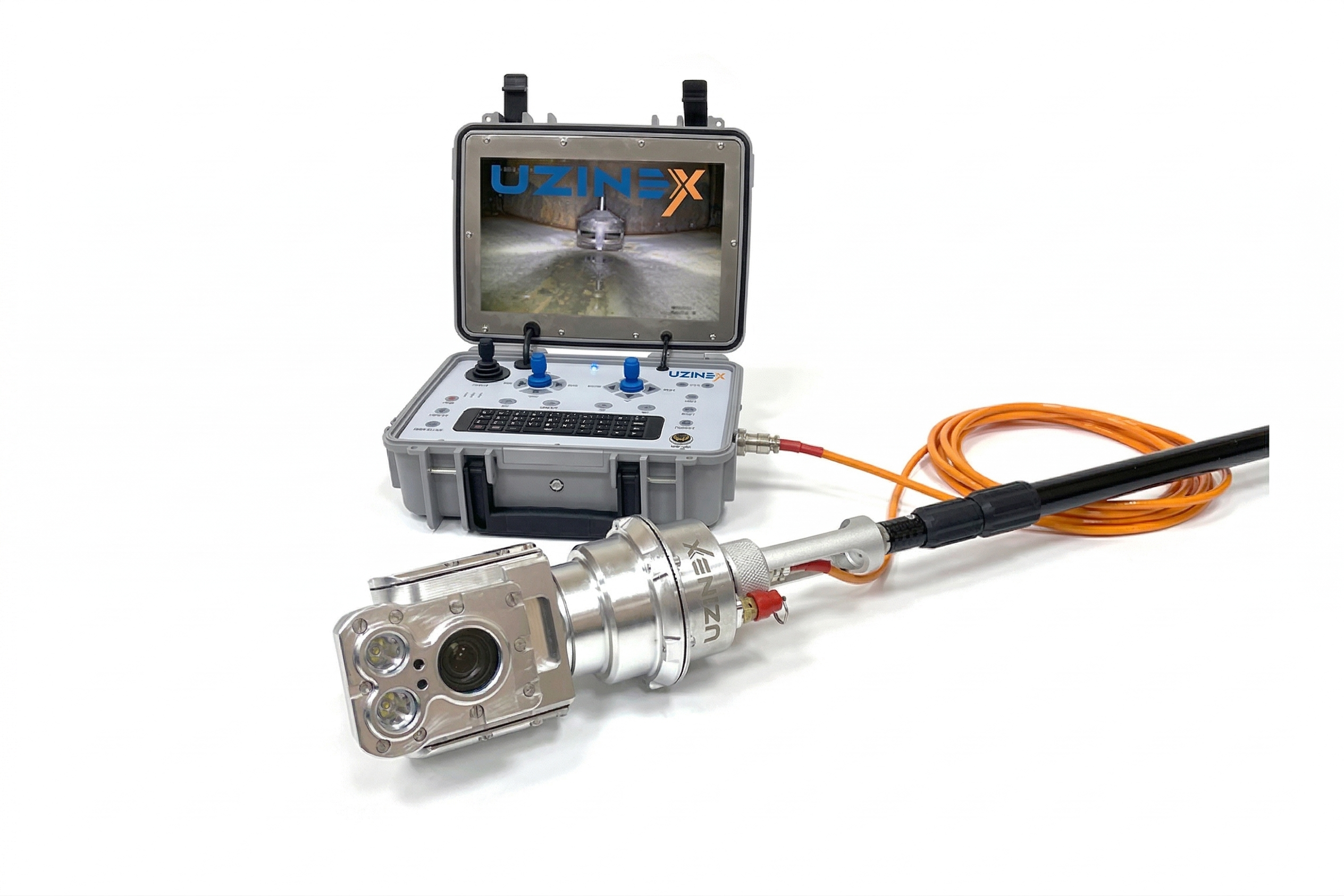

GT200BX60 explosion-proof tank inspection camera — the only system in the Jiutai lineup available at Uzinex with explosion-proof certification for use in petroleum tanks, hydrocarbon containers, natural gas pipelines and any space with a potentially explosive atmosphere. With a 105mm camera head — the largest in the entire lineup — 10x optical zoom combined with 10x electronic zoom, an integrated measurement laser and an inspection range from 120mm to 10,000mm, this explosion-proof tank inspection camera is the mandatory tool of inspectors working in ATEX-classified zones in the petrochemical and energy industries.

The camera's explosion-proof design, CE certified, uses electrical components with a flameproof enclosure and intrinsically safe circuits — standards that allow operation in atmospheres with hydrocarbon vapors, flammable gases and combustible dust without the risk of initiating an ignition spark. This explosion-proof tank inspection camera replaces manual visual inspection in spaces with an explosion risk, eliminating personnel exposure to the hazardous atmospheres of partially emptied tanks or pipelines with residual gases. Key Advantages of the GT200BX60 Explosion-Proof Tank Inspection Camera

• Explosion-proof certification — the only one in the Jiutai Uzinex lineup: The GT200BX60 is the only system in the entire Jiutai lineup available at Uzinex with a certified explosion-proof design and CE certification. This explosion-proof tank inspection camera can be used legally and safely in ATEX zones — petroleum and fuel tanks, gas depots, chemical installations with flammable vapors — where standard systems are prohibited or represent a safety risk.

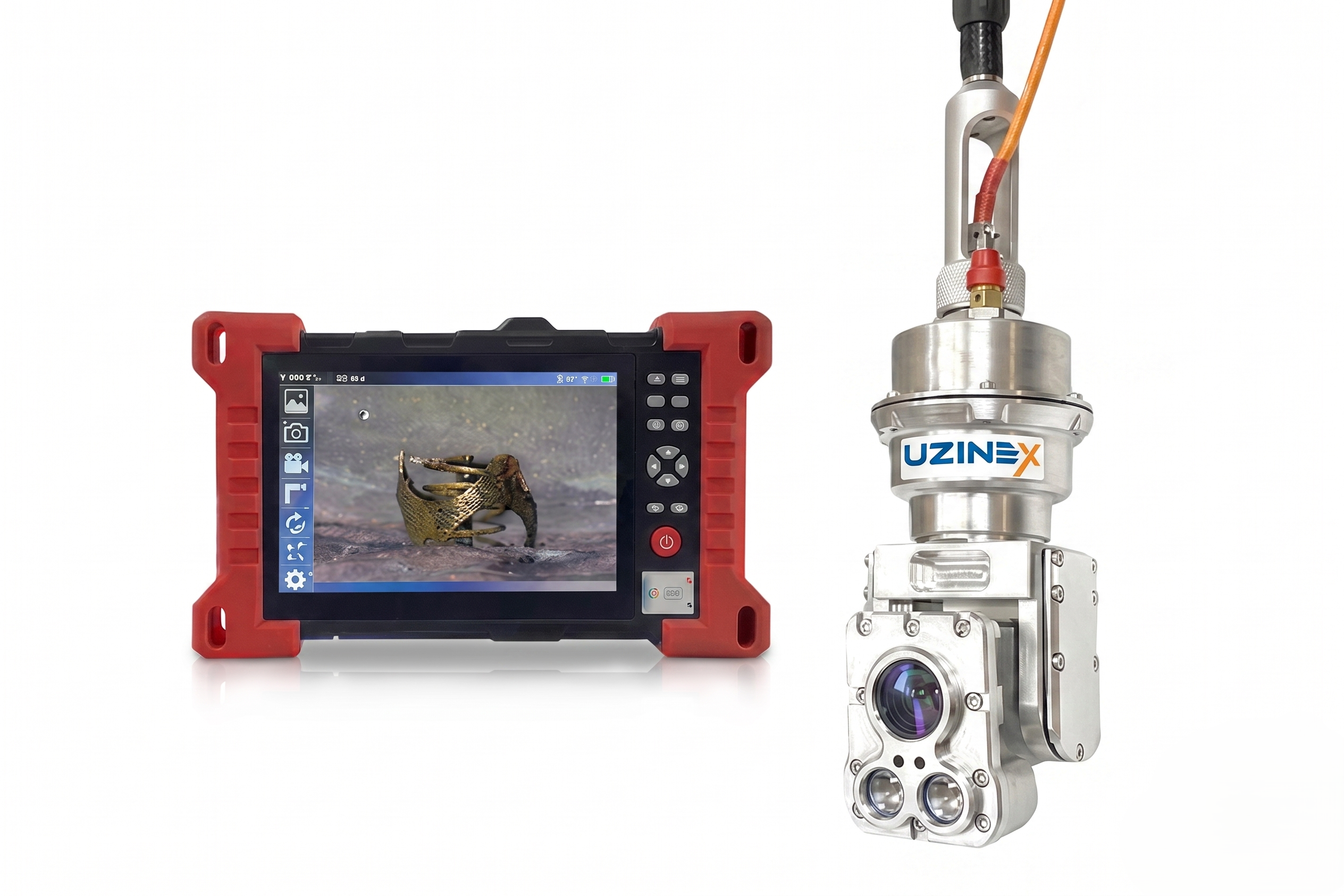

• 105mm camera head — the largest in the Jiutai telescopic range: The 105mm diameter of the PTZ head allows the use of a larger optical sensor and a more powerful lighting system than the 75–90mm heads of the other pole systems. Visibility in industrial tanks with dimensions up to 10,000mm is significantly superior to systems with a smaller head.

• 120mm–10,000mm range — the widest in the telescopic category: The GT200BX60 inspects spaces with a diameter from 120mm to 10,000mm (10 meters) — far exceeding the limits of the GT75BXA (6000mm) and the GTW106/GTW06. Large industrial tanks, transport cisterns and storage containers with diameters of 5–10 meters are fully covered by a single system.

• 10x optical + 10x electronic zoom — 100x dual zoom: Combining 10x optical zoom with 10x electronic zoom delivers a total magnification of 100x. At the maximum diameter of 10,000mm, the 100x zoom allows precise documentation of cracks and corrosion on the opposite wall of the tank — visible from 10 meters away without moving the camera.

• Integrated measurement laser: The integrated laser measures the distance to the viewed surface and the dimensions of defects directly on the displayed image — essential for petrochemical tank inspection reports where precise dimensional documentation of corrosion and cracks is a contractual and regulatory requirement.

• Patented product — exclusively certified design: The GT200BX60 is a Jiutai patented product. The explosion-proof patent certifies that the electrical and constructional design of the system has been evaluated and approved as safe for use in zones with an explosion risk — a legal and technical guarantee that systems without a patent do not offer.

• Adjustable Cold LED with 6 LEDs — cold light without thermal effect: The Cold LED lighting with 6 adjustable sources provides the light needed for inspecting large tanks without generating local heat — important in environments with flammable vapors where unprotected heat sources can contribute to an increase in the partial pressure of vapors or to the initiation of combustion.

• 2–5m telescopic pole with flexible design — portable and easy to handle: The telescopic pole is inserted through the standard access openings of industrial tanks and containers, adjustable to the optimal depth without modifying the system. Power from its own battery eliminates dependence on the power grid — inspection can be carried out at any point in the installation, including zones without outlets or with controlled power supply.

Technical Specifications — GT200BX60 Explosion-Proof Tank Inspection Camera

Applications — Where the GT200BX60 Explosion-Proof Tank Inspection Camera Is Used

An explosion-proof tank inspection camera from the GT200BX60 series is the legally regulated tool for internal inspections of crude oil tanks, refined fuels, flammable chemical products and liquefied gases. In these environments, the use of any non explosion-proof electrical equipment represents a major safety risk and a violation of ISCIR and ANRE regulations and of the European ATEX directives. The GT200BX60 is CE certified and patented — the inspection compliance documents can include a reference to the explosion-proof certification of the equipment used.

Refineries, fuel depots, liquefied natural gas (LNG) terminals and petrochemical installations use this explosion-proof tank inspection camera for periodic assessments of the internal condition of storage tanks and process containers — corrosion, cracks, deposits, internal separators and the condition of anti-corrosion liners. The dual 10x+10x zoom and the measurement laser allow precise documentation of the degree of corrosion and the dimensions of defects without personnel entering the tank. Explore the full range of Uzinex industrial equipment for inspection solutions across all categories of tanks, pipes and industrial spaces.

Maintenance companies for power plants, nuclear installations and water supply infrastructure use systems such as the GT200BX60 explosion-proof tank inspection camera for inspections of confined spaces with special atmospheres, in accordance with international standards for non-destructive video inspection and the ATEX regulations applicable in the European industry. How It Works — Inspecting Industrial Tanks with the GT200BX60

• Prior verification of the ATEX zone and access preparation: Before inspection, the team verifies the ATEX zone classification and confirms that the GT200BX60 corresponds to the required equipment class. The pole is adjusted to the optimal depth for the volume of the inspected tank.

• Inserting the camera through the access opening: The 105mm PTZ head is inserted through the inspection port or access opening of the tank. The operator remains outside — entry into the space with a potentially explosive atmosphere is not required throughout the entire inspection session.

• Systematic inspection with dual zoom and laser: The PTZ camera rotates 360° and tilts 180° at each depth level. The 10x optical zoom of this explosion-proof tank inspection camera allows detailed documentation of corrosion, cracks and deposits. When a defect is identified, the laser provides direct sizing on the image displayed on the 10 inch screen.

• Cold LED adjustment for optimal visibility: The brightness of the 6 Cold LEDs is adjusted for uniform illumination of the tank interior at the inspected dimensions, with intensity calibrated to avoid overexposed reflections on internal metal surfaces.

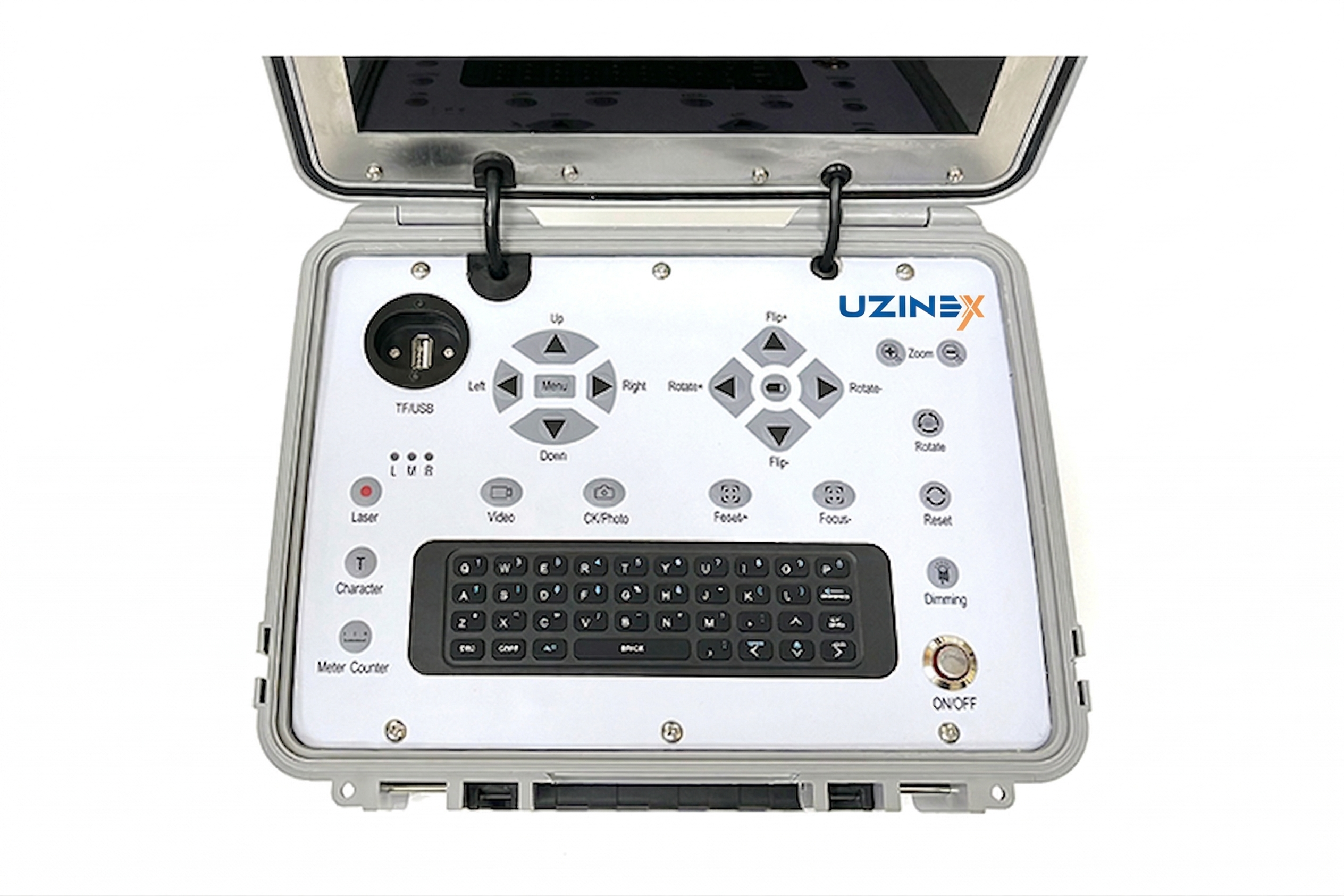

• Documentation and editing with the keyboard: The operator photographs and video records the identified defects and annotates the working condition directly on the recording via the keyboard — complete documentation generated in real time for the tank inspection report.

Frequently Asked Questions about the GT200BX60 Explosion-Proof Tank Inspection Camera

What does "explosion-proof" mean and why is certification mandatory for inspecting petroleum tanks?

An explosion-proof tank inspection camera has its electrical components (motor, LEDs, control circuits) encapsulated or designed to prevent the initiation of a spark or an electric arc on contact with flammable vapors or explosive gases. The ATEX Directive 2014/34/EU and the ISCIR regulations in Romania prohibit the use of non-protected electrical equipment in tanks with hydrocarbons or gases — a standard camera that is not explosion-proof cannot be used legally in these zones. This GT200BX60 explosion-proof tank inspection camera is CE certified with a patented explosion-proof design. What is the maximum tank diameter the GT200BX60 can inspect?

With the 2–5m pole and the dual 10x+10x zoom, the GT200BX60 inspects tanks with diameters up to 10,000mm (10 meters). At a 5m pole depth and 100x zoom, surfaces on the opposite wall of the 10m diameter tank are visible and documentable without moving the camera — the widest inspection range of any explosion-proof tank inspection camera in the telescopic category of the Jiutai lineup from Uzinex. Does the 105mm camera head require a larger access opening than other systems?

Yes. The 105mm head requires an access opening of at least 110mm internal diameter. The standard inspection ports of industrial tanks (manways, inspection openings) usually have diameters of 200–500mm — more than enough to insert the GT200BX60 head. If the tank has only openings smaller than 110mm, the UZINEX team can recommend the systems with a 75mm or 90mm head from the telescopic range. How does the GT200BX60 compare with the GT75BXA for inspecting industrial tanks?

The fundamental difference is the explosion-proof certification: the GT200BX60 can be used legally in tanks with hydrocarbons and ATEX zones; the GT75BXA has no explosion-proof certification and is not permitted in these zones. The GT200BX60 also adds the integrated measurement laser and the 10,000mm range versus the 6,000mm of the GT75BXA. The GT75BXA remains the choice for spaces without an explosion risk with diameters of 6,000mm. What compliance documentation comes with the GT200BX60?

The GT200BX60 comes with a CE certificate and is a patented product with technical documentation for the ATEX zone. The compliance documents include the explosion-proof certification, the CE declaration of conformity and the patent documentation — required for the periodic inspection files of petrochemical installations, refineries and storage terminals in Romania, which must document the equipment used in classified zones. Why Buy the GT200BX60 Explosion-Proof Tank Inspection Camera from UZINEX?

• Free technical consultation for ATEX compliance: The UZINEX team analyzes the ATEX classification of the work zone, the tank diameters and the documentation requirements and confirms that the GT200BX60 is the appropriate equipment — with the certification documents needed for inspection files.

• Delivery with CE documentation and explosion-proof certification: Every GT200BX60 explosion-proof tank inspection camera is delivered with the CE certificate and the compliance documentation — ready to be included in the installation's equipment file and presented at ISCIR or ANRE inspections.

• Extended 60-month warranty and technical support under 36 hours: Every unit delivered through UZINEX benefits from a 60-month warranty and a guaranteed response time under 36 hours — essential for petrochemical installations with strict inspection programs and limited tank access windows.

• Lens protective cap included: The GT200BX60 comes with a protective cap for the lens — a component that extends the camera's lifespan in environments with abrasive or corrosive deposits in hydrocarbon and chemical tanks, reducing long-term maintenance costs.

• The only explosion-proof system in the Jiutai lineup distributed by UZINEX: For inspections in ATEX zones, there is no alternative in the lineup — the GT200BX60 is the only available and certified explosion-proof tank inspection camera in the entire Jiutai lineup from UZINEX.

GT200BX60 explosion-proof tank inspection camera — the only explosion-proof and CE certified system in the Jiutai Uzinex lineup, with a 105mm head, 100x dual zoom, integrated laser and a 120–10,000mm range, for inspecting petroleum, gas and chemical tanks in ATEX zones, without personnel entering atmospheres with an explosion risk.
