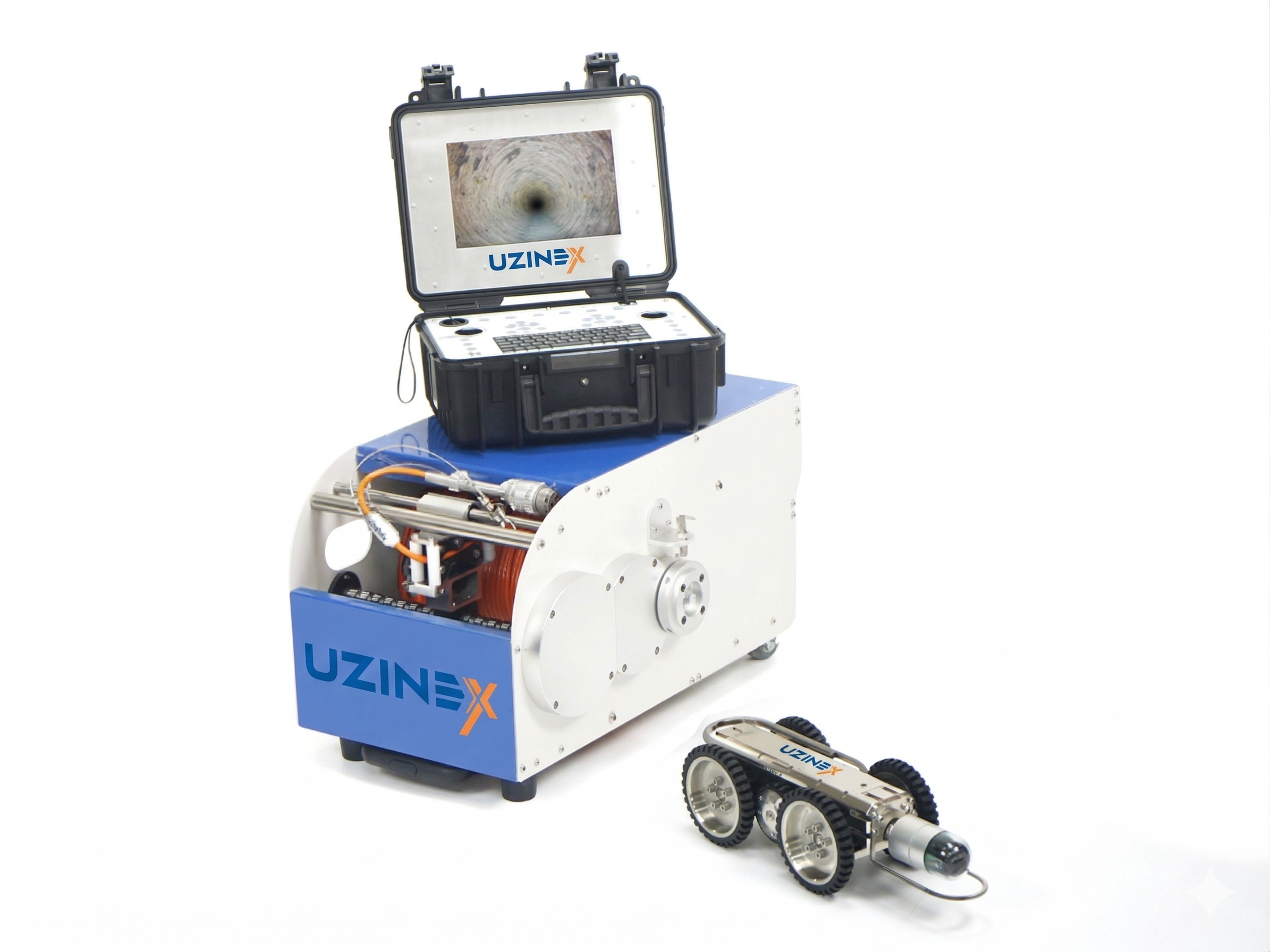

GT102A gas pipe inspection camera — the CCTV video inspection system for 120–600mm pipes in natural gas installations, oil networks, the petrochemical industry, industrial chemistry and nuclear power plants. The 51mm camera head with pan-and-tilt auto focus, infinite 360° rotation and 220° tilt, combined with anti-corrosion IP68 protection, makes the GT102A a gas pipe inspection camera capable of operating continuously in environments with hydrocarbons, aggressive chemicals and corrosive gases — where standard equipment fails rapidly or cannot be inserted safely.
With a cable of up to 200m and a 40kg electric drum with automatic rewinding, this gas pipe inspection camera covers long sections in distribution networks and process installations without reinstallation. The integrated DIP, the footage counter and the pressure data displayed in real time on the 10 inch monitor give the maintenance engineer all the information needed to precisely locate defects on the technical layout of the installation. Key Advantages of the GT102A Gas Pipe Inspection Camera
• Pan-and-tilt auto focus with 360° rotation and 220° tilt: The pan-and-tilt auto-focus camera head covers the entire internal circumference of the pipe with no blind angle. The 220° tilt — superior to the 180° models — allows complete viewing of the upper side areas as well in small-diameter pipes without repositioning the crawler.
• Electric lifting of the camera head: The camera lifts electrically relative to the travel axis, providing an inspection angle adjustable according to the pipe diameter and the position of the suspected defect. The front/rear camera switch works instantly, without stopping the session.
• IP68 anti-corrosion — designed for aggressive chemical environments: Full IP68 sealing and the anti-corrosion treatment of all exposed components allow this gas pipe inspection camera to be used in pipes with hydrocarbons, diluted acids, industrial gases and highly corrosive environments — conditions in which standard systems deteriorate within a few sessions.
• Cable up to 200m — extended range versus standard models: The 200m Ø 7,8mm cable option (versus the 100–150m standard of other models) allows coverage of long sections in gas distribution networks and oil transport pipes without reinstalling the equipment at an intermediate point.
• DIP, footage and pressure displayed in real time: The DIP locator permanently displays the crawler position, the footage counter marks the distance traveled, and the pipe pressure data is monitored and recorded directly on the 10 inch screen — all localization and context information automatically included in the inspection documentation.
• Dual front + rear camera with instant switching: Complete round-trip inspection of the section is carried out without separate sessions — the rear camera documents the pipe condition during retraction, complementing the front image of the advancing path.
• Storage up to 1TB and HDMI export: Full HD 1080p video, photos and inspection reports are archived on the 32GB internal memory (expandable to 1TB) and exported in real time via HDMI, directly to the external monitor of the inspection van or station.
• Automatically generated inspection report: The integrated software automatically compiles all session data — video, photos, footage, DIP — into professional inspection reports, compatible with the technical requirements of gas distribution network operators and petrochemical companies.
Technical Specifications — GT102A Gas Pipe Inspection Camera
| Monitor screen | 10.1 inch color LCD, resolution 1920 × 1080 Full HD |
|---|---|
| Camera pixels | 2 Megapixels (2.000.000 pixels) |
| Camera head diameter | 51 mm — pan-and-tilt auto focus |
| Camera head rotation | 360° continuous (infinite rotation) |
| Camera head tilt | 220° constant flip |
| Camera head lifting | Electric (electrical lifting) |
| Rear camera | Yes — dual front + rear camera |
| Illumination | Ambient LED, 3 adjustable levels |
| Measurement laser | Available on request (customized) |
| 512 Hz localization | Available on request (customized) |
| Water protection | IP68 waterproof, anti-corrosion |

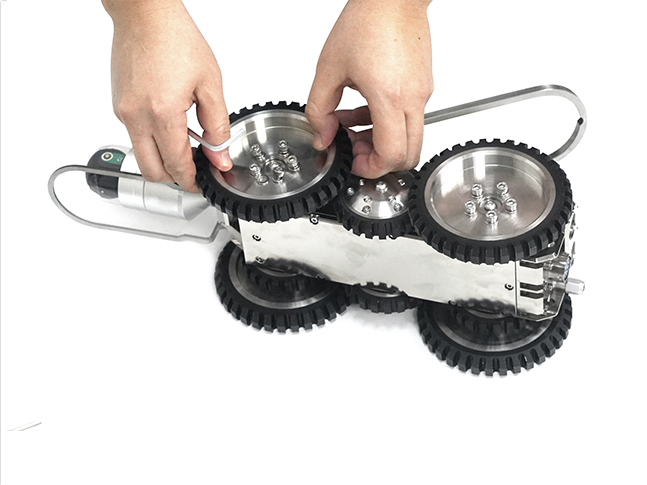

| Propulsion system | 4 independent drive wheels |
| Travel speed | 0–20 m/minute, variable |
| Compatible pipe diameter | 120–600 mm (5"–24") |
| Standard cable length | 100 m (customizable up to 200 m) |
| Cable diameter | 7,8 mm |
| Electric drum | Auto / Manual, 40 kg standard |
| Internal storage | 32 GB (expandable up to 1 TB) |
| Data outputs | HDMI, video/photo, inspection report |
| Real-time display | DIP, footage, pressure data |
| Inspection report | Integrated system, automatically generated |
Applications — Where the GT102A Gas Pipe Inspection Camera Is Used
A gas pipe inspection camera from the GT102A series is the standard tool of maintenance teams at natural gas distribution companies, oil network operators and the technical departments of refineries and petrochemical installations. The 120–600mm range covers exactly the sizes of secondary distribution networks, service connection fittings and internal service piping in installations — the segment that combines a high inspection frequency with the most aggressive environmental conditions for the equipment.
In the chemical industry and in nuclear power plants, this gas pipe inspection camera replaces manual inspection in pipes with corrosive environments, with residual flows of hazardous substances or with restricted access for radiation-protection reasons. The IP68 anti-corrosion treatment, the chemical-resistant camera head and the cable of up to 200m allow extended sessions without extracting and repositioning the equipment and without exposing operators to the aggressive environment inside the pipe. Explore the full range of Uzinex industrial equipment for inspection solutions tailored to all types of networks and installations.
Sewer networks with high corrosion levels, discharge pipes from water treatment plants and industrial drainage systems in chemical complexes use GT102A gas pipe inspection camera systems for periodic structural-integrity inspections, in line with international standards for non-destructive video inspection. The integrated DIP and real-time pressure data complete the technical documentation with context information essential for compliance reports. How It Works — How the GT102A Gas Pipe Inspection Camera Operates

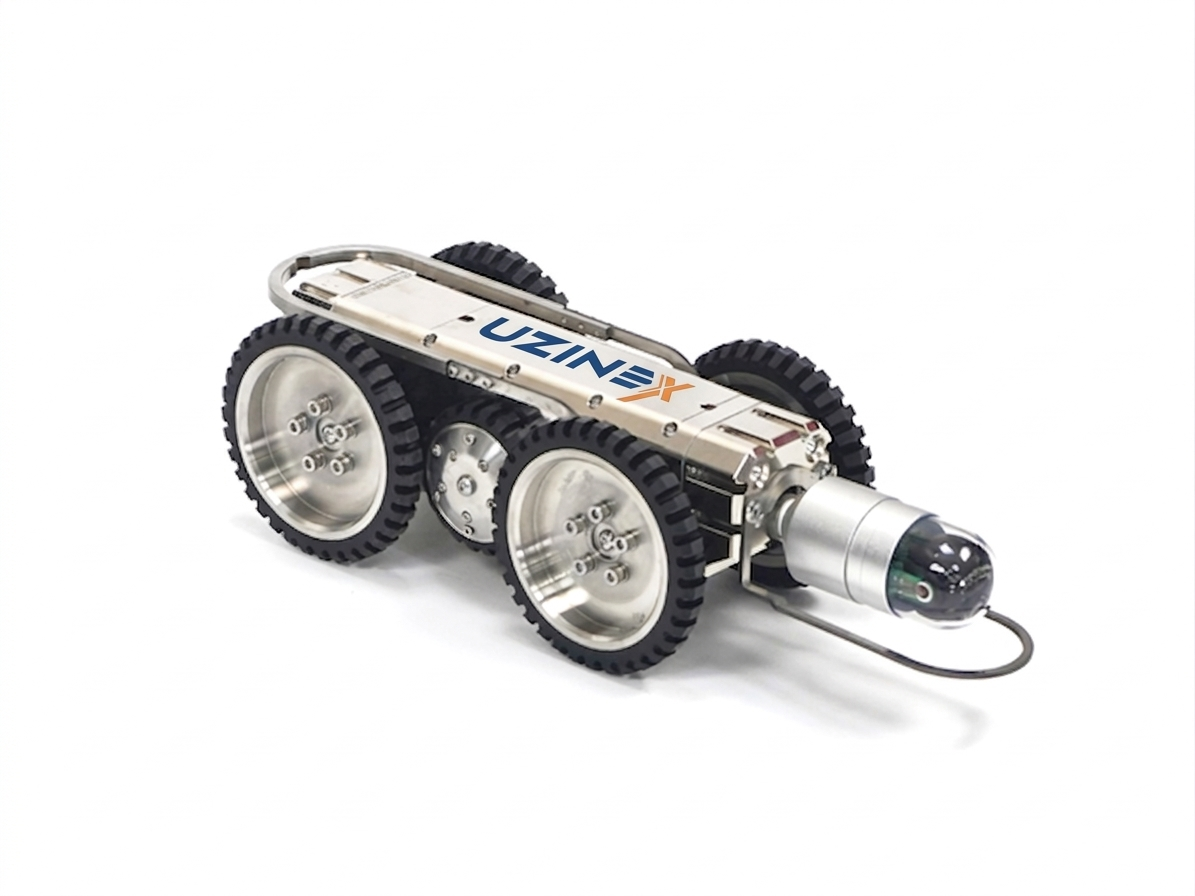

• Preparation and insertion into the pipe: This gas pipe inspection camera — the compact crawler — is inserted through the access opening or the removed flange. The pan-and-tilt auto-focus camera head orients itself automatically for optimal focus, without manual diopter adjustment according to the pipe diameter.
• Control via the 10 inch controller: The operator guides the crawler with the dedicated buttons for advance/retract, steering and speed. The 360° rotation and 220° tilt are commanded separately, without stopping the crawler's movement along the section.
• Real-time DIP and pressure monitoring: The screen permanently displays the DIP localization, the distance traveled and the pipe pressure data — information automatically correlated with the position on the technical layout of the installation, without manual calculations or external reference equipment.
• Documentation and front/rear camera switching: When a defect is identified, the operator takes a photo or records video with a single button. Switching to the rear camera checks the pipe condition in the retraction direction without stopping the session or repositioning the crawler.
• Drum retrieval and report export: The electric drum retrieves the 100–200m cable automatically or manually. The complete inspection report is generated automatically and exported via HDMI or stored internally for handover to the client or archiving in the facility management system.
Frequently Asked Questions About the GT102A Gas Pipe Inspection Camera
What makes the GT102A suitable for inspecting gas and oil pipes versus other models?
This gas pipe inspection camera combines IP68 anti-corrosion protection, a cable of up to 200m and a pan-and-tilt auto-focus camera head — features essential for gas and oil networks where sections are longer, the environment is corrosive and the risk of operator exposure requires remote inspection. The 220° tilt versus the 180° of other models ensures complete viewing of the cross-section in small-diameter pipes. Is the measurement laser included or optional on the GT102A?
On the GT102A, the measurement laser is available as a customized option on order — unlike the GT102 where the laser is included as standard. If your application requires dimensional measurement of defects, the UZINEX team can configure the GT102A with an integrated laser module at the time of order. How long can the inspected sections be without reinstallation?
With the standard 100m cable, a complete round-trip session covers 50m of pipe. The 200m option allows the operating range to be doubled — sufficient for the average section between two isolation valves in a gas distribution network. The 40kg electric drum manages the cable length automatically or manually, with no additional physical effort for the operator. Can the GT102A operate in pipes with residual gases or hydrocarbon vapors?
This gas pipe inspection camera — with IP68 sealing and full anti-corrosion treatment — can operate in pipes with residual hydrocarbon traces, solvent vapors and industrial gases, provided the installation's specific safety procedures are observed. It is recommended to check the chemical compatibility of the crawler's external materials with the specific substances in the pipe before first use in special chemical environments. What minimum and maximum pipe diameter does the GT102A cover?
The GT102A inspects pipes with diameters between 120mm and 600mm (5"–24"). The 120mm lower limit covers service connection fittings and secondary distribution pipes in gas networks, while the 600mm upper limit includes the main distribution collectors in industrial installations and low-pressure municipal networks. Why Buy the GT102A Gas Pipe Inspection Camera from UZINEX?
• Free technical consultancy for gas and petrochemical networks: The UZINEX team analyzes the type of pipes, the specific chemical environment and the documentation requirements, and configures this gas pipe inspection camera with the cable length, laser and 512Hz options suited to your installation.
• On-site delivery, testing and operator training: The GT102A is delivered, tested and commissioned at the client's premises, with complete operator training for all functions — pan-and-tilt, DIP, recording, report generation — on the same day as delivery.
• Extended 60-month warranty and technical support under 36 hours: Every gas pipe inspection camera delivered through UZINEX benefits from a 60-month warranty and a guaranteed response time under 36 hours, with remote diagnostics and priority part delivery to ensure the continuity of periodic inspection programs.
• Reports compatible with gas network operators' standards: The documents generated by this gas pipe inspection camera include footage, DIP, pressure data and Full HD video — the format accepted by gas distribution operators, refineries and petrochemical companies in Romania for periodic technical inspection reports.
• Compatibility with international NDT standards: The documentation produced with this gas pipe inspection camera complies with international standards for non-destructive video inspection, applicable in the gas, petrochemical and nuclear installation industries — including the traceability and archiving requirements specific to regulated fields.
GT102A gas pipe inspection camera — the complete solution for teams that inspect 120–600mm networks in environments with gas, oil, aggressive chemicals or high corrosion, with pan-and-tilt auto focus, 220° tilt and an operating range extended to 200m, without exposing operators to the environment inside the pipe.
