GT102 Industrial Pipe Inspection Camera | Standard Laser | Ø49mm | 120–600mm

GT102 industrial pipe inspection camera — the compact, specialized solution for NDT inspection of pipes with diameters between 120 mm and 600 mm in factories, process installations and industrial infrastructure. With a Ø49mm metal camera head designed to be anti-collision and wear-resistant, with a measurement laser included as standard and full IP68 protection, this industrial pipe inspection camera accesses the small and medium pipes in petrochemical installations, the metallurgical industry, boiler and pressure-vessel manufacturing — areas inaccessible to any conventional push-rod system.

Compared to the large-diameter crawlers in the range, this industrial pipe inspection camera — the most compact in the Jiutai series — lowers the lower limit to 120 mm — the standard diameter of factory process pipes, industrial fittings and internal service piping. The compact crawler body, the portable electric drum and the joystick integrated into the 10 inch control unit allow complete single-operator operation, with no support infrastructure and no specialized launch platform. Key Advantages of the GT102 Industrial Pipe Inspection Camera

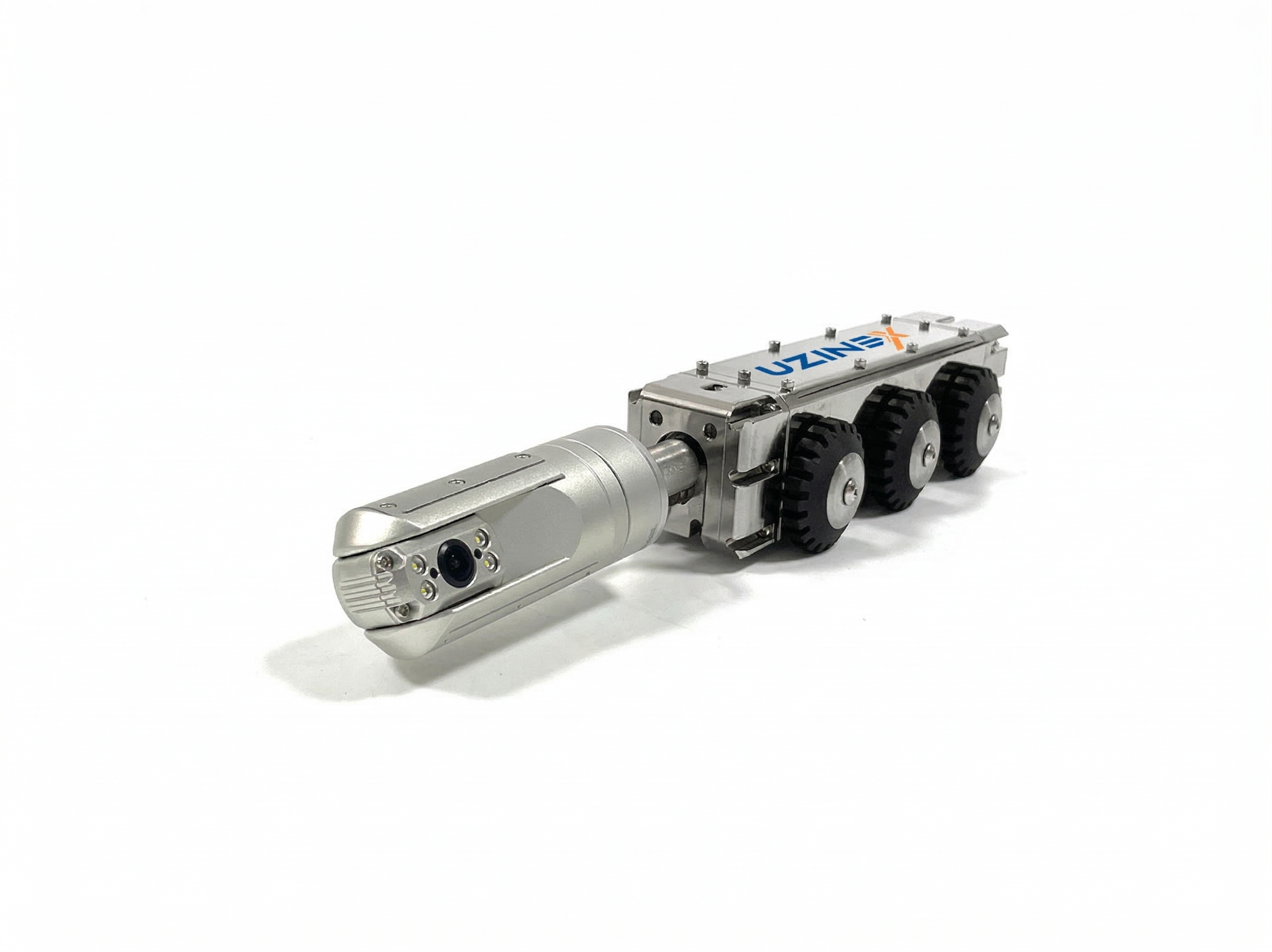

• Ø49mm metal camera head — anti-collision and wear-resistant: The metal body of the camera head absorbs impact with internal obstacles and resists the abrasion of hard deposits in industrial pipes. At 49mm outer diameter, this industrial pipe inspection camera enters pipes from 120mm — a size inaccessible to standard crawlers with plastic heads.

• Measurement laser included as standard — at no extra cost: Unlike models where the laser is optional, the GT102 includes the laser as standard equipment. The operator measures crack size, corrosion and deposits directly on the recorded image — information critical for NDT inspection documents and for assessing the structural integrity of pressure vessels and boilers.

• Infinite 360° rotation and 180° tilt with no blind angle: The camera head rotates continuously 360° and tilts 180° — the entire internal circumference of the pipe is documented without repositioning the crawler. The controller joystick commands rotation, tilt, advance and retraction with one hand.

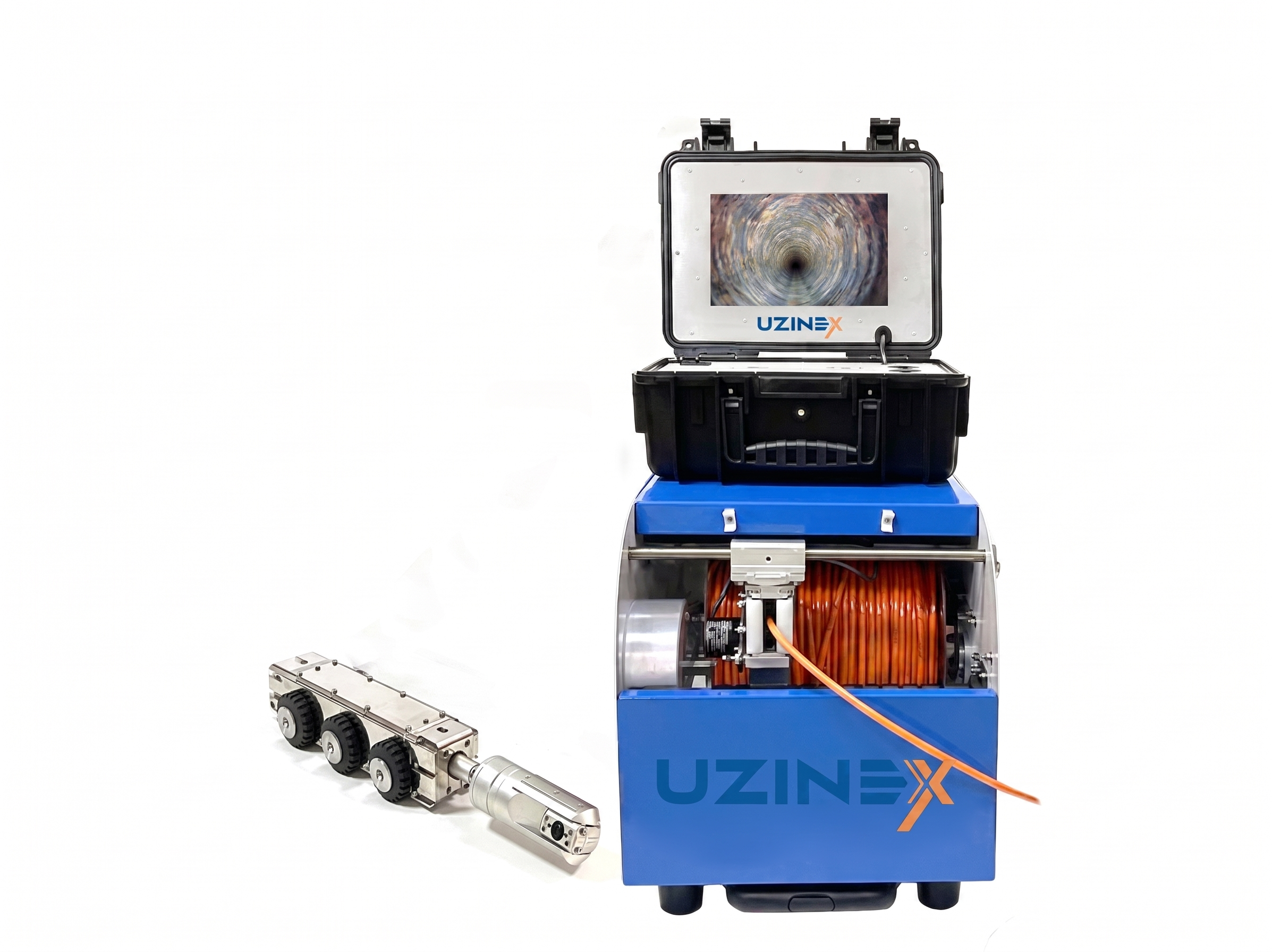

• Compact and lightweight — single-operator operation: The crawler body and the portable electric drum are designed for fast movement between inspection points within an industrial hall, with no support team or vehicle. The drum with automatic and manual rewinding makes it easy to manage the 100–150m cable in tight spaces.

• DIP data, footage and pressure displayed in real time on the monitor: The 10 inch screen permanently displays the distance traveled, the DIP defect-localization data and the pressure values — information integrated directly into the recording, with no external data-collection equipment.

• Four drive wheels, speed 0–20 m/minute: Traction with four independent wheels ensures controlled movement forward, backward and through free turns at variable speed, adaptable to the internal condition of the pipe — from smooth surfaces to those with deposits or marked roughness.

• IP68 anti-corrosion — withstands aggressive chemical environments: Full IP68 sealing and the anti-corrosion treatment of the body allow use in pipes with residual hydrocarbons, acid solutions, chemical sludge or other aggressive environments specific to the petrochemical, aluminum and metallurgical industries.

• Storage up to 1 TB and HDMI output: Full HD video, photos with laser marking and inspection data are stored on the 32GB internal memory (expandable to 1TB) and exported in real time via HDMI — complete documentation ready to archive or send to the technical department immediately after the session.

Technical Specifications — GT102 Industrial Pipe Inspection Camera

Applications — Where the GT102 Industrial Pipe Inspection Camera Is Used in Practice

An industrial pipe inspection camera from the GT102 series is the standard tool of maintenance departments in plants manufacturing steel pipes, industrial boilers and pressure vessels. The 120–600mm range covers exactly the typical sizes of process pipes, internal distribution fittings and heat-transfer coils in industrial installations. The Ø49mm metal head withstands impact with weld burrs, oxide deposits and the irregular geometry of flange or socket joints.

In the petrochemical, energy and aluminum industries, this industrial pipe inspection camera documents corrosion cracks, internal erosion, weld defects and reaction-product deposits in the aggressive chemical conditions where plastic push-rod rods and chambers fail rapidly. The measurement laser, integrated as standard, provides direct defect sizing on the recorded image, eliminating the need for a second entry with separate measuring equipment — a significant saving in time and cost per technical audit. Browse the full range of Uzinex industrial equipment for inspection solutions across all pipe and tube diameters.

The metal construction, steel structure fabrication, food and beverage (internal service piping) and industrial HVAC sectors use industrial pipe inspection cameras for the periodic technical audits required by workplace safety regulations and by production quality-assurance requirements, in line with international standards for non-destructive pipe inspection. Documentation with integrated laser is accepted directly in compliance files and in periodic technical inspection reports. How It Works — Workflow with the GT102 in an Industrial Environment

• Preparation and insertion into the pipe: This industrial pipe inspection camera — the compact crawler — is inserted through the accessible end of the pipe or through the flange access opening. The Ø49mm metal head enters pipes from 120mm internal diameter without forcing, even with slightly elliptical geometry or partial wall deposits.

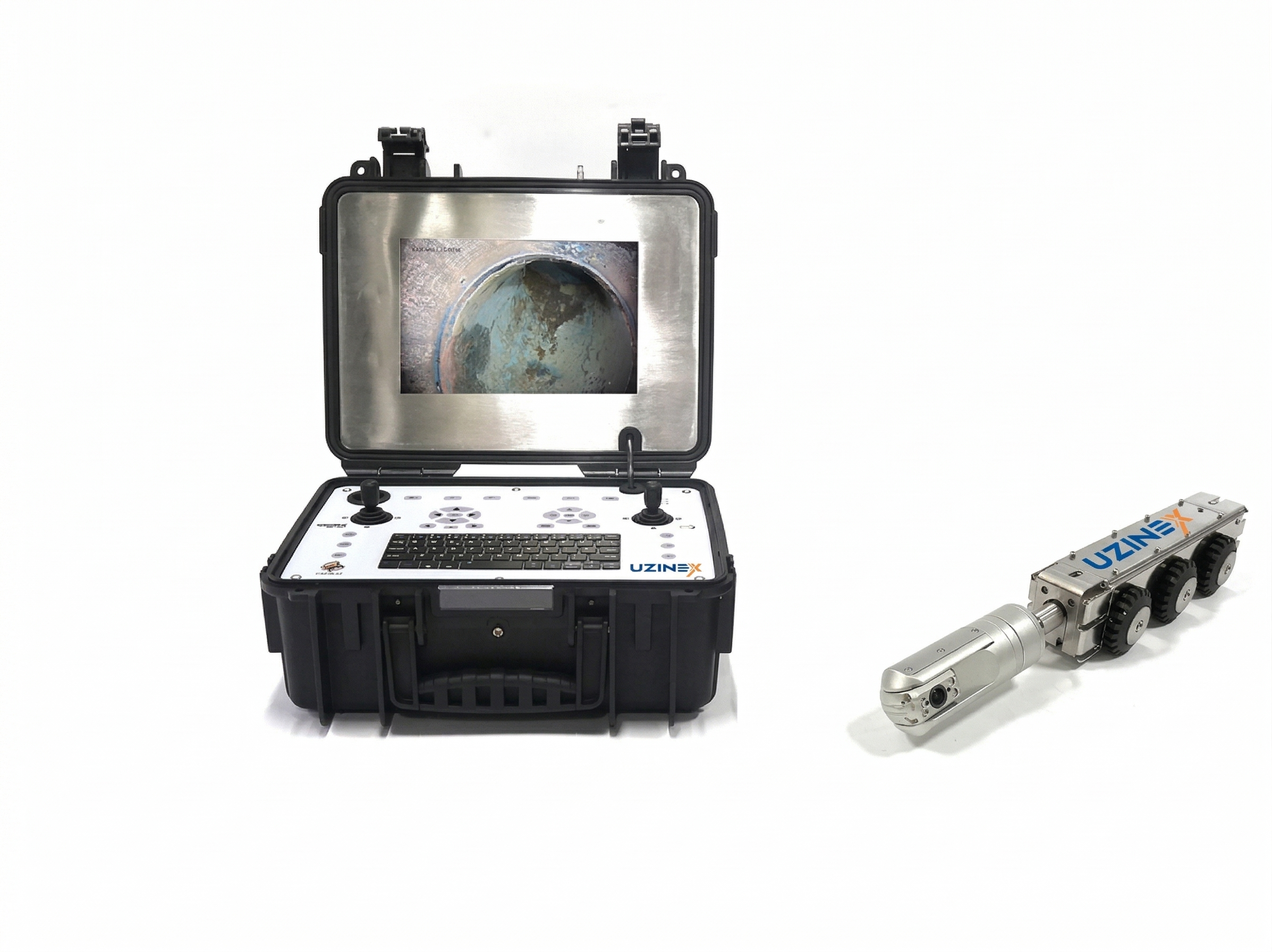

• Joystick control from the 10 inch unit: The operator guides the crawler forward/backward and through turns at variable speed with the integrated joystick, watching the live image on the 10 inch screen. The 360° rotation and 180° tilt are commanded with dedicated buttons, without stopping movement.

• Documentation with active laser: When a defect is identified, the operator activates the standard measurement laser for direct dimensional quantification on the recorded image. Photography and video recording are saved with a single button, with the timestamp and footage displayed automatically on the captured image.

• Monitoring of DIP and pressure data: The screen continuously displays the distance traveled, the DIP localization data and the pressure values in the pipe — information essential for correlating identified defects with the exact position on the technical layout of the installation.

• Electric drum retrieval and data export: The electric drum retrieves the cable automatically or manually. Recordings are exported via HDMI or stored on internal memory, ready to hand over to the process engineer or archive in the quality management system.

Frequently Asked Questions About the GT102 Industrial Pipe Inspection Camera

What is the minimum pipe diameter the GT102 can inspect?

The GT102 lowers the lower limit to 120 mm — the smallest compatible diameter in the entire Jiutai range. The compact Ø49mm metal head enters pipes from 120mm without forcing. The upper limit is 600mm, covering secondary distribution pipes and main fittings in industrial manufacturing installations. For larger diameters, the Uzinex range offers dedicated models, such as the GT102B for 150–2000mm. Why is the camera head metal and not plastic like other models?

Industrial pipes made of steel, aluminum and metal alloys often have weld burrs, hard oxide deposits and irregular geometry at joints — conditions that rapidly damage plastic camera heads. The Ø49mm metal head of this industrial pipe inspection camera withstands collision, the abrasion of hard deposits and impact with internal ribs of the pipes, significantly extending the service life of the most mechanically stressed component. Is the measurement laser truly included as standard or is it optional?

The measurement laser is included as standard in every GT102 unit — it is not an optional accessory at extra cost. This industrial pipe inspection camera allows direct dimensional quantification of cracks, local erosion and deposits on the recorded 2MP image, with no external equipment. The 512Hz locator is available separately on request, useful for correlating the defect position with the routing layout of the installation. Can the GT102 be used in environments with aggressive chemicals?

Yes. This industrial pipe inspection camera — with anti-corrosion treatment and IP68 sealing — operates in pipes with residual hydrocarbons, diluted acid solutions, chemical sludge and other aggressive environments specific to the petrochemical, aluminum and metallurgical processing industries. Cleaning the crawler after each session in corrosive environments is recommended to maximize service life. How does the GT102 compare with the GT102B in terms of diameter range and use?

The GT102 (120–600mm) is the compact industrial pipe inspection camera for manufacturing installations — Ø49mm metal head and standard laser. The GT102B (150–2000mm) is the portable solution for medium-to-large distribution networks, with a dual PTZ camera and 10x zoom. If your installation contains mainly 120–600mm pipes in an industrial manufacturing environment, the GT102 is the optimal solution; for mixed networks with larger diameters, the GT102B offers extended coverage. Why Buy the GT102 Industrial Pipe Inspection Camera from UZINEX?

• Free consultancy for industrial manufacturing applications: The UZINEX team analyzes the type of pipes, the internal chemical environment, the dominant diameters and the documentation requirements, and configures this industrial pipe inspection camera — with laser and 512Hz if applicable — with the cable length suited to your specific installation.

• On-site delivery, testing and operator training: The GT102 is delivered, tested on the client's installation and commissioned with complete operator training — joystick, laser, recording, HDMI export — on the same day as delivery.

• Extended 60-month warranty and technical support under 36 hours: Every industrial pipe inspection camera delivered through UZINEX benefits from a 60-month warranty and a guaranteed response time under 36 hours, with remote diagnostics and priority spare-part delivery to minimize downtime in continuous-production installations.

• Standard laser — accepted NDT documentation: The laser included as standard in this industrial pipe inspection camera eliminates the need for a separate measuring instrument for NDT structural-integrity audits, reducing the total inspection cost and simplifying the documentation procedure for quality-assurance departments.

• Compatibility with international NDT standards: The documentation generated by the GT102 — Full HD video, photos with laser marking, DIP data and footage — is compatible with the requirements of the international non-destructive inspection standards applicable to manufacturers of pressure vessels, boilers and steel structures in Romania.

GT102 industrial pipe inspection camera — the choice of maintenance engineers who inspect pipes from 120mm with an integrated standard laser, anti-collision metal head and Full HD documentation accepted directly in compliance files and NDT structural-integrity audits.
