Pipe Inspection Push Camera GM320 | 7 Lenses | 8–800mm | Touch 7" | WiFi

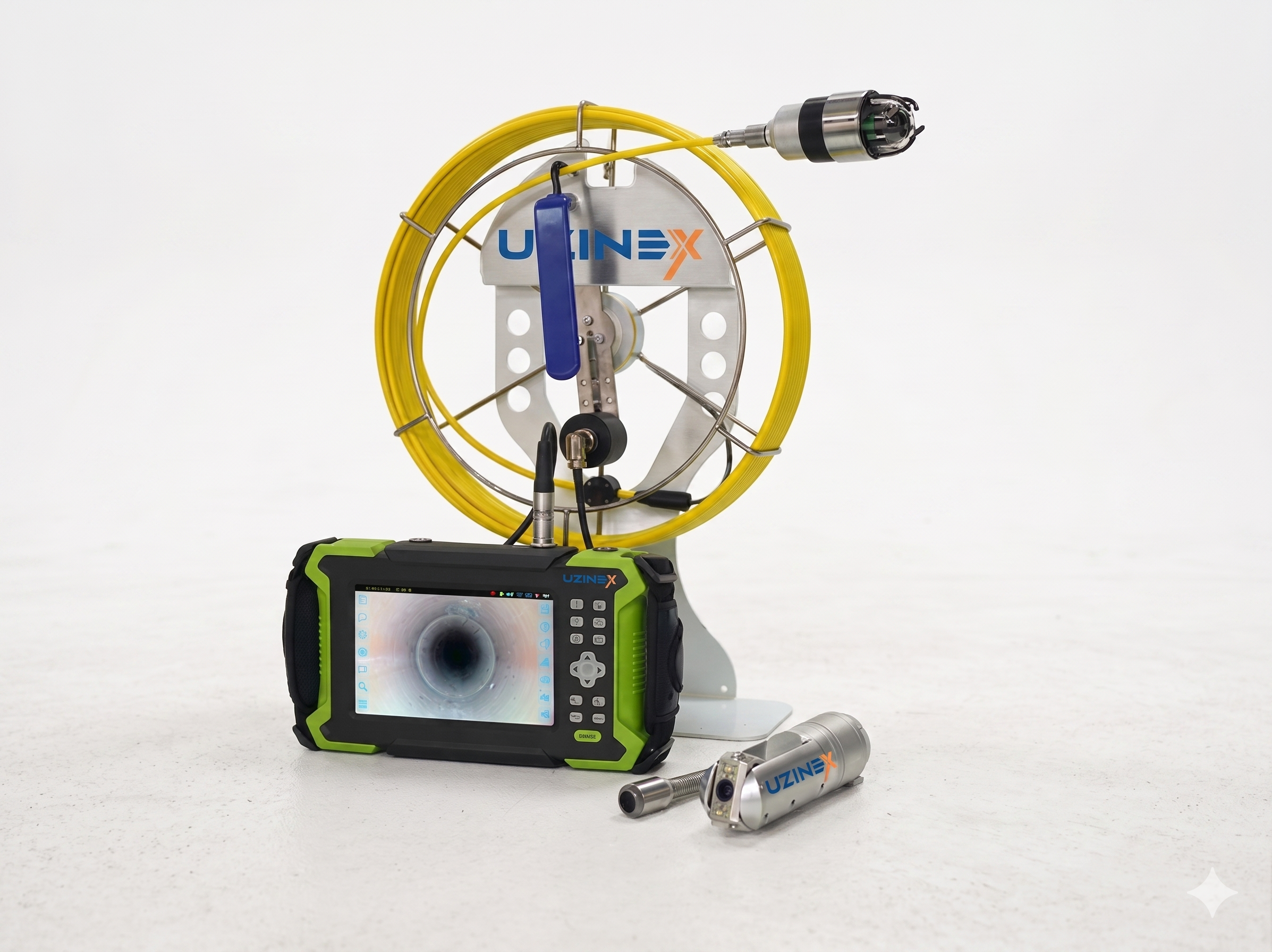

Pipe inspection push camera GM320 — the multifunctional HD system with seven interchangeable lenses (6/8/16/21/37/49/51mm) for the visual inspection of pipes with diameters between 8mm and 800mm. With a 7-inch IPS touchscreen, integrated WiFi transmission, advanced software functions for defect editing and measurement, and a battery with over 6 hours of runtime, this pipe inspection push camera is the first instrument in the Jiutai range to combine the versatility of a push-rod adapted to 7 lens sizes with the power of diagnostic and measurement software directly on the touchscreen.

Unlike the crawlers in the range that require a motor and a traction mechanism, a GM320-type pipe inspection push camera advances by manually pushing the semi-rigid cable — faster to deploy, easier to transport and able to traverse bends and branches that a crawler's wheels cannot negotiate. The 6mm lens with electric joystick and the 16mm lens with automatic self-righting spring make the GM320 the solution for pipes from 8mm, inaccessible to any crawler in the range. Key Advantages of the GM320 Pipe Inspection Push Camera

• Seven interchangeable lenses — range from 8mm to 800mm: The GM320 is the only pipe inspection push camera in the Jiutai range with seven lens sizes available: 6mm (electric joystick), 8mm, 16mm (self-righting spring, wide-angle), 21mm, 37mm (360°/220° full-view), 49mm and 51mm. A single system covers everything from 8mm capillary channels to 800mm pipes, without changing the base platform.

• 7-inch IPS touchscreen — the only touchscreen in the range: The full-viewing-angle IPS touchscreen supports multi-touch zoom via the pinch gesture, image rotation and navigation of local resources — all operable with the fingers, without physical buttons. The integrated WiFi allows live image transmission to a phone or tablet and remote control.

• Minimum diameter 8mm — the smallest in the entire Jiutai range: The 6mm lens with electric control joystick accesses pipes from 8mm inner diameter — the equivalent of an injection tube, a cooling channel in an industrial mould or a precision capillary pipe. No other system in the Jiutai range goes below 100mm with a crawler; the GM320 makes the inspection of ultra-small pipes possible with the same base platform.

• Advanced software functions: measurement ruler, image freeze, negative film, temperature: The touchscreen runs complete diagnostic software — a defect measurement ruler directly on the image, instant frame freeze, negative inversion for visualising defects on reflective surfaces, temperature measurement and real-time image editing. No other pipe inspection push camera in the lineup offers this software suite directly on the control unit.

• Integrated WiFi transmission — connectivity and remote control: The WiFi module allows live image transmission to a smartphone or tablet and remote control of the system. Images and videos transfer wirelessly directly into the mobile app without removing the unit or connecting a data cable.

• 16mm lens with automatic self-righting spring: The 16mm wide-angle lens with spring mechanism automatically passes through 90° bends and pipe branches without manual guidance — ideal for plumbing installations in buildings with complex routing geometry where direct cameras get stuck at the first bend.

• IP68 waterproof with resistance to 10m depth: The main camera head is IP68 sealed with certified resistance to 10m water depth — suitable for the inspection of pipes with residual water, for partially flooded service connections and for traps with a permanent liquid level.

• Over 6 hours of runtime and customizable 10–120m cable: The long-life battery covers a full day of inspection without recharging. The length of the semi-rigid cable is configured on order from 10m (short indoor inspections) to 120m (outdoor drainage networks or medium-length industrial installations).

Technical Specifications — GM320 Pipe Inspection Push Camera

Applications — Where the GM320 Pipe Inspection Push Camera Is Used

A pipe inspection push camera from the GM320 series is the preferred tool of licensed plumbers, HVAC service companies and maintenance technicians who inspect indoor plumbing, drainage systems and building service pipes on a daily basis. The deployment speed (no motor, no heavy electric drum), the low weight of the complete unit and the seven interchangeable lenses allow adaptation to any pipe diameter encountered in the field — from an 8mm trap to an 800mm collector — with a single base platform carried in the boot.

In the energy, petrochemical, aerospace and military industries, this pipe inspection push camera inspects internal service pipes, the cooling channels of complex parts, process connections and the tight spaces of equipment where wheeled crawlers cannot enter. The 6mm lens with electric joystick accesses capillary channels in industrial moulds and precision components — a niche untouched by any other system in the Jiutai range available at Uzinex. Explore the full range of Uzinex industrial equipment for inspection solutions across all categories of pipes and installations.

Technical audit companies, installation handover services and quality departments in precision manufacturing use GM320-type pipe inspection push camera systems to verify pipes from 8mm upwards, documenting via the measurement ruler directly on the touchscreen and exporting reports wirelessly, in line with international non-destructive video inspection standards. The temperature measurement function adds an additional level of diagnosis for pipes in thermal or cooling installations. How It Works — Workflow with the GM320

• Lens selection and system preparation: The technician selects the lens suited to the diameter of the pipe to be inspected from the set of seven available. Changing the lens takes a few seconds and requires no tools. The touch control unit powers on and connects automatically to the camera head.

• Inserting the push-pull cable into the pipe: The semi-rigid cable is inserted manually through the trap, drain opening or accessible end of the pipe. The 16mm lens with spring automatically passes the bends; the 6mm lens is guided via the joystick. This makes the GM320 a pipe inspection push camera adaptable to any routing geometry.

• Live inspection on the 7-inch touchscreen: The Full HD image is displayed in real time on the IPS touchscreen. The operator zooms via the pinch gesture, rotates the image with a finger and activates freeze or negative film with a single tap to analyse zones with suspected defects.

• Measuring and marking defects with the measurement ruler: When a defect is identified, the operator activates the measurement ruler on the touchscreen and sizes the crack, corrosion or deposit directly on the image — without external instruments and without re-entry for a separate measurement.

• Wireless transfer and report generation: The marked photographs and videos transfer wirelessly to a smartphone or tablet via the integrated WiFi. The inspection report is assembled from the image gallery with measurements and sent to the client immediately after the session.

Frequently Asked Questions about the GM320 Pipe Inspection Push Camera

What is the difference between a push camera and a CCTV crawler?

A pipe inspection push camera advances by manually pushing a semi-rigid cable — no motor, no wheels, no traction mechanism. It is faster to deploy, lighter and traverses the bends and branches that a crawler cannot negotiate. A CCTV crawler is self-propelled, covers longer distances and brings advanced functions (optical zoom, electric lift, anti-rollover), but requires more setup time and cannot enter pipes below 100–120mm. The GM320 — this pipe inspection push camera — complements the Uzinex crawler range for small-diameter segments and complex geometries. What is the minimum diameter the GM320 can inspect?

With the 6mm lens with electric joystick, the GM320 inspects pipes from 8mm inner diameter — the smallest in the entire Jiutai range. This allows access into capillary channels, industrial injection pipes, cooling circuits in moulds and precision components where no other system in the range can enter. The upper limit of 800mm with the 51mm or 49mm lens covers medium-sized collectors. How does WiFi transmission work and which devices are compatible?

The integrated WiFi module of this pipe inspection push camera creates a local network to which any smartphone or tablet (iOS or Android) connects. The live image is viewed in the dedicated app, and photographs and videos transfer directly into the memory of the connected device — without data cables, without external SD cards and without manual transfer after the session. Do the lenses change quickly in the field or do they require special tools?

Lens changing is done via a quick coupling without tools, in a few seconds. The technician can switch from the 6mm lens to the 37mm full-view or to the 51mm while moving from one inspection point to another, without opening a toolkit or stopping the work session. All seven lenses are compatible with the same controller and the same cable. Can the GM320 be used in partially flooded pipes?

Yes. The main lenses are IP68 sealed with certified resistance to 10m water depth, allowing inspection of pipes with residual water, traps with a permanent liquid level and partially flooded connections. The hook/fishing-rod camera lens is rated IP67 — sufficient for use in pipes with high humidity or splashes, but not for full immersion. Why Buy the GM320 Pipe Inspection Push Camera from UZINEX?

• Free consultancy for configuring the lens set: The UZINEX team analyses the dominant diameters, pipe type and installation geometry and configures this pipe inspection push camera with the lens set and cable length that suit you — without paying for lenses you do not use.

• Complete delivery and practical demonstration: The GM320 is delivered with hands-on field training for all touchscreen functions, lens changing, WiFi use and report export — the installation or maintenance team becomes operational immediately after delivery.

• Extended 60-month warranty and technical support within 36 hours: Every pipe inspection push camera delivered through UZINEX benefits from a 60-month warranty and a guaranteed response time within 36 hours, with priority replacement of lenses and wear components from our own stock.

• Documented compatibility with inspection standards: Photographs with the integrated measurement ruler and Full HD videos exported wirelessly are accepted in technical installation handover reports, in insurance files and in internal audits in the energy and manufacturing industries.

• Complements the crawler range for small diameters and complex geometries: The GM320 is the ideal complement to the crawler systems in the Uzinex range — it covers the segment from 8mm to 800mm with a push-rod where wheels cannot enter, complementing the GT100 (100mm+) and the rest of the range for long sections.

Pipe inspection push camera GM320 — the multifunctional solution with seven lenses, a 7-inch touchscreen, integrated WiFi and a measurement ruler for teams inspecting pipes from 8mm to 800mm with a single compact system, with no motorised crawlers and no limitations on geometry or minimum diameter.
