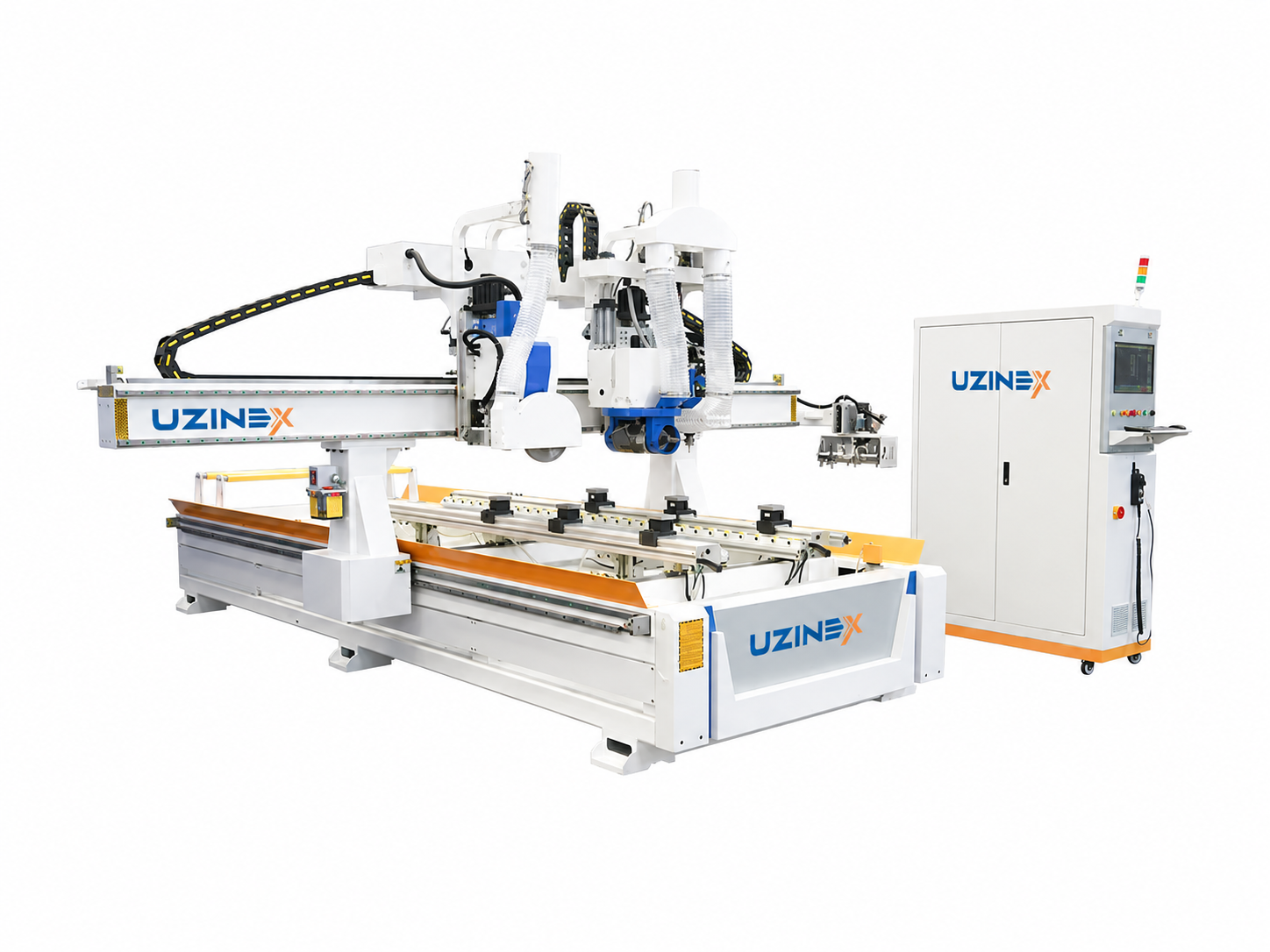

Multifunctional CNC machining center for door manufacturing

The multifunctional CNC machining center for door manufacturing is the 8-axis Syntech CNC machining equipment that brings together in a single machine all the operations needed to fully manufacture wooden doors — cutting, drilling for hinges and locks, milling recesses, carving profiles and finishing on all 4 faces. Eliminating the transfer of the workpiece to separate machines dramatically reduces the cycle time per door of the multifunctional CNC machining center for door manufacturing.

The multifunctional CNC machining center for door manufacturing has a 9kW ATC main spindle with air cooling and ISO30 clamping, a horizontal twin-head spindle of 5,5kW with 90° rotation, a saw with 1,5kW + 7,5kW blades with 90° rotation, a SHIMPO gearbox, an 8-position ATC magazine, a PTP table with 4 zones, a Becker KVT3.140 4kW vacuum pump and a 5,5kW dust collector.

The multifunctional CNC machining center for door manufacturing covers the complete range of doors — solid wood doors, laminated doors, MDF doors and security doors with a wooden frame — for furniture and joinery manufacturers, manufacturers of interior and exterior doors and access system integrators who deliver doors ready-mounted with hinges, locks and accessories. The 1300 × 3000 × 200mm working area covers the standard and oversized formats of residential and office doors. Transport, installation and commissioning included. 60-month warranty. Technical specifications — multifunctional CNC machining center for door manufacturing

The multifunctional CNC machining center for door manufacturing is configured at the quotation stage according to the range of doors produced. Free technical consultancy available. Advantages of the multifunctional CNC machining center for door manufacturing

• All operations in a single setup — sawing, drilling, milling, carving — the multifunctional CNC machining center for door manufacturing performs precision cuts with the 90°-rotation saw, drilling for hinges and locks with the ATC spindle, milling recesses for accessories and carving decorative profiles in a single cycle, on a single setup of the workpiece on the PTP table. Eliminating the transfer between separate machines on the multifunctional CNC machining center for door manufacturing reduces the cycle time per door, eliminates repositioning errors and allows one operator to supervise production without additional assistance.

• Horizontal twin-head spindle, 5,5kW, 90° rotation — complete machining of all 4 faces of the door — the horizontal twin-head spindle of the multifunctional CNC machining center for door manufacturing rotates 90°, allowing tool access to the front face, the back and the two edges of the door without repositioning the workpiece. This feature of the multifunctional CNC machining center for door manufacturing is critical for the lock and hinge slots that must be made on the edge of the door with millimetre precision so that the hardware fits correctly without manual adjustments.

• Saw with 1,5kW + 7,5kW blades with 90° rotation — precise rectangular cutting of the door panel — the multifunctional CNC machining center for door manufacturing has a saw system with two power levels: a 1,5kW blade for finish trimming and a 7,5kW blade for cutting to the final panel dimensions. The 90° rotation of the saw on the multifunctional CNC machining center for door manufacturing allows cross and rip cutting in the same cycle, ensuring corner squareness to tolerances below 0,5mm — the basic condition for a door that does not bind in the frame.

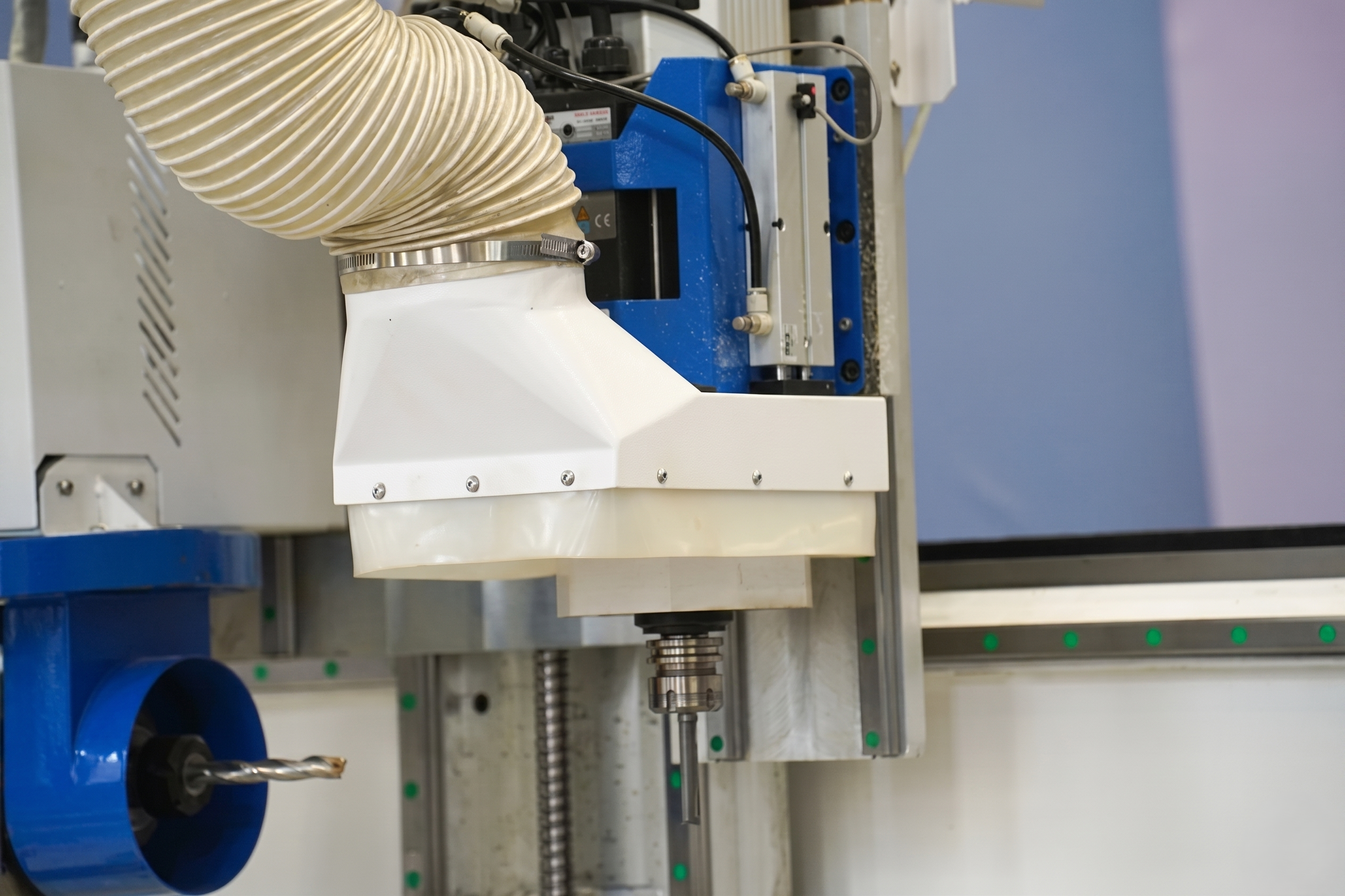

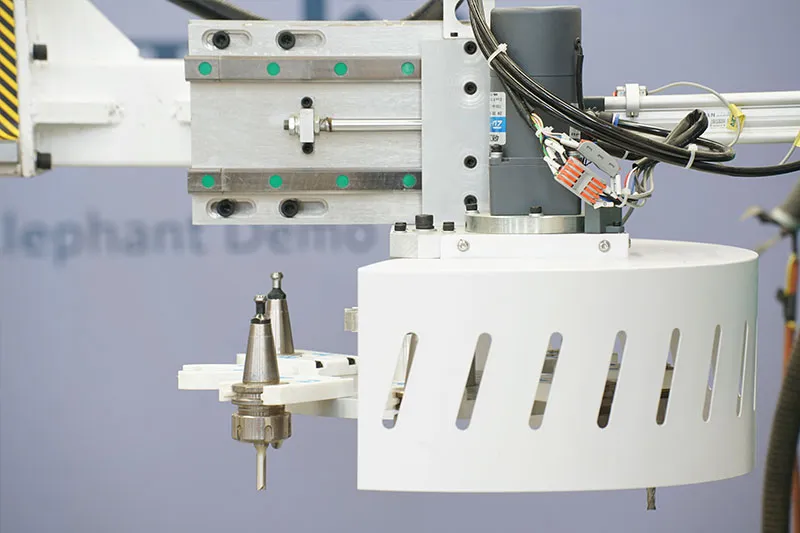

• 9kW ATC spindle ISO30 with 8-tool magazine — fast automatic changeover without interrupting the cycle — the 9kW ATC main spindle with air cooling and ISO30 clamping of the multifunctional CNC machining center for door manufacturing automatically changes from the 8 tools in the magazine according to the program, without operator intervention. In a complete cycle on the multifunctional CNC machining center for door manufacturing, the roughing mill, the profiling mill, the hinge drill, the lock groove mill and the finishing mill follow one another automatically — production continues without pauses for manual tool changes.

• PTP table with 4 zones and Becker KVT3.140 4kW vacuum — secure clamping on any door format — the PTP (Point-to-Point) table with 4 suction zones of the multifunctional CNC machining center for door manufacturing reconfigures electrically for each door format, ensuring vacuum clamping over the entire panel surface. The 4kW Becker KVT3.140 pump of the multifunctional CNC machining center for door manufacturing maintains a stable vacuum force throughout the entire cycle, eliminating workpiece movement during side-cutting and aggressive milling operations.

• 8-axis Syntech control — precise synchronisation of all machining heads — the 8-axis Syntech control system of the multifunctional CNC machining center for door manufacturing simultaneously coordinates the ATC spindle, the horizontal spindle, the saw, the PTP table and the auxiliary systems, executing complex machining sequences with microsecond synchronisation between operations. Programming on the multifunctional CNC machining center for door manufacturing is carried out with CAM software dedicated to door production, with parameter libraries for the standard hardware types (cup hinges, Euro-profile hinges, cylinder locks, multipoint locks).

• SHIMPO gearbox and 5,5kW dust collector — positioning precision and a clean working environment — the SHIMPO gearboxes of the multifunctional CNC machining center for door manufacturing provide the rigidity and positioning precision required for milling hardware recesses where tolerances of 0,1–0,2mm determine the quality of the fit. The 5,5kW dust collector of the multifunctional CNC machining center for door manufacturing extracts sawdust and dust from all machining heads simultaneously, keeping the guides clean and extending the service life of the optical and mechanical components. 60-month UZINEX warranty, national technical support within 24–48 hours.

Operations performed on the multifunctional CNC machining center for door manufacturing

The multifunctional CNC machining center for door manufacturing performs the complete machining cycle of a door panel: trimming to final dimensions (width, length, squareness), drilling the recesses for cup hinges or Euro-profile hinges, milling the groove for the cylinder lock or multipoint lock, milling the recess for the strike plate and rosette, profiling the edges with rounding or angled exit, carving the front panel with decorative profiles and drilling for the peephole and door chain. All these operations of the multifunctional CNC machining center for door manufacturing are performed in a single cycle on the same setup, with repeatable precision from door to door in series production.

The multifunctional CNC machining center for door manufacturing is compatible with solid wood doors (oak, beech, pine, lime), plain and painted MDF doors, HPL and veneered laminated doors, doors with a PU foam core and wooden frame (office doors) and security doors with a solid wood frame and metal filling. The 1300 × 3000 mm working area of the multifunctional CNC machining center for door manufacturing covers standard residential formats (600–1100 × 2000–2200mm) and oversized formats (up to 1300 × 3000mm) for entrance doors to public buildings and commercial spaces. Frequently asked questions about the multifunctional CNC machining center for door manufacturing

Can the multifunctional CNC machining center for door manufacturing work on security doors with a metal core?

The multifunctional CNC machining center for door manufacturing machines the solid wood frame of security doors — dimensional cutting, drilling and milling of the hardware recesses are performed on the wooden component of the assembly. Machining the metal elements requires a separate CNC machine for metal. UZINEX clarifies the optimal configuration for the specific range of security doors at the quotation stage. What CAM software is compatible with the multifunctional CNC machining center for door manufacturing?

The multifunctional CNC machining center for door manufacturing works with CAM software dedicated to door production, with parameter libraries for the standard hardware types. At commissioning, UZINEX provides the specific post-processor and trains the operators to program the door types in the customer's production. Is the multifunctional CNC machining center for door manufacturing eligible for European funding?

Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for projects with European funds — PNRR, the Regional Programme, the Just Transition Programme. The multifunctional CNC machining center for door manufacturing can be included in SEAP/SICAP. Leasing and credit options are available on the UZINEX credit and leasing page. Why UZINEX for the multifunctional CNC machining center for door manufacturing

The multifunctional CNC machining center for door manufacturing is the investment that allows door manufacturers to move from production with separate machines to an integrated flow, with shorter cycle time, more consistent quality and lower staffing requirements.

• Technological flow configuration included — UZINEX analyses the range of doors produced and configures the multifunctional CNC machining center for door manufacturing with the optimal tools, parameters and CAM programs.

• Transport, installation and commissioning included — installation at the customer's location, calibration and complete operator training.

• 60-month warranty — extended coverage for series production in a continuous flow.

• Spare parts in stock — components and consumables available quickly, with no prolonged stoppages of the multifunctional CNC machining center for door manufacturing.

• National technical support within 24–48 hours — technicians with experience in wood CNC and nationwide coverage.

• Eligible for European funds — complete technical documentation for PNRR, POR and other active programmes.

UZINEX multifunctional CNC machining center for door manufacturing — working area 1300×3000×200mm, 8-axis Syntech, 9kW ATC spindle ISO30 air cooling, 5,5kW horizontal spindle 2 heads 90° rotation, saw 1,5kW+7,5kW 90° rotation, SHIMPO gearbox, 8-tool ATC magazine, PTP table 4 zones, Becker 4kW KVT3.140 vacuum, 5,5kW dust collector, compatible with solid wood/MDF/laminated/HPL, 60-month warranty, transport, installation and commissioning included throughout Romania.
