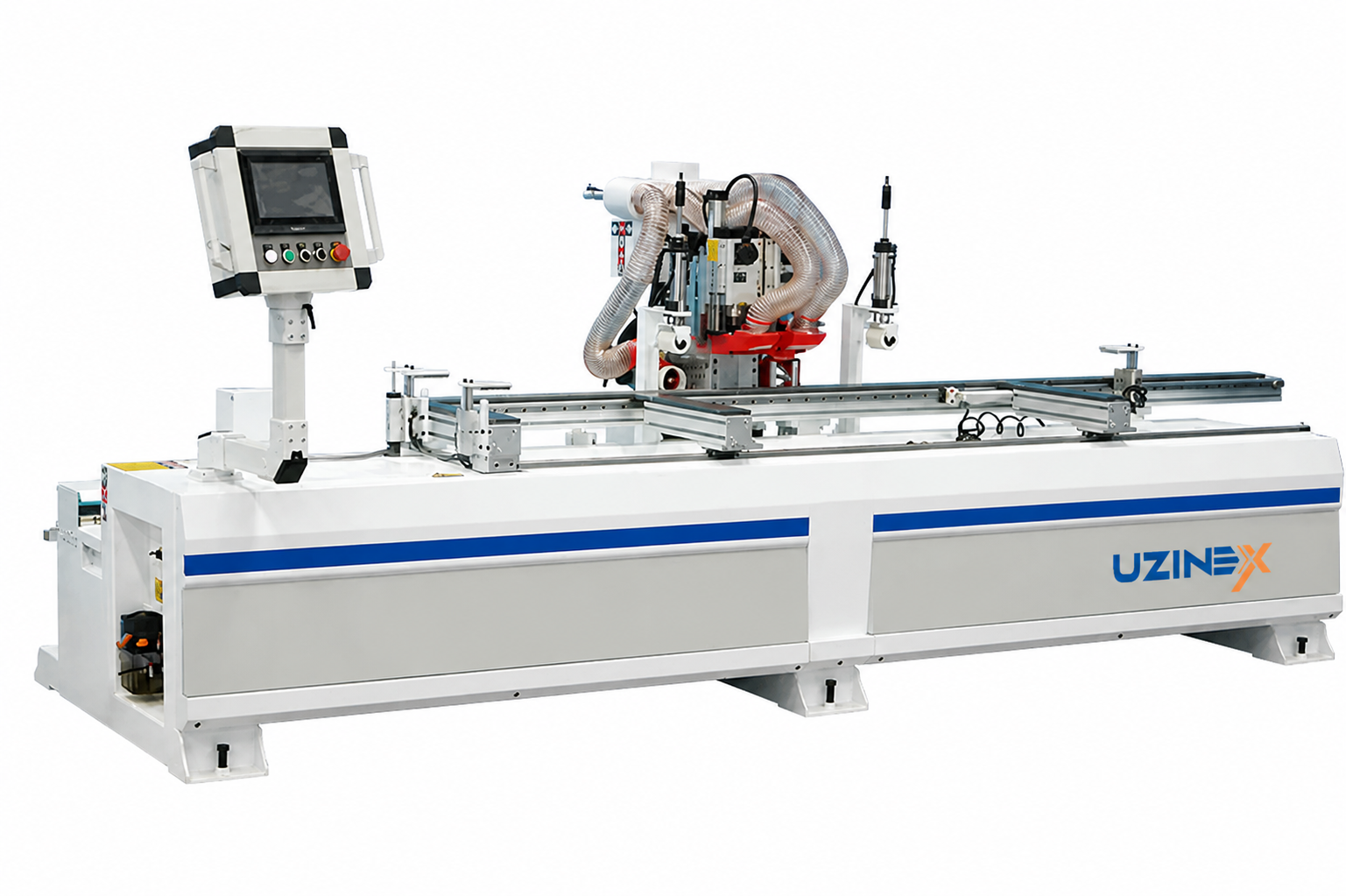

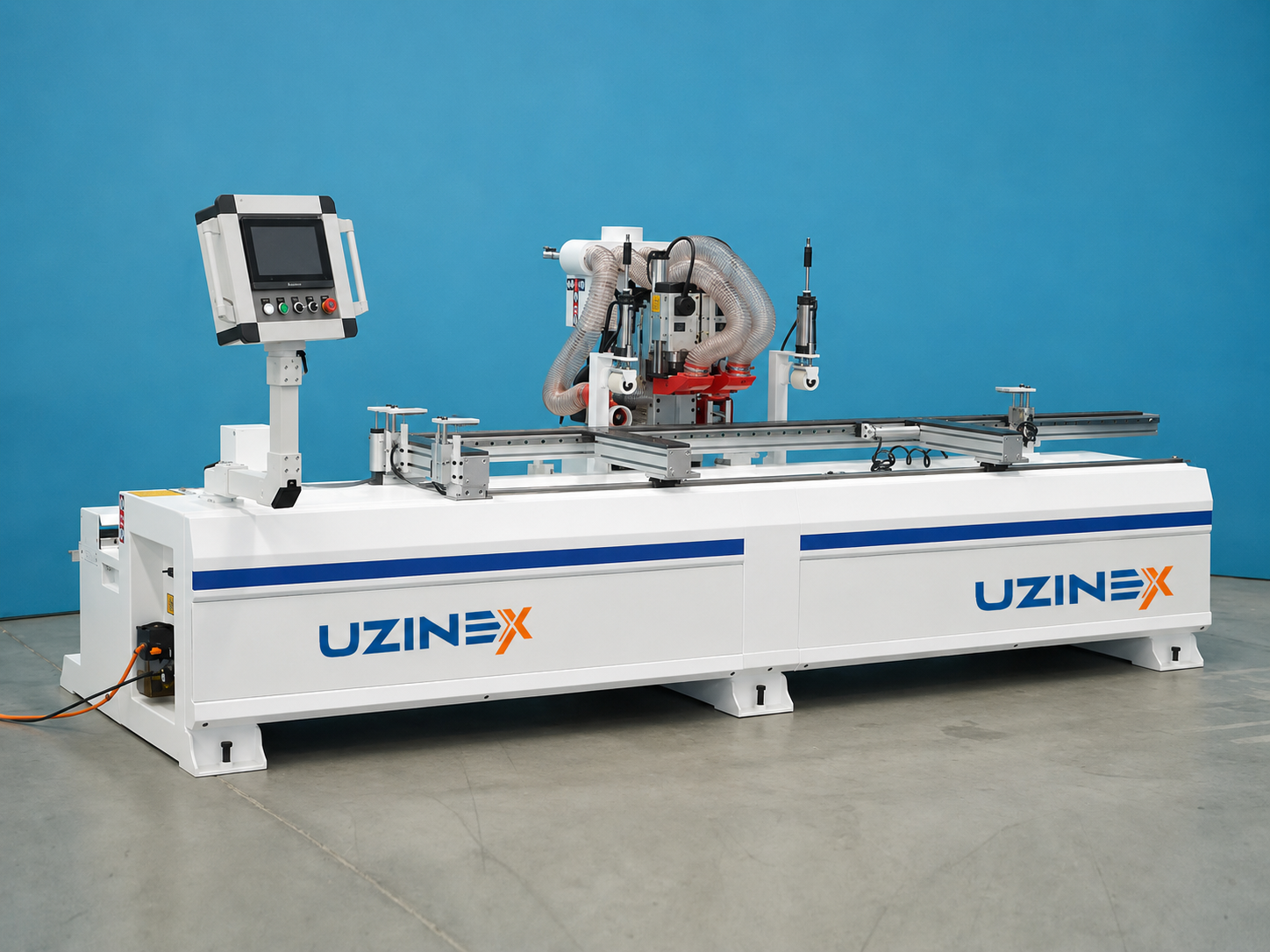

CNC Machine for Milling Hinge and Lock Recesses on Doors

The CNC centre for milling hinge and lock recesses on doors is the specialised equipment for wooden door manufacturers that require precise milling of the flat recesses for screw-mounted hinges, the lock-body hole and the lock face plate recess on the door edge — all in a single clamping cycle, without transfer to other machines.

The configuration with 4 horizontal spindles (7,5 kW + 2 × 2,2 kW) and 2 vertical HQD spindles of 6 kW, plus a C axis with an RV gearbox that pivots 360° and automatically switches the approach direction, makes the CNC centre for milling hinge and lock recesses on doors the solution for door factories with high volumes and high precision requirements.

The CNC centre for milling hinge and lock recesses on doors has an installed power of 15 kW+, 1,000 W servo motors with a brake function on the X, Y and Z axes, a Shimpo Japan gearbox on the XY axes and a robotic-type RV gearbox on the C axis, Taiwan #30 square rails on all XYZ axes.

The transmission of the CNC centre for milling hinge and lock recesses on doors includes imported helical rack on X and Y, a 3210 ball screw on the Z axis, a Fuling inverter, a control system with dedicated door CAM software, France Schneider CE electrical parts and pneumatic clamps with a special pressing plate for wooden doors. Technical specifications — CNC centre for milling hinge and lock recesses on doors

The CNC centre for milling hinge and lock recesses on doors is configured at the quotation stage according to the types of doors, hardware and production volumes. Free technical consultancy available. Advantages of the CNC centre for milling hinge and lock recesses on doors

• C axis with RV gearbox pivoting 360° — approach from any direction without repositioning the door — the CNC centre for milling hinge and lock recesses on doors has a C axis with a robotic-type RV gearbox that rotates the milling head 360° horizontally and automatically switches the approach direction of the cutter. This configuration allows the flat hinge recess to be milled from the exact direction required for a recess with smooth depth and walls, without turning or repositioning the door. The RV gearbox — used in the joints of industrial robots — ensures stable precision and a long service life under repeated switching in intensive production.

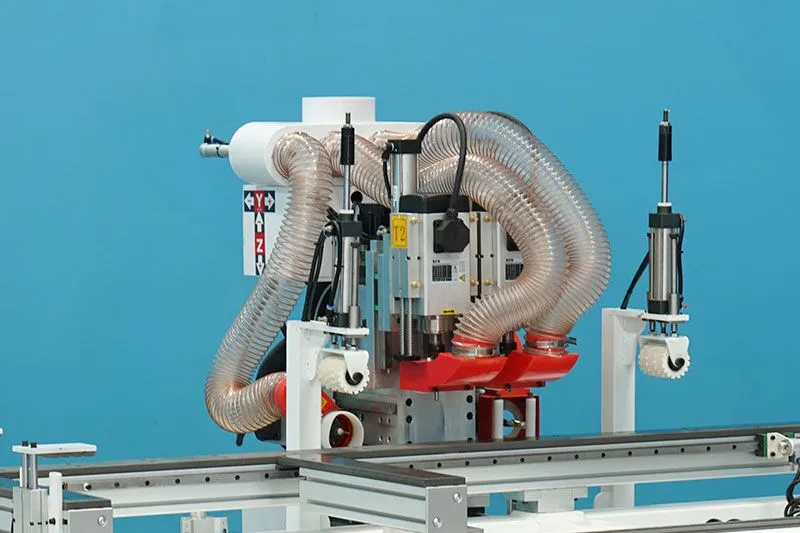

• 4 horizontal spindles + 2 vertical — 6 milling heads in a single piece of equipment — the CNC centre for milling hinge and lock recesses on doors has 4 horizontal spindles (7,5 kW + 2 × 2,2 kW) and 2 vertical HQD spindles of 6 kW, totalling 6 active heads in a single machine with a total power of 15 kW+. The horizontal spindles cut the hinge recesses on the door edge and the lock-body hole, and the vertical HQD spindles perform the drilling and milling required on the front faces of the door. The combination of 6 heads eliminates 3–4 manual passes or passes on separate machines.

• Power 15kW+, 18,000 rpm speed — aggressive milling in solid wood and fire-rated doors — the CNC centre for milling hinge and lock recesses on doors is designed for machining solid-wood doors (oak, beech, pine) and fire-rated doors with a compact core, materials that require far greater milling force than chipboard or MDF. The maximum speed of 18,000 rpm ensures clean recess surfaces without fibre tear-out, critical for fitting screw-mounted hinges without additional finishing operations.

• 1,000 W servo with brake on the X, Y, Z axes — precision and head protection — the CNC centre for milling hinge and lock recesses on doors uses 1,000 W servo motors with an integrated brake function on all three main axes. The brake instantly stops head movement at the end of the cycle or at an emergency stop, protecting the cutters and milling heads from damage due to inertia. The 1,000 W servos (superior to the 850 W servos of simpler models) provide the feed force needed for aggressive milling in solid wood at processing speeds of up to 80 m/min.

• Taiwan #30 square rails on all axes — superior guidance for milling with lateral load — the CNC centre for milling hinge and lock recesses on doors uses Taiwan 30 mm square rails (compared with the round 20–25 mm rails of standard routers), the configuration that withstands the lateral loads generated by aggressive milling on the door edge. When milling the hinge recess on the edge, the milling force has a significant lateral component — the #30 rails of the CNC centre for milling hinge and lock recesses on doors absorb this load without deflections that would affect the depth or alignment of the recess.

• Dedicated CAM software with predefined shapes for locks and hinges — no programmers — the CNC centre for milling hinge and lock recesses on doors has an integrated professional control system with CAM software specific to doors, featuring a library of predefined shapes for all standard types of locks and hinges. The operator selects the hardware type, adjusts the dimensions directly and the machine automatically generates the milling programme — without CNC programming knowledge, without external files, without a long setup time between different orders.

• Pneumatic clamps with a door-dedicated pressing plate + durable PVC table — secure clamping, protected surface — the CNC centre for milling hinge and lock recesses on doors clamps the door onto the high-strength PVC worktable by means of adjustable pneumatic clamps with a pressing plate specially designed for wooden doors. The PVC table does not scratch the surface of the door in contact with the table, and the pneumatic clamps do not require a vacuum pump, saving energy and eliminating the risk of the door coming loose during a loss of vacuum pressure.

• Integrated oil-water separator + automatic lubrication — minimal maintenance, high reliability — the CNC centre for milling hinge and lock recesses on doors has an integrated oil-water separator that protects the pneumatic system and internal components from water vapour in the compressed air, extending the service life of the components in continuous production. The automatic lubrication system eliminates the need for daily manual lubrication of the guides and racks.

• 60-month UZINEX warranty — spare parts in stock in Iasi, national technical support within 24–48 hours, transport, installation and commissioning included.

Applications — CNC centre for milling hinge and lock recesses on doors

Factories producing interior solid-wood doors, security doors and fire-rated doors are the main users of the CNC centre for milling hinge and lock recesses on doors. These doors have screw-mounted hinges fitted in flat recesses milled into the edge — not cup hinges drilled with a bit as in furniture — and require a powerful edge cutter for recesses with smooth walls and uniform depth.

The CNC centre for milling hinge and lock recesses on doors is specifically sized for this requirement: 15 kW installed power and a pivoting C axis that approaches the door edge from the optimal direction for each type of recess.

Manufacturers of exterior doors and security doors with 3D-adjustable hinges (concealed europrofile hinges with 3 adjustment points) benefit from the ±0,03 mm precision of the CNC centre for milling hinge and lock recesses on doors. The recess for the 3D hinge must be milled to the exact size of the hinge plate, with walls perfectly perpendicular to the edge, otherwise the hinge's alignment adjustments will not work correctly after fitting. The CNC centre for milling hinge and lock recesses on doors ensures this geometric precision on every door in the series.

Joinery workshops that produce made-to-order doors for architecture and interior design projects with premium imported hardware use the CNC centre for milling hinge and lock recesses on doors for quick adaptation to the specific dimensions of the imported hardware. The CAM software with direct dimension adjustment allows a new hinge or lock type to be programmed in minutes, without returning to the office to modify CAM files. The CNC centre for milling hinge and lock recesses on doors vs. the model with the drilling bank

The CNC centre for milling hinge and lock recesses on doors and the CNC machine for lock holes on wooden doors are two complementary pieces of equipment for the door factory, with different application profiles.

The CNC machine with a 9+3+1 drilling bank and an ATC carousel is optimised for drilling — it performs cylindrical holes for cup hinges (35 mm), holes for connectors and other drill holes, with a bank of 13 drill bits that act simultaneously at several positions. It is the solution for door factories with cup hinges and standard hardware.

The CNC centre for milling hinge and lock recesses on doors is optimised for milling — it performs flat milled recesses (not cylindrical holes) for screw-mounted hinges, lock recesses and milling of the lock face plate, with 4 horizontal spindles and a 360° pivoting C axis. It is the solution for door factories with flat europrofile hinges, security doors and solid-wood doors with premium hardware. Workflow — CNC centre for milling hinge and lock recesses on doors

• The operator selects in the dedicated CAM software the door type (dimensions) and the hardware type (hinge model, lock model).

• The CNC centre for milling hinge and lock recesses on doors automatically generates the milling programme based on the predefined shapes in the library.

• The door is positioned on the PVC table and clamped with the pneumatic clamps with the door-dedicated pressing plate.

• The CNC centre for milling hinge and lock recesses on doors performs sequentially: milling the hinge recess on the edge with the horizontal cutter (C axis positioned at the optimal angle), milling the lock hole, milling the lock face plate recess, any additional vertical milling — with automatic switching of the active cutter.

• The machined door is unloaded; the CNC centre for milling hinge and lock recesses on doors is ready for the next door without recalibration.

Frequently asked questions about the CNC centre for milling hinge and lock recesses on doors

Can the CNC centre for milling hinge and lock recesses on doors also mill recesses for concealed hinges (Simonswerk, Anselmi type)?

Yes. Concealed hinges (hinges fully recessed into the edge) require milling on two faces of the edge — on the door and on the frame — with tight tolerances. The CNC centre for milling hinge and lock recesses on doors performs these recesses with the ±0,03 mm precision required for correct fitting of concealed hinges. The recess shape for the specific brand and model of concealed hinge is programmed into the CAM software during the initial training. UZINEX provides the programming of shapes specific to your hardware at commissioning. What maximum door thicknesses does the CNC centre for milling hinge and lock recesses on doors process?

The CNC centre for milling hinge and lock recesses on doors processes doors with thicknesses of up to 70 mm in the standard configuration, covering interior doors of 35–45 mm and exterior and security doors of 60–70 mm. UZINEX confirms compatibility with the specific thicknesses of your doors at the quotation stage. Can the CNC centre for milling hinge and lock recesses on doors also process doors with a solid-wood core?

Yes. The installed power of 15 kW+ and the maximum speed of 18,000 rpm are specifically sized for aggressive milling in dense solid wood — oak, beech, walnut, ash — not only in chipboard or MDF. The 7,5 kW and 2,2 kW horizontal spindles have sufficient cutting force for clean recesses and smooth walls in solid wood without reducing production speed. Is the CNC centre for milling hinge and lock recesses on doors eligible for European funding?

Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for EU-funded projects — PNRR digitalisation, the Regional Programme, the Just Transition Programme. The CNC centre for milling hinge and lock recesses on doors can be added directly in SEAP/SICAP. Leasing and credit options available on the UZINEX credit and leasing page. Why UZINEX for the CNC centre for milling hinge and lock recesses on doors

The CNC centre for milling hinge and lock recesses on doors is the most specialised piece of equipment in a door factory — the correct selection between the available models and the configuration of the hardware shapes directly determines the quality of the hardware fitting on every door delivered.

• Model selection included — at the quotation stage, UZINEX analyses the types of hinges and locks processed and recommends between the CNC centre for milling hinge and lock recesses on doors (for flat milled recesses) and the machine with the drilling bank (for cup hinges).

• CAM library programming included — UZINEX engineers program the shapes for all the hardware types in your catalogue at commissioning.

• Transport, installation and commissioning included — specialised installation and C-axis calibration at your location.

• 60-month warranty — extended coverage in continuous industrial door production.

• Spare parts in stock in Iasi — cutters, servo motors and Schneider components available immediately.

• National technical support within 24–48 hours — technicians with nationwide coverage and a guaranteed response time.

• Eligible for European funding — complete technical documentation for PNRR, POR and other active programmes.

CNC centre for milling hinge and lock recesses on doors UZINEX — 4 horizontal spindles (7,5 kW + 2 × 2,2 kW), 2 vertical HQD spindles 6 kW, total power 15 kW+, C axis pivoting 360° with RV gearbox, servo 1.000 W with brake on XYZ, 18.000 rpm, speed 10–80 m/min, Taiwan #30 square rails, Shimpo Japan, France Schneider CE, dedicated door CAM software, work area 2.800×1.000×70 mm, 60-month warranty, transport, installation and commissioning included throughout Romania.
