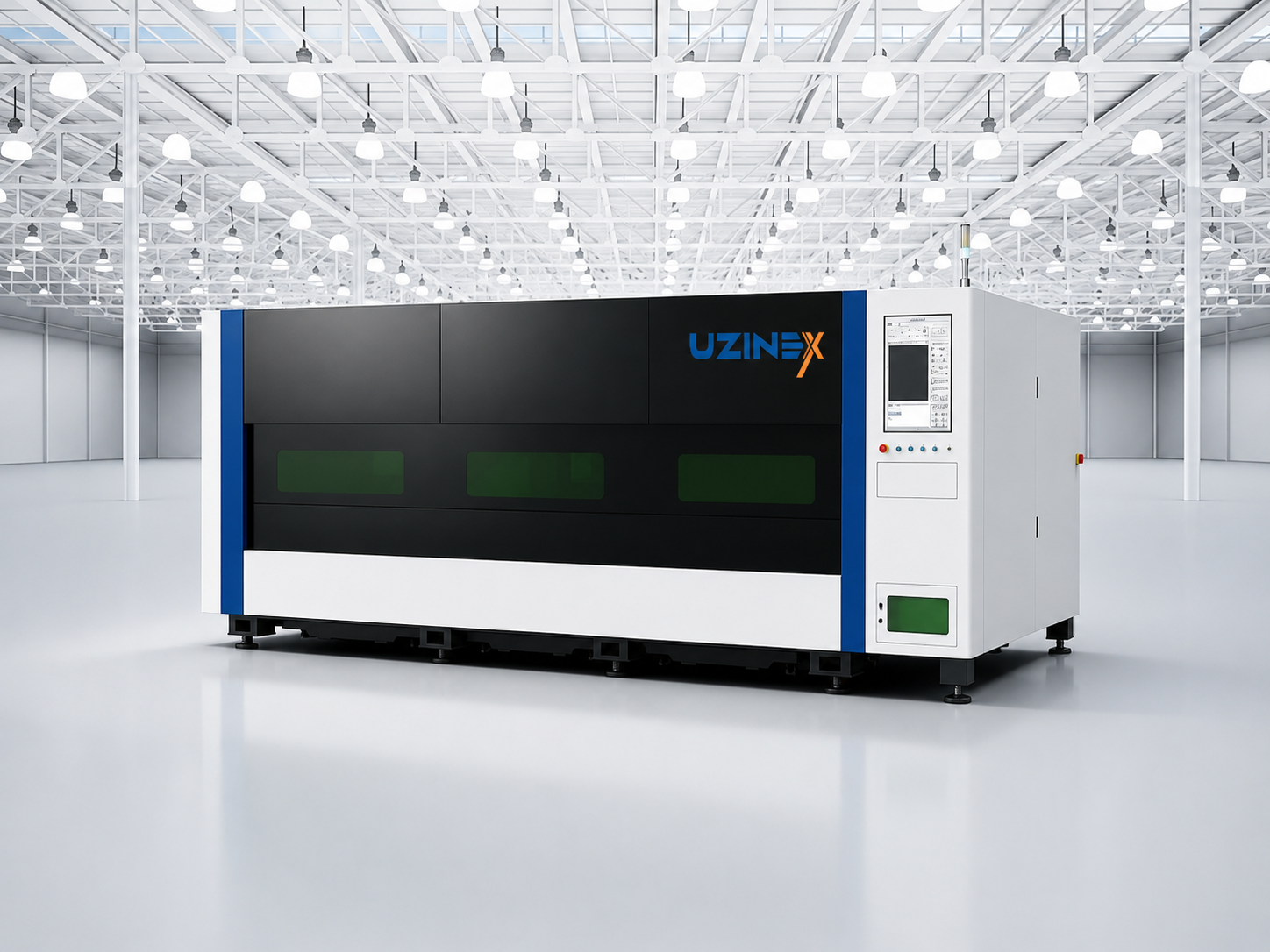

WyCut HS Series High-Speed Fiber Laser Cutting Machine

The WyCut HS Series is a high-speed fiber laser cutting machine, equipped with the new-generation BS5.0 linear motor, laser power of 40–80 kW and a maximum cutting speed of 300 m/min at 5G acceleration. Designed for high-volume continuous-production plants that process thin and medium metal sheets at maximum industrial pace, this high-speed fiber laser cutting machine exceeds the speed of the HP series by 20% and that of the standard series by 100–200% — with the fast automatic shuttle table ensuring near-100% utilization per shift.

The 40–80 kW laser power of the WyCut HS Series high-speed fiber laser cutting machine is not only about the maximum thickness of the cut sheet — it is about the cutting speed on medium thicknesses. At 40 kW, the cutting speed on 6 mm carbon steel far exceeds the usual parameters of 12–20 kW machines, dramatically reducing cycle times on parts with long contours or on programs with thousands of small parts per sheet.

Key advantages of the WyCut HS Series high-speed fiber laser cutting machine

• BS5.0 linear motor — maximum speed 300 m/min and 5G acceleration — the WyCut HS Series high-speed fiber laser cutting machine uses the latest-generation BS5.0 linear motor with wireless speed-sensor technology, reaching 300 m/min and 5G acceleration — parameters that place it in the category of the fastest fiber laser machines in the world for industrial format.

• Laser power 40–80 kW — cutting thick sheets at maximum speed — the 40–80 kW power levels allow cutting carbon steel with thicknesses up to 45 mm and stainless steel up to 50 mm, but the real advantage is the cutting speed on medium thicknesses of 6–20 mm, which far exceeds the capabilities of medium-power machines.

• Fast automatic shuttle table — 24/7 with no downtime — the fast HIWIN automatic hydraulic shuttle system allows continuous 24/7 operation, with the new sheet loaded while cutting continues on the active table, practically eliminating downtime between batches in uninterrupted production.

• CNC system optimized for high speed — the ultra-high-performance Fscut / PA8000 CNC controller is specifically optimized for speeds of 300 m/min, with the look-ahead algorithm that anticipates direction changes and adjusts the speed 0,1ms in advance — maintaining edge quality even at maximum speeds on complex contours.

• High-speed cutting head with fast response and zero defects — the Precitec Germany / Precitec Switzerland high-speed cutting head maintains constant focus at 300 m/min, with an anti-collision system adapted to the high dynamics of the BS5.0 linear motor.

• Dust extraction system with 30% higher efficiency at high speed — the Donaldson USA extraction system with multiple channels is designed specifically for the larger volume of particles generated at speeds of 300 m/min, maintaining the cleanliness of the optics and the cut quality in continuous production.

• Accuracy ±0,03 mm maintained at 300 m/min — the WyCut HS Series high-speed fiber laser cutting machine maintains a positioning accuracy of ±0,03 mm and a repositioning accuracy of ±0,02 mm at the maximum speed of 300 m/min — with no quality compromise compared with slower machines.

Technical specifications of the WyCut HS Series high-speed fiber laser cutting machine

The WyCut HS Series versus the WyCut HP Series — speed versus maximum precision

The WyCut HP Series with a standard linear motor offers ±0,01 mm accuracy at a speed of 250 m/min — the solution for precision parts with tight tolerances. The WyCut HS Series high-speed fiber laser cutting machine with a BS5.0 linear motor offers 300 m/min at 5G acceleration, with ±0,03 mm accuracy — the solution for high-volume production where output speed is the limiting factor, not the geometric tolerance of the part.

The 40–80 kW power of the WyCut HS Series high-speed fiber laser cutting machine adds an additional dimension over the HP: the ability to cut very thick sheets (carbon steel up to 45 mm) at industrial speeds, which is impossible on 20–30 kW machines. For plants that simultaneously process thin sheets at maximum speed and thick sheets at maximum power, the HS Series eliminates the need for two separate machines.

Applications and industries for the WyCut HS Series high-speed fiber laser cutting machine

The WyCut HS Series high-speed fiber laser cutting machine is intended for very-high-volume continuous-production plants — laser service centers, manufacturers of large-series components, steel-structure plants with repetitive orders and high volumes. At 300 m/min with 5G acceleration, the machine can process 30–50% more parts per shift than standard machines at 100–140 m/min on the same sheet formats.

The shipbuilding industry, heavy machine building and manufacturers of agricultural and construction equipment use the WyCut HS Series high-speed fiber laser cutting machine at powers of 40–80 kW for cutting thick structural steel sheets, where the speed-power-format combination (up to 8025×2500 mm on the HS 8025 model) is not available on other medium-format equipment.

Laser service centers that process diverse orders for multiple customers benefit from the versatility of the WyCut HS Series high-speed fiber laser cutting machine — the configurable 40–80 kW power and the 300 m/min speed cover everything from the fast cutting of thin 1–3 mm sheets to the cutting of thick structural steel sheets with maximum productivity per shift.

How the WyCut HS Series high-speed fiber laser cutting machine works

1. Continuous loading through the automatic shuttle table — the high-speed fiber laser cutting machine operates non-stop: while cutting takes place on the active table, the operator or the automatic system loads the new sheet on the waiting table, with the fast hydraulic changeover ready to replace the table in a few seconds.

2. CNC optimization with look-ahead at 300 m/min — the ultra-high-performance CNC controller anticipates direction changes 0,1ms in advance, adjusting the speed and laser power to maintain edge quality at maximum speed on complex contours.

3. Cutting with BS5.0 linear motor at 5G acceleration — the BS5.0 linear motor accelerates the cutting head from 0 to 300 m/min in milliseconds at 5G, with the wireless speed sensor continuously monitoring performance and correcting any deviation.

4. Dust extraction adapted to high speed — the Donaldson system with multiple channels removes in real time the particles generated at the 300 m/min speed, with 30% higher efficiency than standard systems to protect the optics and the cut quality.

5. Table changeover and next-batch preparation — when the program is completed, the fast automatic changeover brings the table with the new sheet into position; the cycle resumes without stopping, ensuring the continuous 24/7 utilization of the high-speed fiber laser cutting machine.

Frequently asked questions about the WyCut HS Series high-speed fiber laser cutting machine

What does 300 m/min versus 100 m/min concretely mean for daily productivity?

On thin sheets (1–3 mm) where travel speed is the limiting factor, the WyCut HS Series high-speed fiber laser cutting machine at 300 m/min theoretically produces 3 times more parts per hour than a machine at 100 m/min on the same program. In practice, with 5G acceleration versus 1,5G, the difference on small parts with frequent direction changes is even greater — acceleration matters more than top speed for parts with complex contours.

What is the minimum and maximum configurable power for the WyCut HS Series?

The WyCut HS Series high-speed fiber laser cutting machine is available with laser power of 40 kW, 60 kW and 80 kW. The choice of power depends on the maximum cutting thickness required and the desired cutting speed on the main thicknesses processed. UZINEX provides free consultancy for selecting the optimal power based on the plant's specific mix of materials and thicknesses.

Is the WyCut HS Series high-speed fiber laser cutting machine eligible for European funding?

Yes. UZINEX supplies equipment for EU-funded projects — NRRP, the Regional Program, the Just Transition Program — and is a member of the Enterprise Europe Network. The WyCut HS Series high-speed fiber laser cutting machine can be included in funding applications for modernizing production capacity. UZINEX provides the complete technical documentation for public procurement procedures and tenders.

Why UZINEX for the WyCut HS Series high-speed fiber laser cutting machine

• Free technical consultancy — optimal power and model — UZINEX evaluates the material mix, thicknesses, production volume and automation requirements to recommend the right WyCut HS configuration.

• Transport, installation and commissioning included free of charge — the high-speed fiber laser cutting machine is delivered, installed and started at the customer's site with complete calibration and operator training.

• Extended 60-month warranty — with technical support and intervention in under 36 hours throughout the warranty period.

• National technical support in under 36 hours — a 24/7 telephone line and fast on-site or video intervention.

• AI smart manual included — AI assistance for 96%+ of technical requests without human intervention.

• Full eligibility for European funding — documentation and support for EU, NRRP and structural-funds funding.

The WyCut HS Series high-speed fiber laser cutting machine is the solution for plants that process massive volumes of metal sheets and accept no speed compromises — with the BS5.0 linear motor at 300 m/min and 5G acceleration, 40–80 kW laser power, a fast automatic 24/7 shuttle table and a CNC system optimized for high speed, in 5 models from 3015×1500 mm to 8025×2500 mm.
