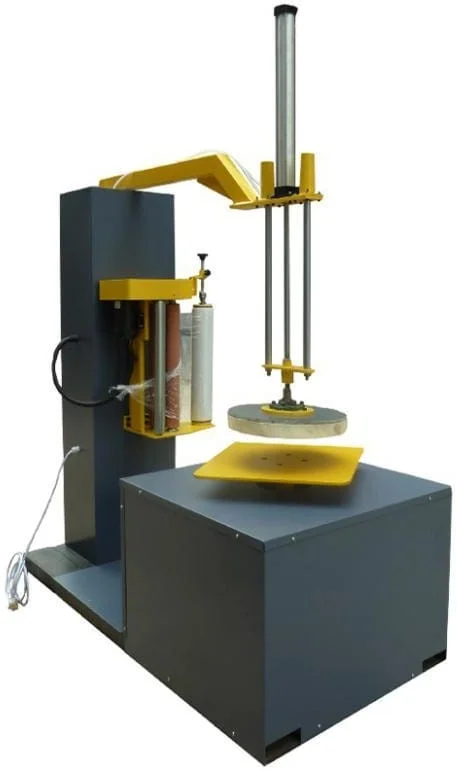

The KPW-MN600 mini stretch film wrapping machine is the solution dedicated to companies that wrap boxes, individual products and small or medium-sized objects — not large pallets, but parts, containers and product groups that require standardized, repeatable LLDPE film protection with no manual effort. With a footprint of 1.400 × 520 × 2.535 mm and 110/220V single-phase compatibility, the KPW-MN600 mini stretch film wrapping machine is operational immediately, regardless of the existing electrical installation.
Unlike models intended exclusively for palletizing, the KPW-MN600 mini stretch film wrapping machine accepts objects with dimensions of up to 600 × 600 × 600 mm and weights of up to 100 kg, with a turntable rotation speed adjustable between 0 and 20 rpm. PLC control with film tension adjustment ensures uniform wrapping cycle after cycle, with optimal LLDPE film consumption thanks to the integrated pre-stretch system.
Key Advantages of the KPW-MN600 Mini Stretch Film Wrapping Machine
• Compact dimensions, installation with no requirements — the KPW-MN600 mini stretch film wrapping machine fits into any workspace, laboratory, production line or shipping area, with no structural or electrical infrastructure changes.
• Adjustable rotation speed 0–20 rpm — the operator adjusts the speed according to the product type, package shape and wrapping sensitivity; fragile products or products with a high center of gravity are handled by the same stretch film wrapping machine without the risk of tipping over.
• Productivity of 20–40 products/hour — the KPW-MN600 mini stretch film wrapping machine completely eliminates the need for manual wrapping, standardizing the quality of every package and freeing the operator for other tasks during an automatic cycle.
• 110V and 220V single-phase compatibility — a unique advantage over models that are exclusively three-phase or exclusively 220V; the KPW-MN600 mini stretch film wrapping machine runs on both standard voltages, including in spaces with older electrical installations.
• PLC control with film tension adjustment — the wrapping tension is adjusted precisely from the panel, so that products with delicate surfaces (labels, primary packaging) are not damaged during the wrapping cycle.
• Integrated pre-stretch for film savings — the pre-stretch system of the mini stretch film wrapping machine reduces LLDPE consumption per cycle compared to manual wrapping, with a direct impact on the wrapping cost per product unit.
• Complete cycle with automatic stop — at the end of the set program, the KPW-MN600 mini stretch film wrapping machine stops automatically; no continuous supervision is needed, and the operator can prepare the next product in parallel.
• Multi-sector applicability — certified for the medical, food, electronics, chemical, textile and hardware industries; a single unit covers diverse wrapping needs within the same production facility.
Technical Specifications — KPW-MN600 Mini Stretch Film Wrapping Machine
| Parameter | Value |
|---|---|
| Model | KPW-MN600 |
| Maximum package size (L × W × H) | 600 × 600 × 350–600 mm |
| Maximum product weight | 100 kg |
| Turntable height | 600 mm |
| Turntable speed | 0–20 rpm (adjustable) |
| Productivity | 20–40 products/hour |
| Installed power | 1,2 kW |
| Electrical supply | 110/220V, 50/60Hz, single-phase |
| Machine footprint (L × W × H) | 1.400 × 520 × 2.535 mm |
| Machine weight | approximately 180 kg |
| Compatible film type | LLDPE (extensible stretch film) |
| Recommended film thickness | 17–35 microns |
| Pre-stretch | Integrated (reduced film consumption per cycle) |
| Control | PLC with film tension adjustment |
| Work cycle | Automatic with automatic stop at the end |
Applications and Industries — Where the KPW-MN600 Mini Stretch Film Wrapping Machine Works
The KPW-MN600 mini stretch film wrapping machine is designed for production and distribution facilities that work with individual products or small-sized groups — not warehouse pallets, but boxes, containers, components and finished products that go directly to the customer or enter protected stock. The scope of application covers the medical industry (equipment, consumables, kits), the dry food industry and secondary packaging, electronics and moisture-sensitive components, chemical and cosmetic products, the textile industry and industrial hardware.
The mini stretch film wrapping machine is especially valuable in the context of online orders with moderate volumes, where each parcel must be uniformly protected before shipping, and manual wrapping becomes inconsistent and costly at scale. The productivity of 20–40 products/hour ensures a continuous flow for single-operator wrapping lines, with no downtime between cycles.
Laboratories, distributing pharmacies, electronics service workshops and small FMCG producers find in this mini stretch film wrapping machine the ideal middle-ground solution: more than manual film dispensers, less costly and simpler than automatic industrial wrapping lines.
Materials Compatible with the KPW-MN600 Mini Machine
The KPW-MN600 mini stretch film wrapping machine is optimized for LLDPE film (Linear Low-Density Polyethylene) with a thickness of 17–35 microns — the industry standard for wrapping individual products and grouped packages. LLDPE offers controlled extensibility, good inter-layer adhesion and adequate mechanical strength for transport and storage protection.
Unlike horizontal ring-wrapping models, which are limited to narrow film formats, the turntable mini stretch film wrapping machine accepts film rolls widely available on the Romanian market, with no additional costs for special-format consumables. The flexibility in film types reduces dependence on a single supplier and allows the wrapping cost to be optimized according to market offers.
How the KPW-MN600 Mini Stretch Film Wrapping Machine Works
The wrapping cycle of the KPW-MN600 mini stretch film wrapping machine is simple, fast and easy to learn by any employee, regardless of prior technical experience:
• Product preparation — the operator places the product or box on the turntable of the mini stretch film wrapping machine, centered on the axis of rotation, within the maximum dimensions of 600 × 600 × 600 mm.
• Parameter setting — from the PLC panel, the operator selects the rotation speed (0–20 rpm), the film tension and the desired number of layers; the settings can be quickly adjusted between cycles for products of different sizes.
• Film end attachment — the operator manually attaches the end of the LLDPE film roll to the corner of the product and starts the automatic cycle.
• Automatic wrapping — the turntable rotates at the set speed while the film carriage travels along the product height; the pre-stretch system of the mini stretch film wrapping machine applies uniform tension over the entire wrapped surface.
• Automatic stop at the end of the cycle — the machine stops on its own at the end of the program; the operator manually cuts and seals the film end, preparing the next product while the machine finishes the current cycle.
Frequently Asked Questions about the Mini Stretch Film Wrapping Machine
What distinguishes the KPW-MN600 from models for large pallets?
The KPW-MN600 mini stretch film wrapping machine is designed for individual products and boxes with dimensions of up to 600 × 600 × 600 mm and weights of up to 100 kg — not for large pallets. The adjustable speed (0–20 rpm), the productivity of 20–40 products/hour and the compatibility with the medical and food industries place it in a distinct category from industrial palletizing models.
Can the KPW-MN600 mini machine run on 110V?
Yes. The KPW-MN600 mini stretch film wrapping machine accepts both 110V and 220V single-phase, 50/60Hz — a rare flexibility in this equipment category, especially useful for exporters, facilities with mixed electrical installations or manufacturers operating in locations with variable infrastructure.
What real productivity does the KPW-MN600 mini machine offer?
The KPW-MN600 mini stretch film wrapping machine processes 20–40 products per hour depending on the package dimensions and the number of film layers set. Compared to manual wrapping with a dispenser, this means a significant reduction in the time spent on wrapping and uniform quality on every cycle, regardless of the operator using the machine.
Is the KPW-MN600 mini machine suitable for fragile or labeled products?
Yes. The fine film tension adjustment via PLC and the speed adjustable from 0 rpm ensure that the KPW-MN600 mini stretch film wrapping machine can be calibrated for products with delicate surfaces, labels or primary packaging that must not be compressed. The low tension protects the integrity of the product without compromising the stability of the wrap.
What film is required for the KPW-MN600?
The KPW-MN600 mini stretch film wrapping machine uses standard LLDPE film with a thickness of 17–35 microns, available from any packaging consumables supplier in Romania. No special formats or dedicated consumables are required — standard stretch film rolls available on the local market are used.
Why Choose UZINEX for the KPW-MN600 Mini Stretch Film Wrapping Machine?
UZINEX delivers the KPW-MN600 mini stretch film wrapping machine with a complete package of services included, with no later surprises. Every unit comes with a 60-month warranty, spare parts available in stock and nationwide technical support with intervention within 24–48 hours of the request.
• Delivery and commissioning included — free delivery throughout Romania, installation and basic training at the customer's premises; the KPW-MN600 mini stretch film wrapping machine is ready to work on the day of delivery.
• 60-month warranty — extended coverage compared to the market standard of 12 months; the mini stretch film wrapping machine benefits from full warranty against manufacturing defects for the entire contract period.
• Spare parts in stock — wear components are immediately available, with no waiting periods for imports; unplanned stoppages of the wrapping line are removed from the equation.
• Specialized nationwide technical support — engineers available by phone and on site through the UZINEX service network across Romania .
• Credit and leasing financing — the KPW-MN600 mini stretch film wrapping machine can be purchased through financing options with installments tailored to your business's cash flow.
• Complete range of packaging equipment — from the mini stretch film wrapping machine for individual products to automatic palletizing lines; UZINEX offers scalability as your wrapping volumes grow.
The KPW-MN600 mini stretch film wrapping machine is the concrete choice for any facility that wants to eliminate the inconsistency of manual wrapping, reduce the film cost per product and give every delivered item the level of protection the end customer deserves.
