GT400Pro Industrial Pipe Inspection Robot | Anti-Rollover | Laser | 4MP

GT400Pro industrial pipe inspection robot — the only crawler in the Jiutai range equipped with a certified anti-rollover system and an integrated measurement laser as standard. Designed for the most demanding industrial applications — wind turbine blades, nuclear power plant pipework, petrochemical networks and industrial process installations — this industrial pipe inspection robot operates stably in any indoor environment, with no risk of tipping over and no loss of image or control in pipes with irregular geometry or partial liquid.

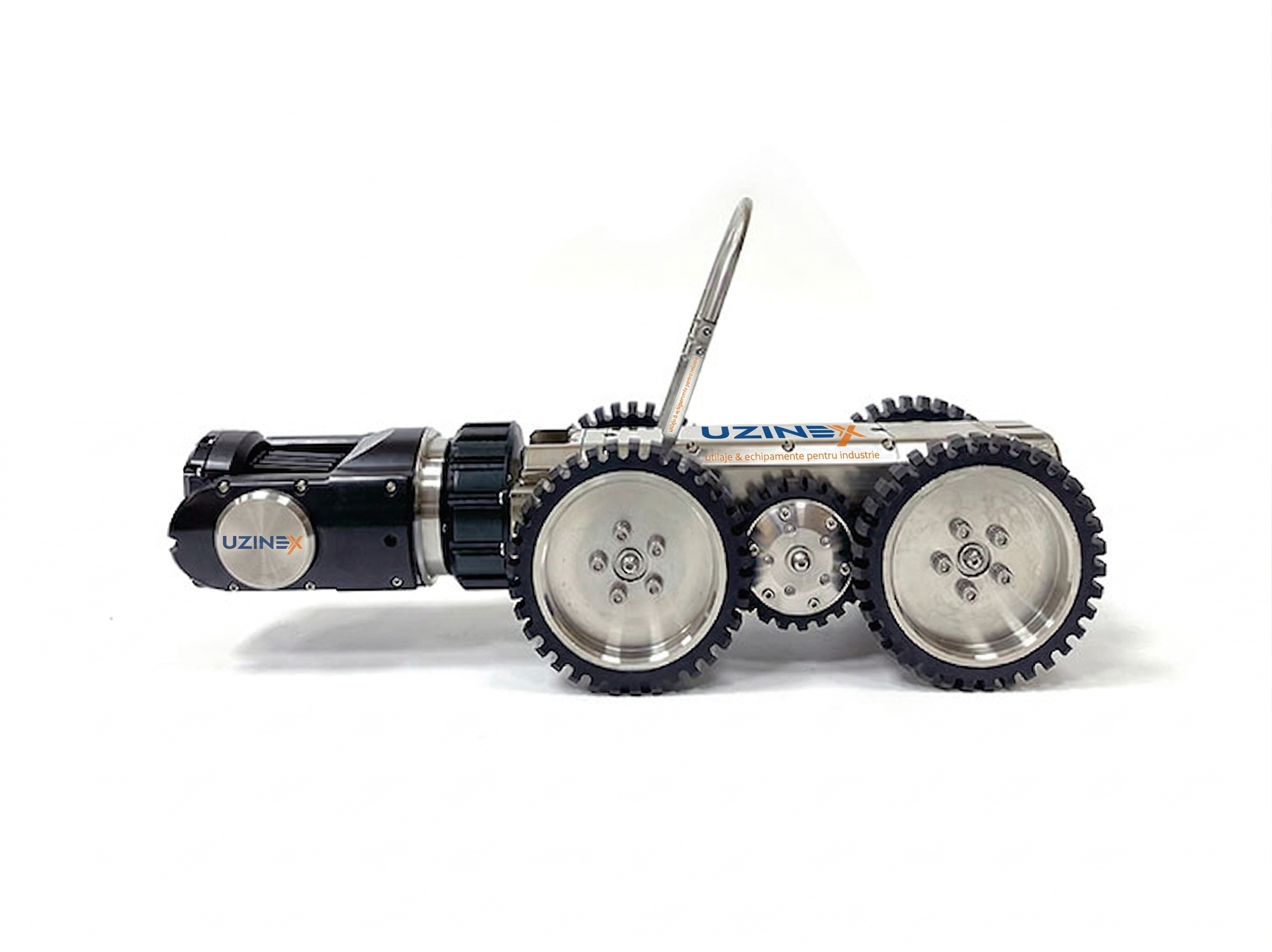

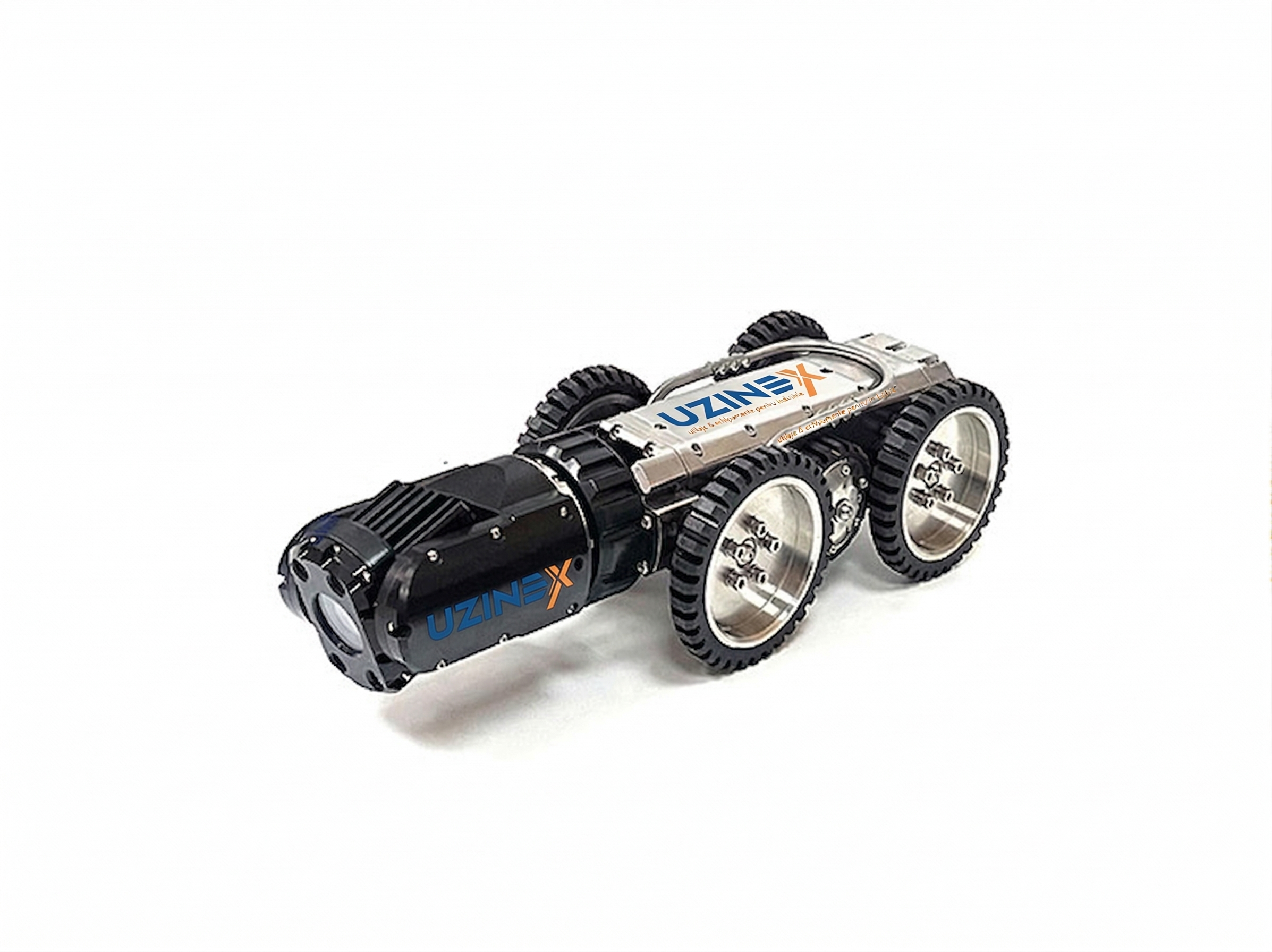

The compact 13 kg body and the 25 kg electric drum make the GT400Pro the lightest industrial pipe inspection robot in the range for the 200–3,000 mm diameter. The 4MP front PTZ camera, with infinite 360° rotation and 10x zoom, combined with the rear camera, delivers complete Ultra HD documentation of any structural defect — cracks, corrosion, foreign objects, deformation or blockages — with precise laser localization recorded directly in the automatically generated report. Key Advantages of the GT400Pro Industrial Pipe Inspection Robot

• Anti-rollover system — unique in the range: The GT400Pro is the only industrial pipe inspection robot in the Jiutai series equipped with a certified anti-rollover mechanism. The crawler stays stable and operational in pipes with partial liquid, axial inclination, slippery surfaces or ovalized geometry — situations where standard crawlers tip over and lose the image.

• Integrated measurement laser as standard: Unlike models where the laser is optional, the GT400Pro includes the laser as standard equipment — essential for the precise measurement of crack size, the degree of cross-section deformation and the distance between defects, directly on the recording, without external measuring equipment.

• 4MP front camera, 360° × 220°, 10x zoom: The 4-megapixel sensor with infinite 360° rotation and 220° tilt fully covers the pipe cross-section with no blind angles. The 10x optical zoom enables detailed documentation of fine surface defects — micro-cracks, incipient corrosion spots, weld cracks — from a distance.

• Dual front + rear camera with instant switching: Simultaneous documentation of the front zone (defects along the advancing path) and the rear zone (checking the pipe condition during retraction) eliminates duplicate sessions and minimizes inspection time per section.

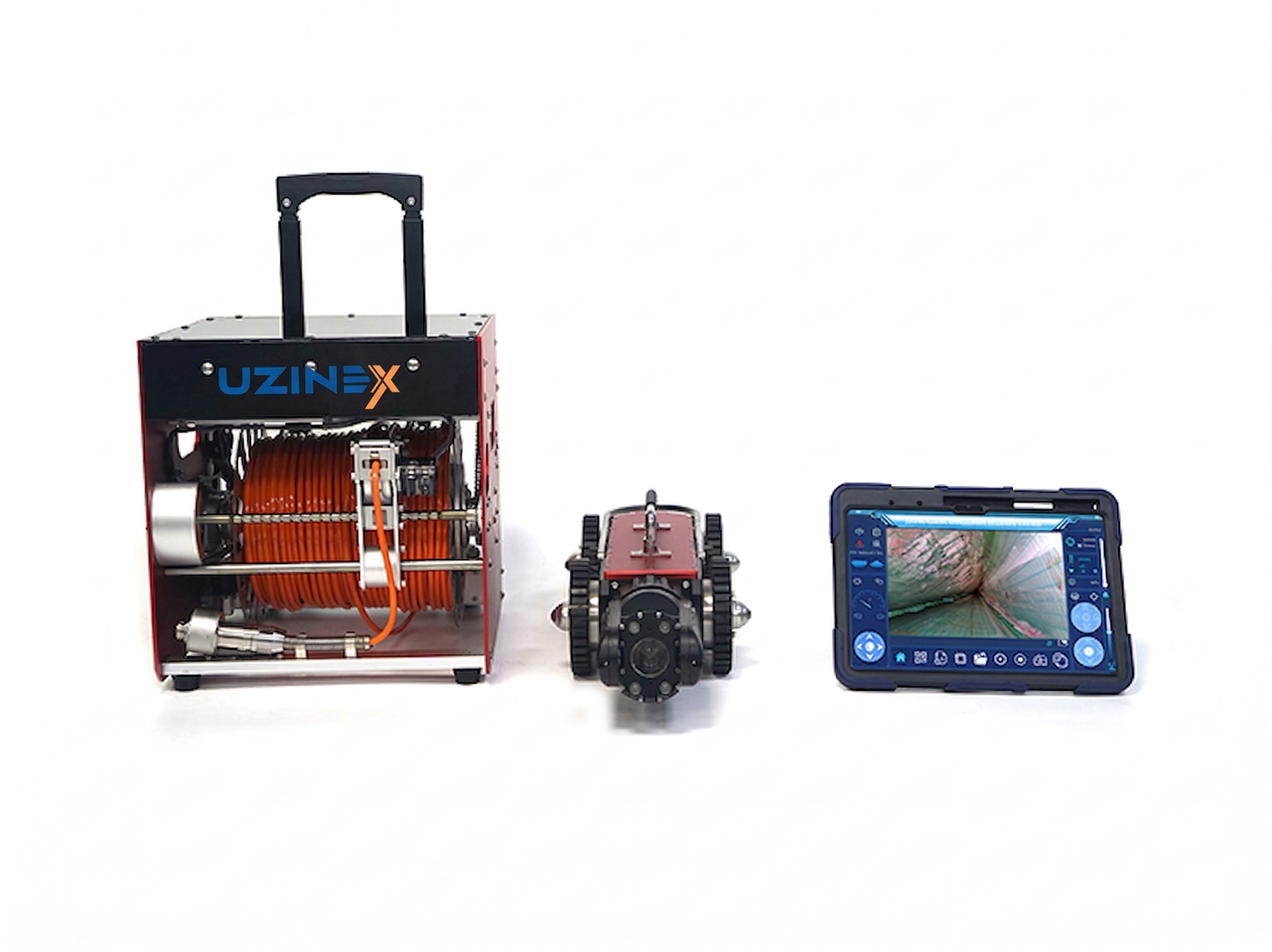

• Compact 13 kg body, 25 kg electric drum: The lightest assembly in the range for the 200–3,000 mm diameters — body 630×185×150 mm and drum 343×306×335 mm. Transportable by a two-person team without lifting equipment, even in locations with limited access or at height.

• Robust Ø 9 mm cable, 100–150 m: The 9 mm cable diameter ensures mechanical robustness and torsion resistance in pipes with complex routes. The electric drum with auto/manual rewinding retrieves the cable effortlessly at the end of the session.

• IP68 waterproof and superior climbing capability: Full IP68 sealing and the high-power traction motor enable climbing over steps, consolidated deposits and sharp bends in heavily worn industrial pipes.

• Storage up to 1 TB and automatic inspection reports: 4MP video, photos with laser marking, defect localization and footage are saved to internal storage (expandable to 1 TB) and automatically compiled into professional inspection reports — ready to hand over to the client or archive in the facility management system.

Technical Specifications — GT400Pro Industrial Pipe Inspection Robot

Applications — Where the GT400Pro Industrial Pipe Inspection Robot Is Used

Internal inspection of wind turbine blades is one of the flagship applications of this industrial pipe inspection robot. The internal channels of the blades have complex geometry, variable inclination and low-grip surfaces — exactly the conditions in which the GT400Pro's anti-rollover system becomes decisive. The integrated measurement laser allows the precise quantification of delaminations, cracks and internal deposits, information essential for the structural assessment of the blades and for planning the repair intervention.

In the petrochemical and nuclear industries, an industrial pipe inspection robot with anti-rollover capability is an operational requirement, not an option. Pipes in these environments frequently contain partial liquid residues, section variations and corrosive deposits that destabilize standard crawlers. The GT400Pro maintains platform stability and recording continuity regardless of the internal pipe conditions. Browse the full range of Uzinex industrial equipment for complementary inspection and diagnostic solutions.

Engineering inspections, technical audits of building installations, and the verification of service piping in high-risk buildings (hospitals, thermal power plants, industrial HVAC installations) benefit from the robustness and laser documentation of this industrial pipe inspection robot, in line with international standards for non-destructive pipe inspection. Reports with integrated laser marking are accepted directly in technical acceptance files and compliance audits. How It Works — Workflow with the GT400Pro in Industrial Conditions

• Preparation and insertion into the pipe: The 13 kg crawler is inserted through the access opening. The anti-rollover system activates automatically — it requires no manual adjustment or special launch procedures.

• Stable travel in any orientation: The controller on the 10 inch screen guides the crawler forward, backward and through turns at adjustable speed. The anti-rollover system keeps the camera platform stable even in pipes with axial inclination or partial residual liquid.

• 4MP documentation with active laser: When a defect is identified, the operator activates the 10x zoom for detailed documentation and the measurement laser to quantify the defect dimensions — length, width, opening — directly on the recorded image, without subsequent manual calculations.

• Front/rear camera switching: Complete documentation of the section is performed from both directions, switching between the 4MP front PTZ camera and the rear camera with a single button, without stopping movement.

• Automatic cable retrieval: The 25 kg electric drum retrieves the 100–150 m of Ø 9 mm cable automatically or manually, protecting the cable from torsion and reducing the operator's physical effort in locations with difficult access.

• Automatic report generation: At the end of the session, the complete report — 4MP video, photos with laser marking, defect localization and sizing, footage — is generated automatically, ready to send to the client or archive in the industrial facility management system.

Frequently Asked Questions About the GT400Pro Industrial Pipe Inspection Robot

What does anti-rollover mean and why does it matter in industrial inspections?

The GT400Pro's anti-rollover system keeps the camera platform stable even in pipes with partial residual liquid, low-grip surfaces, axial inclination or an ovalized section. Without this function, a standard crawler can tip over and lose the image or control, requiring manual retrieval of the equipment — a costly and sometimes impossible operation in industrial pipes with limited access. This is why this industrial pipe inspection robot is preferred in high-risk environments. Is the measurement laser integrated or optional on the GT400Pro?

The measurement laser is integrated as standard in every GT400Pro unit — it is not an optional accessory at extra cost. It allows direct dimensional quantification of cracks, openings and deformations on the recorded 4MP image, eliminating the need to re-enter the pipe with a separate measuring instrument and significantly reducing the total inspection time per section. Can the GT400Pro be used for wind turbine blade inspection?

Yes — internal inspection of wind turbine blades is one of the flagship applications of this industrial pipe inspection robot. The compact profile (630×185×150 mm, 13 kg), the anti-rollover system and the measurement laser make the GT400Pro the right solution for the internal structural assessment of blades, the identification of delaminations and cracks, and compliant documentation for wind farm maintenance reports. What pipe diameters does the GT400Pro cover and what is the working length?

The GT400Pro inspects pipes with diameters between 200 mm and 3,000 mm. The standard 100–150 m cable (Ø 9 mm diameter, torsion-resistant) covers the average section of main industrial pipes. The 25 kg electric drum with auto/manual rewinding makes operation easy even in locations with limited access or at height, with no additional personnel. How does the GT400Pro compare with the GT108 in terms of diameter and use?

Both systems cover large diameters (200–3,000 mm for the GT400Pro, 200–3,500 mm for the GT108), but with different usage profiles. The GT108 is optimized for municipal sewer networks — 300 m cable, 40 kg drum, high speed. The GT400Pro is designed for special industrial applications — anti-rollover, integrated laser, a more compact 13 kg body and applicability to wind blades, nuclear and petrochemical installations where platform stability is a critical requirement. Why Buy the GT400Pro Industrial Pipe Inspection Robot from UZINEX?

• Free specialized technical consultancy: The UZINEX team analyzes the type of installation, the internal pipe environment conditions (residual liquid, inclination, geometry) and the documentation requirements, and configures this industrial pipe inspection robot for your specific application.

• On-site delivery, testing and operator training: The GT400Pro is delivered, tested in real conditions and commissioned at the client's premises. The operating team receives complete training, including the use of the measurement laser and the generation of technical reports.

• Extended 60-month warranty and technical support under 36 hours: Every industrial pipe inspection robot delivered through UZINEX benefits from a 60-month warranty and a guaranteed response time under 36 hours — including remote diagnostics and priority spare-part delivery to minimize downtime in continuously operating installations.

• Reports with laser marking, accepted in technical audits: The documents generated by the GT400Pro include integrated laser dimensional marking, compatible with the requirements of technical maintenance files in the petrochemical, energy and renewable energy industries in Romania and the EU.

• Expertise in equipment for special industrial applications: UZINEX supplies inspection systems for applications that exceed the standard municipal range — including inspections at height, installations with access restrictions, environments with gases or vapors, and installations under strict regulation.

GT400Pro industrial pipe inspection robot — the choice of teams that inspect in real industrial conditions: anti-rollover, integrated measurement laser, 4MP and compliant automatic reports, in pipes from 200 mm to 3,000 mm, wherever platform stability and documentation accuracy cannot be compromised.
