Multihead 4-process CNC router with rotary device

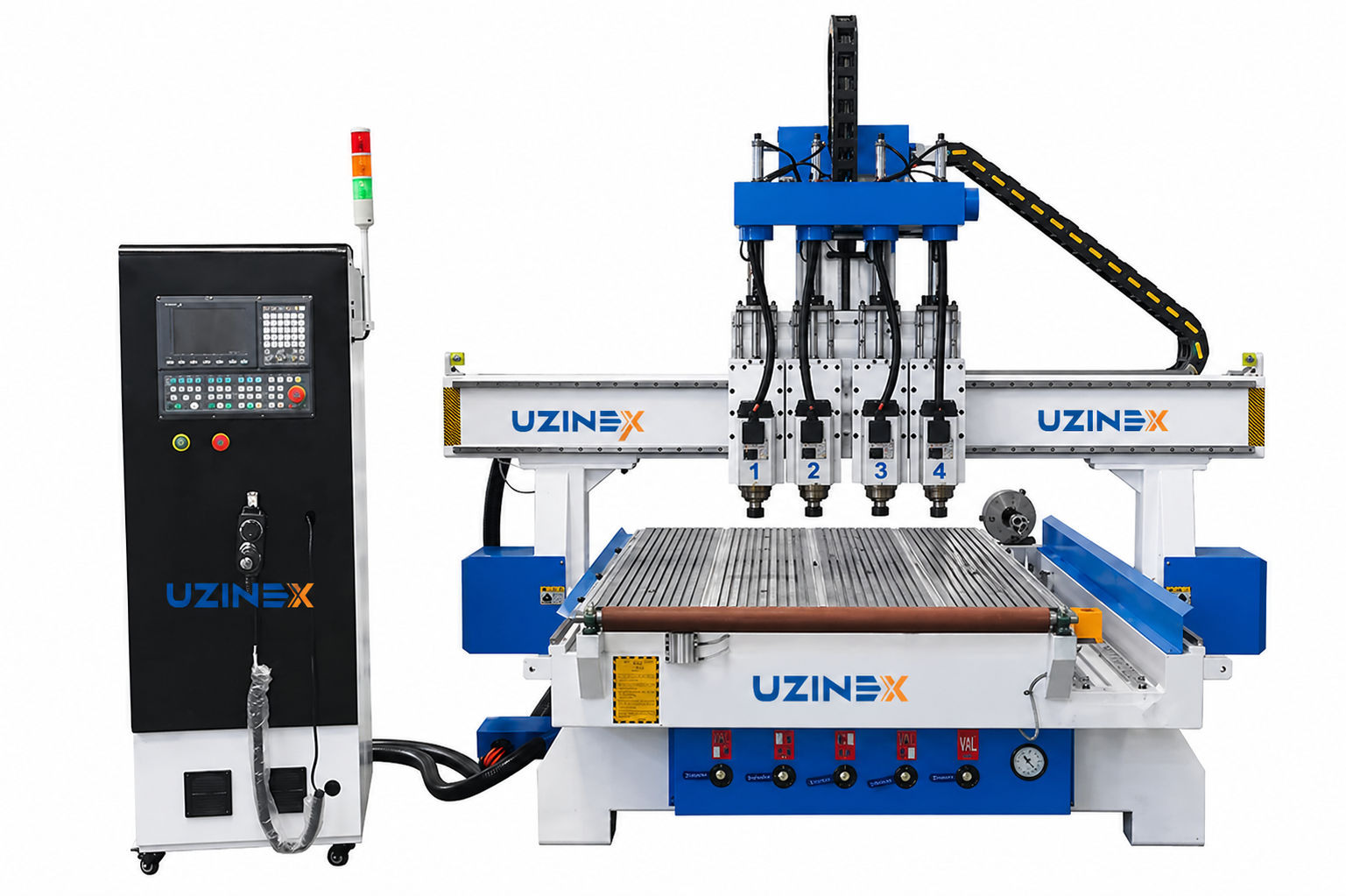

The 4-head CNC router with rotary axis is the solution for maximum productivity for workshops and factories producing series of identical parts from wood, MDF, chipboard, acrylic or advertising materials. The 4 independent 3,5 kW spindles process 4 parts simultaneously in the same program cycle — without multiplying the workforce or the production space.

The 4-head CNC router with rotary axis comes with a structure of 10–12 mm laminated steel, 20# linear guides, helical rack-and-pinion transmission on the X and Y axes, a TBI ball screw on the Z axis and Igus cables with CE and cUL certificates. Repositioning accuracy: ±0,03 mm. System resolution: ±0,0025 mm. Technical specifications — 4-head CNC router with rotary axis

The 4-head CNC router with rotary axis is configured at the quotation stage — travel, spindle type, control system and rotary device dimension adapted to your application. Free technical consultancy available. Advantages of the 4-head CNC router with rotary axis

• 4× productivity — 4 identical parts in a single cycle — the 4-head CNC router with rotary axis processes 4 identical parts simultaneously, cutting the production time per part to a quarter compared with a single-spindle router with the same travel. For furniture manufacturers with repetitive series of doors, cabinet fronts or engraved panels, this multiplication of productivity means lower processing costs and greater capacity without additional machines.

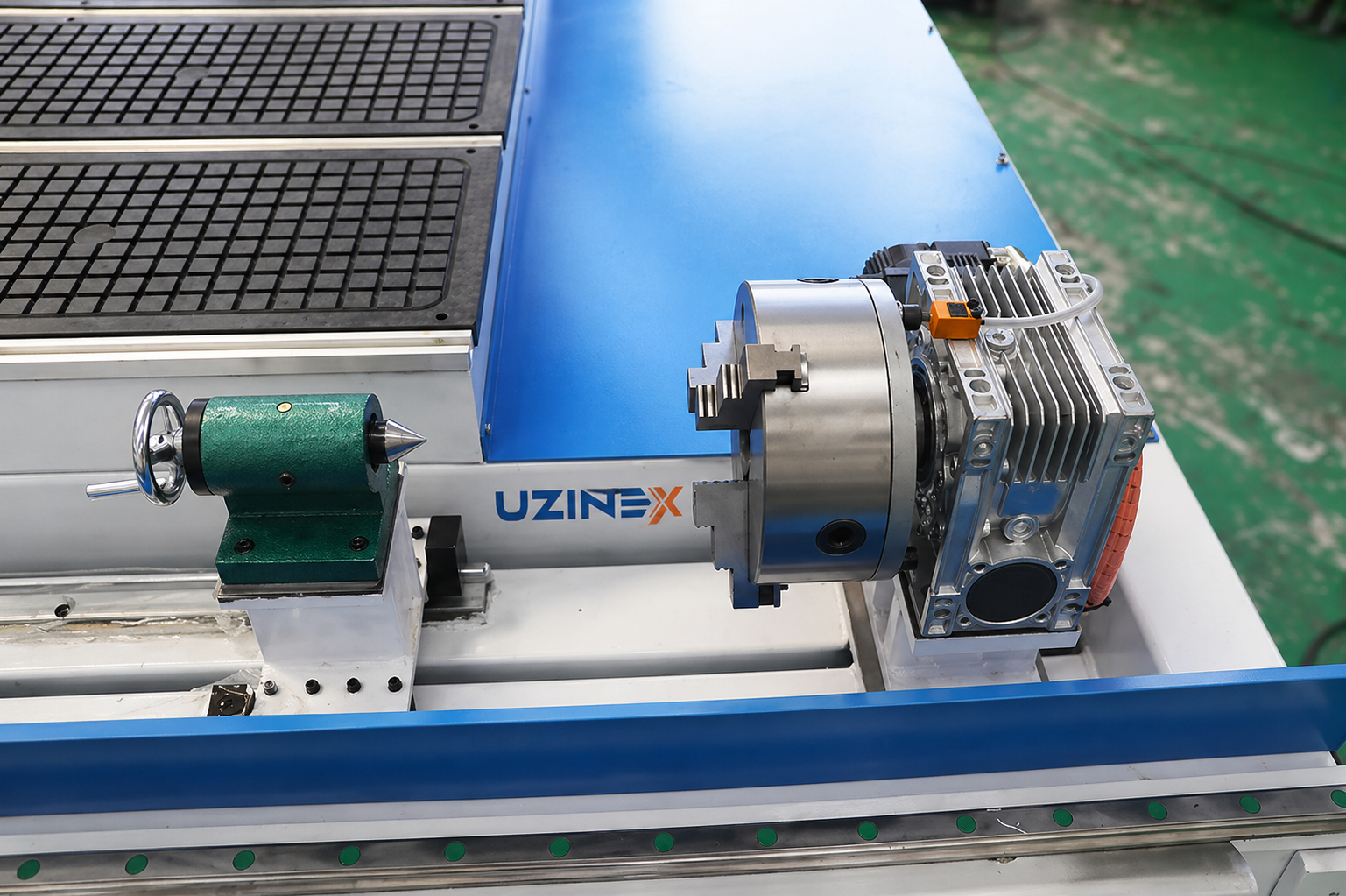

• 300 mm rotary device — 3D carving on cylindrical parts — the 4-head CNC router with rotary axis includes a rotary device with a diameter of 300 mm that allows three-dimensional milling and engraving on parts with cylindrical geometry: ornamental columns, table and chair legs, stair balusters, decorative posts, handles and round ornaments — on the same machine, without transfer to a separate CNC lathe.

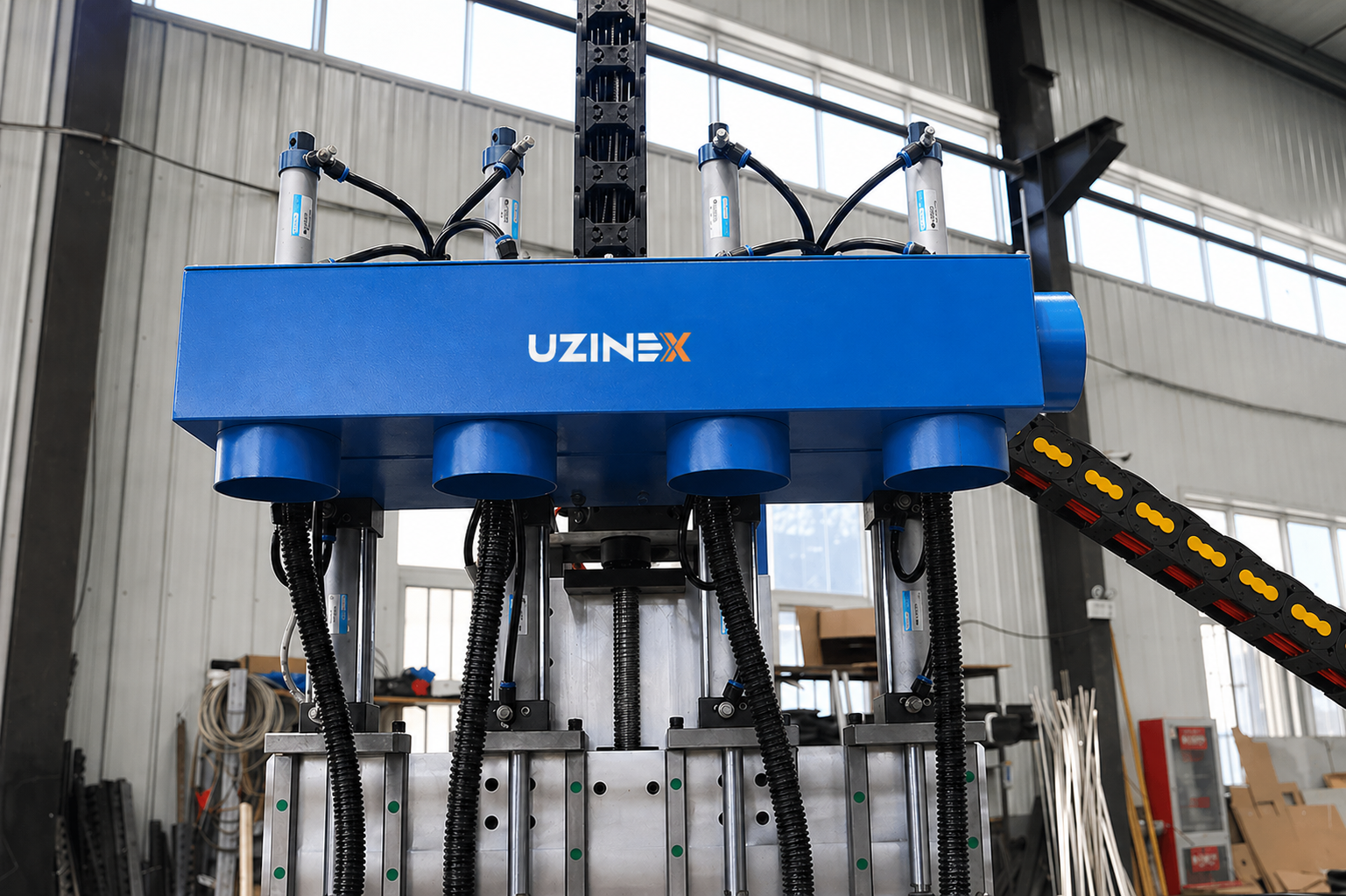

• 4 HQD 3,5 kW spindles, ER20, air cooling — continuous production — the professional HQD spindles with air cooling and ER20 clamping accept cutters with shanks up to 13 mm in diameter. Air cooling eliminates the water cooling system and reduces installation complexity. The HQD construction ensures reliability in production over long shifts without overheating or loss of spindle speed under load.

• ±0,03 mm accuracy, ±0,0025 mm resolution — industrial precision — the 4-head CNC router with rotary axis achieves a repositioning accuracy of ±0,03 mm and a system resolution of ±0,0025 mm, values that allow the reproduction of fine details in engravings, perfect alignment of furniture joints and the precision required for three-dimensional lettering and quality advertising panels.

• 20# linear guides + helical rack and pinion + TBI ball screw — reference kinematics — the 4-head CNC router with rotary axis uses 20# linear guides on all axes, helical rack and pinion on X and Y and a TBI ball screw on Z for milling rigidity. This combination is the industry standard for production CNC routers with high accuracy and durability requirements.

• Laminated steel structure 10–12 mm — rigidity against vibration — the body of the 4-head CNC router with rotary axis made of 10–12 mm laminated steel provides the rigidity required at high working speeds without vibration that would affect surface quality or the reproducibility of fine details in finishing.

• Igus cables CE + cUL — long-term reliability — the Igus motion cables with CE and cUL certification guarantee the reliability of the 4-head CNC router with rotary axis in continuous production and compliance with the European safety standards required for public procurement and projects with European funds.

• 60-month UZINEX warranty — spare parts in stock at Iasi, national technical support within 24–48 hours, commissioning and operator training included on delivery.

Applications and industries — 4-head CNC router with rotary axis

The furniture industry is the main application of the 4-head CNC router with rotary axis in Romania. Interior doors with milled profiles, engraved cabinet fronts, tables with legs carved on the rotary device, chairs with profiled backs, beds with decorative headboards — all are produced efficiently with the 4 heads working simultaneously. A manufacturer who previously machined 4 doors in separate cycles reduces the total time to a quarter using the 4-head CNC router with rotary axis.

The advertising and signage industry benefits from the speed and repeatability of the 4-head CNC router with rotary axis. Four sets of three-dimensional lettering, four advertising panels with engravings or four sets of acrylic logos are produced simultaneously in a single cycle. The 60 m/min travel speed and the working speed of up to 45 m/min allow short, customised runs with production times competitive against manual alternatives.

The craft and decorative industry benefits the most from the integrated rotary device of the 4-head CNC router with rotary axis. Ornamental columns, carved posts, round ornaments, craft objects with complex 3D geometry, clock frames and souvenirs are processed on the rotary device with perfect repeatability and a speed incomparably higher than manual carving. Materials compatible with the 4-head CNC router with rotary axis

The 4-head CNC router with rotary axis processes: solid wood (oak, beech, fir, pine, walnut), MDF and chipboard for series production, multi-layer plywood, acrylic and plexiglass for advertising, expanded PVC (Forex) and dibond for panels, polyurethane and XPS for decorations. In technical applications, the 4-head CNC router with rotary axis also processes printed circuit boards, insulating materials and EVA for industrial or medical packaging. Workflow — 4-head CNC router with rotary axis

• The part drawing is created or imported in Artcam software (or other software compatible with G Code / M Code).

• Toolpaths are generated for roughing, semi-finishing and finishing — including the toolpath for the rotary device if the part has cylindrical geometry.

• The G Code program is transferred to the DSP A123 controller (or Syntec / LNC) of the 4-head CNC router with rotary axis.

• The 4 identical parts are clamped simultaneously on the table with vacuum and T-slot; the cylindrical part is mounted on the 300 mm rotary device.

• The 4-head CNC router with rotary axis runs the program — all 4 heads work in sync, and the rotary device turns the cylindrical part according to the programmed toolpath.

• At the end of the cycle, the 4 finished parts are unloaded simultaneously and 4 new blanks are prepared for the next cycle.

Frequently asked questions about the 4-head CNC router with rotary axis

Can the 4 heads of the 4-head CNC router with rotary axis work independently?

In the standard multihead configuration, the 4-head CNC router with rotary axis operates the 4 heads in sync on 4 identical parts — the optimal configuration for series production. If your application requires different parts processed simultaneously, UZINEX can configure a variant with independent heads (multi-process) at the quotation stage. Contact the UZINEX engineers to select the configuration suited to your production. What is the maximum cylindrical part size supported by the rotary device?

The standard rotary device of the 4-head CNC router with rotary axis has a diameter of 300 mm. The maximum length of the cylindrical part depends on the selected X travel configuration — 1.300 mm, 2.000 mm or 4.000 mm. For diameters or lengths greater than the standard, UZINEX configures the dimensions on request and specifies them at the quotation stage. Can the 4-head CNC router with rotary axis be upgraded with an ATC system?

Yes. The 4-head CNC router with rotary axis accepts ATC spindles of 9 kW (HSK F63) and 12 kW (ISO30 or HSK F63) as an upgrade option over the 3,5 kW HQD spindles. The ATC system eliminates manual tool changing between operations and increases the level of automation of the 4-head CNC router with rotary axis. UZINEX specifies the options and the cost of the upgrade at the quotation stage. What dust extraction system is recommended?

The 4-head CNC router with rotary axis is compatible with dust collection systems of 3 kW, 5,5 kW and 7,5 kW, with an extraction head, ducting and a complete kit. The recommended power depends on the material processed and the frequency of use. UZINEX includes the appropriate system in the delivery on request and specifies it in the technical offer for the 4-head CNC router with rotary axis. Is the 4-head CNC router with rotary axis eligible for European funding?

Yes. UZINEX is a member of the Enterprise Europe Network and supplies CNC equipment for projects with European funds — the Just Transition Programme, PNRR digitalisation, the Regional Programme. The technical documentation for the funding application is provided on request. Leasing and credit options are available on the UZINEX credit and leasing page. Why UZINEX for the 4-head CNC router with rotary axis

The 4-head CNC router with rotary axis is a capital investment with a direct impact on production capacity and cost per part. UZINEX ensures that this investment performs at its maximum potential from the first day of production.

• Commissioning and training included — UZINEX engineers install and calibrate the 4-head CNC router with rotary axis at your location and train the operators in using all functions, including the 300 mm rotary device.

• Custom configuration at the quotation stage — travel, spindle type, control system and rotary device dimension selected for your business's specific application and production volume.

• 60-month warranty — extended coverage for the 4-head CNC router with rotary axis in continuous industrial shift production.

• Spare parts in stock at Iasi — cutters, bearings, cables available immediately, with no prolonged production stoppages.

• National technical support within 24–48 hours — technicians with nationwide coverage and a guaranteed response time for the 4-head CNC router with rotary axis.

• Eligible for European funds — complete technical documentation for POR, PNRR and other active programme funding applications.

• Transport included — delivery to destination anywhere in Romania.

UZINEX 4-head CNC router with rotary axis — 4 HQD 3,5 kW spindles, travel 1.300×2.500 mm (options up to 2.000×4.000 mm), 300 mm rotary device, ±0,03 mm accuracy, 60 m/min, 10–12 mm steel, 20# guides, Igus cables CE+cUL, Artcam software, 60-month warranty, transport and commissioning included throughout Romania.
