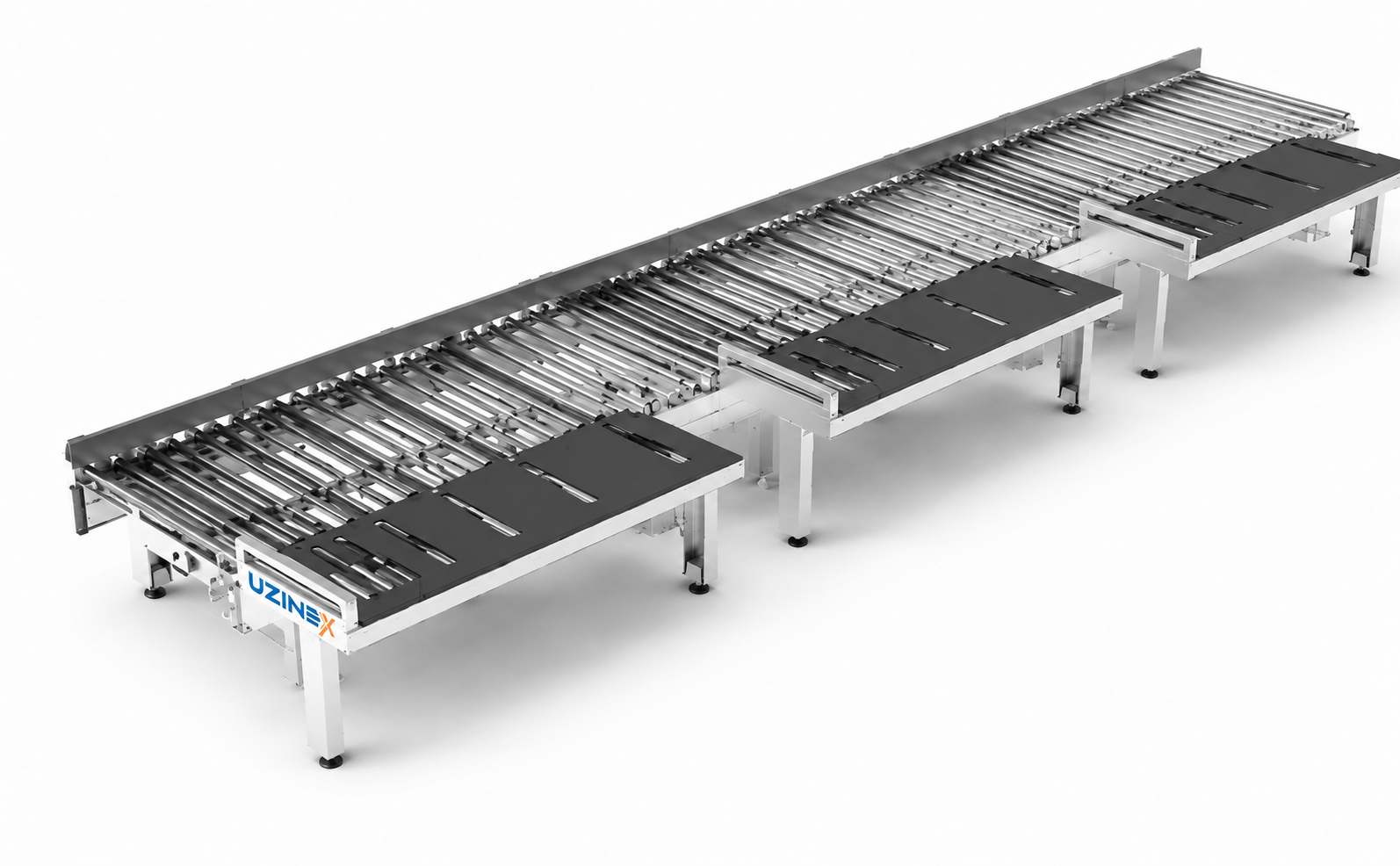

Measuring-3015 is an automatic measuring station designed for integration into automatic packaging lines. It measures the length and width of workpieces without interrupting the production flow and transmits the data directly to the automatic carton-cutting machine — completely eliminating manual measurement and manual entry of dimensions. With a measuring range of 350–2.800 mm in length and 200–1.200 mm in width, this automatic measuring station covers the full range of product sizes processed on the FQ-P01, FQ-P02 and Cutting-2518 packaging lines in the UZINEX portfolio.
The transmission uses silver rollers coated with rubber that is resistant to wear and solvents, ensuring smooth and stable conveying of the workpieces through the measuring zone without stoppages or vibration, while the continuous speed adjustment via variable frequency allows the feed speed to be matched to the rhythm of each production line. At a throughput of 4–6 pcs/minute, the Measuring-3015 automatic measuring station is not a bottleneck in the production flow and can be configured with dedicated accessories to complete the line.
Key advantages of the Measuring-3015 automatic measuring station
• Automatic measurement without interrupting production — the Measuring-3015 station runs continuously with no pauses between workpieces, measuring the length and width of each product as it passes along the conveyor and transmitting the data immediately to the carton-cutting machine — eliminating the dead time inherent to manual measurement.
• Direct data transmission to the cutting machine — the measured dimensions are sent automatically to the automatic carton-cutting machine (Cutting-2518 or equivalent), which immediately calculates and produces the correct box to the dimensions of the measured product, with no manual data entry and no risk of human error.
• Measuring range 350–2.800 mm in length, 200–1.200 mm in width — covers the full range of product sizes found in the furniture, home appliance, technical component and consumer goods industries, from small parcels to bulky products.
• Transmission with silver rollers resistant to wear and solvents — the special rubber of the conveying rollers maintains its grip and stability properties throughout the equipment's service life, with no degradation caused by contact with solvents or abrasive materials common in industrial environments.
• Continuous speed adjustment via variable frequency — the stepless control of the feed speed through a frequency inverter allows the Measuring-3015 station to be perfectly synchronized with the rhythm of the downstream production line, regardless of speed variations in the connected machines.
• Simple, efficient and intelligent operation — the simple operating interface and fully automatic operation reduce the need for operator intervention to a minimum, allowing staff to focus on other stages of the production process.
Technical specifications — Measuring-3015 automatic measuring station
| Parameter | Specification |
|---|---|
| Model | Measuring-3015 |
| Equipment type | Automatic measuring station for workpiece length and width |
| Length measuring range (mm) | 350–2.800 |
| Width measuring range (mm) | 200–1.200 |
| Output throughput (pcs/min) | 4–6 |
| External dimensions (mm) | 6.750 × 2.100 × 1.950 |
| Transmission system | Silver rollers with wear- and solvent-resistant rubber |
| Speed control | Variable frequency — continuous stepless adjustment |
| Data transmission | Automatic to the connected carton-cutting machine |
| Operating mode | Continuous, with no interruptions between workpieces |
| Order identification | QR code scanning (Scan Code) |
Accessories and complementary equipment for the Measuring-3015 measuring station
The Measuring-3015 automatic measuring station can be configured with a range of auxiliary equipment that completes the packaging line, covering every stage of the process — from grouping and conveying the products, to folding the box lid and inserting the cardboard. Each accessory is designed for direct integration into the line, with compatible standard dimensions and loads of up to 100 kg per platform.
ZB-3015 — Package Table for grouping packages (Package Table)
The ZB-3015 work table is the line's feed unit, where the operator groups the products or packages before they enter the measuring station. With dimensions of 3.000×2.200×850 mm and a maximum load of 100 kg, it offers a generous work surface for organizing and preparing large-format parcels. The 1,5 kW motor conveys the products toward the measuring station with no manual effort.
| Parameter | Specification |
|---|---|
| Model | ZB-3015 |
| Type | Work table for grouping packages |
| External dimensions (mm) | 3.000 × 2.200 × 850 |
| Maximum load | ≤ 100 kg |
| Motor power (kW) | 1,5 |

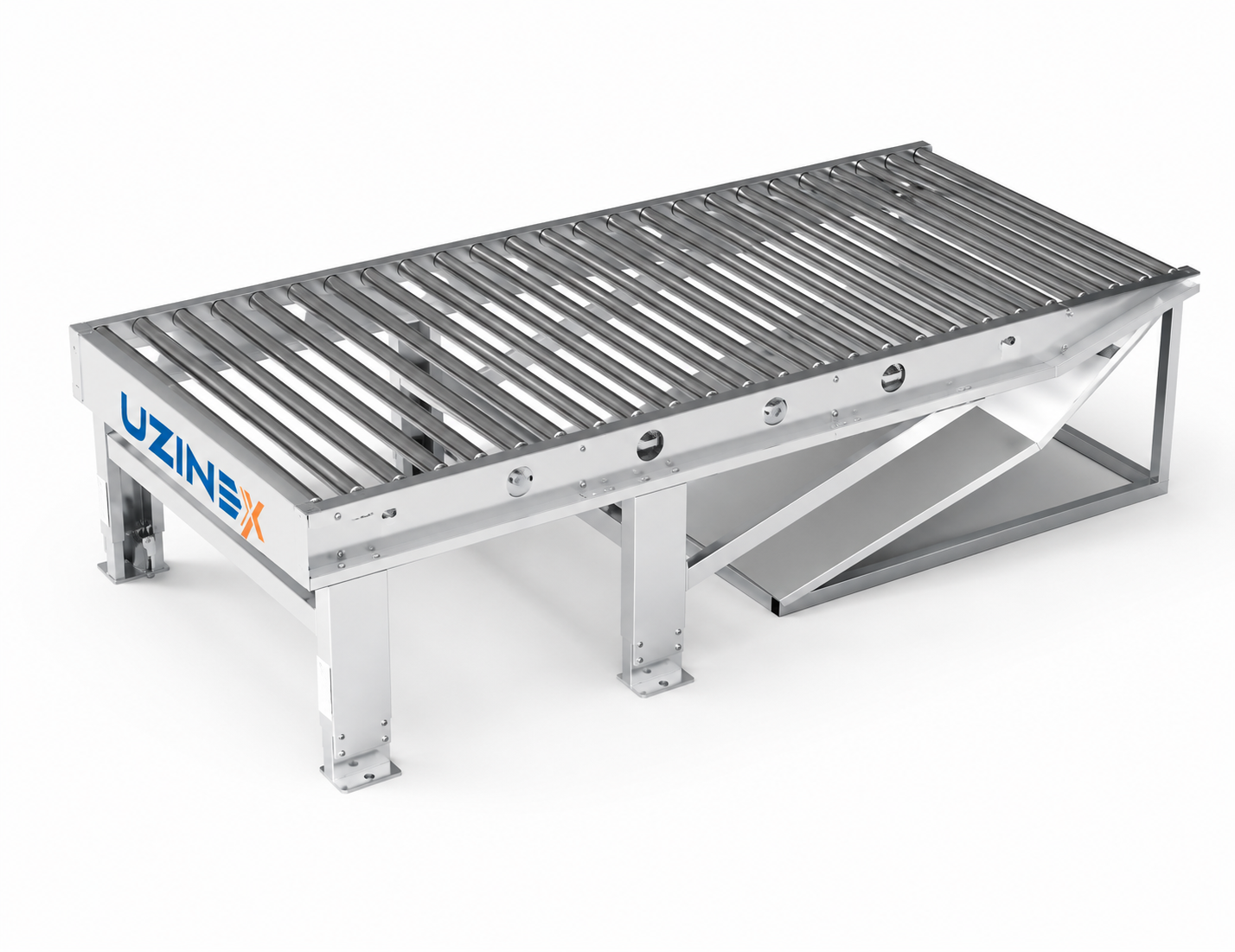

ZX-3015 — Packing Platform for packaging (Packing Platform)
The ZX-3015 conveying platform ensures the controlled transfer of products between the stations of the packaging line. With dimensions of 3.000×1.850×850 mm, a maximum load of 100 kg and a 0,75 kW motor, it is the connecting component that maintains the continuous flow of workpieces between the measuring station, the carton-cutting machine and the packaging stations proper.
| Parameter | Specification |
|---|---|
| Model | ZX-3015 |
| Type | Conveying platform for packaging |
| External dimensions (mm) | 3.000 × 1.850 × 850 |
| Maximum load | ≤ 100 kg |
| Motor power (kW) | 0,75 |
FG-3015 — Intelligent Clamshell Machine (Intelligent Clamshell Machine)
The FG-3015 intelligent clamshell machine automatically performs the opening and closing of the box lid during the packaging process, eliminating manual intervention for this stage. With dimensions of 3.000×1.850×850 mm, a load of 100 kg and a 1,15 kW motor, it is the component that automates one of the most frequent manual operations in the process of packaging bulky products.
| Parameter | Specification |
|---|---|
| Model | FG-3015 |
| Type | Intelligent lid-folding machine |
| External dimensions (mm) | 3.000 × 1.850 × 850 |
| Maximum load | ≤ 100 kg |
| Motor power (kW) | 1,15 |
ZP-3015 — Paper Threading Machine (Paper Threading Machine)
The ZP-3015 cardboard inserting machine automatically introduces the cardboard sheet or board around the product before sealing — an essential stage in flat-cardboard packaging lines where the cardboard must be positioned precisely relative to the product before folding and sealing. With dimensions of 3.000×1.300×850 mm, a load of 100 kg and a 0,75 kW motor, it is the compact component that automates the manual insertion of the cardboard.
| Parameter | Specification |
|---|---|
| Model | ZP-3015 |
| Type | Cardboard inserting machine |
| External dimensions (mm) | 3.000 × 1.300 × 850 |
| Maximum load | ≤ 100 kg |
| Motor power (kW) | 0,75 |

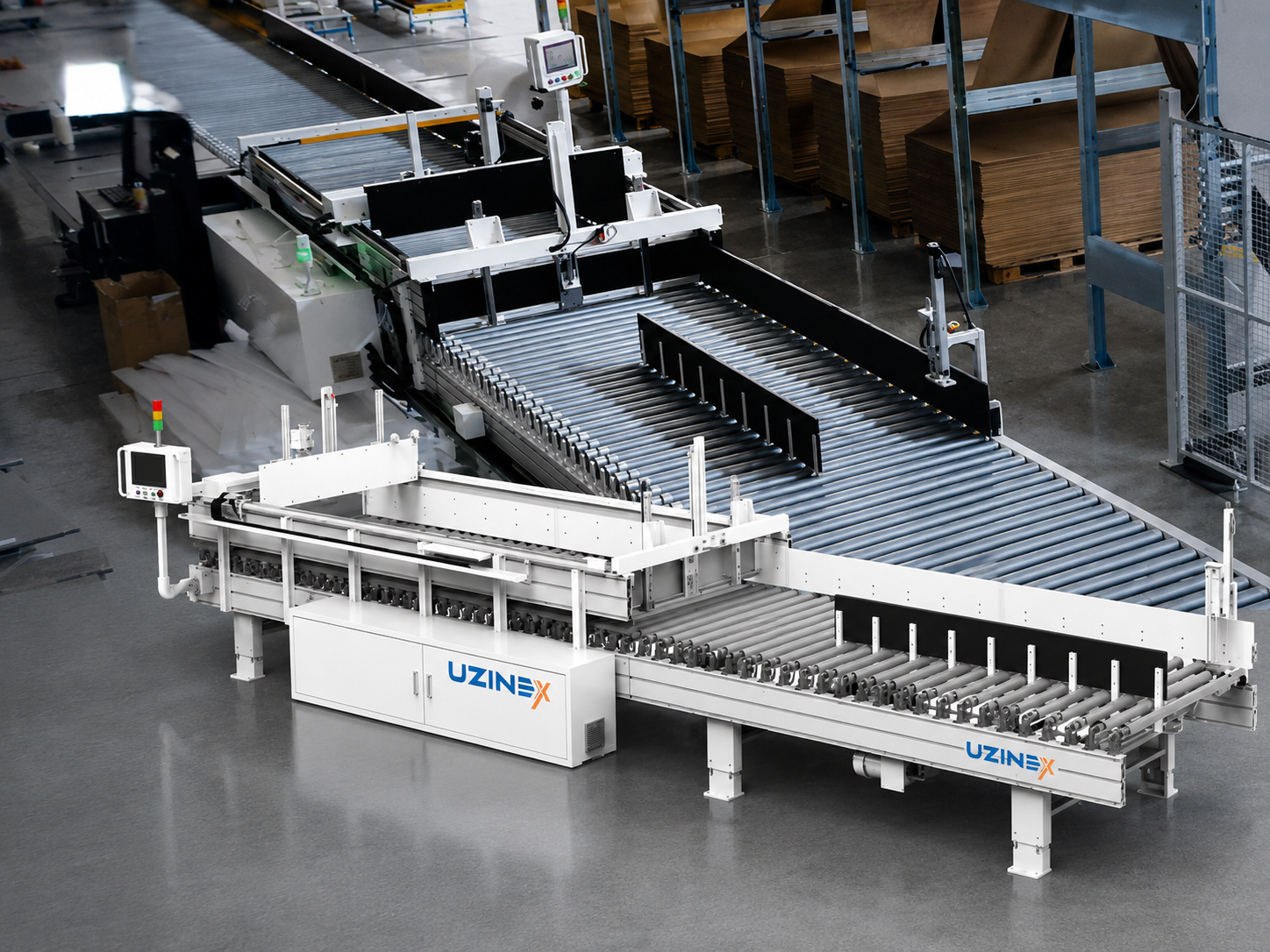

Integrating the Measuring-3015 measuring station into the UZINEX packaging line
The Measuring-3015 automatic measuring station is the input component of the FQ-P01 and FQ-P02 packaging lines in the UZINEX portfolio, where identifying the product's dimensions is required for the automatic calculation of the box. In the complete flow, the products pass through the ZB-3015 grouping table, are transferred onto the ZX-3015 platform, are measured automatically on the Measuring-3015, after which the dimensions are transmitted directly to the Cutting-2518, which produces the corresponding box.
The ZP-3015 cardboard inserting machine and the FG-3015 lid-folding machine complete the flow in the packaging area proper, automating the stages of cardboard positioning and box-lid handling. The complete configuration with all accessories practically eliminates all manual interventions from the packaging line, reaching a high degree of automation compatible with the requirements of the FQ-P01 (98% automation) and FQ-P02 lines.
Why UZINEX for the automatic measuring station and the packaging line accessories
• Free technical consulting for the complete configuration of the line — UZINEX evaluates the existing production flow, the typology of the packaged products and the equipment already installed in order to recommend the optimal configuration of measuring station and accessories required to reach the desired degree of automation.
• Transport, installation and commissioning included free of charge — the Measuring-3015 station and all selected accessories are delivered, installed and commissioned at the client's location by the UZINEX technical team, with complete calibration and operator training.
• Extended 60-month warranty — warranty included on the entire line of equipment, with technical support available for the whole warranty period and on-site intervention or video assistance in under 36 hours.
• National technical support in under 36 hours — on-site intervention or video diagnostic session in less than 36 hours from the request, with a dedicated 24/7 phone line for UZINEX customers.
• Intelligent AI manual included — complete operating, preventive maintenance and troubleshooting documentation with AI assistance for all the equipment in the line.
• Full eligibility for European funds — UZINEX provides complete documentation and support for purchases with EU, PNRR or structural funding.
The Measuring-3015 automatic measuring station, configured with the ZB-3015 (package grouping table), ZX-3015 (conveying platform), FG-3015 (lid-folding machine) and ZP-3015 (cardboard inserting machine) accessories, forms the complete conveying and measuring infrastructure of automatic packaging lines — eliminating manual measurement, automatically transmitting the dimensions to the carton-cutting machine and ensuring the continuous flow of products through all stages of the packaging process.
