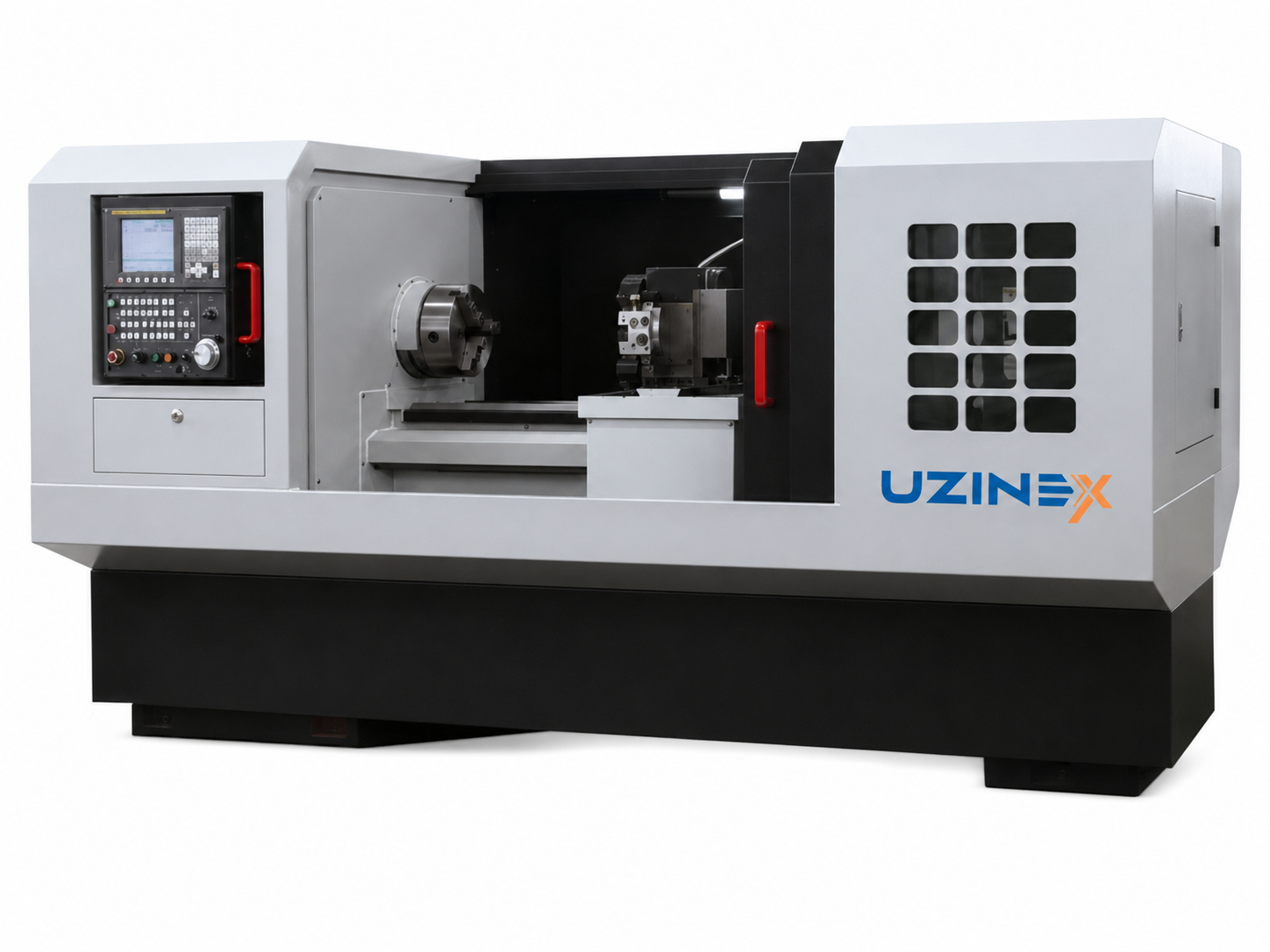

The CNC lathe for metal turning is the numerically controlled turning machine for machining workshops, precision-part production departments and manufacturing facilities that need ±0.015mm accuracy and ±0.006mm repeatability in continuous production. The CNC lathe for metal turning machines parts with a maximum diameter of 800mm over the bed and 540mm over the slide, in lengths of 750 / 1000 / 1500 / 2000 / 3000mm depending on the selected configuration, with a 7.5kW spindle motor and a main spindle speed between 100 and 1600rpm.
The CNC lathe for metal turning is available with a GSK, FANUC, Siemens or KND controller — the controller is chosen at quotation according to the CNC system already in the workshop and the programming team's preferences. The three configuration types (standard / type B / type C) differentiate the main spindle bore and the clamping taper, covering the full range of applications — from turning medium-sized shaft and disc parts to machining parts with a large-diameter axial pass-through. Transport, installation and commissioning included. 60-month warranty. Technical specifications — CNC lathe for metal turning
| Parameter | Value |
|---|---|
| Max. turning diameter over bed | 800 mm |
| Max. turning diameter over slide | 540 mm |
| Max. length of workpiece | 750 / 1000 / 1500 / 2000 / 3000 mm |
| Bed width | 400 mm |
| Main spindle motor | 7,5 kW |
| Main spindle speed | Independent spindle: 100–1600 rpm |
| Spindle speed with 3-step gearbox | 21–1600 rpm (I: 162–1600 | II: 66–500 | III: 21–150 rpm) |
| Positioning accuracy | ±0.015 mm |
| Positioning repeatability | ±0.006 mm |
| Rapid traverse speed X / Z axis | 4 / 6 m/min |
| Tailstock centre travel | 150 mm |
| Tailstock sleeve taper | MT5 |
| Standard spindle clamping taper | MT6 |
| Type B spindle clamping taper | φ90 1:20 |
| Type C spindle clamping taper | φ113 1:20 |
| Standard spindle bore | φ52 mm |
| Type B spindle bore | φ80 mm |
| Type C spindle bore | φ105 mm |
| Standard chuck size | C6 — 250mm, 3 manual jaws |
| Standard turret | 4-position vertical electric |
| Available controller | GSK / FANUC / Siemens / KND (selected at quotation) |
Standard equipment included
| Component | Specification |
|---|---|
| Main spindle | Variable frequency, high torque, high precision |
| Chuck | 3 manual jaws, 250mm |
| Turret | Vertical electric, 4 positions |
| Tailstock centre | Manual MT5 |
| Splash guard | Full |
| Speed change | Stepless (continuous) |
| Z-axis connection | Direct — maximum-precision transmission and positioning |
Options available at quotation
| Option | Details |
|---|---|
| Solid hydraulic chuck | Automatic clamping, fast and uniform gripping |
| Tubular hydraulic chuck | For parts with axial pass-through |
| 6-position turret | More tools at once in complex production |
| Automated speed change | Automatic switching between steps from the CNC program |
| Extended part length | Up to 3000mm depending on bed configuration |
| Type B / type C configuration | Larger spindle bore (φ80 / φ105mm) for parts with large-diameter pass-through |
The CNC lathe for metal turning is configured at quotation — controller, bed length, chuck type and turret options are selected according to the range of parts produced. Free technical consultancy available. Advantages of the CNC lathe for metal turning
• ±0.015mm accuracy and ±0.006mm repeatability — consistent quality in series production — the CNC lathe for metal turning achieves a positioning accuracy of ±0.015mm and a repeatability of ±0.006mm, parameters that place it in the medium-to-high precision CNC lathe category. This repeatability guarantees that the CNC lathe for metal turning produces identical parts in series — a critical condition for gear components, shafts and precision bushings where tight tolerances are imposed by assembly standards.
• Selectable controller — GSK, FANUC, Siemens or KND — the CNC lathe for metal turning is available with four control systems: GSK (a high-performance controller with optional Romanian-language interface), FANUC (the industry standard for series production), Siemens (preferred in complex integrations and automated production lines) and KND (an economical option for workshops with standard G-code programming). The ability to choose the controller makes the CNC lathe for metal turning a solution compatible with the existing CNC infrastructure in the workshop, with no need to fully retrain operators.
• Z axis with direct connection — elimination of transmission backlash — the Z axis of the CNC lathe for metal turning is connected directly to the servo motor, with no intermediate belt or gears. This construction eliminates the transmission backlash accumulated in indirect-drive systems and ensures superior accuracy and repeatability along the longitudinal direction, critical for thread-cutting, taper and profile turning operations where the cumulative error along the Z axis determines the final quality of the part.
• Turning diameter 800mm over the bed / 540mm over the slide — wide dimensional coverage — the CNC lathe for metal turning machines parts up to 800mm in diameter over the bed and 540mm over the slide, covering the range from small precision parts to medium-sized discs, flanges and rotors. The three bore configurations (φ52 / φ80 / φ105mm) of the CNC lathe for metal turning allow large-diameter bars to pass through axially without the limitations of a standard-spindle lathe.
• Five length variants — 750 to 3000mm — the CNC lathe for metal turning is available with the bed in five working lengths: 750, 1000, 1500, 2000 and 3000mm. This range covers everything from turning short high-precision parts (shafts, bushings, pistons) to machining long shafts for the power, marine and heavy machinery industries. The bed length of the CNC lathe for metal turning is selected at quotation according to the maximum range of parts machined.
• Main spindle speed 21–1600rpm with 3 mechanical steps — adaptable to diverse materials and operations — the CNC lathe for metal turning combines continuous speed variation with a 3-step mechanical gearbox (I: 162–1600 rpm / II: 66–500 rpm / III: 21–150 rpm), covering the entire range of operations — from high-speed finishing on aluminium and non-ferrous alloys to low-speed roughing on alloy steels and cast iron with high torque. The high torque of the main spindle at low speeds allows the CNC lathe for metal turning to perform aggressive roughing without loss of stability or vibration.
• 4-position vertical electric turret + optional 6 positions — increased productivity through fewer tool changes — the 4-position vertical electric turret of the CNC lathe for metal turning allows rapid automatic indexing of the next tool in the program, eliminating manual tool-change time. The optional 6-position turret available for the CNC lathe for metal turning is recommended for complex-profile parts that require several finishing, chamfering and truing tools in the same cycle.
• Optional hydraulic chucks — maximum productivity in series — the CNC lathe for metal turning is available with a solid or tubular hydraulic chuck in place of the standard manual chuck. The hydraulic chuck reduces clamping/unclamping time per part from 15–30 seconds to under 3 seconds, with a uniform, repeatable clamping force that eliminates manual clamping errors. In series production with the CNC lathe for metal turning, the hydraulic chuck significantly reduces the total cycle time per part.
Operations performed on the CNC lathe for metal turning
The CNC lathe for metal turning performs the entire range of CNC turning operations: external and internal turning of cylindrical surfaces, programmable taper turning, machining of circular and non-circular curves through interpolation, metric and inch thread cutting with variable pitch from the program, boring of cylindrical and tapered holes, parting and grooving. All operations of the CNC lathe for metal turning are programmed in standard G-code, compatible with the controllers selected at quotation.
Turning precision shafts for the automotive industry, bushings and flanges for the hydraulic and pneumatic industry, brake discs, bearings and transmission components are the typical applications of the CNC lathe for metal turning in small- and medium-series production workshops. The working length up to 3000mm also makes the CNC lathe for metal turning the appropriate machine for the long shafts used in the power and marine industries. Configuration comparison — CNC lathe for metal turning
The CNC lathe for metal turning is available in three main-spindle configurations that determine the type of parts that can be machined with full axial pass-through.
The standard configuration with a φ52mm bore and MT6 taper is the recommended variant for workshops machining predominantly solid parts without axial pass-through or small-diameter bars. The type B configuration with a φ80mm bore and φ90 1:20 taper is recommended for the production of medium-diameter tubular parts and bar stock up to φ75mm. The type C configuration with a φ105mm bore and φ113 1:20 taper of the CNC lathe for metal turning is the variant for the production of large-diameter tubular parts or bars up to φ100mm, common in the tube, hydraulic cylinder and fitting industries. Frequently asked questions about the CNC lathe for metal turning
Which controller is recommended for the CNC lathe for metal turning?
The choice of controller for the CNC lathe for metal turning depends on the workshop context. GSK is recommended for workshops starting with CNC and preferring a Romanian-language interface. FANUC is chosen by workshops with operators already familiar with this system and for integration into lines with several FANUC lathes. Siemens is preferred in automated environments with PLC integration. KND is the economical option for simple production with standard G-code. UZINEX provides consultancy on selecting the optimal controller for the CNC lathe for metal turning. Can the CNC lathe for metal turning cut threads?
Yes. The CNC lathe for metal turning performs metric, inch and variable-pitch thread cutting programmable directly from the CNC controller, with no thread chasers or change-gear swaps. Thread cutting is a standard operation on the CNC lathe for metal turning, accessible from the program with a single G-code threading cycle. Is the CNC lathe for metal turning eligible for EU funding?
Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for EU-funded projects — PNRR digitalisation, the Regional Programme, the Just Transition Programme. The CNC lathe for metal turning can be included in SEAP/SICAP. Leasing and credit options on the UZINEX credit and leasing page. Which bed length is recommended for the CNC lathe for metal turning?
The recommended length for the CNC lathe for metal turning depends on the longest part currently produced. Rule of thumb: select the bed length immediately above the maximum part length, with a 15–20% margin for clamping and tool clearance. UZINEX verifies the optimal length at quotation. Why UZINEX for the CNC lathe for metal turning
The CNC lathe for metal turning is an investment that directly impacts the range of parts your workshop can produce and the cost price per unit. UZINEX ensures correct configuration, delivery and complete technical support.
• Controller selection included — at quotation UZINEX recommends the optimal controller (GSK / FANUC / Siemens / KND) for the CNC lathe for metal turning according to the workshop context and operator experience.
• Transport, installation and commissioning included — installation at your site, calibration and complete operator training for the CNC lathe for metal turning.
• 60-month warranty — extended coverage for continuous production.
• Spare parts in stock — consumables and components available quickly, with no prolonged downtime of the CNC lathe for metal turning.
• Nationwide technical support 24–48 hours — technicians with nationwide coverage.
• EU-funding eligible — complete technical documentation for PNRR, POR and other active programmes.
• Build-to-order configuration — bed length, bore type, chuck and turret adapted to your specific production.
UZINEX CNC lathe for metal turning — diameter 800mm / 540mm, length 750–3000mm, 7.5kW motor, speed 21–1600rpm (3 mechanical steps), accuracy ±0.015mm / repeatability ±0.006mm, rapid traverse X 4m/min / Z 6m/min, 4-position electric turret (optional 6), 250mm 3-jaw chuck (optional hydraulic), Z axis direct connection, GSK / FANUC / Siemens / KND controller selectable at quotation, 60-month warranty, transport and commissioning included throughout Romania.
