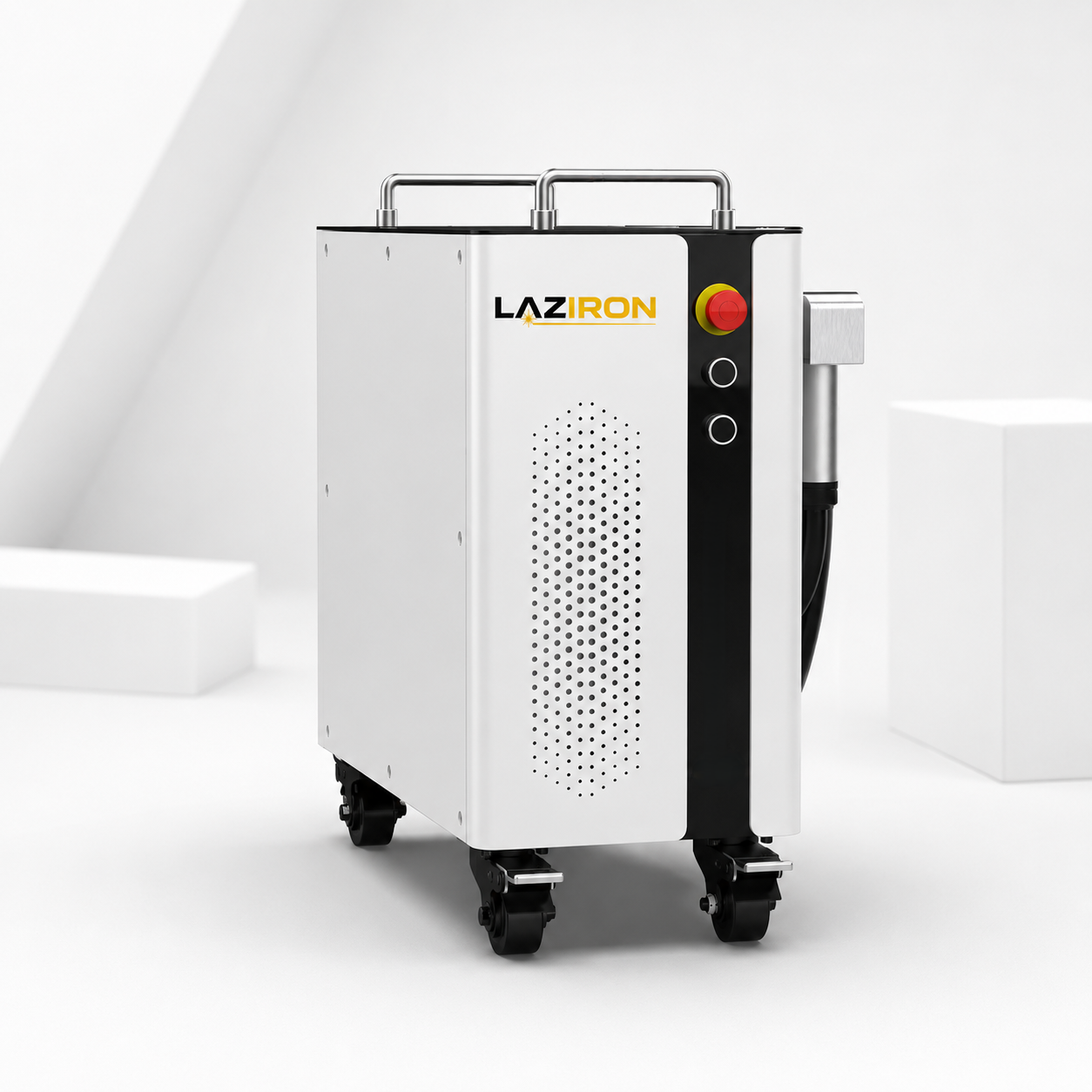

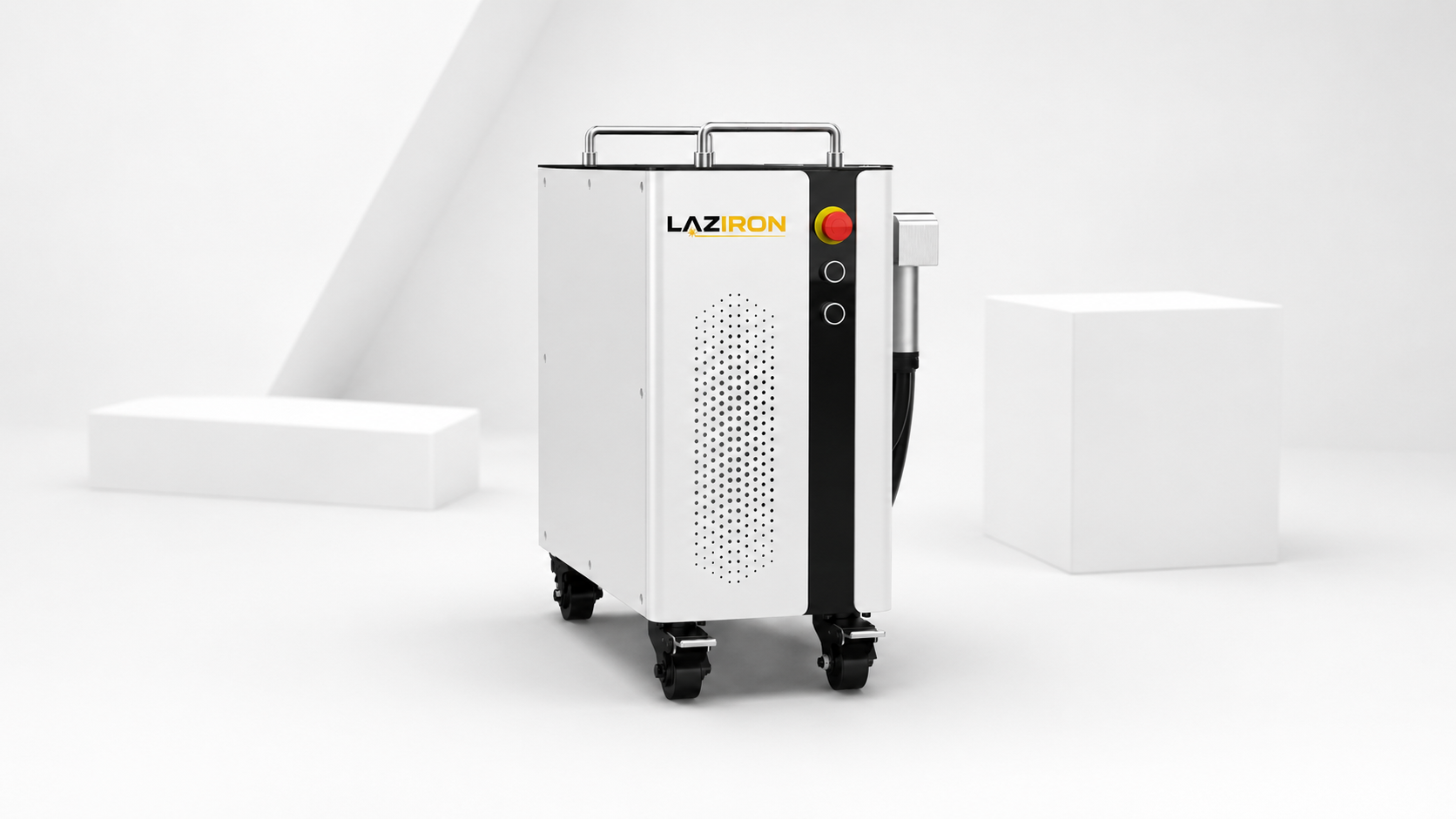

Portable air-cooled laser welding machine LAZIRON removes the last barrier to total portability: the external water chiller. The integrated air cooling system allows transport in a car trunk, instant relocation between sites and use in spaces where water is not available, essential for mobile services and job sites.
With power between 1000 and 1500 W, 100% air cooling and a total weight under 30 kg with the equipped enclosure, every portable air-cooled laser welding machine LAZIRON WFA is the choice of industrial maintenance teams, mobile repair workshops, construction sites and users who want to move the equipment between several work points without complex reinstallation.
What makes the LAZIRON WFA a portable air-cooled laser welding machine built for real production
Portable air-cooled laser welding machine LAZIRON WFA concentrates in a single system the advantages that matter on the production line: repeatable precision, parameter automation, predictable operating costs and a long service life for critical components.
• Integrated 100% air cooling, completely eliminates the external water chiller, reducing the total system weight by 40-50% and simplifying transport between sites.
• Fiber power 1000-1500 W, optimal for thin to medium sheet applications (under 6 mm carbon steel) typical of mobile services and on-site repairs.
• Total weight under 30 kg, transportable in a standard car trunk or on a service cart, easy to handle by a single operator.
• Setup in under 5 minutes anywhere, just a 220 V electrical outlet + the argon gas bottle, it starts and welds immediately, with no hydraulic setup or water level check.
• Ergonomic portable head 1.2-1.5 kg, easy to handle over long sessions, essential for in-situ repairs where the operator's position is often awkward.
• 2-in-1 function (welding + cleaning), the integrated cleaning mode allows surface preparation before welding without additional equipment, essential for repairs on old components.
• Continuous operation 4-6 hours/day, sufficient for typical mobile services; for continuous 8+ hour use we recommend the W model with water cooling.
Technical specifications, portable air-cooled laser welding machine LAZIRON WFA
This portable air-cooled laser welding machine LAZIRON is available in standardized configurations, the choice being made according to the application mix and the workshop's monthly production volume.
| Parameter | Value |
|---|---|
| Fiber laser source power | 1000 / 1200 / 1500 W (optional) |
| Emission type | Continuous (CW) |
| Wavelength | 1064 nm |
| Integrated functions | Welding + Cleaning (2-in-1) |
| Cooling system | 100% air (radiator + fans) |
| Total system weight | Under 30 kg |
| Max. weld thickness (with 1500 W) | 5 mm carbon steel |
| Transport cable length | 5 m standard |
| Welding head weight | 1.2-1.5 kg |
| Recommended continuous operation | 4-6 hours/day |
| Compatible shielding gases | Argon, Ar/CO2 mix |
| Supply voltage | 220 V single-phase |
| Certification | CE |
Industries that use a portable air-cooled laser welding machine LAZIRON
A portable air-cooled laser welding machine LAZIRON is chosen by industrial maintenance teams, mobile repair workshops, on-site fabrication services and all users who cannot benefit from stationary equipment.
Service teams for industrial machinery (excavators, cranes, agricultural equipment) use a single portable air-cooled laser welding machine LAZIRON WFA for in-situ weld repairs at end customers, eliminating the cost of transporting the faulty machine to the workshop. Laser welding with minimal distortion is essential for repairing critical components where subsequent straightening is not possible on the job site.
Mobile workshops for exhibition events (on-site assembly of tubular structures), at-home car body repair services, restorers of vintage objects with in-situ interventions and rapid repair teams for the HVAC industry amortize the investment in the LAZIRON WFA portable air-cooled laser welding machine through the high volume of external interventions at premium prices.
Materials compatible with a portable air-cooled laser welding machine LAZIRON
With power between 1000 and 1500 W and air cooling, every portable air-cooled laser welding machine LAZIRON LAZIRON WFA covers most common applications on the job site and for mobile services.
The power limitations (max 1500 W) and continuous operation limitations (4-6 hours) are acceptable trade-offs for the advantage of absolute portability, but for intensive stationary use we recommend the W model with water cooling.
Typical performance per material
• Carbon steel, max. thickness: 5 mm
• Stainless steel 304/316: 4 mm
• Aluminum (with argon): 3 mm
• Galvanized sheet: 3 mm
How the LAZIRON WFA model works
The workflow of a portable air-cooled laser welding machine LAZIRON LAZIRON WFA allows instant startup anywhere there is a standard electrical outlet.
1. The operator unloads the equipment from the trunk, connects it to the 220 V outlet and attaches the argon gas bottle.
2. Starts the machine and waits 30 seconds for the laser source and the air cooling system to stabilize.
3. Selects the function (welding or cleaning) and the parameters from the source's integrated panel.
4. Directs the portable head at an 80-90° angle to the surface, at a distance of 2-5 mm.
5. Pulls the trigger and moves the head at a speed of 800-1200 mm/min along the weld seam.
6. After 4-6 continuous hours, the system requires a 20-30 minute break for cooling, we recommend planning sessions in segments.
For integration with other equipment in your workshop, the machine connects natively to the other LAZIRON equipment through a common MES.
Frequently asked questions about the portable air-cooled laser welding machine
How much do I save with a LAZIRON WFA portable air-cooled laser welding machine compared to bringing the part to the workshop?
For a typical on-site repair (50-200 mm repair weld seams on heavy machinery), transporting the part to the workshop costs 200-500 EUR (transport + handling + machine downtime). With a LAZIRON WFA portable air-cooled laser welding machine, the in-situ intervention is done in 1-3 hours, with no transport. At 10-15 interventions/month, the savings exceed 3,000-6,000 EUR, a payback of 14-22 months from eliminating transport alone.
Can I use the LAZIRON WFA portable air-cooled laser welding machine continuously for 8 hours?
No, the air cooling system is sized for 4-6 continuous hours, after which it requires a 20-30 minute break. For intensive stationary use over 8 hours/day, the W model with water cooling is clearly superior. The WFA is optimized for mobile services with intensive 2-4 hour usage cycles between trips.
What is the real difference between the LAZIRON W portable laser welding machine and the WFA version?
W: water cooling, up to 3000 W power, continuous operation 8+ hours, 3-in-1 system, stationary. WFA: air cooling, max 1500 W, 4-6 hour operation, 2-in-1 system (without cutting), portable. For the fixed workshop: W is the choice. For mobile services or occasional use: WFA with a much simpler setup and easy transport.
What gas and what consumption do I have on the job site?
We recommend the portable 5-liter argon bottle, it lasts 6-10 hours of typical effective welding. For long continuous seams, the 10-liter version lasts 12-18 hours. The cost of gas per effective welding hour: 3-5 EUR in 2026. Gas consumption is 30-40% lower than with manual TIG due to the superior speed of the laser process.
What delivery, installation and training are included?
Transport and commissioning are included in the purchase price across Romania, together with initial operator training. For other destinations, delivery is quoted per order.
ROI calculation for a portable air-cooled laser welding machine LAZIRON
The decision to invest in a portable air-cooled laser welding machine is not made based on technical specifications alone, what matters is how the equipment translates into real monthly cash-flow figures for your workshop.
For workshops that currently subcontract the equivalent operations at market prices, internalizing with a portable air-cooled laser welding machine LAZIRON reduces the effective cost per operation by 50-70%. At a typical monthly volume operated internally instead of subcontracted, the investment is recovered in 18-30 months under current market conditions.
The additional margin comes from three directions: the savings compared to subcontracting, offering services to external local customers at market prices, and reducing delivery times to end customers by 40-60%, which allows premium prices on urgent orders or those with short deadlines.
Why choose UZINEX for a portable air-cooled laser welding machine
LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious workshop can sustain, not just large factories with multi-million euro budgets for CAPEX investments.
• Affordable price for a 100% portable system, the critical components are those used by premium manufacturers, but the LAZIRON package costs 35-45% less, total savings amplified by eliminating chiller costs.
• 60-month warranty, with on-site service intervention in under 24 hours anywhere in Romania.
• Technical support and service, phone support, spare parts and on-site intervention in under 24 hours anywhere in Romania.
• Free pre-delivery inspection, with a live test on your reference material and a complete acceptance report.
• European funds compatibility, meets the requirements of PNRR, ERDF and national funds for digitalization and operational mobility.
• Components compliant with standards, the fiber source meets the reliability specifications of leading manufacturers on the global market.
The critical components in the standard configuration meet the reliability specifications set by the laser industry leaders, with a declared lifetime of over 100,000 operating hours on the fiber source.
See the entire LAZIRON range of industrial equipment to compare models and request a personalized offer.
Portable air-cooled laser welding machine LAZIRON WFA turns the workshop's key operations into a real competitive advantage: premium-grade quality, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed cost structure.
