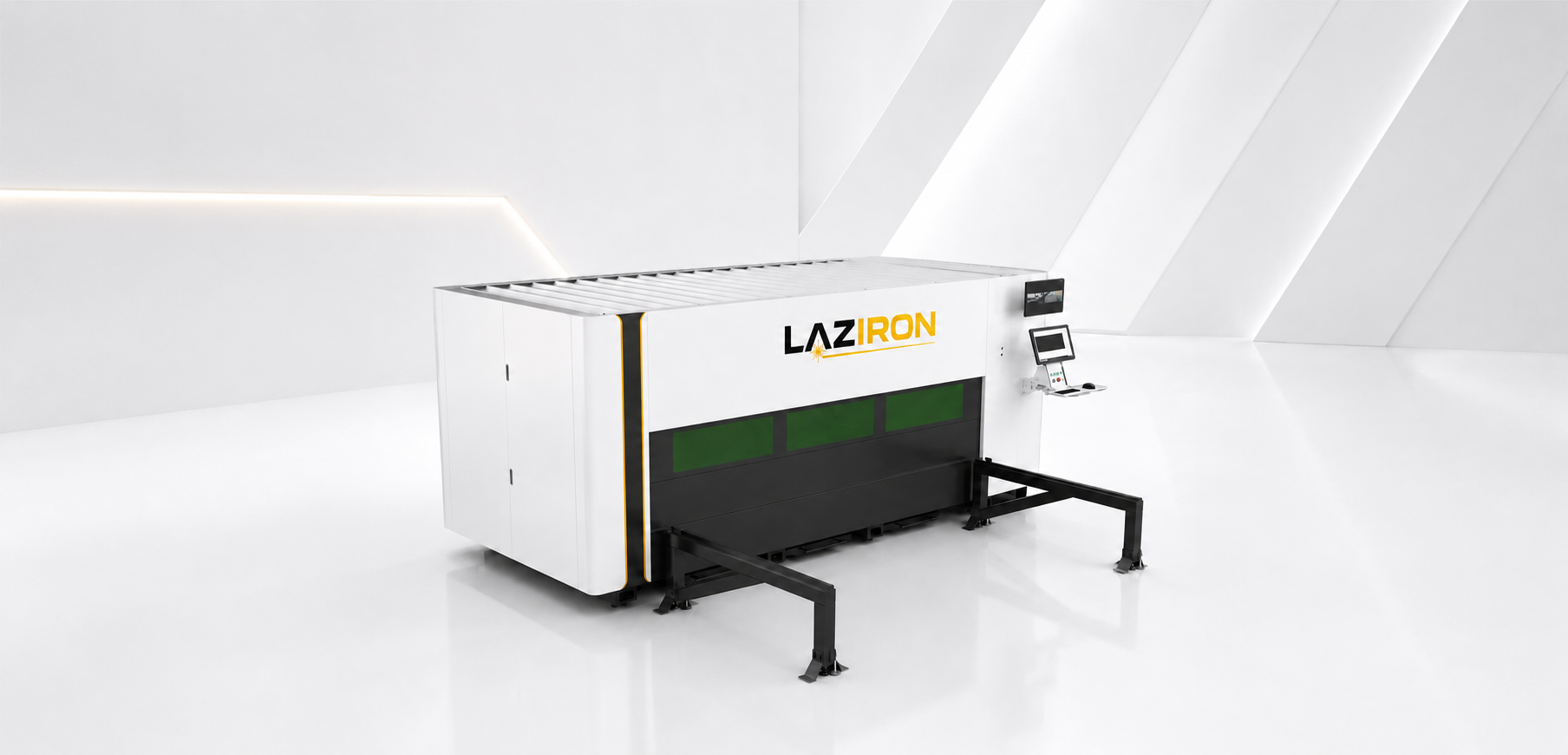

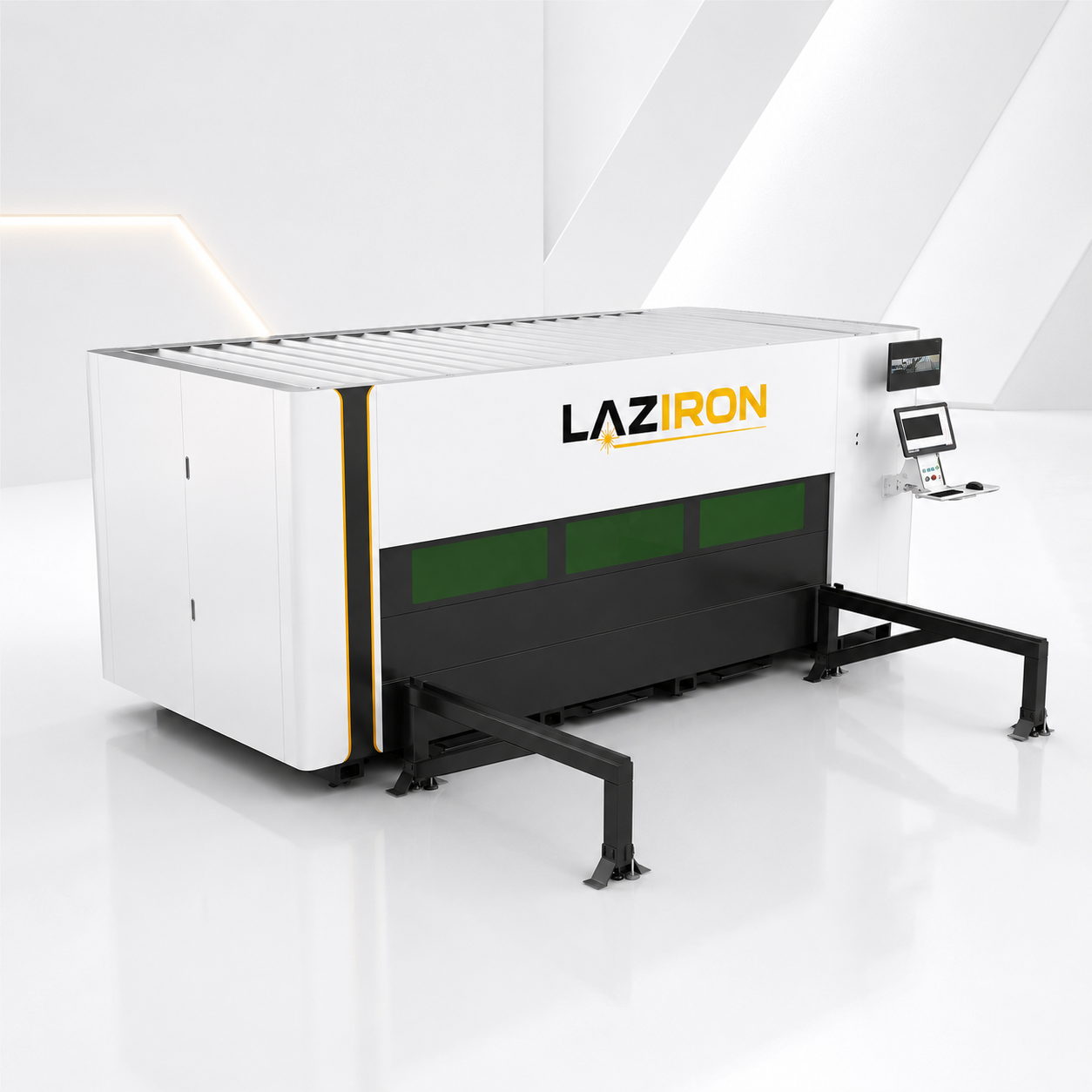

Fully enclosed fiber laser machine LAZIRON is built for workshops that want to combine cutting performance with maximum operator safety and strict compliance with European emission standards. The protective enclosure covers the entire working area, blocking radiation, noise and metal dust.
With a fiber laser source between 1.5 and 20 kW and a standard surface of 3000 × 1500 mm, each fully enclosed fiber laser machine LAZIRON delivers industrial quality at an investment that metal fabrication workshops, food factories, metal furniture manufacturers and any facility working in buildings with many staff around the machine can afford.
What makes the LAZIRON FP a fully enclosed fiber laser machine built for real production
The fully enclosed fiber laser machine LAZIRON FP concentrates in a single system the advantages that matter on the production line: repeatable precision, parameter automation, predictable operating costs and a long service life for critical components.
• Enclosure with full coverage of the working area, blocks 100% of diffuse laser radiation, sparks and fumes, allowing the machine to be placed in spaces with staff nearby, without separate booths.
• Integrated fume extraction system, connected to an activated carbon filter or to the compressed air station, essential for materials that emit fumes (galvanized, stainless steel).
• Noise reduction of 15-20 dB, compared to an open machine with the same laser source, keeping the workshop below the legal limit of 85 dB even during intensive operations.
• Fiber laser power 1.5–20 kW, configurable to specific needs, with the option of a later upgrade without replacing the machine frame.
• Motorized access door, with a safety interlock that stops the laser instantly upon opening, eliminating the risk of accidental exposure.
• RayTools head with capacitive autofocus, instant transitions between materials without manual adjustments, essential for workshops with a mixed production output.
• Cypcut control system, with automatic nesting, fly-cutting and common edge cutting to reduce material waste below 15%.
Technical specifications, fully enclosed fiber laser machine LAZIRON FP
This fully enclosed fiber laser machine LAZIRON is available in standardized configurations, with the choice made according to the mix of materials processed and the workshop's monthly production volume.
| Parameter | Value |
|---|---|
| Fiber laser source power | 1.5 / 3 / 6 / 12 / 20 kW (optional) |
| Effective working area | 3000 × 1500 mm or 4000 × 2000 mm |
| Enclosure type | Full coverage with motorized door |
| Fume extraction system | Integrated, connectable to an external filter |
| Noise reduction | ≥ 15 dB compared to an open machine |
| X/Y positioning accuracy | ±0.03 mm |
| Repositioning accuracy | ±0.02 mm |
| Maximum acceleration | 1.5 G |
| Numerical control system | Cypcut PC-based |
| Cutting head | RayTools with capacitive autofocus |
| Cooling system | S&A dual-circuit |
| Certification | CE (laser class 1 with enclosed housing) |
Industries that use a fully enclosed fiber laser machine LAZIRON
A fully enclosed fiber laser machine LAZIRON is the natural choice for workshops where operator safety, compliance with environmental standards and noise control are essential criteria, just as much as cutting performance.
Food and pharmaceutical factories that process stainless steel use a single fully enclosed fiber laser machine LAZIRON FP to keep the working environment clean and compliant with sanitary standards, avoiding the spread of metal dust into production areas. Manufacturers of metal furniture and medical equipment, often in buildings with administrative staff nearby, benefit from the total isolation.
Metal fabrication workshops in leased industrial parks, where noise limits are contractual, install a fully enclosed fiber laser machine to comply with the standards without an additional investment in soundproofing the hall. Manufacturers working with galvanized or emissive stainless steel use the integrated extraction system to avoid separate installations.
Materials compatible with a fully enclosed fiber laser machine LAZIRON
With fiber laser sources between 1.5 and 20 kW, each fully enclosed fiber laser machine LAZIRON LAZIRON FP covers the entire portfolio of common metals, with the advantage of total control over fume and particle emissions.
The integrated extraction system is crucial for galvanized and painted materials and for stainless steel, where cutting with nitrogen generates dense fumes that would otherwise affect the workshop.
Maximum thicknesses per material (in the maximum configuration)
• Carbon steel (with 12 kW source): up to 25 mm
• Stainless steel (with nitrogen): up to 20 mm
• Aluminum (with 20 kW source): up to 16 mm
• Galvanized sheet: up to 8 mm (extraction recommended)
How the LAZIRON FP model works
The workflow of a fully enclosed fiber laser machine LAZIRON LAZIRON FP is designed for maximum safety without sacrificing productivity.
1. The operator opens the motorized door from the panel to load the sheet onto the work table.
2. After the door closes, the safety interlock automatically arms the laser source to start the cycle.
3. The extraction system starts before the laser is triggered and maintains negative pressure throughout the cut.
4. The RayTools head runs the nesting program with continuous autofocus, in conditions isolated from the operator.
5. The activated carbon filter (optional) retains particles and emissions, releasing only filtered air into the atmosphere.
6. At the end, the door unlocks automatically and the operator unloads the finished parts without residual exposure.
For integration with other metalworking equipment, the machine connects natively to bending presses and to the other LAZIRON lines through a shared MES.
Frequently asked questions about the fully enclosed fiber laser machine
Why choose a fully enclosed fiber laser machine instead of an open one?
Three main reasons: safety (laser class 1 with enclosed housing vs class 4 without), compliance with EU noise and emission standards (below 85 dB ambient and particles below the permitted limit), and placement flexibility (the machine can sit in any workshop without a separate protective booth).
Do I lose productivity compared to an open machine?
No, the cycle difference is 3-5 seconds per operation (the time to open/close the motorized door), negligible for programs over 60 seconds. For very short programs (under 30 seconds), a configuration with a partial-opening door for fast loading is recommended.
What extraction filter do I use with a fully enclosed fiber laser machine?
For carbon steel and stainless steel sheet: mechanical filter with HEPA cartridges, minimum flow rate 2500 m³/h. For galvanized and painted: combined HEPA + activated carbon filter, minimum flow rate 3000 m³/h. LAZIRON can include the filter in the delivery package on request, with specifications optimized for the chosen laser source.
How much do I save with the integrated system vs a separate setup?
An external acoustic protection booth plus a dedicated ventilation system for an open laser machine costs 25,000-45,000 EUR in Europe. The fully enclosed fiber laser machine LAZIRON FP integrates all these functions into the machine, eliminating the setup cost and saving an additional 20-30 m² of hall space.
What maintenance do the enclosure and extraction system require?
The viewing windows are cleaned weekly with non-abrasive material. The HEPA filters are changed at 800-1200 hours of operation. The door seals are inspected every 6 months. LAZIRON delivers a complete annual maintenance kit at 30% of the cost of the equivalent external installation.
ROI calculation for a fully enclosed fiber laser machine LAZIRON
The decision to invest in a fully enclosed fiber laser machine is not made on technical specifications alone, what matters is how the equipment translates into real monthly cash-flow figures for your workshop.
For workshops that currently subcontract laser cutting at 0.8-1.4 EUR per linear meter cut plus material cost, bringing it in-house with a fully enclosed fiber laser machine LAZIRON reduces the effective cost per m² processed by 55-70%. At a monthly volume of 5-8 tonnes of sheet processed in-house instead of subcontracted, the investment is recovered in 18-30 months under current European market conditions.
The additional margin comes from three directions: the savings compared to subcontracting, offering cutting services to external local customers (1.2-1.8 EUR/m at the level of the European market in 2026) and reducing delivery times to end customers by 40-60%, which allows premium prices on urgent orders.
Why choose UZINEX for a fully enclosed fiber laser machine
LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious workshop can afford, not just the large factories with multi-million euro budgets for CAPEX investments.
• Affordable price for a class 1 certified machine, the critical components are identical to those used by premium manufacturers, but the LAZIRON package costs 30-40% less than the European alternatives.
• 60-month warranty, with on-site service intervention in under 24 hours anywhere in Romania.
• Technical support and service, phone support, spare parts and on-site intervention in under 24 hours anywhere in Romania.
• Free pre-delivery inspection, mandatory to validate the tightness of the enclosure and the performance of the extraction system.
• European funds compatibility, meets the requirements of the NRRP, ERDF and national industrial digitalization funds.
• Components compliant with standards, the fiber source meets the reliability specifications of the leading manufacturers on the global market.
The fiber laser source in the standard configuration meets the reliability specifications set by the leaders of the laser industry, with a declared lifetime of over 100,000 operating hours.
See the entire LAZIRON range of metalworking equipment to compare the models and request a personalized offer.
Fully enclosed fiber laser machine LAZIRON FP turns cutting into a real competitive advantage: premium-level precision, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed cost structure.
