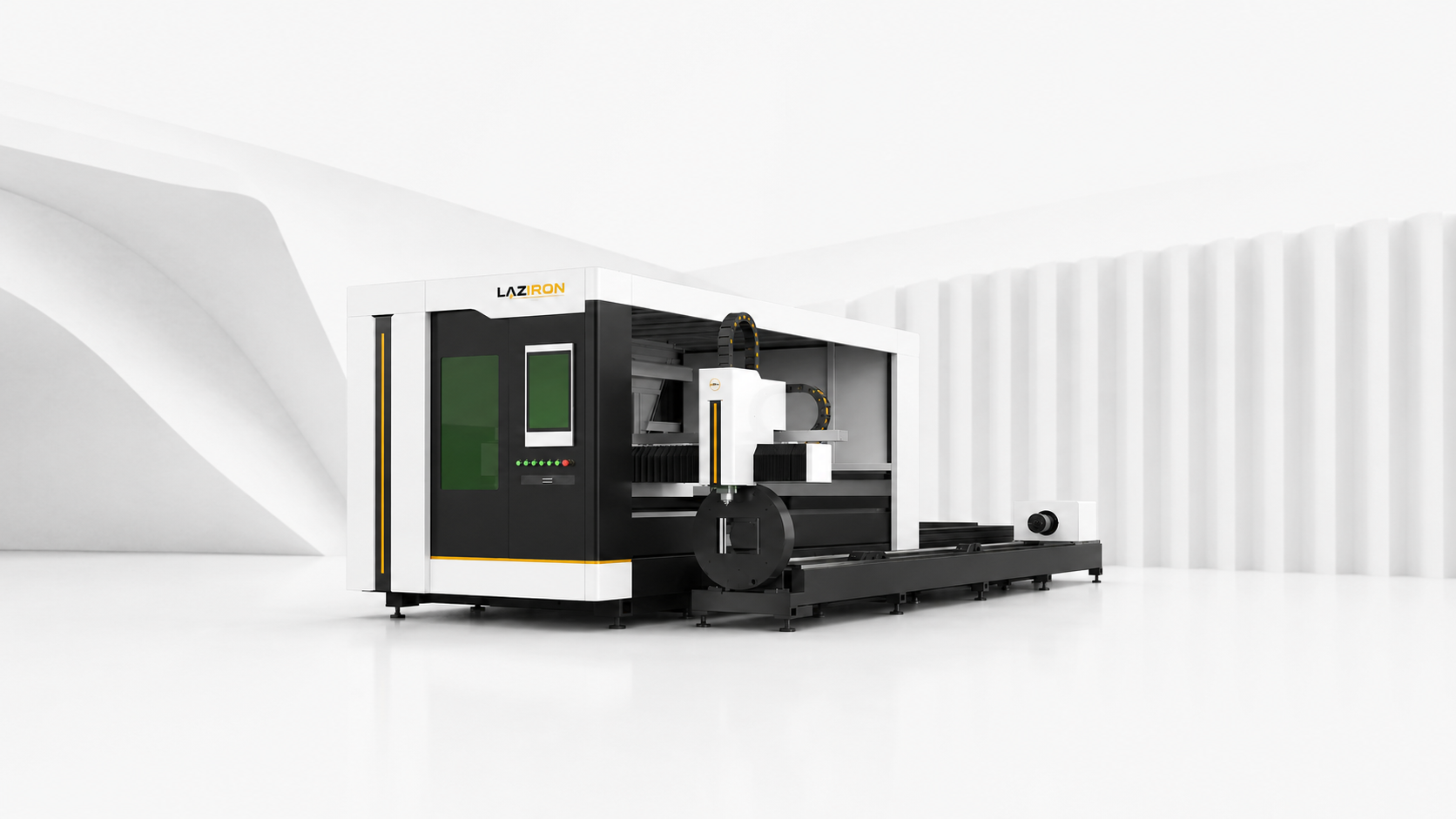

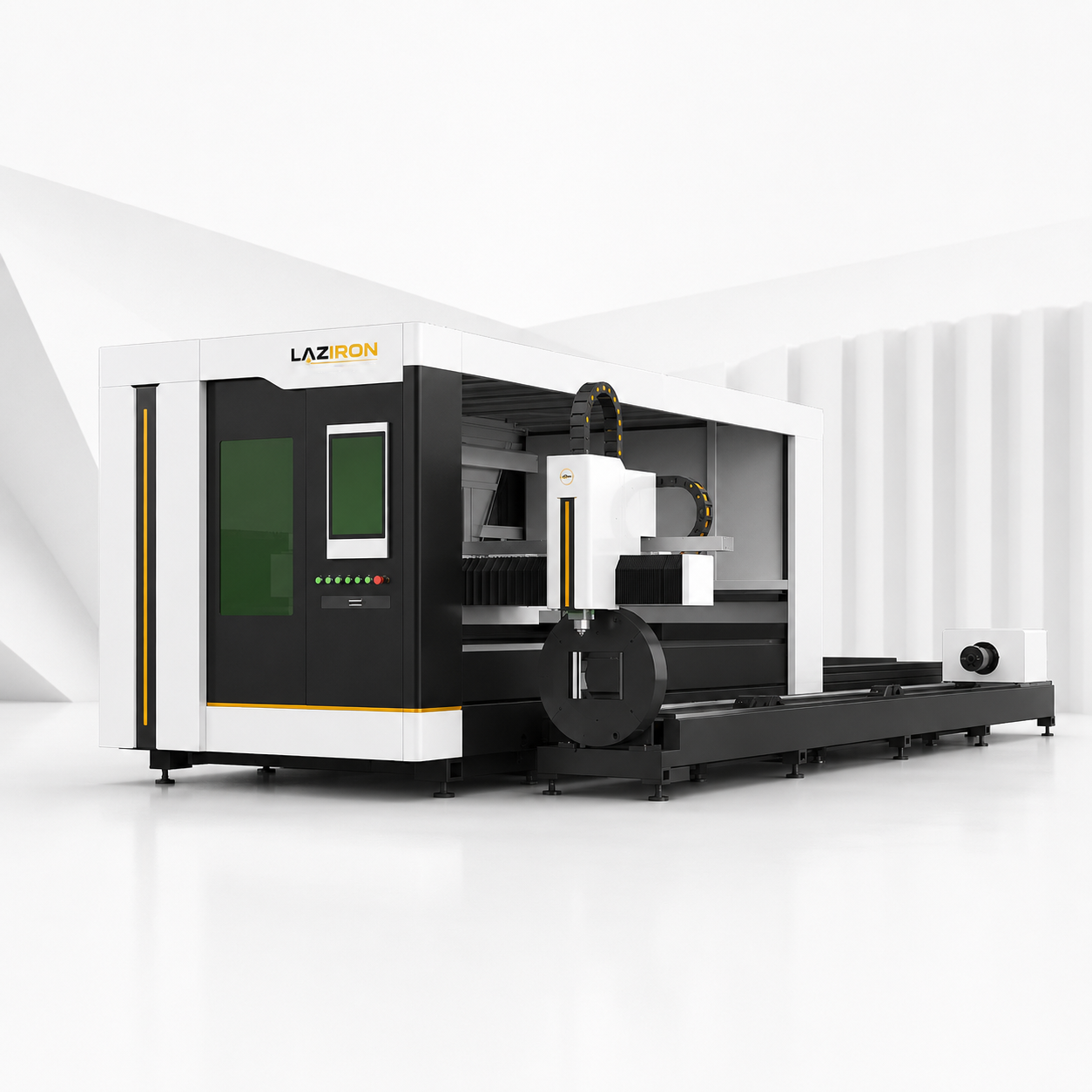

Enclosed sheet and tube laser machine LAZIRON combines the advantage of the dual sheet+tube function with the maximum safety of a full enclosure and an exchangeable table system. Three benefits in a single machine: space savings, continuous productivity and compliance with European safety and emissions standards.
With a fiber laser source between 3 and 12 kW, a usable area of 6000×1500 mm for sheet and a tube capacity up to Ø250 mm with lengths of 6500 mm, every LAZIRON ETP enclosed sheet and tube laser machine is the optimal configuration for workshops that want a single universal machine for the entire range of laser cutting operations, with industrial-grade safety, productivity and quality.
What makes the LAZIRON ETP an enclosed sheet and tube laser machine built for real production
The LAZIRON ETP enclosed sheet and tube laser machine brings together in a single system the advantages that matter on the production line: repeatable precision, parameter automation, predictable operating costs and a long service life for critical components.
• Triple system: sheet + tube + closed enclosure, eliminates the need for two separate machines plus an external acoustic protection cabin, for a total saving of 50-60% CAPEX vs dedicated solutions.
• Full enclosure with laser class 1, blocks 100% of radiation, sparks and fumes, allowing placement in the workshop with staff nearby almost without a separate cabin.
• Fiber laser power 3–12 kW, required for workshops producing on thick sheet (up to 30 mm) and structural profiles with walls over 12 mm.
• Exchangeable table system, two alternating tables for sheet mode, eliminating downtime between cycles, for 35-45% higher productivity.
• Integrated pneumatic rotary chuck, rises automatically for tube cycles without manual removal of the jaws, in under 60 seconds.
• Integrated fume extraction system, essential for cutting stainless with nitrogen, galvanized and painted material, connectable to a filter with HEPA cartridges or activated carbon.
• Cypcut software with integrated modules, plate with nesting + tube with parametric library + table exchange control + extraction, all in a single Windows HMI.
Technical specifications, LAZIRON ETP enclosed sheet and tube laser machine
This LAZIRON enclosed sheet and tube laser machine is available in standardized configurations, the choice being made according to the mix of applications and the workshop's monthly production volume.
| Parameter | Value |
|---|---|
| Fiber laser source power | 3 / 6 / 8 / 12 kW (optional) |
| Flat sheet area | 6000 × 1500 mm or 6000 × 2000 mm |
| Round tube capacity | Ø20 – Ø250 mm |
| Rectangular tube profiles | 20×20 – 220×220 mm |
| Maximum tube length | 6500 mm |
| Max. sheet thickness (with 12 kW) | 30 mm |
| Max. tube wall thickness | 14 mm |
| Sheet table system | Dual exchangeable, under 30 sec. |
| Enclosure type | Full coverage, laser class 1 |
| Fume extraction system | Integrated, connectable to external filter |
| Numerical control system | Cypcut PC-based with plate + tube modules |
| Cutting head | RayTools with capacitive autofocus |
| Certification | CE |
Industries that use a LAZIRON enclosed sheet and tube laser machine
A LAZIRON enclosed sheet and tube laser machine is the choice for workshops that want a single universal machine: mixed sheet+tube production, plus strict safety and emissions compliance requirements for numerous staff around the machine.
Industrial metal furniture factories with 24/7 production use a single LAZIRON ETP enclosed sheet and tube laser machine to process both structural panels (shelf walls, warehouse decks) and tubular profiles (frames, legs, crossbars), with the closed enclosure allowing placement next to welding assembly areas without a separate protection cabin.
Manufacturers of medical equipment and pharmaceutical machinery process 304/316 stainless steel in both flat and tubular form, using the integrated fume extraction system to keep the work environment compliant with sanitary standards. The shipbuilding industry (combined structural components and tubing) and oil equipment factories amortize the investment in 18-28 months at typical volumes over 8 tonnes/month.
Materials compatible with a LAZIRON enclosed sheet and tube laser machine
With fiber laser sources between 3 and 12 kW, every LAZIRON ETP enclosed sheet and tube laser machine processes the full range of industrial metals in both formats without significant limitations.
The integrated fume extraction system allows the safe processing of emissive materials (galvanized, painted, stainless with nitrogen) without contaminating the workshop, essential for factories with strict work environment standards.
Typical performance per material
• Carbon steel, sheet (with 12 kW): up to 30 mm
• Stainless steel, sheet: up to 25 mm
• Carbon steel, tube wall: up to 14 mm
• Aluminium, both formats: up to 16 mm
How the LAZIRON ETP model works
The workflow of a LAZIRON ETP enclosed sheet and tube laser machine combines the efficiency of the dual table with the flexibility of tube mode and the safety of the closed enclosure.
1. The operator loads the sheet onto the outer table through the open motorized door, while the inner table is working.
2. At changeover, the system transfers the tables in under 30 seconds, and the interlock automatically arms the laser.
3. To switch to tube mode: the rotary chuck rises from the table, the door closes for tube mode with interlock.
4. The fume extraction system starts before the laser fires and maintains negative pressure throughout the cycle.
5. The RayTools head runs the program with continuous autofocus and 3D compensation in tube mode.
6. At the end, the door unlocks automatically and the operator unloads the finished parts without residual exposure to fumes or radiation.
For integration with other equipment in your workshop, the machine connects natively to the other LAZIRON equipment through a shared MES.
Frequently asked questions about the enclosed sheet and tube laser machine
Why choose an enclosed sheet and tube laser machine instead of separate variants?
Four cumulative advantages: 50-60% CAPEX saving vs two dedicated machines plus an acoustic cabin, 60% saving in hall space, a single operator for all operations, plus laser class 1 compliance + integrated fume extraction. For workshops with mixed production over 6 tonnes/month, the LAZIRON ETP enclosed sheet and tube laser machine recovers the investment difference in 14-22 months.
What is the difference between LAZIRON ETP and LAZIRON FT?
The FT has an open construction with side panels (laser class 4, easy access with a crane). The ETP adds a full enclosure with fume extraction and a dual exchangeable table system. The ETP costs 35-45% more but offers strict compliance with European standards, 35% higher productivity and safety for placement in areas with numerous staff.
What laser power should I choose for the LAZIRON ETP enclosed sheet and tube laser machine?
For a typical mix of 60% sheet + 40% tube with medium thicknesses: 6 kW. For workshops with frequent production on sheet over 15 mm or tube walls over 10 mm: 12 kW. The 3 kW source is justified only for a mix with thin materials and low volumes, but then the FT variant (without enclosure) is more cost-effective.
What extraction filter should I use?
For carbon steel and stainless sheet: a mechanical filter with HEPA cartridges, flow rate 3000-4000 m³/h. For galvanized and painted material: a combined HEPA + activated carbon filter, flow rate 4000-5000 m³/h. LAZIRON can include the filter in the package on request, with specifications optimized for the chosen laser source and for your material mix.
What hall size do I need?
For the 6000×1500 mm sheet + 6500 mm tube configuration: a minimum hall of 16 × 7 m (machine + table areas + crane maneuvering space). Clear height 4 m. Reinforced concrete foundation 250 mm. Three-phase voltage 380 V with absorbed power 30-80 kVA depending on the laser source and the extraction system selected.
ROI calculation for a LAZIRON enclosed sheet and tube laser machine
The decision to invest in an enclosed sheet and tube laser machine is not made on the basis of technical specifications alone; what matters is how the equipment translates into real monthly cash-flow figures for your workshop.
For workshops that currently subcontract the equivalent operations at 2026 European market prices, bringing the work in-house with a LAZIRON enclosed sheet and tube laser machine reduces the effective cost per operation by 50-70%. At a typical monthly volume handled in-house instead of subcontracted, the investment is recovered in 18-30 months under current European market conditions.
The additional margin comes from three directions: savings compared to subcontracting, offering services to local external clients at market prices, and reducing delivery times to end customers by 40-60%, which allows premium prices on urgent orders or those with short deadlines.
Why choose UZINEX for an enclosed sheet and tube laser machine
LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious workshop can sustain, not just large factories with multi-million euro budgets for CAPEX investments.
• Affordable price for the universal configuration, the critical components are those used by premium manufacturers, but the integrated LAZIRON package costs 40-50% less than buying the dedicated equivalents separately plus an acoustic cabin.
• 60-month warranty, with on-site service intervention in under 24 hours anywhere in Romania.
• Technical support and service, phone support, spare parts and on-site intervention in under 24 hours anywhere in Romania.
• Free pre-delivery inspection, mandatory to validate all three operating modes on your reference materials.
• European funding compatibility, meets the requirements of PNRR, ERDF and national funds for significant CAPEX projects of industrial digitalization.
• Standards-compliant components, the fiber source meets the reliability specifications of the leading manufacturers on the world market.
The critical components in the standard configuration meet the reliability specifications established by the leaders of the laser industry, with a declared lifetime of over 100,000 operating hours on the fiber source.
See the entire LAZIRON range of industrial equipment to compare models and request a personalized quote.
The LAZIRON ETP enclosed sheet and tube laser machine turns the key operations of the workshop into a real competitive advantage: premium-level quality, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed cost structure.
