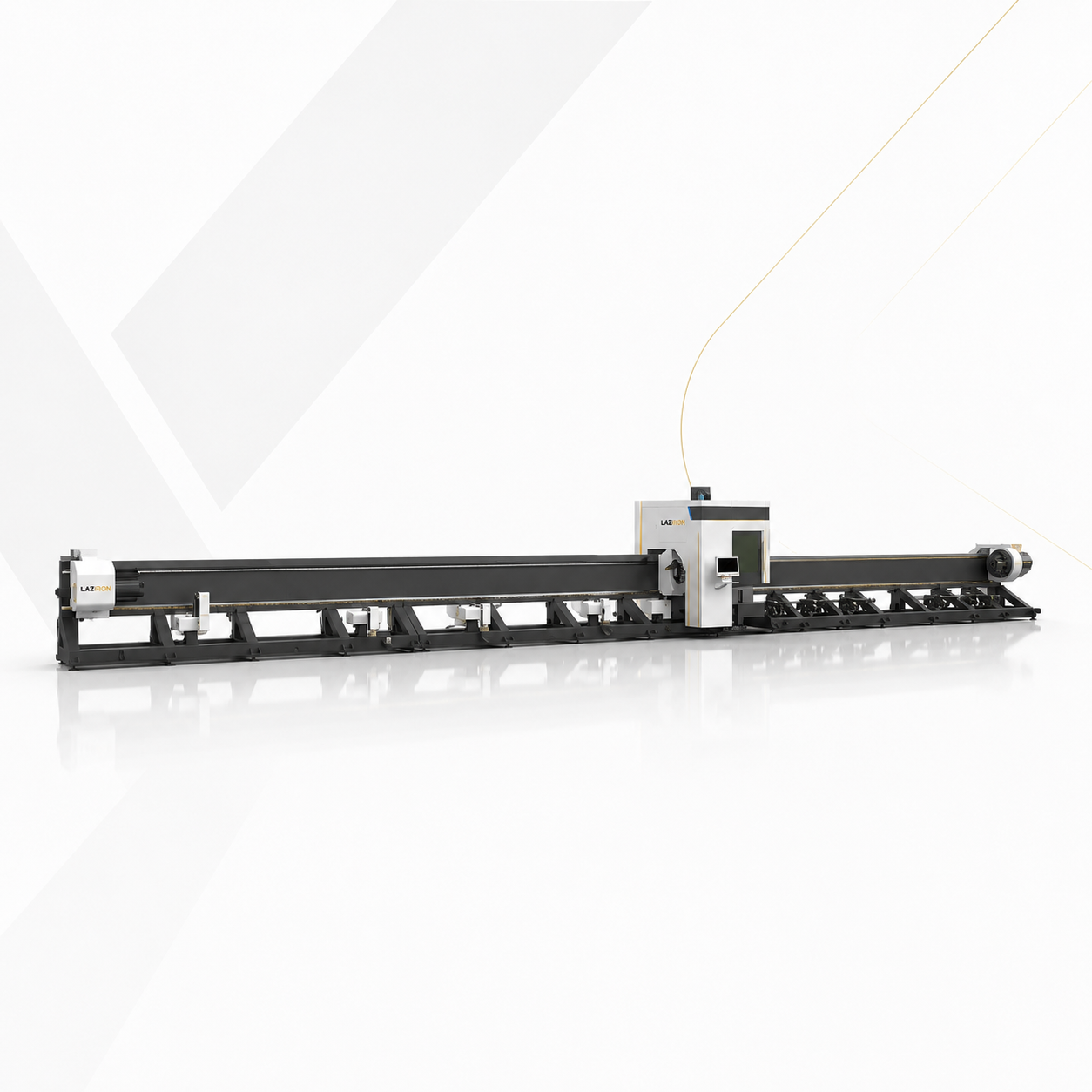

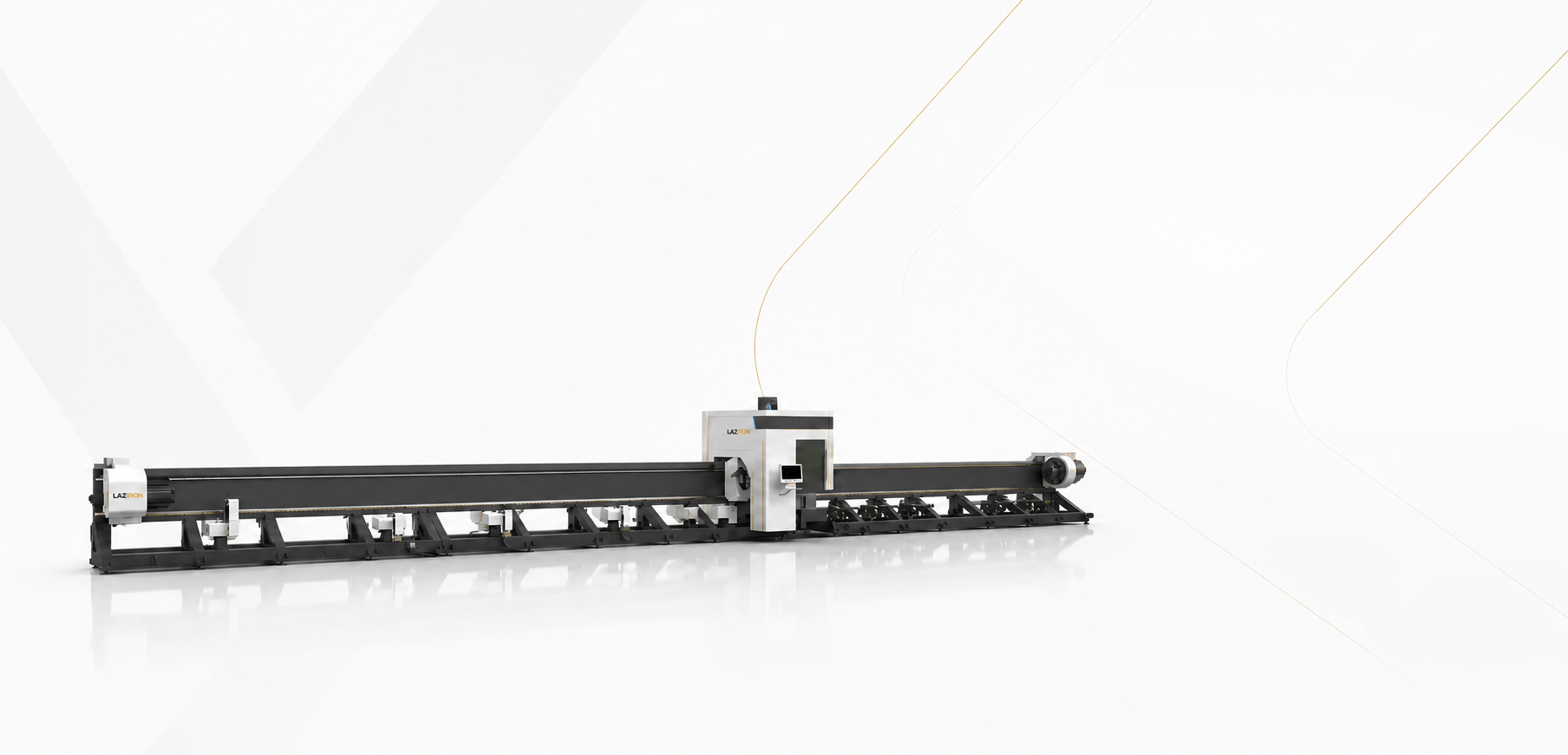

The LAZIRON three-chuck tube laser machine solves two typical problems of 2-chuck machines: axial deflection on very long tubes and torsion on thin-walled profiles. The additional central chuck dynamically supports the tube throughout the entire cutting stroke, keeping accuracy constant.
With a fiber laser source between 1.5 and 6 kW, tube capacity up to Ø350 mm and lengths of 8000-12000 mm, each LAZIRON T3 three-chuck tube laser machine is dedicated to workshops that process long tubes for metal structures, urban furniture, sports equipment and the automotive industry, at premium industrial quality and an affordable price.
What makes the LAZIRON T3 a three-chuck tube laser machine built for real production
The LAZIRON T3 three-chuck tube laser machine concentrates in a single system the advantages that matter on the tube production line: repeatable accuracy, parameter automation, predictable operating costs and a long service life for critical components.
• System with 3 synchronized chucks, eliminates axial deflection on tubes over 6 m and torsion on thin walls under 2 mm, keeping accuracy at ±0.03 mm along the entire length.
• Dynamic central chuck, moves in sync with the cutting head, permanently supporting the working zone without blocking beam access.
• Fiber laser power 1.5–6 kW, configurable for the entire industrial range, from metal furniture to heavy structural profiles.
• Tube capacity Ø20–Ø350 mm, also covers large profiles for metal construction and sports structures (football goals, lightning rods, tubular exhibition structures).
• Maximum length 12000 mm, allows cutting the entire bar delivered from the warehouse, without pre-cutting to an intermediate length.
• RayTools head with capacitive autofocus, instant transitions between materials and thicknesses, with parameters stored in the Cypcut library.
• Cypcut software with advanced tube module, includes nesting on multiple tubes, fly-cutting for short cycles and a parametric library for standard parts.
Technical specifications, LAZIRON T3 three-chuck tube laser machine
This LAZIRON three-chuck tube laser machine is available in standardized configurations, the choice being made according to the mix of processed tubes and the workshop's monthly production volume.
| Parameter | Value |
|---|---|
| Fiber laser source power | 1.5 / 3 / 6 kW (optional) |
| Round tube diameter | Ø20 – Ø350 mm |
| Rectangular profiles | 20×20 – 300×300 mm |
| Permissible wall thickness | 1 – 14 mm |
| Maximum tube length | 8000 / 9000 / 12000 mm (optional) |
| Maximum tube weight | 500 kg |
| Number of chucks | 3 (with dynamic central chuck) |
| Positioning accuracy | ±0.03 mm |
| Profile detection system | Automatic, coarse + fine |
| Numerical control system | Cypcut PC-based with tube module |
| Cutting head | RayTools with capacitive autofocus |
| Cooling system | S&A water chiller |
Industries that use a LAZIRON three-chuck tube laser machine
A LAZIRON three-chuck tube laser machine is chosen by factories with production specialized in long tubes and structural profiles, where axial deflection or torsion would compromise part quality on a 2-chuck machine.
Manufacturers of metal structures for industrial halls, large-scale agricultural greenhouses and solar parks use a single LAZIRON T3 three-chuck tube laser machine to cut 200×200 mm rectangular profiles with lengths of 10-12 m without intermediate welded joints. The same machine also serves the automotive industry for subtractive chassis frames and long structural reinforcements.
The sports equipment sector (football goals, playground structures, outdoor fitness fittings) and urban furniture factories process Ø100-Ø200 mm tubes with thin walls on this configuration. The shipbuilding industry uses the three-chuck tube laser machine to cut the structural tubing of the hull of small and medium-sized vessels.
Materials compatible with a LAZIRON three-chuck tube laser machine
With fiber laser sources between 1.5 and 6 kW, each LAZIRON T3 three-chuck tube laser machine processes the entire industrial range of tubes and profiles without interchangeable heads.
The automatic coarse + fine detection system adjusts the parameters for the real tolerances of each tube, essential for large profiles where dimensional deviations are frequent.
Maximum wall thicknesses per material (in the maximum configuration)
• Carbon steel (max. wall thickness): 14 mm
• Stainless steel 304/316: 10 mm
• Aluminum: 8 mm
• Heavy structural tubes (S235, S355): up to 14 mm wall
How the LAZIRON T3 model works
The workflow of a LAZIRON T3 three-chuck tube laser machine is optimized for long tubes where mechanical stability throughout the entire stroke matters most.
1. The operator loads the tube with a crane through the main chuck, with roller support along the entire length.
2. The profile detection sensor scans the entire tube coarse + fine to establish the dimensional deviations.
3. The three pneumatic chucks close in sync at software-optimized positions.
4. The dynamic central chuck positions itself in the middle of the cutting zone to eliminate deflection.
5. The RayTools head runs the program with continuous autofocus, and the central chuck moves in sync.
6. At the end, the finished parts fall onto the unloading conveyor, and the residual tube is unloaded with a crane.
For integration with other metal-processing equipment, the machine connects natively to tube bending machines and to the other LAZIRON lines through a common MES.
Frequently asked questions about the three-chuck tube laser machine
When does a three-chuck tube laser machine justify the investment compared to a 2-chuck machine?
Three criteria: if you frequently process tubes over 6 meters (T3 covers up to 12 m), if you work with very thin walls under 2 mm on diameters over Ø100 mm (T3 eliminates torsion), or if the accuracy requirements are below ±0.05 mm along the entire length (T3 guarantees ±0.03 mm). Below these criteria, the standard T2 offers a better investment-to-result ratio.
How does the dynamic central chuck work?
The central chuck moves on rails parallel to the tube axis, in sync with the cutting head. The Cypcut system continuously calculates the optimal position of the central chuck (generally at 30-40% distance from the active head) to eliminate deflection without blocking the laser beam. The position change is done in under 2 seconds, without pausing the program.
What laser power do I choose for a LAZIRON T3 three-chuck tube laser machine?
For tubes with walls under 8 mm and a typical mix: 3 kW is optimal. For walls of 8-14 mm or maximum speeds on stainless steel: choose 6 kW. The 1.5 kW source is justified only in workshops with production exclusively on tubes with walls under 4 mm for urban furniture or light sports equipment.
How much do I save compared to cutting the same part from butt-welded pieces?
For a 10 m structural tube that would otherwise be made from 2 butt-welded pieces, the saving is 30-45 minutes of welding labor plus a reduced risk of thermal deformation plus superior mechanical quality of the one-piece part. At an average cost of 35-45 EUR/hour, the saving per part is between 18 and 35 EUR, plus the margin recovered from the shortened delivery time.
What space conditions do I need?
For the 8000 mm tube configuration: minimum hall 14 × 5 m. For 12000 mm: minimum hall 18 × 5 m, plus an extra 2-3 m for crane and palletizing. Clear height: 4 m for crane loading. Three-phase voltage 380 V, absorbed power 20-40 kVA depending on the laser source.
ROI calculation for a LAZIRON three-chuck tube laser machine
The decision to invest in a three-chuck tube laser machine is not made on the basis of technical specifications alone, what matters is how the equipment translates into real monthly cash-flow figures for your tube-processing workshop.
For workshops that currently subcontract laser tube cutting at 1.0-1.5 EUR/linear meter cut plus material cost, bringing it in-house with a LAZIRON three-chuck tube laser machine reduces the effective cost per processed meter by 60-75%. At a monthly volume of 800-1500 linear meters processed in-house instead of subcontracted, the investment is recovered in 18-30 months under current European market conditions.
The additional margin comes from three directions: the saving versus subcontracting, offering cutting services to external local customers (1.2-1.8 EUR/m at the level of the European market in 2026) and reducing delivery times to end customers by 40-60%, which allows premium prices on urgent orders or those with short deadlines.
Why choose UZINEX for a three-chuck tube laser machine
LAZIRON is built on a clear philosophy: premium industrial-level quality at a price that any serious tube-processing workshop can afford, not just large factories with multi-million-euro CAPEX investment budgets.
• Affordable price for the 3-chuck configuration, the critical components are those used by premium manufacturers, but the LAZIRON package costs 35-45% less than European alternatives at the same capacity.
• 60-month warranty, with on-site service intervention in under 24 hours anywhere in Romania.
• Technical support and service, phone support, spare parts and on-site intervention in under 24 hours anywhere in Romania.
• Free pre-delivery inspection, mandatory to validate the synchronization of the 3 chucks on your reference material.
• European funds compatibility, meets the requirements of PNRR, ERDF and national industrial digitalization funds.
• Standards-compliant components, the fiber source meets the reliability specifications of the world market leaders.
The fiber laser source in the standard configuration meets the reliability specifications set by the leaders of the laser industry, with a declared lifetime of over 100,000 operating hours.
See the entire LAZIRON range of equipment for processing metal tubes to compare the models and request a personalized offer.
The LAZIRON T3 three-chuck tube laser machine turns tube cutting into a real competitive advantage: premium-level accuracy, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed cost structure.
