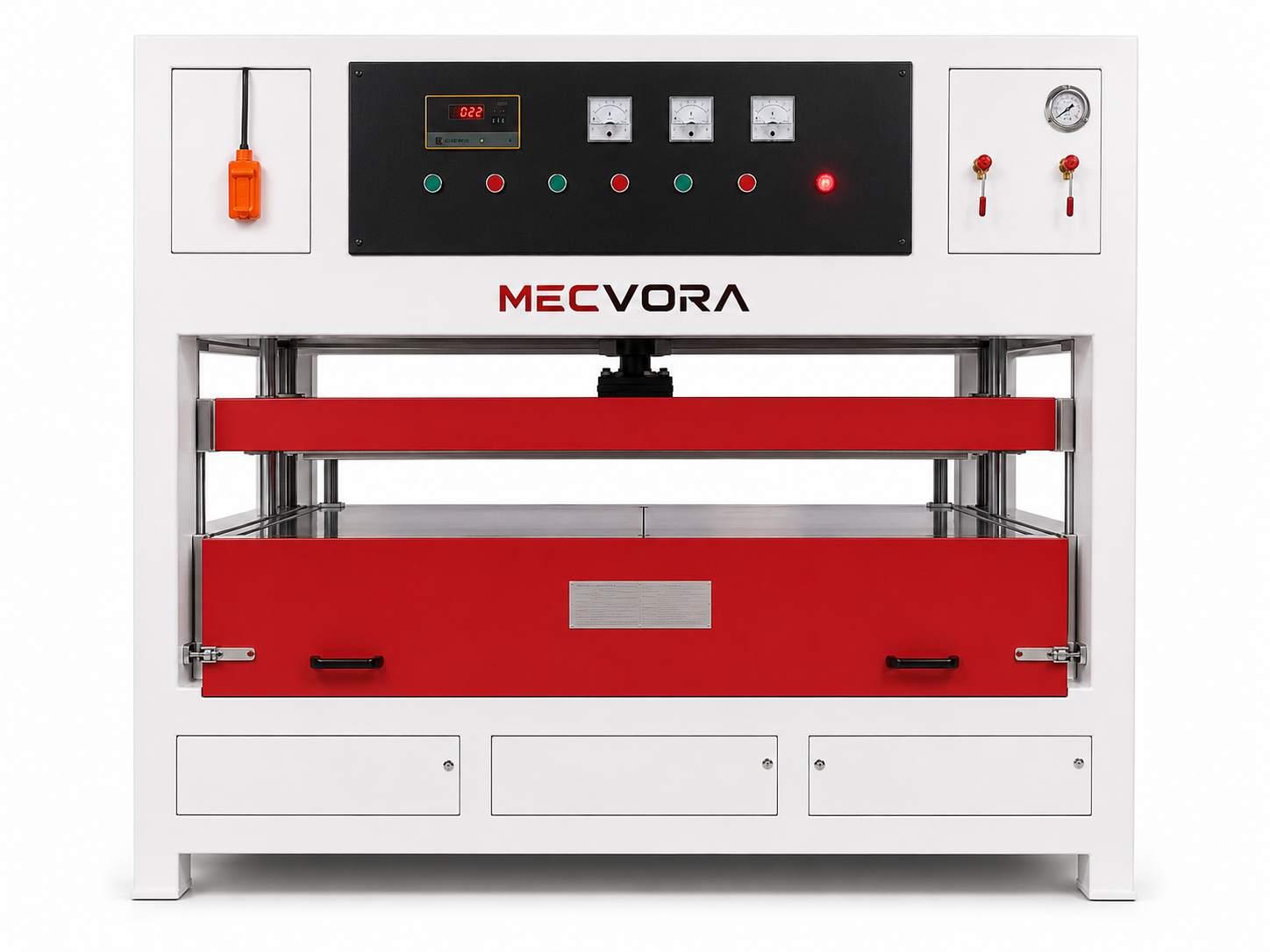

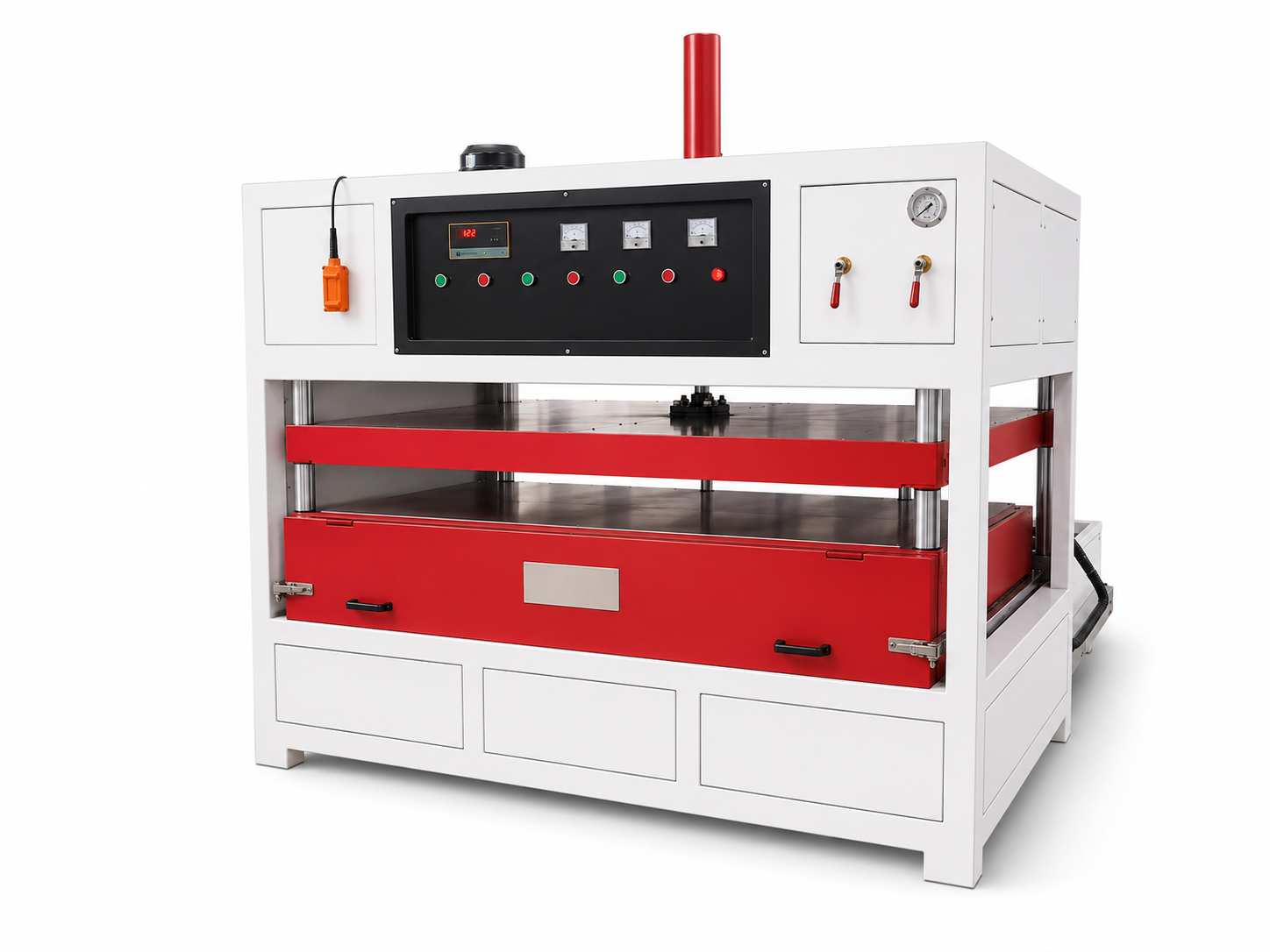

This model is a multi-function vacuum former with hydraulic lifting and a mobile heating box, for shops that need a flexible, robust vacuum former. It forms acrylic, ABS, PVC, PET, PU leather and other materials, with independent functions.
Thanks to its all-steel platform, intelligent temperature control and custom heaters, this vacuum former offers fast heating, precision and reliability in intensive use, on a single mould.
Key Advantages
• 3D forming from a single sheet, a MECVORA vacuum former heats the thermoplastic sheet and draws it under vacuum onto the mould, reproducing the shape faithfully with identical results every cycle.
• Even heating, quartz tubes spread the heat evenly across the whole surface, soften the material without local deformation and shorten the cycle time.
• Single-mould economy, one mould is enough to form the part, which lowers tooling costs and production setup time.
• Blow function, blowing assists demoulding and enables spherical or domed shapes, widening the range of parts you can make on one machine.
• Multiple thermoplastics, it forms acrylic, ABS, PVC, PET and more, from sign faces and signage to packaging, trays and shells.
• Quality finish, the platform and pressing frame keep the sheet flat and sealed during forming, for smooth surfaces and precise edges.
• Hydraulic lifting, stable, powerful table movement, for precise mould positioning and uniform parts.
• Mobile heating box, the heater moves over the sheet, allowing flexible cycles and work with parts of different shapes.
• All-steel platform, robust construction, resistant to high temperatures and intensive use, with independent functions.
Technical Specifications, Vacuum former
| Parameter | Value |
|---|---|
| Materials | acrylic (PMMA), ABS, PVC, PET, PS, PE, PP, PU leather |
| Lifting | hydraulic |
| Heating box | mobile (movable) |
| Platform | all-steel |
| Temperature control | intelligent, custom heaters |
| Heater life | up to 10,000 h |
| Functions | independent, multi-function |
| Forming | single mould |
| Dimensions | configurable on request |
Technology and Process
Vacuum forming runs a simple, repeatable cycle: the thermoplastic sheet is clamped in the frame, heated until soft, then placed over the mould, where the vacuum draws it tightly onto the shape. After cooling, the part keeps the mould geometry, ready to be removed.
The quality of the result depends on even heating and a good sheet seal. A MECVORA vacuum former uses even heating and a well-sealed pressing frame, so the surface comes out smooth and the mould details are reproduced faithfully, from sign faces to technical parts.
The cycle time depends on the material, the sheet thickness and the depth of the shape: thicker materials need longer heating, and deep shapes a more sustained vacuum pull. Once the recipe for a given product is set, it repeats identically, which makes the process predictable and easy to plan in series production.
Applications and Industries, Vacuum forming
In signage, the machine forms light box faces, letters and 3D signs, with flexibility in the choice of shapes and materials.
In industry and automotive, the machine makes housings, trays and shells, moulds for concrete or plaster, and PU-leather wrapping of components.
For film, décor and prototyping, the independent functions and mobile heating box allow quick switching between different part types, from masks to models.
The machine meets the requirements applicable to industrial equipment placed on the EU market, in line with the Machinery Directive 2006/42/EC. See also our range of vacuum forming machines for other configurations.
Compatible Materials
The machine forms thermoplastics and PU leather, with the flexibility of a multi-function machine:
| Material | Details / notes |
|---|---|
| Acrylic (PMMA) | clear, for signage |
| ABS | impact-resistant, housings |
| PVC | rigid, panels and signs |
| PET | packaging and blisters |
| PS / PE / PP | trays, shells, packaging |
| PU leather | upholstery and wrapping |
How It Works
The workflow on a MECVORA vacuum former is simple and repeatable, from sheet to finished part:
1. Fix the mould on the platform and clamp the thermoplastic sheet in the pressing frame.
2. Set the heating temperature and time to suit acrylic, ABS, PVC and PET and the sheet thickness.
3. The quartz heaters soften the sheet evenly until it is pliable across the whole surface.
4. The sheet is placed over the mould and the vacuum draws it tightly onto the shape; blowing assists domed parts.
5. After cooling, the formed part is removed from the mould, ready for trimming, assembly or finishing.
Moulds, Pressing and Demoulding
The result of a thermoformed part depends on the mould and on how the sheet is pressed and removed. The pressing frame, with a sealing gasket, adjusts to different sizes and shapes, and several designs can be formed at once on the same sheet, saving material and time.
The blow function eases demoulding and enables domed or spherical shapes that are hard to get otherwise. With a single mould, hand-carved or machined, a vacuum former makes flat, raised, multi-layer or curved parts, which makes it versatile for signage, packaging and technical parts.
The forming height and the working area decide which parts you can make: a large height allows deep shapes, and a generous area covers big sign faces and panels. With the right platform and saved recipes, you switch quickly from one part type to another, with minimal material waste.
After forming, the parts are trimmed to the contour and finished according to the application: sign faces are cut to size, and technical parts are adjusted for assembly. Bringing thermoforming in-house shortens the production chain and gives you full control over the final quality of every part.
Delivery, Installation and Support
A vacuum former is a long-term investment, and UZINEX treats it as one. We arrange transport of the machine across Europe together with the required technical documentation, and we handle commissioning at your premises so production starts without delays or improvisation.
After installation we train your operators directly on your own machine, from the first settings on material to fine-tuning each working recipe. We stay available for service, spare parts, consumables and technical support throughout the machine's working life.
Return on Investment
Outsourcing production means longer lead times, margins shared with subcontractors and dependence on their availability. Bringing the work in-house, onto a vacuum former, changes the equation: you control the deadline, the quality and the cost of every order, and the profit stays entirely with you.
For firms with a steady order flow, such a machine pays back quickly through the number of parts produced in-house, plus the new orders you can take on without depending on an outside supplier. The UZINEX team helps you estimate the right volume and configuration for your case.
Maintenance and Reliability
A production machine has to be easy to maintain to stay productive. Routine tasks, checking the heating elements, cleaning the working surfaces and verifying the protection systems, are simple and quick, and wear parts are replaced without complex intervention.
UZINEX supplies spare parts, consumables and technical support throughout the machine's life, so a well-maintained vacuum former runs for years with the same precision. A simple maintenance plan reduces unplanned downtime and protects the investment.
Frequently Asked Questions
What does it mean that the machine is multi-function?
The machine has independent functions and a mobile heating box, which allows flexible cycles and work with parts of different shapes and sizes, without complex reconfiguration.
What is the benefit of hydraulic lifting?
Hydraulic lifting gives stable, powerful table movement, for precise mould positioning and uniform results, including on heavier parts.
What platform does it have and why does it matter?
The platform is all-steel, robust and resistant to high temperatures, suited to intensive production use, unlike lighter platforms.
What does delivery of a MECVORA vacuum former include?
We arrange transport across Europe together with the technical documentation. We provide commissioning, operator training and ongoing support for service and spare parts, so your shop becomes productive quickly.
Do I need a specialised operator for this vacuum former?
No. The settings are simple and saved per material and thickness, and the control panel is intuitive. A new operator reaches consistent results after short training, and the saved recipes reduce errors.
What warranty and after-sales support does UZINEX offer?
Every UZINEX machine comes with a 60-month standard manufacturer warranty, phone support and on-site service intervention in under 24 hours anywhere in Romania.
Why UZINEX?
When you choose a vacuum former from UZINEX, you get more than the machine. You can discuss the right configuration any time with the UZINEX team:
• Real technical advice, we help you choose the right vacuum former configuration for your materials, part sizes and production volume, not just process an order.
• Delivery across Europe, we arrange transport of the machine to your workshop, together with its technical documentation.
• Commissioning and training, we train your operators on your own machine, from the first settings to the first good part.
• Service and spare parts, we provide technical support and access to components so your production keeps running.
• Sourcing on request, if you need a configuration or consumable that isn't listed, we source it and come back with an offer.
• A long-term partner, we stay with you from installation to capacity expansion as your order book grows.
From sign faces and 3D signage to packaging, trays and shells, a vacuum former turns the thermoplastic sheet into finished 3D parts, fast and repeatably. Tell the UZINEX team what you make and in what volume, and we will propose the format, forming height and configuration that fit.
