The excavator skeleton bucket (sorting bucket for excavators) excels at screening rocks out of soil, extractin…
| Number of shanks | 3 (Three Shank) |
| Bulldozer compatibility | ~20 tonnes |
| Attachment weight | ~1.000 kg |
| Shank material | Q345 / Q460 / NM400 / Hardox 400 / Hardox 500 / WH60 |
| Dimensions | Customizable (length, width, height) |
| Available types | Standard / Heavy-duty / Hard-rock |
| Standard color | Yellow (customizable on request) |
| Mounting | Directly on the bulldozer's rear frame |
| Depth adjustment | Hydraulic: via the bulldozer's existing system |
| Materials loosened | Compacted soil, soft rock, frozen ground, weathered rock |

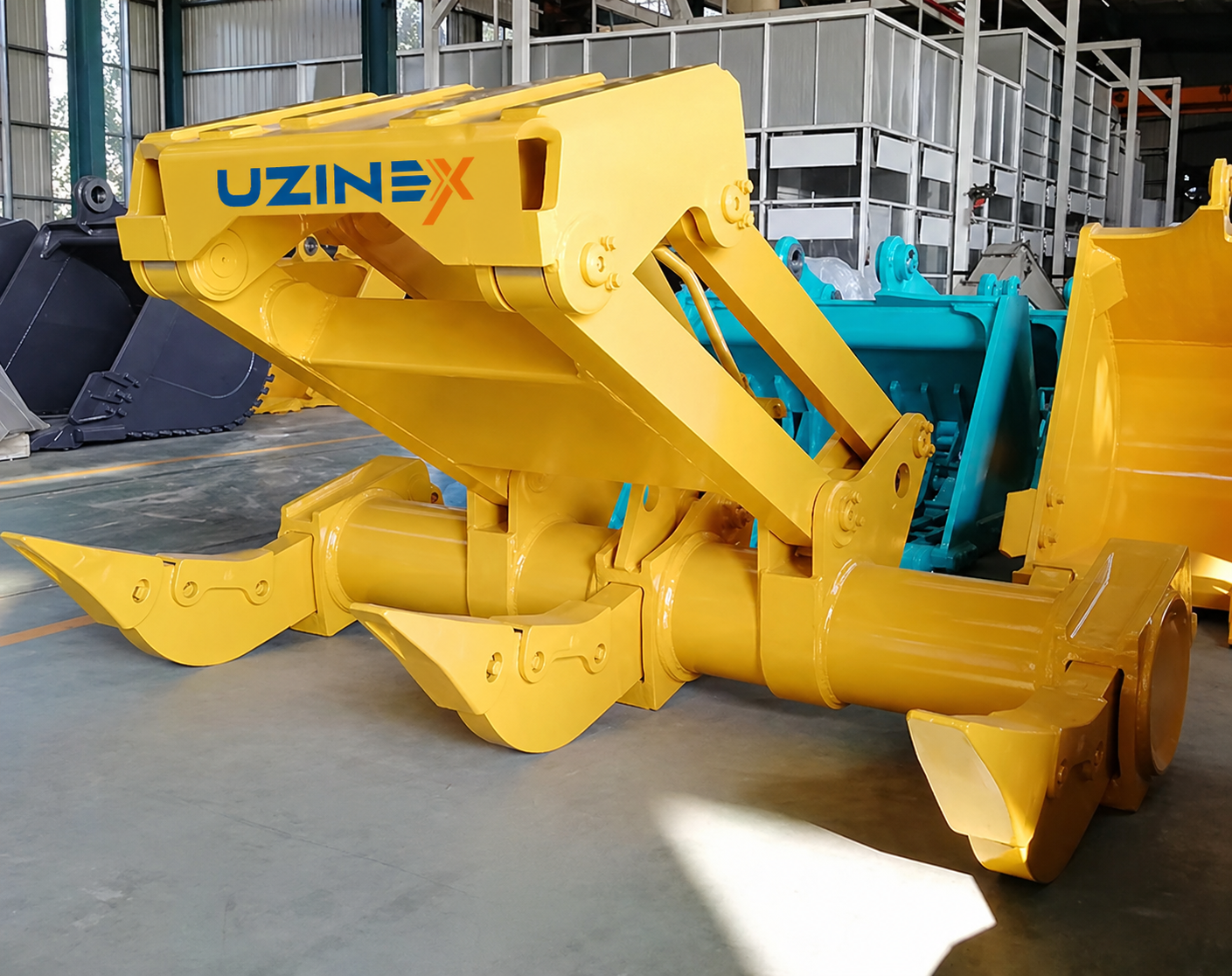

The Monde three-shank bulldozer ripper is an attachment mounted at the rear of the bulldozer that simultaneously loosens compacted soil, soft rock, or frozen ground along three parallel lines, preparing the material for the bulldozer blade that follows immediately in the same work cycle.
Compared to the single-tooth ripper for excavators, the three-shank bulldozer ripper works with the front blade and the three rear shanks simultaneously, covering a significantly larger width on each pass and reducing the number of passes required to loosen a hard layer of ground.
The Monde three-shank bulldozer ripper is designed for bulldozers of approximately 20 tonnes, with its own weight of ~1,000 kg and a structure fabricated from high-strength steels: Q345, Q460, NM400, or Hardox 400/500, depending on the configuration chosen. Dimensions are customizable, and the available types cover standard, heavy-duty, and hard-rock-specific applications. Key advantages of the Monde three-shank bulldozer ripper
• 3 shanks at once: triple the working width compared to a single-tooth ripper. The three-shank bulldozer ripper loosens material along 3 parallel lines on each pass of the bulldozer. Compared to a single-tooth ripper, the total width loosened per pass is 3–4 times greater, proportionally reducing the number of passes needed to prepare a given surface area. Hourly productivity on high-volume earthworks is significantly superior.
• Combined blade + ripper work in the same cycle: the bulldozer equipped with the three-shank bulldozer ripper loosens with the rear shanks and pushes the loosened material with the front blade, in the same travel cycle. This immediate loosening–leveling sequence eliminates the need for a second machine or a second dedicated pass and minimizes the time interval between loosening and removal of the material.
• High-strength steels: Q345, Q460, NM400, Hardox 400/500, WH60. The Monde three-shank bulldozer ripper is available in several material variants depending on the type and hardness of the material to be loosened. Q460 for compact soils and soft rock, NM400 and Hardox 400 for soils with high abrasiveness, Hardox 500 and WH60 for heavy-duty configurations intended for hard rock. The choice of material directly determines the service life of the shanks under specific working conditions.
• ~1,000 kg weight sized for 20-tonne bulldozers: the three-shank bulldozer ripper is designed with the mass and mounting geometry suited to bulldozers in the 20-tonne class, providing the necessary penetration force without overstressing the machine's structure or reducing its stability under traction.
“Weight ~1,000 kg sized for 20-tonne bulldozers.”
• Customizable dimensions and configuration. The Monde three-shank bulldozer ripper is available in custom dimensions (shank length, total width, penetration depth) and in 3 types: standard for general use, heavy-duty for intensive hard materials, and hard-rock for quarry applications. UZINEX engineers size the optimal configuration for the material type and the specific bulldozer.
• Direct mounting on the rear frame of the bulldozer: the three-shank bulldozer ripper mounts on the bulldozer's rear attachment frame, using the existing hydraulic lifting system to adjust the shank penetration depth. No modifications to the bulldozer are required.
• Standard yellow color or customizable: delivered in standard yellow or any other color on request, including with fleet identification markings.
• 60-month UZINEX warranty: extended coverage with spare parts in stock in Iași and national technical support with a guaranteed 24–48 hour response time.
Technical specifications: Monde 3-shank bulldozer ripper
| Parameter | Value |
|---|---|
| Number of shanks | 3 (Three Shank) |
| Bulldozer compatibility | ~20 tonnes |
| Attachment weight | ~1.000 kg |
| Shank material | Q345 / Q460 / NM400 / Hardox 400 / Hardox 500 / WH60 |
| Dimensions | Customizable (length, width, height) |
| Available types | Standard / Heavy-duty / Hard-rock |
| Standard color | Yellow (customizable on request) |
| Mounting | Directly on the bulldozer's rear frame |
| Depth adjustment | Hydraulic: via the bulldozer's existing system |
| Materials loosened | Compacted soil, soft rock, frozen ground, weathered rock |
The exact configuration (the material type, shank dimensions, and standard/heavy-duty variant) is determined by UZINEX engineers based on your bulldozer and the material to be loosened. Free technical consulting available. The 3-shank bulldozer ripper versus the single-tooth excavator ripper
Application dedicated to flows with constant quality requirements.
Equipment configured for medium and large volumes.
Quick adjustment between different orders.
The three-shank bulldozer ripper and the single-tooth excavator ripper are different pieces of equipment, for different machines and applications with different working logic; the choice depends on the type of machine available and the surface to be loosened.
The three-shank bulldozer ripper is suited to loosening over large, continuous surfaces: extensive earthworks, industrial platforms, long forestry roads, agricultural work over hectares. The 3 shanks cover a large width on each pass, and combining them with the bulldozer blade in the same cycle produces an extremely efficient loosening + removal workflow.
The single-tooth excavator ripper is suited to localized, precision loosening: penetrating a hard layer before excavation, working in tight spaces or next to existing structures, applications where exact control of the loosening location matters more than coverage width. The excavator offers superior mobility and precision in confined spaces compared to the bulldozer with the three-shank bulldozer ripper. Hardox and NM400 materials in the 3-shank bulldozer ripper
The choice of material for the shanks of the three-shank bulldozer ripper is decisive for the service life and the long-term operating cost.
Q460 is the base structural steel, resistant to plastic deformation, suitable for compact soils with low to medium abrasiveness. The three-shank bulldozer ripper in Q460 is the lower-cost variant, suited to sites with relatively homogeneous materials and controlled abrasiveness.
NM400 and Hardox 400 are wear-resistant steels with a Brinell hardness of 370–430 HB, resisting abrasive wear 3–4 times better than Q460. The three-shank bulldozer ripper with NM400/Hardox 400 is the choice for soils with gravel, quartz sand, or weathered rock with abrasive grains, where simple Q460 shanks would wear out quickly.
Hardox 500 and WH60 are the highest-hardness steels in the range, over 470 HB, used in the heavy-duty variant of the three-shank bulldozer ripper for quarry and mining applications, where hard and extremely abrasive rock is the everyday working material. Applications for the Monde 3-shank bulldozer ripper
High-volume earthworks for roads, motorways, and railways along routes with a surface rock layer or compacted clay are the primary application of the three-shank bulldozer ripper. The bulldozer with its 3 shanks covers the required width in the minimum number of passes, preparing the layer for the excavators and dump trucks in the work chain.
Mining operations and stone quarries use the three-shank bulldozer ripper in the heavy-duty or hard-rock variant for primary loosening of soft and medium rock before loading with excavators. On deposits with a friable surface layer above the useful rock, the three-shank bulldozer ripper removes the overburden layer efficiently and quickly.
Agricultural land clearing and seedbed preparation work, breaking up the compacted clay crust, deep loosening to improve drainage, breaking up the hardpan (the impermeable subsurface layer), benefits directly from the 3 shanks of the three-shank bulldozer ripper working in parallel across the width of the machine.
Construction of industrial and logistics platforms on ground with compacted soil or an old ballast layer requires preliminary loosening of the surface before recompacting to the prescribed Proctor degree. The three-shank bulldozer ripper performs this loosening uniformly and quickly, without leaving unloosened zones between passes that would cause differential settlement later. Frequently asked questions about the three-shank bulldozer ripper
Is the 3-shank bulldozer ripper compatible with any 20-tonne bulldozer?
The Monde three-shank bulldozer ripper is designed for the ~20-tonne class, but exact compatibility with your specific bulldozer model (Caterpillar, Komatsu, John Deere, Liebherr, CASE, etc.) is verified based on the dimensions of the rear frame and mounting system. UZINEX engineers confirm compatibility and any necessary adaptations before order confirmation. How many shanks does the standard ripper have versus the 3-shank ripper?
Bulldozer rippers are available in 1-, 2-, or 3-shank variants. The single-shank ripper penetrates deeper and is preferred in hard rock. The three-shank bulldozer ripper covers a larger width on each pass and is preferred for soils and rock of medium hardness, where surface productivity matters more than penetration depth. Can the worn shanks of the 3-shank bulldozer ripper be replaced individually?
Yes, the shanks of the three-shank bulldozer ripper are independently replaceable components. When a shank wears out, only the worn part is replaced, without dismantling the entire attachment. UZINEX keeps spare shanks in stock in Iași for immediate delivery. The penetration points are wear components with even more frequent and faster replacement. Is the 3-shank bulldozer ripper eligible for SEAP/SICAP public procurement?
Yes. UZINEX is a member of the Enterprise Europe Network and delivers construction machinery attachments in projects with EU funds and public procurement. Complete technical documentation is provided on request. Leasing options available on the UZINEX credit and leasing page. Why UZINEX for the 3-shank bulldozer ripper
The three-shank bulldozer ripper is an attachment with a direct and measurable impact on earthworks productivity and the cost per cubic metre loosened. Choosing the right material configuration and dimensions determines the service life and the real efficiency on site.
• 60-month warranty: extended coverage for the Monde three-shank bulldozer ripper under continuous industrial use.
• Free custom configuration: UZINEX engineers select the material type (Q460/NM400/Hardox), the dimensions, and the variant (standard/heavy-duty/hard-rock) based on your bulldozer and the material to be loosened.
• Transport and installation included: delivery to destination, mounting on the bulldozer, testing, and operator training included in the price of the three-shank bulldozer ripper.
• Spare shanks in stock in Iași: critical wear parts available immediately, with no waiting times that block production.
• National technical support 24–48 hours: a network of technicians with national coverage and a guaranteed response time.
• Eligible for EU funds and public procurement: member of the Chamber of Commerce and Industry and the Enterprise Europe Network, with complete documentation for all procurement procedures.
The Monde three-shank bulldozer ripper available through UZINEX is the attachment for efficient loosening over large surfaces with the bulldozer: 3 simultaneous shanks, Q460/NM400/Hardox material of your choice, customizable dimensions for ~20-tonne bulldozers, and a 60-month warranty.
