The stripper is a high-speed pneumatic device driven by an air motor that actuates…
| Speed | 4.500 rpm |
| Air pump power | 3 kW |
| Air inlet pressure | 0,8 kPa |
| Available chain types | Large Tooth / Medium Tooth / Single Tip |
| Machine weight | 3,5 kg |
| Dimensions | 450 × 150 × 180 mm |
| Chain type | Recommended application |
| Large Tooth | Large-diameter cables with thick insulation |
| Medium Tooth | Standard cables with medium insulation: general application |
| Single Tip | Thin cables and cables with special structure |

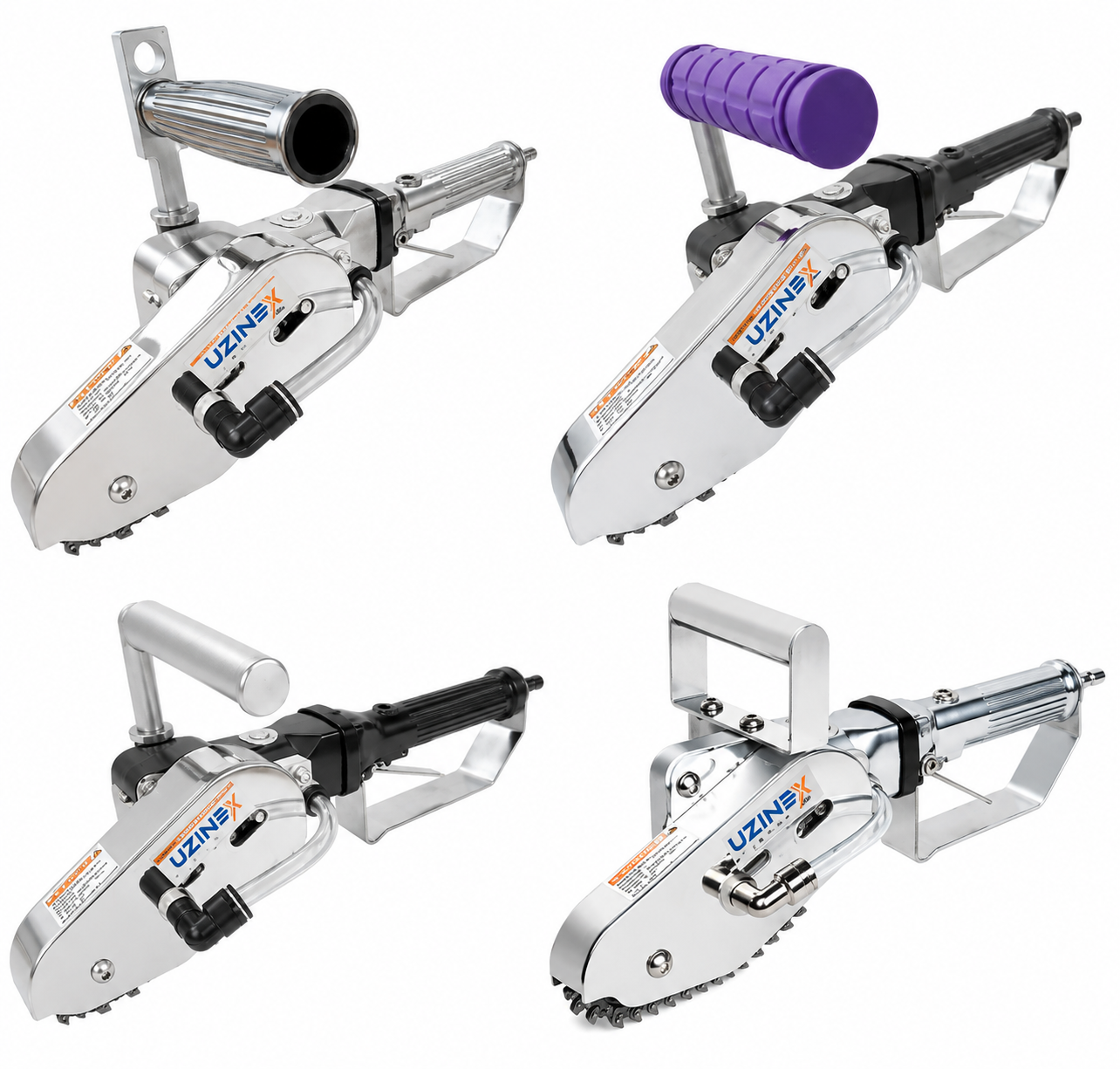

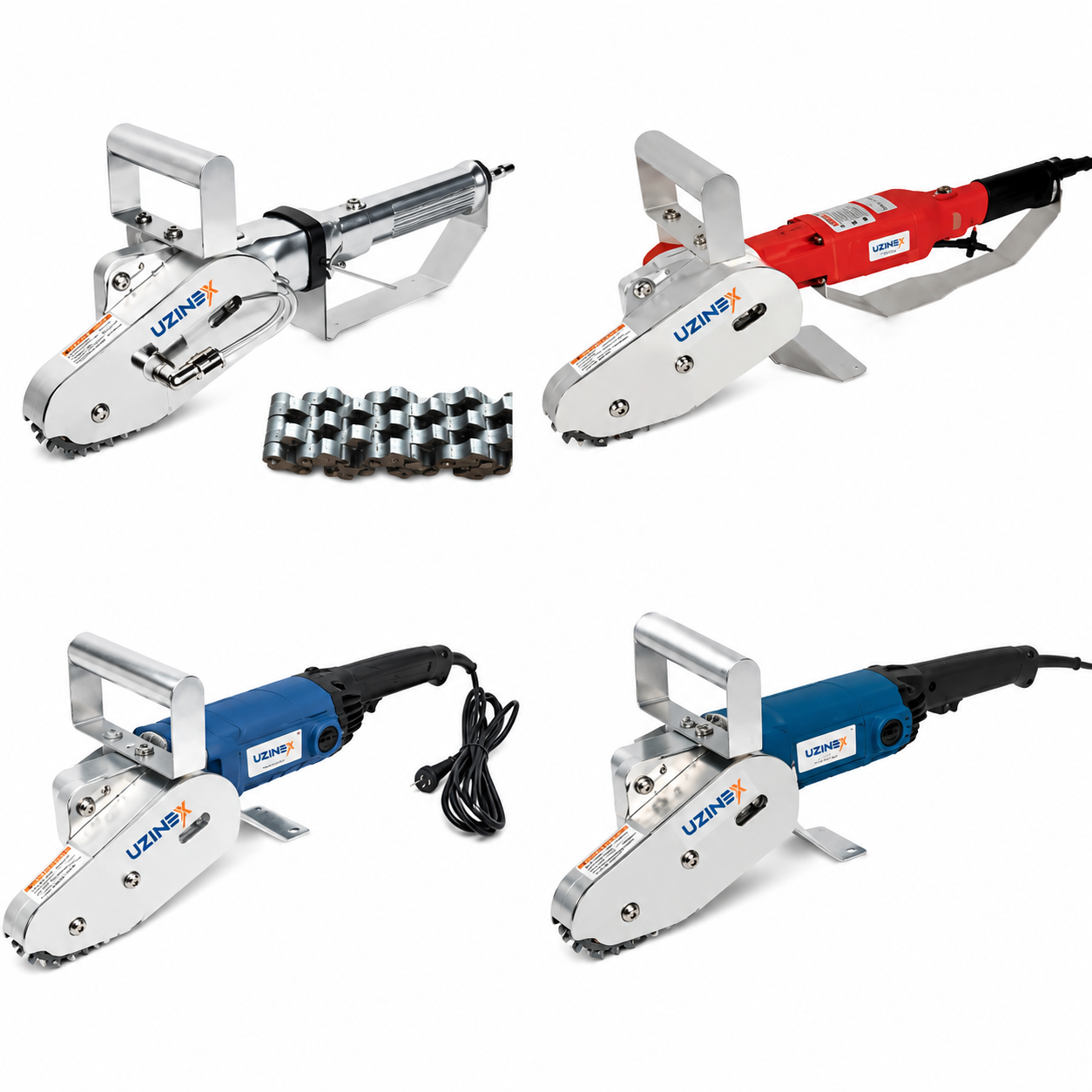

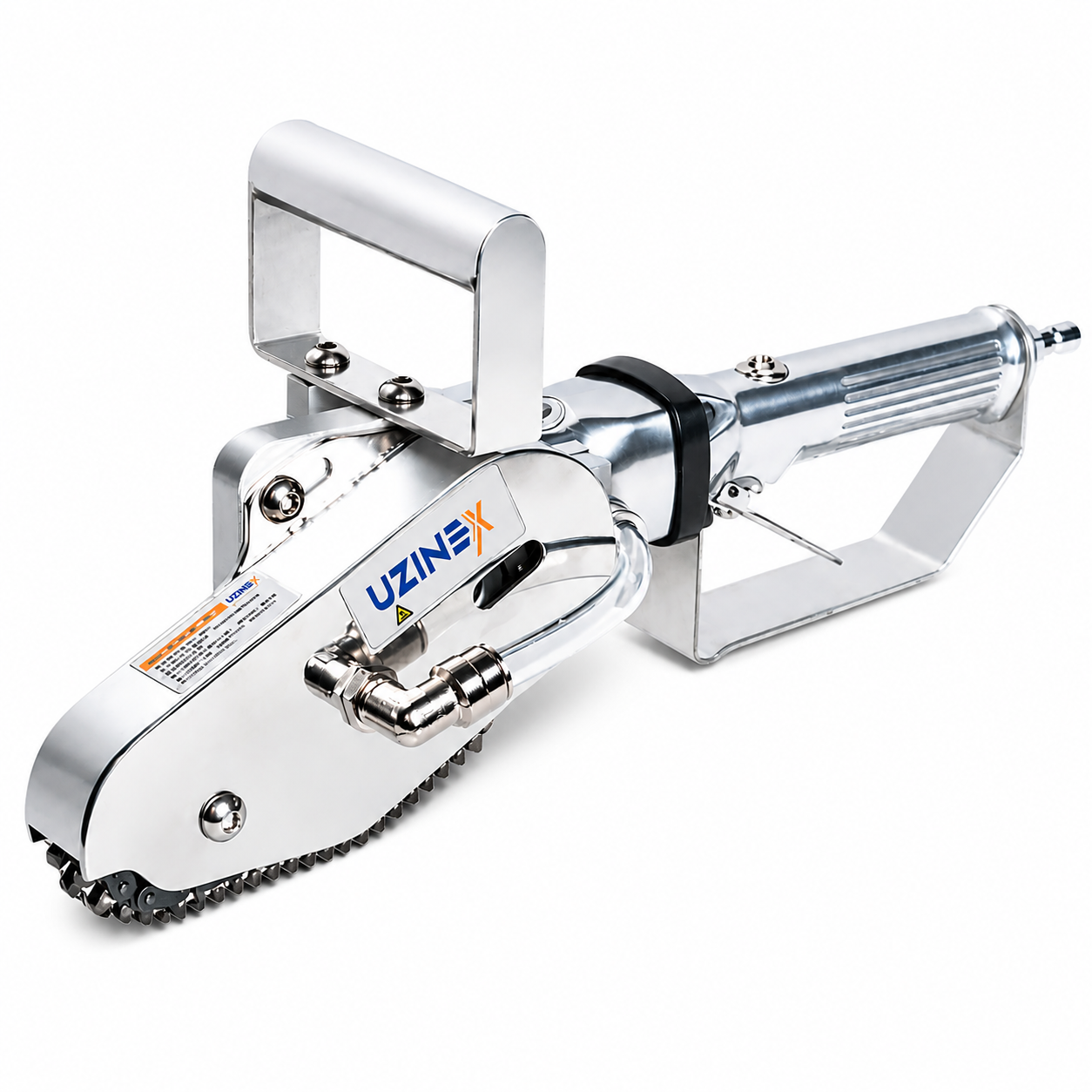

The waste stripping machine is the portable pneumatic equipment for stripping the insulation from used electrical cables and recovering copper or aluminium from cable waste generated by construction sites, electrical workshops and WEEE recycling centres.
The waste stripping machine (model KPW-2836) has a speed of 4500rpm, a 3kW air pump, an inlet pressure of 0,8kPa and 3 chain types (Large Tooth, Medium Tooth and Single Tip) weighing 3,5kg with dimensions of 450×150×180mm.
The KPW-2836 waste stripping machine is a portable unit that can be transported and used directly at the cable waste collection site, eliminating the need to transport cables to a fixed processing plant. Changing the cutting chain of the waste stripping machine is quick, adapting the equipment to the diameter and structure of the cable to be processed. Transport and 60-month warranty included. Technical specifications: waste stripping machine
| Parameter | Value |
|---|---|
| Model | KPW-2836 |
| Speed | 4.500 rpm |
| Air pump power | 3 kW |
| Air inlet pressure | 0,8 kPa |
| Available chain types | Large Tooth / Medium Tooth / Single Tip |
| Machine weight | 3,5 kg |
| Dimensions | 450 × 150 × 180 mm |
Chain types: waste stripping machine
| Chain type | Recommended application |
|---|---|
| Large Tooth | Large-diameter cables with thick insulation |
| Medium Tooth | Standard cables with medium insulation: general application |
| Single Tip | Thin cables and cables with special structure |
The waste stripping machine is configured at quotation stage according to the types of cable processed. Free technical consultancy available. Advantages of the waste stripping machine
• Maximum portability at 3,5kg and 450×150×180mm: use directly at the cable collection site. The waste stripping machine weighs 3,5kg and has the dimensions of an industrial hand tool, which allows it to be transported and used directly at cable storage yards, electrical demolition sites, WEEE collection points and temporary waste storage containers. This portability of the waste stripping machine eliminates the need to transport large volumes of cable to a fixed processing plant, reducing logistics costs and increasing the efficiency of the copper recovery operation.
“Changing the cutting chain of the waste stripping machine is done quickly, adapting the equipment to the diameter and structure of the cable to be processed.”
• 3 interchangeable chain types: quick adaptation to any cable diameter and type. The waste stripping machine is supplied with three types of cutting chain: Large Tooth for thick cables with tough insulation, Medium Tooth for standard cables of 10–50mm diameter used in industrial and residential electrical installations, and Single Tip for thin cables with special structure. Changing the chain of the waste stripping machine takes a few minutes and requires no specialised tools, allowing quick adaptation to the available cable batch without replacing the equipment.
• 4500rpm speed with pneumatic drive: fast and consistent cutting along the entire cable length. The waste stripping machine has a pneumatic mechanism running at 4500rpm that ensures a constant feed speed of the cutting chain along the entire length of the insulation, regardless of the material's resistance. The high speed of the waste stripping machine allows a significant volume of cable to be processed per unit of time, increasing the productivity of copper or aluminium recovery compared with manual stripping with a knife or with lower-speed equipment.
• 3kW air pump: sufficient power for PVC, rubber and PE insulation on industrial cables. The waste stripping machine has a 3kW air pump with an inlet pressure of 0,8kPa that generates the cutting force required to remove insulation made of rigid PVC, vulcanised rubber and polyethylene from medium- and low-voltage industrial cables. The available power of the waste stripping machine ensures operation without jams or interruptions even on cables with thicker or denser insulation, typical of waste from industrial installations and electrical panels.
• Recovery of valuable material: copper and aluminium from cable waste. Direct profitability from the recycling operation. The waste stripping machine efficiently separates the insulation from the metal conductor, producing clean copper or aluminium that can be sold directly to ferrous and non-ferrous metal collection centres. The quality of the separation achieved by the waste stripping machine directly determines the price obtained for the metal (clean stripped conductor is rated higher than that sold together with its insulation) and the return on investment in the equipment is calculated directly from the price difference per kilogram of metal recovered. 60-month UZINEX warranty, national technical support within 24–48 hours.
Applications: waste stripping machine
Collection and recycling centres for waste electrical and electronic equipment (WEEE) use the machine.
Demolition and rehabilitation crews for industrial electrical installations use the waste stripping machine.
Speed 4,500 rpm
Collection and recycling centres for waste electrical and electronic equipment (WEEE) use the waste stripping machine to process batches of used electrical cables received from the public and from economic operators. The processing speed and portability of the waste stripping machine allow the workflow to be adapted to the volume and type of cable available in each batch, without investment in fixed processing infrastructure.
Teams demolishing and refurbishing industrial electrical installations use the waste stripping machine directly on site to process the cables removed, recovering the metal value before transport to the collection points. The portability of the waste stripping machine and its pneumatic power supply make it compatible with the standard mobile compressors present on any industrial site. Frequently asked questions about the waste stripping machine
What is the maximum cable diameter the waste stripping machine can process?
The maximum cable diameter processed by the KPW-2836 waste stripping machine depends on the chain type selected and the cable structure. At quotation stage, UZINEX confirms compatibility with the specific cable diameters in the customer's processing stock and recommends the optimal chain type for each category. Is the waste stripping machine eligible for European funding?
Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for projects with European funds. The waste stripping machine can be listed on SEAP/SICAP in recycling and waste-recovery projects. Leasing and credit options on the UZINEX credit and leasing page . Why UZINEX for the waste stripping machine
• Configuration included: UZINEX recommends the chain type and the optimal operating parameters for the cables in the customer's processing stock.
• Transport and commissioning included: delivery and operator training.
• 60-month warranty: extended coverage for intensive use in collection and recycling.
• Spare parts in stock: chains and pneumatic components rapidly available in Romania.
• National technical support within 24–48 hours: technicians with nationwide coverage.
• Eligible for European funding: complete technical documentation for WEEE recycling projects and NRRP.
UZINEX waste stripping machine: model KPW-2836, speed 4500rpm, 3kW air pump, 0,8kPa pressure, 3 chain types (Large Tooth / Medium Tooth / Single Tip), 3,5kg, 450×150×180mm, portable, copper and aluminium recovery from cable waste, 60-month warranty, transport and commissioning included throughout Romania.
