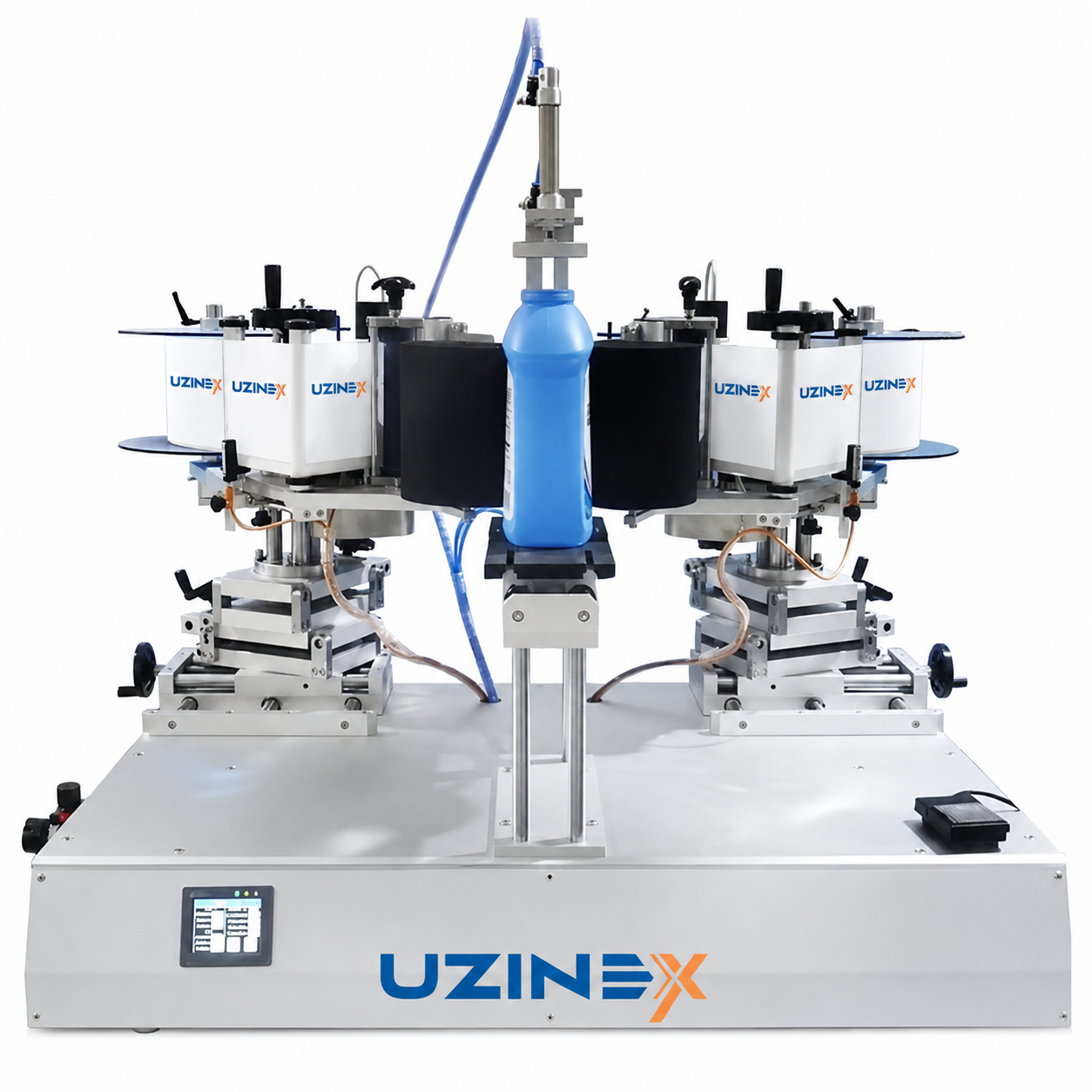

Semi-Automatic Side Labeling Machine UZX-KPW-BC150 | ±1mm, 40kg, Pedal | UZINEX

Product code: UZX-063

UZX-KPW-BC150: semi-automatic side labeling machine, ±1mm accuracy, label L30–230×W20–150mm, container diameter…

Very precise application
Accuracy ±1 mm
Small and medium containers
Diameter 20 – 120 mm
Supply from a standard socket
220 V, 50/60 Hz
Compact for a workbench
Net weight ~40 – 50 kg
AI takes care
AI manual & maintenance
Transport & commissioning
Free across Romania
SEAP / SICAP
Eligible for public procurement
European funds
PNRR · POR · Just Transition
Industries served

Recommended applications

FILLING · DOSING500 ml · ±0.5% · 6 000 BPHUZX-FILREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Bottles, vials and boxes

AUTOMATIC LABELINGPRINT HEADTARGETSPEED 60 m/min · DPI 300UZX-LBLREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Cosmetics and personal-care products

CONVEYOR BELTM1M22 400v = 0.5 m/sXYUZX-CNVREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Small-batch production

BEVERAGE PRODUCTIONFOOD · COSMETICS · PHARMA3 000UZX-BEVREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Semi-automatic packaging workshop

Technical data

Technical specifications

Labeling typeSide (cylindrical surface), semi-automatic
Operating modeManual container feeding, automatic label application
Cycle actuationButton on panel or foot pedal (optional)
Indicative throughput~100–150 containers/hour
Application accuracy±1 mm
Label width (min–max)20–150 mm
Label length (min–max)30–230 mm
Container diameter (min–max)20–120 mm
Label typeSelf-adhesive on silicone backing (roll)
Maximum label roll diameter300 mm
Maximum label roll width150 mm
Label application methodPeel from backing + application by press drum
Power supply220V, 50/60Hz
Net weight~40–50 kg
Frame constructionRobust metal with wear- and corrosion-resistant finish
About this equipment

The UZX-KPW-BC150 semi-automatic side labeling machine is the labeling equipment with manual per-container feeding and automatic label application onto the cylindrical surface, with a positioning accuracy of ±1 mm, labels with a width of 20–150 mm and a length of 30–230 mm, container diameter 20–120 mm, actuation via button or foot pedal, label roll with a maximum diameter of 300 mm, a weight of 40–50 kg and a 220V single-phase power supply.

The UZX-KPW-BC150 semi-automatic side labeling machine is the labeling solution for small and medium batches, prototypes and variable production where full conveyor automation is not justified by the daily volume: the operator inserts the container into the labeling zone, actuates the button or foot pedal and the equipment applies the label at the set position with ±1 mm accuracy, after which the operator takes the labeled container and inserts the next one. Key Advantages of the UZX-KPW-BC150 Semi-Automatic Side Labeling Machine

• Accuracy ±1 mm: exact application on every container, regardless of the operator. The UZX-KPW-BC150 semi-automatic side labeling machine applies the label with ±1 mm accuracy relative to the set position, regardless of how fast or slow the operator actuates the button or pedal; the mechanical precision of the peel device and the application drum eliminates human variability in label positioning, guaranteeing that label No. 1 and label No. 500 from the same batch are at the same height and angular alignment on the container.

• Labels up to 230 mm long: the longest labels in the KPW labeling range. The UZX-KPW-BC150 semi-automatic side labeling machine accepts labels with a length of up to 230 mm, beyond the width specs of the other models in the range; labels of 200–230 mm are used on wine and oil bottles for the complete front label, on pharmaceutical containers with long instruction text, or on industrial products with extended technical specifications printed on the label.

• Button or foot pedal actuation: both hands free for handling the container. The UZX-KPW-BC150 semi-automatic side labeling machine can be actuated both by the button on the control panel and by the foot pedal connected to the equipment; the foot pedal leaves both of the operator's hands free to hold and correctly position the container in the labeling zone, increasing work speed and reducing the risk of incorrect container positioning relative to the application device.

• 40–50 kg: the lightest labeler in the UZINEX range. The UZX-KPW-BC150 semi-automatic side labeling machine, weighing 40–50 kg, can be moved by a single operator without lifting equipment; the reduced weight makes it suitable for mobile labeling stations, laboratories, small workshops or for operators who label in different locations on the same workday.

Measurable impact
0mm
Application accuracy
0mm
Container diameter
0kg
Net weight

• Label roll Ø300 mm: high autonomy between roll changes. The UZX-KPW-BC150 semi-automatic side labeling machine accepts label rolls with an outer diameter of up to 300 mm; a standard 300 mm roll holds several thousand labels depending on the label size, minimizing interruptions for roll changing in medium-volume labeling sessions.

• Label width 20–150 mm: from narrow labels to wide formats. The UZX-KPW-BC150 semi-automatic side labeling machine processes labels with a width from 20 mm (price or code labels on small containers) up to 150 mm (standard labels for 0.5–1L bottles); the wide range of widths covers practically all formats of self-adhesive labels available at local printing shops without source constraints.

• Container diameter 20–120 mm: from vials to standard jars. The UZX-KPW-BC150 semi-automatic side labeling machine labels cylindrical containers from 20 mm diameter (laboratory vials, cosmetic pens) up to 120 mm diameter (honey jars, bulky cosmetic containers, 1L bottles); adjusting for a new diameter is done by adjusting the container support without special tools.

• Press drum: complete adhesion without air bubbles. The UZX-KPW-BC150 semi-automatic side labeling machine applies the label by means of a press drum that uniformly presses the label onto the cylindrical surface of the container along the entire length of the label; the drum eliminates the air bubbles and creases that occur with manual application by finger, producing complete adhesion and a professional commercial appearance.

“Pressing drum: full adhesion without air bubbles. The UZX-KPW-BC150 semi-automatic side labelling machine applies the label through a drum of.”
From the product description

Technical Specifications: UZX-KPW-BC150 Semi-Automatic Side Labeling Machine

ParameterValue
ModelUZX-KPW-BC150
Labeling typeSide (cylindrical surface), semi-automatic
Operating modeManual container feeding, automatic label application
Cycle actuationButton on panel or foot pedal (optional)
Indicative throughput~100–150 containers/hour
Application accuracy±1 mm
Label width (min–max)20–150 mm
Label length (min–max)30–230 mm
Container diameter (min–max)20–120 mm
Label typeSelf-adhesive on silicone backing (roll)
Maximum label roll diameter300 mm
Maximum label roll width150 mm
Label application methodPeel from backing + application by press drum
Power supply220V, 50/60Hz
Net weight~40–50 kg
Frame constructionRobust metal with wear- and corrosion-resistant finish

UZX-KPW-BC150 versus UZX-KPW-QC160: When to Choose the Semi-Automatic Machine Over the Automatic One

The UZX-KPW-BC150 semi-automatic side labeling machine and the automatic UZX-KPW-QC160 model cover two completely different production segments; the correct choice depends on the daily volume, the diversity of containers and the type of production:

• Choose the UZX-KPW-BC150 semi-automatic side labeling machine if the daily volume is under 500–1,000 containers; if you produce varied container formats with frequent product changes; if you work with small batches, made-to-order orders or prototypes; if the available space is limited (the UZX-KPW-BC150 is more compact and at 40–50 kg versus 80–100 kg for the QC160); or if the available investment budget favors labeling equipment with a lower cost than the automatic model with conveyor.

• Choose the automatic UZX-KPW-QC160 model if the volume exceeds 1,000 containers per day and the 60–120 containers/minute rate of the automatic conveyor is needed to meet production deadlines; if the containers are uniform over long batches; or if operator fatigue from manually feeding several thousand containers per day creates ergonomic problems.

Proces de implementare
01
FEED
02
POSITIONING
03
APPLY LABEL
04
CHECK
05
OUTPUT
Total time: labeling cycle

• The productivity difference in concrete figures: the UZX-KPW-BC150 semi-automatic side labeling machine produces 100–150 labeled containers per hour; the automatic UZX-KPW-QC160 model produces 3,600–7,200 per hour; for an operator labeling 200 containers per day, the UZX-KPW-BC150 is sufficient and more economical; for 2,000 containers per day, the UZX-KPW-QC160 becomes necessary.

Applications: Which Products and Industries Use the UZX-KPW-BC150 Semi-Automatic Side Labeling Machine

• Artisanal and small food producers: small batches with brand identity. The UZX-KPW-BC150 semi-automatic side labeling machine is the standard equipment for artisanal producers of cold-pressed oils, natural syrups, jams, honey and artisanal beverages who label batches of 50–500 containers per item; the ±1 mm accuracy and the press drum ensure that the brand label is applied perfectly on each bottle, similar to industrial producers, at a fraction of the cost of an automatic labeler.

• Pharmacies and supplement producers: labels with long text on vials. The UZX-KPW-BC150 semi-automatic side labeling machine accepts labels with a length of up to 230 mm, essential for pharmaceutical vials where the label must contain ingredients, doses, contraindications and legal information in legible font; the long 180–230 mm labels applied by the UZX-KPW-BC150 semi-automatic side labeling machine cover 60–75% of the circumference of an 80 mm diameter vial.

Where it fits
01

Automotive industry

The UZX-KPW-BC150 semi-automatic side labelling machine completes the labelling of each container in three simple steps.

02

Precision parts

Accuracy ±1 mm

03

Small work spaces

Net weight ~40 – 50 kg

• Cosmetics and perfumes: premium products with precision labeling. The UZX-KPW-BC150 semi-automatic side labeling machine with ±1 mm accuracy labels perfume bottles, creams, serums and premium cosmetic products where visible variations in label positioning are not accepted by the brand's quality standards; pedal actuation leaves both hands available for correct orientation of the bottle relative to the application device.

• Laboratories and the analysis industry: identification labels on sample containers. The UZX-KPW-BC150 semi-automatic side labeling machine labels sample containers, reagent vials and storage containers in laboratories with identification labels; the ±1 mm accuracy ensures that the label with the sample code or barcode is applied correctly and is legible for scanners and sample management systems.

• Chemical industry: cleaning products and lubricants in small containers. The UZX-KPW-BC150 semi-automatic side labeling machine labels chemical-product containers with a diameter of 40–120 mm; the chemical-resistant labels applied with ±1 mm accuracy ensure that the safety and classification information is correctly positioned and legible throughout the product's service life.

• Prototypes and product launches: fast labeling without investing in automation. The UZX-KPW-BC150 semi-automatic side labeling machine is the choice for new product launches where batches of 100–500 containers are produced for market testing or presentation to distributors; the reduced investment versus an automatic labeler and the flexibility to change the label format quickly make it suitable for the prototyping and validation phase.

The Labeling Cycle of the UZX-KPW-BC150 Semi-Automatic Side Labeling Machine

The UZX-KPW-BC150 semi-automatic side labeling machine completes the labeling of each container in three simple steps, with human intervention at the first step and automation for the rest of the cycle:

• Step 1: Manual positioning of the container. The operator inserts the cylindrical container into the labeling support of the UZX-KPW-BC150 semi-automatic side labeling machine, orienting it with the labeling zone toward the application device; the container support guides the cylinder at the correct distance from the label roll.

• Step 2: Button or pedal actuation and automatic application. The operator presses the button on the panel or the foot pedal; the UZX-KPW-BC150 semi-automatic side labeling machine automatically advances the label from the roll, peels it off the silicone backing and applies it onto the side surface of the container via the press drum at ±1 mm accuracy; the entire advance, peel and apply cycle takes a few seconds.

• Step 3: Pick up the labeled container and resume the cycle. The operator takes the labeled container and inserts the next one; the work pace is determined by the operator's speed at the manual steps; an experienced operator reaches 100–150 containers per hour with the UZX-KPW-BC150 semi-automatic side labeling machine under normal working conditions.

Complete kit · component check
Very precise application
Small and medium containers
Standard socket power supply
Compact for benchtop use
Completeness0%

Why Choose UZINEX for the UZX-KPW-BC150 Semi-Automatic Side Labeling Machine

The UZX-KPW-BC150 semi-automatic side labeling machine with ±1 mm accuracy requires correct calibration of the vertical and angular position of the label for each container format at commissioning; incorrect calibration produces labels applied crookedly or at the wrong height, immediately visible upon visual inspection of the batch.

• Pre-purchase consulting: confirmation of compatibility with your containers and labels. UZINEX engineers verify the container diameters, the label dimensions (width and length) and the daily volume to confirm that the UZX-KPW-BC150 semi-automatic side labeling machine covers all formats and that the level of semi-automation is suitable versus the automatic alternative UZX-KPW-QC160.

• Free shipping and commissioning included: the UZX-KPW-BC150 semi-automatic side labeling machine is delivered free of charge anywhere in Romania; at commissioning, UZINEX engineers calibrate the label application position for the client's current containers and labels and train the operator in using the control panel, changing the roll and the periodic cleaning procedure for the press drum.

• Extended 60-month warranty and spare parts in stock: the UZX-KPW-BC150 semi-automatic side labeling machine comes with a 60-month warranty; the wear components (the press drum, the strip guides, the label feed sensors) are kept permanently in stock at UZINEX for fast intervention.

• National service with response in under 24 hours in Romania (24–72 hours in other countries): UZINEX service engineers intervene on site anywhere in Romania; including for high-precision labeling equipment, correct calibration after any service intervention is ensured by UZINEX.

• Financing through loans and leasing: financing solutions are available for the purchase of the UZX-KPW-BC150 semi-automatic side labeling machine; the equipment qualifies for EU-funded projects as an investment in labeling equipment.

• Complete range of labeling equipment: semi-automatic and automatic. UZINEX offers complete solutions for industrial labeling: the UZX-KPW-BC150 semi-automatic side labeling machine for small and medium batches with varied formats, the automatic UZX-KPW-QC160 model for continuous high-volume production, both covering cylindrical containers with a diameter of 20–120 mm.

The UZX-KPW-BC150 semi-automatic side labeling machine is the choice for producers labeling 100–1,000 containers per day in varied formats, with ±1 mm accuracy at 40–50 kg and 220V single-phase: labels up to 230 mm long and 150 mm wide, actuation via button or foot pedal and a roll of up to Ø300 mm for maximum autonomy between roll changes.
