KPW-750: semi-automatic PP strapping machine, 1,5 sec cycle, tension 8–45kg, strap 6–15mm, 250W single-phase, 70kg…
| Operation type | Semi-automatic (manual wrapping, automatic tensioning/sealing/cutting) |
| Strapping cycle speed | ~1,5 seconds / cycle |
| Maximum clamping tension | 8–45 kg (adjustable) |
| Accepted PP strap width | 6–15 mm |
| Accepted PP strap thickness | 0,5–1 mm |
| Maximum product size | Unlimited |
| Work table height | 750 mm |
| Machine footprint (L × W × H) | 895 × 565 × 750 mm |
| Net weight | ~70 kg |
| Installed power | 250 W |
| Power supply | 110V / 220V, 50/60Hz, single-phase |
| Tensioning mechanism | Two motors + premium-quality clutch |
| Control | Integrated PCB with simple, intuitive panel |
| Sealing system | High-temperature-resistant thermal sealing plate |

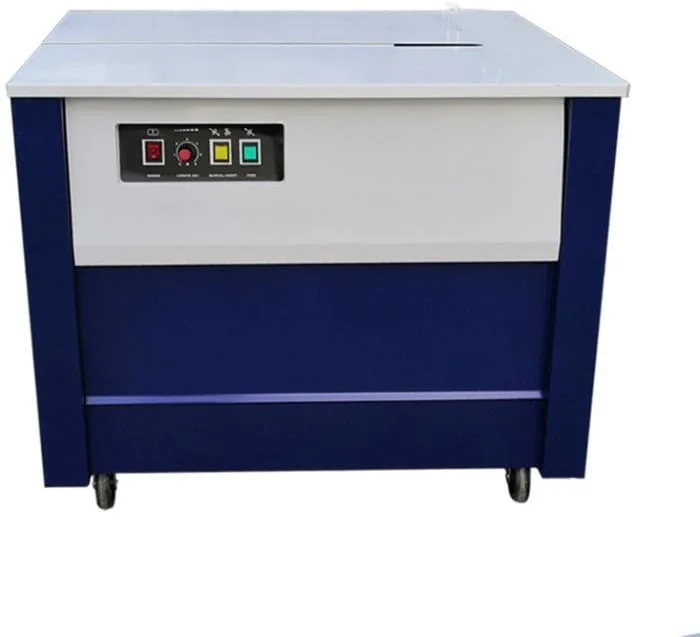

The KPW-750 semi-automatic strapping machine is the compact tabletop machine designed for small and medium-sized businesses in logistics, retail, packaging and light manufacturing that need to strap parcels, packages and boxes with PP (polypropylene) strap quickly and uniformly, without the investment of an automatic arch-type installation.
With a tensioning, heat-sealing and cutting cycle of 1,5 seconds, tension adjustable between 8 and 45 kg, a footprint of just 895×565×750 mm and a weight of 70 kg, the KPW-750 semi-automatic strapping machine immediately replaces the manual sealer, adhesive tape or twine, with a faster, more uniform strap that is more secure during handling.
Single-phase power supply at 110/220V and consumption of 250W make the KPW-750 semi-automatic strapping machine equipment that starts from any standard socket, with no three-phase electrical panel, no electrician and no additional permits, suitable even for rented packaging spaces, temporary warehouses or secondary work points. And unlike fixed-arch machines, the KPW-750 semi-automatic strapping machine has no upper limit on product size: any parcel that fits on the table can be strapped. Key Advantages of the KPW-750 Semi-Automatic Strapping Machine
• Complete cycle in 1,5 seconds: the operator wraps the PP strap around the parcel and inserts it into the gripping mechanism; the KPW-750 semi-automatic strapping machine tensions to the set force, heat-seals and cuts automatically in 1,5 seconds; the result is a firm, uniform strap, identical from the first to the last parcel of the day.
• Tension adjustable 8–45 kg for any product type. The KPW-750 semi-automatic strapping machine covers the entire range of products: from thin cardboard boxes that require minimal tension (8 kg) to avoid deformation, to dense heavy-goods packages that need a tight strap at 45 kg; the adjustment is made with the integrated adjustable spring, without tools.
• No product size limit: the KPW-750 semi-automatic strapping machine has no fixed pass-through frame like automatic arch-type machines; the operator can strap any product of any size (small 20 cm boxes, standard courier parcels or bulky furniture packages) in the same cycle, on the same machine.
• Compact and light: 70 kg, 895×565 mm footprint. The KPW-750 semi-automatic strapping machine installs on any work table or on its own pedestal, can be moved by two people and requires no foundation or permanent fixing; ideal for frequently reconfigured packaging spaces or for companies operating from multiple locations.
• Single-phase power 110/220V, 250W: the KPW-750 semi-automatic strapping machine works from any standard socket in Romania; it requires no three-phase electrical installation, transformer or special residual-current protection; it starts immediately after connection, without commissioning procedures.
• Two motors with premium-quality clutch: the tensioning mechanism of the KPW-750 semi-automatic strapping machine uses two independent motors with a premium clutch that ensures a constant clamping force regardless of the operator's working speed or voltage fluctuations in the electrical grid.
• Integrated PCB electronic board: stable operation. The KPW-750 semi-automatic strapping machine has its control logic integrated on a dedicated PCB that ensures the correct tension-seal-cut sequence at every cycle, eliminating the timing errors typical of mechanisms without electronic control.
“Integrated PCB electronic board: stable operation. The KPW-750 semi-automatic strapping machine has its control logic integrated on a dedicated PCB that.”
• High-temperature-resistant sealing plate: the thermal sealing of the PP strap ends performed by the KPW-750 semi-automatic strapping machine produces a uniform joint with tensile resistance; the sealing plate is built from materials that withstand repeated thermal cycles without degrading the joint quality over time.
Technical Specifications: KPW-750 Semi-Automatic Strapping Machine
| Parameter | Value |
|---|---|
| Model | KPW-750 |
| Operation type | Semi-automatic (manual wrapping, automatic tensioning/sealing/cutting) |
| Strapping cycle speed | ~1,5 seconds / cycle |
| Maximum clamping tension | 8–45 kg (adjustable) |
| Accepted PP strap width | 6–15 mm |
| Accepted PP strap thickness | 0,5–1 mm |
| Maximum product size | Unlimited |
| Work table height | 750 mm |
| Machine footprint (L × W × H) | 895 × 565 × 750 mm |
| Net weight | ~70 kg |
| Installed power | 250 W |
| Power supply | 110V / 220V, 50/60Hz, single-phase |
| Tensioning mechanism | Two motors + premium-quality clutch |
| Control | Integrated PCB with simple, intuitive panel |
| Sealing system | High-temperature-resistant thermal sealing plate |
KPW-750 vs. KPW-8060: When to Choose the Semi-Automatic over the Automatic Arch Machine
The KPW-750 semi-automatic strapping machine and the KPW-8060 automatic strapping machine address different needs, and the right choice depends on daily volume, product type and available infrastructure. The KPW-750 semi-automatic strapping machine is the right solution when products vary widely in size, daily volume is medium (under 300–500 parcels per day), space or budget does not allow an arch-type machine, or when flexibility in equipment positioning is more important than maximum processing speed.
The KPW-750 semi-automatic strapping machine is also the ideal solution as backup equipment or as a second strapping station in a warehouse that already has an automatic line: for non-standard parcels that do not pass through the main machine's arch, or for peak periods when a single station can no longer keep up with the volume. Applications: Where the KPW-750 Semi-Automatic Strapping Machine Works
• Small courier and logistics companies: parcels prepared for shipping are strapped quickly with the KPW-750 semi-automatic strapping machine before scanning and loading into the vehicle; one operator can strap 100–200 parcels per hour without significant physical effort, maintaining the warehouse's processing rhythm.
• Retail stores and distribution centres: product packages prepared for delivery to customers or transferred between warehouses are consolidated with the PP strap of the semi-automatic strapping machine; the adjustable tension protects premium packaging from excessive tension that leaves visible marks on the product.
• Manufacturers with medium shipping volume: production companies that ship moderate quantities of packaged products weekly or daily use the KPW-750 semi-automatic strapping machine as a cost-effective solution for consolidating parcels without the investment of industrial-capacity automatic equipment.
• Printers and publishers: stacks of books, magazines and printed matter grouped for distribution are strapped compactly with the KPW-750 semi-automatic strapping machine; 6 mm PP strap applied at minimal tension does not bend the cover corners and leaves no marks on glossy surfaces.
Dimensions 895 × 565 × 750 mm
Unitised pallet wrapping before dispatch.
Fast flows with strict hygiene and traceability requirements.
• Farms and agricultural producers: packages of agricultural products, crates of fruit and vegetables stacked for transport to the market or to retailers are consolidated with the semi-automatic strapping machine before loading into the truck, preventing displacement and damage in transit.
• Workshops and artisan producers: orders of handmade products, small production batches and sample packages are strapped professionally with the KPW-750 semi-automatic strapping machine, providing a neat presentation and real product protection during delivery.
PP Strap for the KPW-750 Semi-Automatic Strapping Machine
The KPW-750 semi-automatic strapping machine uses PP (polypropylene) strap 6, 9, 12 or 15 mm wide and 0,5–1 mm thick, consumables available from any packaging materials supplier in Romania at a low cost per strap. The 6 mm strap is suitable for light parcels and fragile products; the 12 and 15 mm straps provide the strength needed for heavy packages or those handled mechanically with a forklift.
The joint is thermal, without metal staples: the strap ends melt and weld under the pressure of the thermal plate of the KPW-750 semi-automatic strapping machine, producing a clean joint with no metal components that could scratch products or endanger the safety of those opening the parcel at the destination. How the KPW-750 Semi-Automatic Strapping Machine Works
• Placing the parcel on the table: the operator places the parcel, box or package on the work table of the KPW-750 semi-automatic strapping machine, oriented so that the strap passes on the desired side.
• Manual strap wrapping: the operator pulls the PP strap from the coil mounted in the semi-automatic strapping machine, wraps it manually around the parcel and inserts both ends into the gripping slot of the mechanism.
• Triggering the automatic cycle. Pressing the pedal or the start button triggers the automatic sequence of the KPW-750 semi-automatic strapping machine: tensioning to the set force, thermal sealing of the joint and cutting of the strap from the coil, all in 1,5 seconds.
• Checking and releasing the parcel: the operator visually checks the strap quality and lifts the parcel off the table of the semi-automatic strapping machine; the machine is immediately ready for the next cycle, with no cooling or reset time.
Frequently Asked Questions about the Semi-Automatic Strapping Machine
What is the difference between the KPW-750 semi-automatic and the KPW-8060 automatic?
On the KPW-750 semi-automatic strapping machine, the operator manually wraps the strap around the parcel; the machine takes over tensioning, sealing and cutting automatically. On the KPW-8060 automatic with arch, the strap circulates automatically through the fixed arch around the parcel without manual intervention. The KPW-750 is more flexible on product dimensions and more affordable as an investment; the KPW-8060 is faster for high volumes and products with standard dimensions. What product dimensions can the KPW-750 strap?
The KPW-750 semi-automatic strapping machine has no upper limit on product size: any parcel around which the operator can manually wrap the PP strap can be strapped, regardless of length, width or height. The only practical limit is the 750 mm work table height and the maximum weight the table can support. Can the KPW-750 semi-automatic strapping machine apply multiple straps per parcel?
Yes. The KPW-750 semi-automatic strapping machine allows any number of straps per parcel: the operator repositions the parcel and repeats the cycle for each additional strap; there are no technical constraints on the number of straps per product. Does the KPW-750 semi-automatic strapping machine require special maintenance?
The KPW-750 semi-automatic strapping machine requires minimal maintenance: periodic cleaning of the sealing plate to prevent the build-up of melted strap residue, and checking the clamping tension via the adjustable spring. Both operations take a few minutes without special tools; the Artificial Intelligence documentation supplied by UZINEX guides operators step by step through the routine maintenance procedures. Why Choose UZINEX for the KPW-750 Semi-Automatic Strapping Machine
UZINEX delivers the KPW-750 semi-automatic strapping machine with the same complete service package available for the entire range of industrial equipment, whether you purchase a single compact machine or a full packaging line.
• Free transport and commissioning included: the KPW-750 semi-automatic strapping machine is delivered free anywhere in Romania; at commissioning, operators receive complete training on use, tension adjustment and strap coil changing.
• Extended 60-month warranty: the warranty term fully covers manufacturing defects; the spare parts of the semi-automatic strapping machine (sealing plate, clutch, PCB) are kept permanently in stock for rapid intervention with no waiting times.
• National technical support with 24–48h response: the UZINEX service network covers the entire country; for a semi-automatic strapping machine used daily in the shipping process, minimizing downtime is critical, and UZINEX guarantees rapid intervention anywhere in Romania.
• User manuals with Artificial Intelligence: the technical documentation of the KPW-750 semi-automatic strapping machine is accessible through an AI interface for fast diagnostics of unusual situations and step-by-step guidance through adjustment procedures, without the need for a technician on site for minor issues.
• Financing through credit and leasing: flexible financing solutions available for the KPW-750 semi-automatic strapping machine; the investment is low, and the time savings compared with manual strapping with twine or adhesive tape generate rapid recovery of the purchase cost.
• Scalability within the KPW range: if the parcel volume grows and the KPW-750 semi-automatic strapping machine can no longer keep up, UZINEX offers the natural upgrade path to automatic strapping machines with arch and PLC, without losing the support and service relationship already built.
The KPW-750 semi-automatic strapping machine is the ideal entry point into parcel-strapping automation for any company that wants to eliminate twine, adhesive tape and the manual sealer, replacing them with a professional PP strap in 1,5 seconds, at the most affordable cost in the UZINEX strapping machine range.
