Metal Mini Lathe

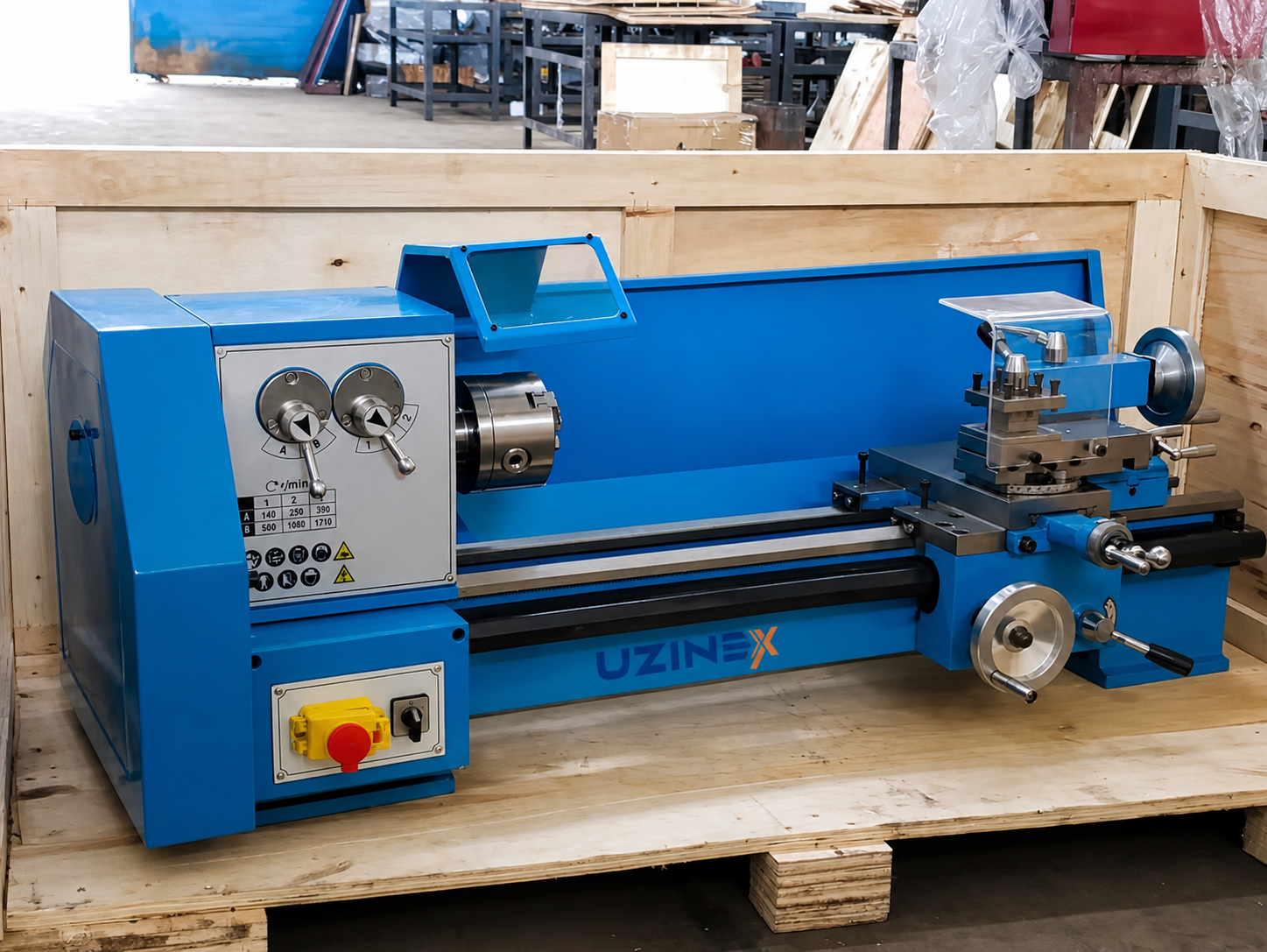

A metal mini lathe is a bench machine for small parts: a maximum machining length of 350 mm, a 0.55 kW motor and speeds between 140 and 1,710 rpm. It sits on a solid bench, runs from an ordinary socket and needs no factory hall, floor anchoring or compressed air.

Typical buyers are fine-mechanics workshops, jewellers, model makers, small repair shops and laboratories that need a part turned to size, without a production line. The configuration (machining diameter, chuck, accessories) is set at quotation, based on the parts you make.

In practice, a metal mini lathe of this class works cleanly on aluminium, brass, bronze and precious metals, exactly where speed matters more than force. It also handles mild steel, in small passes: 0.55 kW means thin chips and patience, and it is not a roughing machine. Typical parts are shafts, bushings, spacers, short threads, rings, pins and mechanism components that fit within 350 mm. What it does not do: hardened steel, thick bar and long series; for those you need a universal bench lathe, with a motor and rigidity to match.

The maximum speed of 1,710 rpm is why the machine ends up in jewellery and watchmaking. At diameters of a few millimetres, the surface speed of the part stays low however hard you push a large lathe, and the surface comes out matt with tool marks. A small, fast lathe achieves the finish in a single pass.

The light-duty capacity is chosen on purpose, because it is what makes a good part. The small feeds and shallow depths typical of this work produce minimal vibration in the part-tool-machine chain, so the surface comes out cleaner than you get by forcing a heavy machine through fine passes.

How much does a metal mini lathe cost

The price is not a single number, because you are not buying a single thing. Four factors move it: the machining diameter you need, the type of chuck, the accessory set (tools, steady rest, tailstock, change gears for threading) and whether you need training on the machine. A mini lathe configured for jewellery, with a small chuck and fine tools, and one configured for a repair shop, with threading accessories, start from the same body and end up at different prices.

Compared with a machine bought from a classified ad, the difference is what you get after delivery. A metal mini lathe delivered by Uzinex includes transport, commissioning in your workshop, a 60-month warranty and service with nationwide coverage in Romania, with an on-site visit within 24 hours. Spare parts are in stock, so a fault costs days, where an unsupported machine can cost months of searching for components. If you want the figure for your configuration, request a quote. We reply with a written specification and a firm price.

Workshop mini lathe or hobby mini lathe?

It is worth saying plainly, because it is the most common confusion: the mini lathes sold in DIY stores and workshop mini lathes look the same in a photo and do different jobs. A hobby lathe is built for occasional use, has a thinner bed, more play in the lead screws and, most importantly, has no service or spare parts behind it once the retail warranty ends. For one part a month that is enough. For a workshop that invoices its turned parts, play in the feed becomes scrap, and a week waiting for a spare part becomes lost money.

The test is simple: if the machine produces something you sell, buy it together with the service and spare parts that keep it running. If you turn parts for yourself at the weekend, a DIY-store lathe is a sensible choice and there is no point paying more.

New or second hand?

A second-hand metal mini lathe can be a good deal, but the risk sits in places you do not see in the ad. Check, in this order: wear on the ways, especially in the first 100 mm next to the chuck, where everyone works and where the bed wears first; play in the lead screw and feed nut, measured with a dial indicator, not by ear; the radial runout of the chuck; and whether the full set of change gears is still there, without which you cannot cut threads. Missing gears are common and hard to replace.

On a lathe worn on the ways, the part comes out tapered along its length and there is nothing to correct in the adjustment. The price difference against a new machine disappears at the first bed reconditioning. Add the lack of warranty and invoice, which matter if you want to deduct the purchase or include it in a funded project, and the calculation often shifts in favour of new equipment.

What it actually turns

Fine mechanics and watchmaking: shafts, precision bushings, pins, special nuts and small gear components. Here the compact machine has a real advantage over a large lathe: small moving masses mean low vibration, and at tight tolerances on parts of a few millimetres that decides the surface quality.

Technical jewellery: rings, bracelets, necklace elements and accessories in gold, silver, brass and artistic bronze. Cylindrical bodies are turned, decorative profiles are cut, and edges are finished and chamfered. The 1,710 rpm speed gives the surface speed needed for a glossy finish at small diameters.

Precision model making: shafts, cylinders, bushings and mechanical components for model aircraft, scale locomotives and model ships, exactly the parts that are not sold at the scale and specification of your project.

Repairs and small series: replacement bushings, spacers, adapters, short threads restored on a part that would otherwise be thrown away. For a small repair shop, the machine pays for itself through the parts you no longer have to order.

Metal mini lathe or universal bench mini lathe?

They are in the same size class and are chosen by the part you make. This model (0.55 kW, up to 1,710 rpm, light duty) is the choice for fine precision on small parts: jewellery, model making, watchmaking. The universal bench mini lathe, with a 1.1 kW motor, 9 speed steps, 750 mm between centres and a 38 mm spindle bore, is the choice for repair work, industrial maintenance and spare parts with larger dimensions and power needs. If you often work bar stock passed through the spindle, you need the second one.

What you get from Uzinex

• Transport and commissioning included, at your site, with operator training. • 60-month warranty, standard across the whole catalogue. • Service with nationwide coverage in Romania, on-site visit within 24 hours. • Spare parts in stock, without long production stoppages. • Technical documentation for EU-funded projects and public tenders. • Configuration on request: machining diameter, chuck, accessories and extra equipment.
