Energy equipment

Solar surveillance trailer with 7 m mast VOLTRAIL SST-700

Product code: UZX-402

Surveillance where the grid does not reach, no fuel needed

Solar panels
2 × 435 W
Panel tilt
from 10° to 45°, manual adjustment
Charge controller
40 A MPPT
Batteries
GEL / LFP, 4 × 200 Ah (12 V)
AI takes care
AI manual & maintenance
Transport & commissioning
Free across Romania
SEAP / SICAP
Eligible for public procurement
European funds
PNRR · POR · Just Transition
Industries served

Recommended applications

PTZ 360° · ZOOM 10×10m30m110°CONTINUOUS ROTATION · Pan ∞ · Tilt -20° → 90°UZX-PTZREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Construction site security

VERTICAL PANEL STORAGESTORAGE LOCATIONS3300J2 AXIS · RAIL ON REQUEST100 kg · 380 VXZUZX-236REV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Material yards

CRAWLER · 4 DRIVE WHEELSL 9800–25 m/min · IP68UZX-CRWREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Car parks and remote plots

AIR · WATER CYCLEEVAP19–35kWCOND+55°C-7°CCOP 4.2 · R32 · A+++UZX-HPCREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Events and festivals

Technical data

Technical specifications

Solar panels2 × 435 W
Panel tiltfrom 10° to 45°, manual adjustment
Charge controller40 A MPPT
BatteriesGEL / LFP, 4 × 200 Ah (12 V)
Capacity9.600 Wh (80% DoD)
System voltage24 V DC
Power outputs12 / 24 / 48 V DC, PoE
Inverter450 W, 120 / 240 V AC (optional)
Mast5 sections, 7 m, manual winch
AutonomyUp to 4 days at 80 W
Charging time≈ 9.3 h
Operating temperature−35 to +60 °C
Dimensions3700 × 2150 × 2750 mm
Weight950 kg
TrailerEU/US/AU, single axle, electric brake
ConformityCE marking
About this equipment

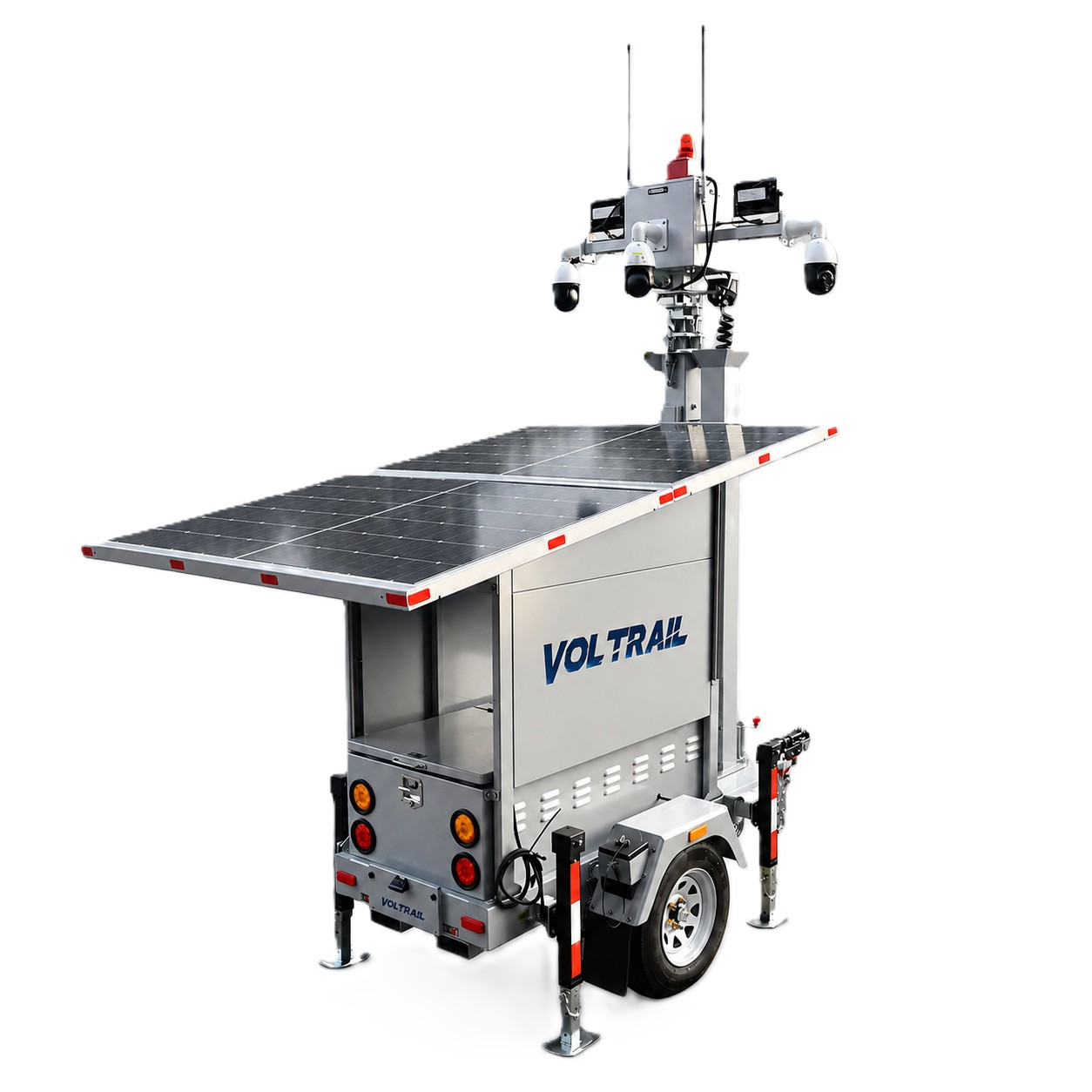

The VOLTRAIL SST-700 solar surveillance trailer with a 7 m mast brings video security where there is no power: construction sites, material yards, solar and wind farms, temporary car parks. You mount your own cameras on the 7 m telescopic mast, and two 435 W panels with 9.6 kWh of batteries keep them running day and night.

The trailer ships without a camera, so you keep the video system you already use. The 12, 24 and 48 V DC outputs and the PoE port power IP cameras, PTZ cameras and NVRs, and an optional 450 W inverter adds AC power.

Solar surveillance trailer energy and runtime

Four 200 Ah 12 V batteries, gel or lithium iron phosphate, form a 24 V system with 9,600 Wh usable. At an 80 W load the system runs up to 4 days without sun, and the panels, manually tiltable from 10° to 45°, recharge it in about 9.3 hours.

ParameterValue
Solar panels2 × 435 W
Panel tiltfrom 10° to 45°, manual adjustment
Charge controller40 A MPPT
BatteriesGEL / LFP, 4 × 200 Ah (12 V)
Capacity9.600 Wh (80% DoD)
System voltage24 V DC
Power outputs12 / 24 / 48 V DC, PoE
Inverter450 W, 120 / 240 V AC (optional)
Mast5 sections, 7 m, manual winch
AutonomyUp to 4 days at 80 W
Charging time≈ 9.3 h
Operating temperature−35 to +60 °C
Dimensions3700 × 2150 × 2750 mm
Weight950 kg
TrailerEU/US/AU, single axle, electric brake
ConformityCE marking

Set-up and transport

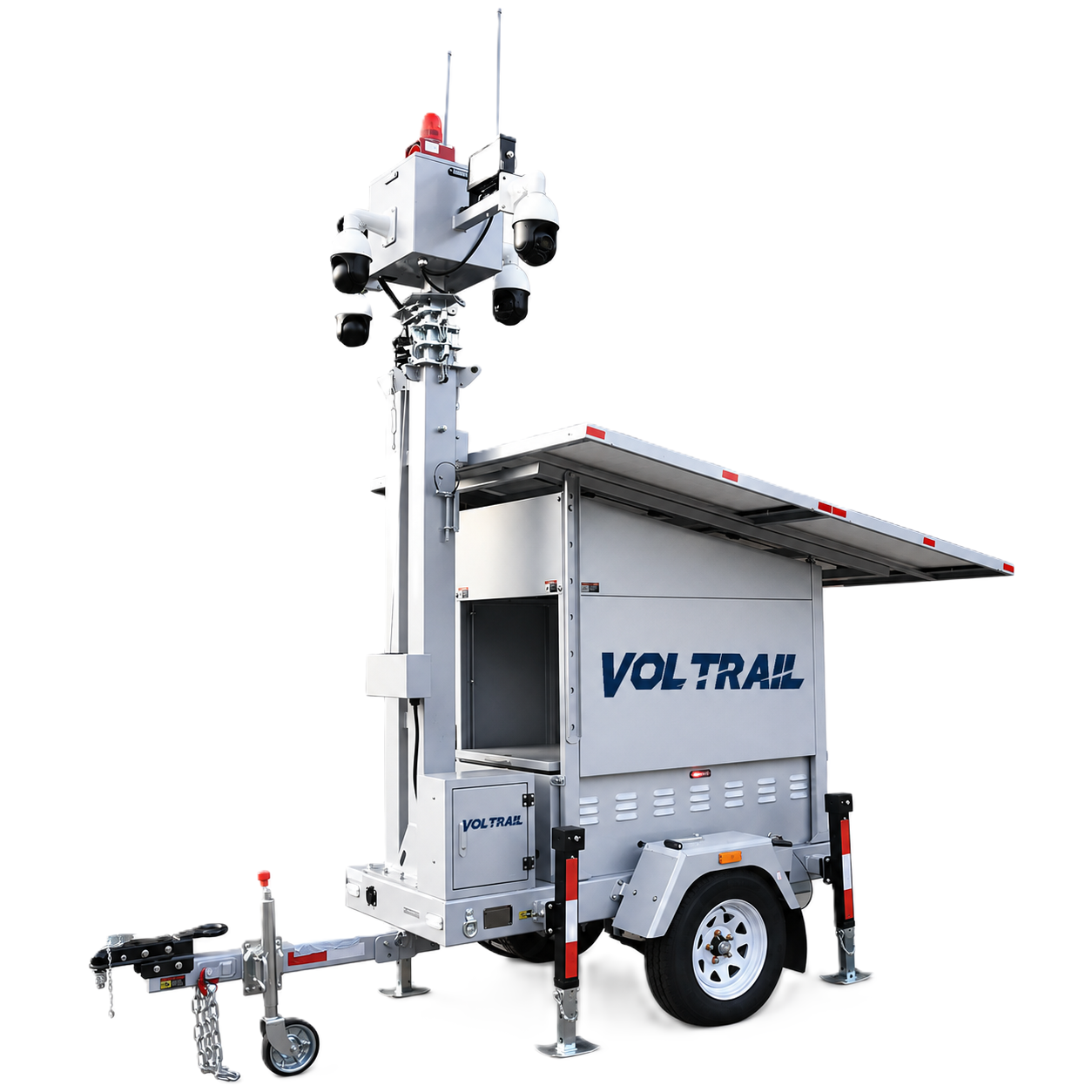

The five-section mast is raised with a manual winch, and the 950 kg trailer, on a single axle with electric brakes, moves behind any van with a tow hitch. It operates between −35 and +60 °C, all year round.

How to choose

Choose the SST-700 if you already have cameras or want to pick the video equipment yourself. If you want a complete system with a PTZ camera and recording included, the right option is the SST-450 trailer.

It works as a mobile surveillance trailer that moves with the site, from one phase of the works to the next.

What you get from Uzinex

• Delivery and commissioning included in Romania, with operator training.

• 60-month warranty and nationwide service, with on-site response in under 24 hours in Romania (24–72 hours in other countries).

• Technical documentation for EU-funded, PNRR and public procurement files.
