Waste Apron Feeder URSTAG

Product code: UZX-385

The first link in any sorting plant: it takes waste from the reception hopper and delivers it to the line in a steady flow, with no surges and no blockages.

Slat width (mm)
1000
Indicative throughput (t/h)
10–20
Installed power (kW)
5.5–11
Slat thickness (mm)
6
AI takes care
AI manual & maintenance
Transport & commissioning
Free across Romania
SEAP / SICAP
Eligible for public procurement
European funds
PNRR · POR · Just Transition
Industries served

Recommended applications

CONVEYOR BELTM1M22 400v = 0.5 m/sXYUZX-CNVREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Waste reception bunkers

HYDRAULIC GRIPPINGOPENING 1 200 mm · 4 / 5 / 6 TINESUZX-GCLREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Municipal sorting stations

DIGGING · LEVELINGP13 200 mmUZX-EXBREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Heavy and abrasive waste

PALLET WRAPPINGL 1 200PRE-STRETCH 200% · 18 RPMUZX-PWRREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Transfer stations

Technical data

Technical specifications

Slat width (mm)1000
Indicative throughput (t/h)10–20
Installed power (kW)5.5–11
Slat thickness (mm)6
DriveSleeve roller chain
Feed rate controlVariable frequency drive
About this equipment

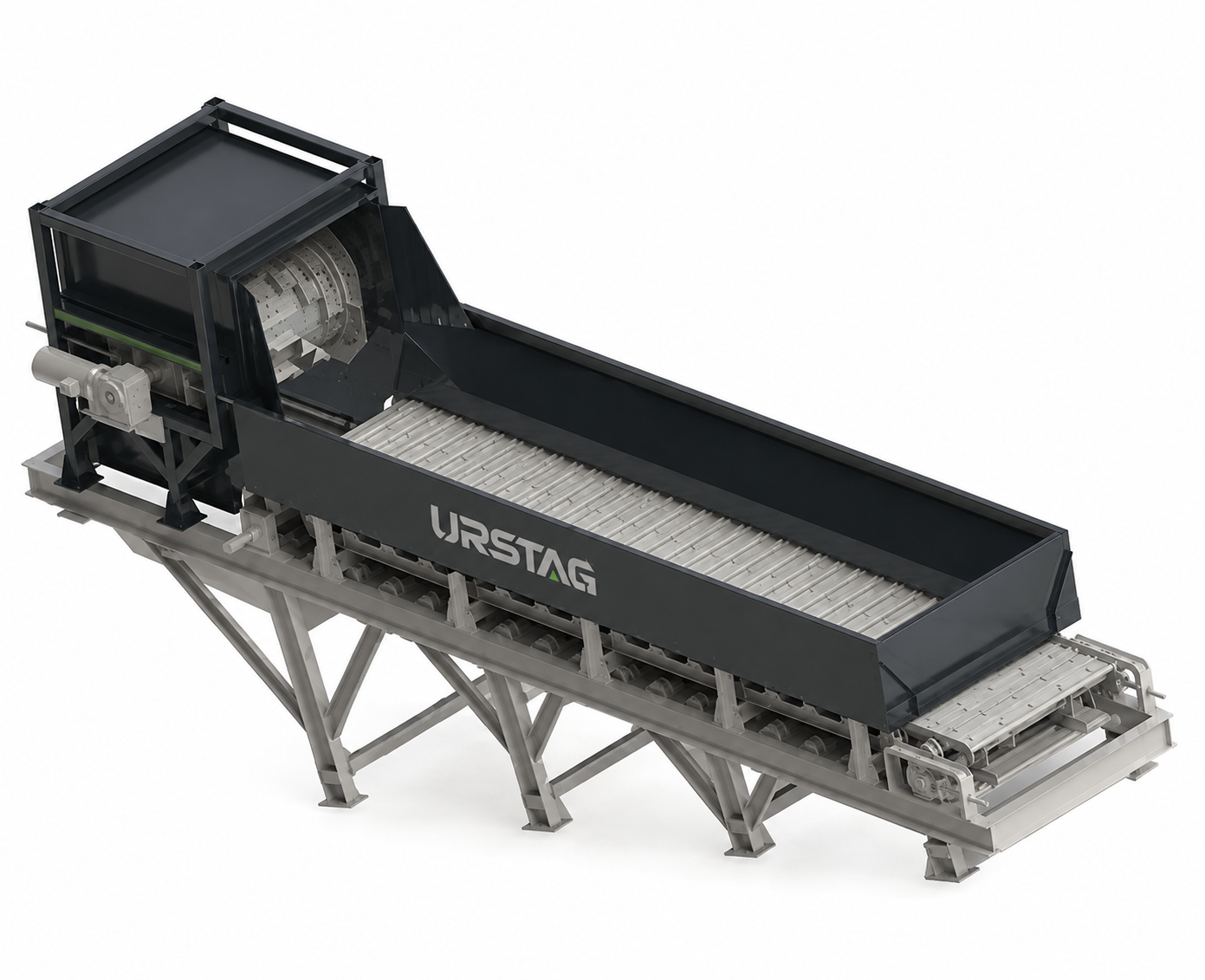

This URSTAG waste apron feeder takes mixed household waste from the reception bunker and feeds the line at a steady rate, so downstream machines never get surges of material. It comes in 1, 2 and 3 m widths for 10–60 t/h, with 6–8 mm plates and a roller-and-bush chain.

Key Advantages of a Waste Apron Feeder

• Steady flow, not surges, a properly set apron feeder keeps the line load uniform, so the trommel screen and the separators run at stable efficiency instead of choking and then running empty.

• Impact resistance, overlapping steel slats take direct tipping from a front loader or grab, including large heavy objects that would tear a rubber belt.

• Tolerant of real waste, it runs on wet, dirty, abrasive and mixed material, which is exactly what arrives at a municipal plant, as well as on clean pre-sorted flow.

• Feed rate adjustable from the drive, the speed is set electronically, so you can change the line load while running, with no stops and no mechanical work.

• Low maintenance, the simple chain and sprocket construction has few wear points, and slats can be replaced individually.

• Good flow containment, the slat overlap limits fine material spilling underneath the conveyor, so there is less cleaning to do below the line.

Technical Specifications, Apron Feeder

Parameter1 m width2 m width3 m width
Slat width (mm)100020003000
Indicative throughput (t/h)10–2020–4040–60
Installed power (kW)5.5–117.5–1515–18
Slat thickness (mm)688
DriveSleeve roller chainSleeve roller chainSleeve roller chain
Feed rate controlVariable frequency driveVariable frequency driveVariable frequency drive

These figures are indicative and cover the usual configurations. Length, incline angle, discharge height and final power are set to suit your site and the throughput the rest of the line requires.

Applications for the Chain Plate Feeder

• Municipal waste sorting plants, feeding the line from the reception hopper, the first stage ahead of the bag opener.

• Shredding installations, uniform feeding of primary shredders, where an uneven rate causes overload and stoppages.

• Landfills and transfer stations, handling old, heavy and wet waste that destroys ordinary belts.

• Construction waste lines, conveying rubble, brick and broken concrete, all highly abrasive materials.

• Bulky waste, feeding lines that process furniture, mattresses and large objects, where the slats carry concentrated loads.

How It Works

A sleeve roller chain drives sprockets, and the chain's cyclic motion pulls the steel slats that form the conveying surface. The material rests directly on the slats, not on a tensioned belt, so weight and shock transfer into the chain and the structure rather than into an elastic element. Because the slats overlap, fine material does not fall between them. Speed is controlled from a variable frequency drive, which turns the conveyor into a feed rate control instrument for the whole line.

Selection Guide

Width is chosen from the throughput the rest of the line requires and from the maximum object size in the flow. For a municipal plant up to roughly 100 tonnes per day, a 1 metre feeder usually covers the need. Between 100 and 300 tonnes per day the 2 metre version is used. Above that, or when bulky waste appears in the flow, the 3 metre width becomes necessary, both for throughput and to avoid blockages at the inlet. One detail that is often overlooked: the feeder should be sized with throughput headroom above what the line asks for, otherwise it becomes the bottleneck of the installation itself.

What Uzinex provides

• Delivery, installation and commissioning, with operator training on your own production.

• 60-month warranty and service with on-site response in under 24 hours in Romania (24–72 hours in other countries).

• Technical documentation for EU-funded, PNRR and public procurement projects.
