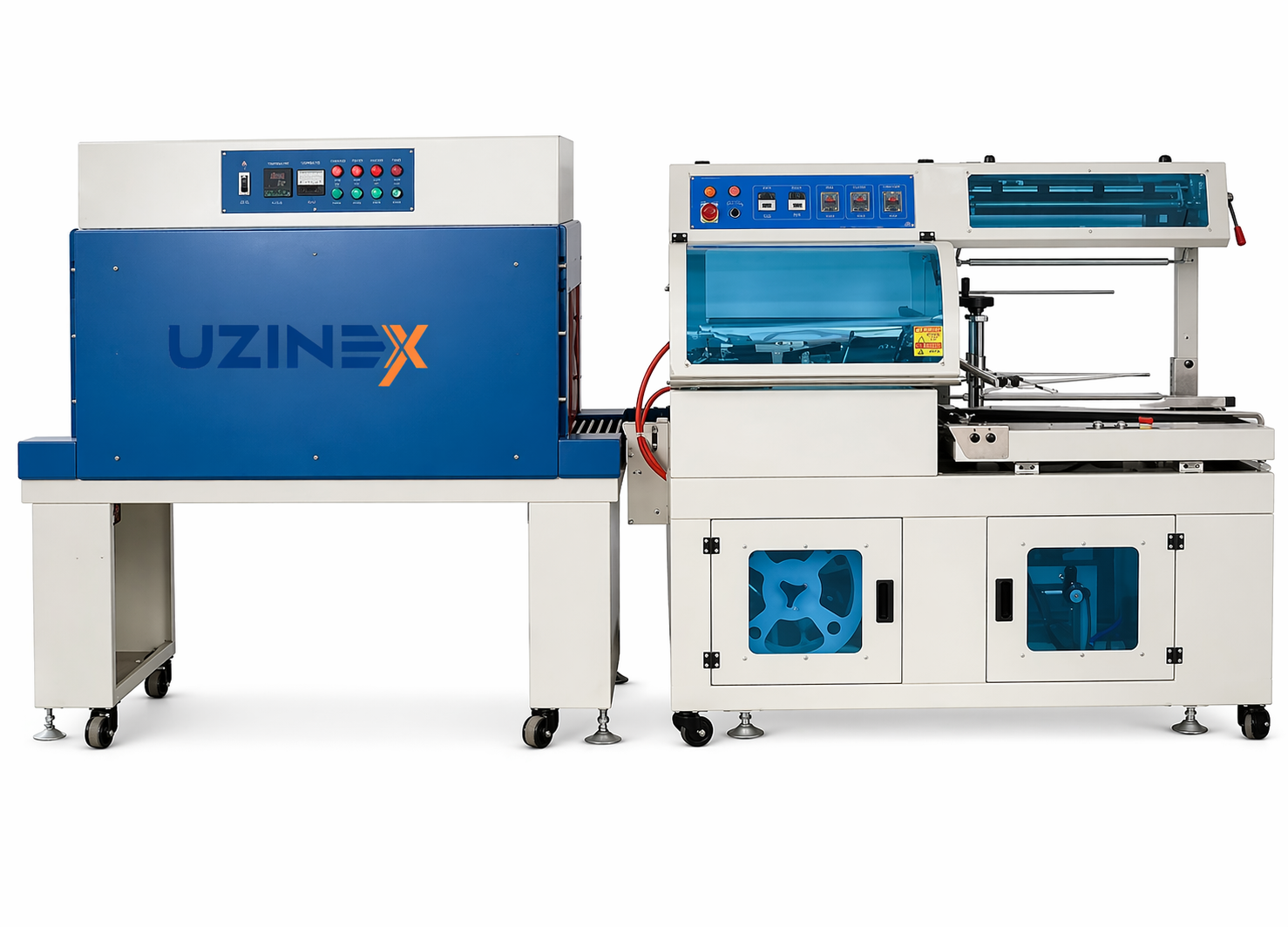

L-Bar Shrink Sealing Device KPW-FL450

The L-bar shrink sealing device KPW-FL450 is a compact, automatic, all-in-one machine that combines L-shaped sealing and integrated heat shrinking for packaging individual products in shrink film with a maximum width of 450 mm, processing POF, PVC and PE film, with an integrated conveyor with adjustable speed, digital control of the sealing temperature and time on an LCD panel and a stainless steel frame for continuous industrial use.

The L-bar shrink sealing device KPW-FL450 is the compact version intended for products with a smaller cross width, where the equipment's reduced footprint and the 450 mm film width are exactly what is needed, without the technical and cost oversizing of equipment for 550 mm film. It operates identically to the FL550 model: the L-shaped bar seals and cuts the front and side seams simultaneously, the product passes immediately into the integrated shrink zone and exits with the film uniformly conformed, ready for labelling or shipping. Key advantages: L-bar shrink sealing device KPW-FL450

• Compact all-in-one: L sealing and shrinking in the same small-footprint equipment. The L-bar shrink sealing device KPW-FL450 integrates both functions in a single compact body; compared with the solution of a separate L-sealer + BSE6040A shrink tunnel, the L-bar shrink sealing device KPW-FL450 occupies significantly less space on the workshop or packaging-station floor and requires a single electrical connection for the complete package.

• Film width max 450 mm: correct sizing for small and medium products. The L-bar shrink sealing device KPW-FL450 is calibrated for film up to 450 mm wide, suitable for products with a small and medium cross perimeter (cosmetic product boxes, care sets, individual food products, office articles); using equipment for 550 mm film on small products means film consumed inefficiently and a higher material cost per package.

• POF, PVC and PE film: full compatibility for retail, food and industry. The L-bar shrink sealing device KPW-FL450 works with all the main types of shrink film: POF (polyolefin) film for retail products with maximum transparency and lower sealing temperatures, PVC film for high gloss and pronounced shrinking, and PE film for food or industrial products requiring greater mechanical strength of the packaging.

• Integrated conveyor with adjustable speed: adaptation to the pace of the existing line. The L-bar shrink sealing device KPW-FL450 has an integrated conveyor that transports the products through the sealing zone and the shrink zone, with adjustable speed for synchronization with the pace of the production line or the manual packaging station; the operator adjusts the speed from the control panel without mechanical intervention.

• Digital LCD control: temperature, speed and sealing time settable and monitorable. The L-bar shrink sealing device KPW-FL450 has a digital control panel with an LCD display that allows setting and real-time monitoring of all operating parameters: the L sealing bar temperature, the shrink-zone temperature, the conveyor speed and the cycle duration; the parameters can be adjusted without stopping production when changing the type of film or the product.

• Automatic sealing on product detection: no manual actuation per cycle. The L-bar shrink sealing device KPW-FL450 detects the presence of the product on the conveyor and automatically triggers the descent of the L sealing bar; the operator places the products on the conveyor and collects them packaged at the outlet, without manually actuating the bar on each cycle; eliminating manual actuation reduces fatigue and increases the uniformity of sealing quality from one package to another.

• Automatic shutdown system on jam: product and equipment protection. The L-bar shrink sealing device KPW-FL450 is fitted with sensors that detect jams in the sealing-bar zone or on the conveyor and automatically stop the cycle; the products are not damaged by the overheated sealing bar and the heating elements do not risk burning stationary film; restarting after clearing the jam is done without a complex parameter reset.

• Stainless steel frame: easy hygiene and durability in humid or chemical environments. The L-bar shrink sealing device KPW-FL450 has a stainless steel structure resistant to corrosion and to chemical cleaning products; the smooth surfaces allow quick wiping when changing the type of product and compliance with the sanitation procedures of the food, pharmaceutical and cosmetic industries.

The L-bar shrink sealing device KPW-FL450 is suitable for companies that want to quickly package small and medium products in a compact format, with uniform sealing and integrated heat shrinking. For constant volumes and limited space in the packaging area, this L-bar shrink sealing device offers a very good balance between size, film consumption and productivity. Technical specifications: L-bar shrink sealing device KPW-FL450

FL450 or FL550: How to Choose Between the Two L-Bar Shrink Sealing Devices

The L-bar shrink sealing device KPW-FL450 and the FL550 model are functionally identical machines; both are automatic L-sealers with integrated shrinking, no compressed air, with a conveyor and an LCD panel, the essential difference being the maximum film width accepted and, by implication, the size of the processable products:

• KPW-FL450 (the L-bar shrink sealing device): for products with a small and medium cross width, with a total perimeter (2 × width + 2 × height) below the value permitted by 450 mm film; individual cosmetic products, small boxes, medication sets, small toys, individually portioned food products; correct sizing for small products reduces film consumption per package compared with oversized equipment.

• KPW-FL550 (the L-bar shrink sealing machine): for products with a larger cross width, with a total perimeter exceeding the capacity of 450 mm film; larger cosmetic product boxes, multi-piece sets, books and albums, bulky office products or any product requiring wider 550 mm film for full coverage.

• The practical selection rule: calculate the cross perimeter of the largest packaged product (2 × width + 2 × height) and add 40–50 mm for film overlap; if the result is below 450 mm, the L-bar shrink sealing device KPW-FL450 is the correct and more economical choice; if it exceeds 450 mm, the FL550 is required; UZINEX engineers perform this calculation free of charge on request.

Applications for the L-bar shrink sealing device KPW-FL450

• Individual food products: fruit, vegetables, portioned meat. The L-bar shrink sealing device KPW-FL450 packages trays with portioned fruit and vegetables, pieces of meat, cheeses and other food products in PE or POF film; the shrink packaging maintains freshness, protects against contamination and allows the product to be viewed through the transparent film; the stainless steel frame facilitates cleaning in accordance with food regulations.

• Cosmetics and personal-care industry: individual products for retail. The L-bar shrink sealing device KPW-FL450 produces the individual shrink packaging for cosmetic products (creams, serums, small perfumes, care sets) in POF film with high transparency and gloss; the uniform automatic sealing ensures the professional shelf appearance required by cosmetic brands.

• Pharmaceutical industry: tamper-evident packaging on boxes and sets. The L-bar shrink sealing device KPW-FL450 applies the protective shrink film to medication boxes, food supplements and individual medical devices; the visible tamper-evidence indicator of the shrunk film protects the consumer and meets the tamper-evident packaging requirements of the pharmaceutical sector.

• Retail and toys: individual products for the shelf with attractive packaging. The L-bar shrink sealing device KPW-FL450 packages, in transparent POF or PVC film, individual toys, accessory sets, seasonal products and any small and medium retail article requiring clean, transparent packaging with neat sealing edges; the tightly shrunk film reduces the perceived bulk of the packaging relative to the product.

• Printers: books, brochures, envelopes with documentation. The L-bar shrink sealing device KPW-FL450 packages standard-size books, brochures and envelopes with technical or commercial documentation in transparent POF film; the packaging protects the printed surfaces in transport and storage and gives deliveries a professional appearance.

• E-commerce: dust protection and uniform presentation when shipping small products. The L-bar shrink sealing device KPW-FL450 is used in the packaging stations of online stores that ship small and medium products; the shrink packaging replaces unshrunk plastic bags, reducing product movement in the parcel and providing a better first visual impression when the customer opens the package.

The L-Bar Shrink Sealing Device KPW-FL450 in the Packaging Line

The L-bar shrink sealing device KPW-FL450 operates as a standalone unit or integrated into packaging lines with several stations. Understanding its position relative to the other equipment in the UZINEX range clarifies the correct choice of the complete solution:

• The L-bar shrink sealing device KPW-FL450: complete standalone solution. For packaging stations with a single piece of equipment, the KPW-FL450 carries out the entire process from the unpackaged product to the shrink-wrapped package, without additional upstream or downstream equipment; the operator feeds the products manually and collects them at the outlet ready for labelling.

• The alternative with a standalone BSE6040A tunnel: if the production volume grows and a shrink tunnel with an industrial capacity of 24 kW is needed (for thick PE film or a higher rate), the solution with a separate L-sealer + BSE6040A tunnel becomes more suitable; the L-bar shrink sealing device KPW-FL450 remains suitable for medium volumes and small formats.

• Complementary with sleeve wrapping machines: for long or variable-length products, the sleeve wrapping machines in the UZINEX range apply the film as a continuous sleeve; the L-bar shrink sealing device KPW-FL450 is intended exclusively for individual products with regular shapes packaged from centre-folded film in a flat tube, not from a continuous sleeve.

Frequently asked questions about the L-bar shrink sealing device KPW-FL450

What is the difference between the L-bar shrink sealing device KPW-FL450 and the FL550 model?

The L-bar shrink sealing device KPW-FL450 and the FL550 model are identical in functionality and technology. Both are automatic L-sealers with integrated shrinking, no compressed air, with a conveyor and an LCD panel; the only difference is the maximum film width accepted: 450 mm on the KPW-FL450 versus 550 mm on the FL550; the correct choice is made based on the cross perimeter of the largest packaged product. Does the L-bar shrink sealing device KPW-FL450 require compressed air?

No. The L-bar shrink sealing device KPW-FL450 operates exclusively on electricity; there are no pneumatic components and no compressed-air installation is required; a standard electrical connection to the single-phase supply in the workshop or packaging station is sufficient. Which type of film is recommended for food products on the L-bar shrink sealing device KPW-FL450?

The L-bar shrink sealing device KPW-FL450 uses for food products POF (polyolefin) film, which is approved for food contact, has lower sealing temperatures (protecting heat-sensitive products) and offers transparency and gloss superior to PE film; PVC film is not recommended for direct food contact; UZINEX engineers recommend the specific type of film according to the packaged product at commissioning. How easy is it to change the film roll on the L-bar shrink sealing device KPW-FL450?

The L-bar shrink sealing device KPW-FL450 allows the film roll to be replaced in a few minutes without tools; the end of the new roll is centred on the roll holder and fed through the film guides; at commissioning, UZINEX engineers demonstrate the complete procedure for changing the roll and adjusting the film centring on the conveyor. Why Choose UZINEX for the L-Bar Shrink Sealing Device KPW-FL450

The L-bar shrink sealing device KPW-FL450 is equipment with two critical integrated functions, where the calibration of the sealing-bar temperature relative to the shrinking temperature and of the conveyor speed must be correct for the specific type of film and product; wrong parameters produce either incomplete sealing, or film burns or insufficient shrinking.

• Pre-purchase consultancy: FL450 or FL550, the correct film for your products. UZINEX engineers calculate the film width required for the customer's product dimensions, confirm that the L-bar shrink sealing device KPW-FL450 with 450 mm film covers all formats, and recommend the type of film (POF, PVC or PE) suited to the application and the specific product.

• Free shipping and commissioning included: the L-bar shrink sealing device KPW-FL450 is delivered free of charge anywhere in Romania; at commissioning, UZINEX engineers calibrate the bar and shrink-zone parameters for the customer's film and product, set the conveyor speed and train the operators in using the equipment and in the film-roll changing procedure.

• Extended 60-month warranty and spare parts in stock: the L-bar shrink sealing device KPW-FL450 benefits from a 60-month warranty; the wear components (the sealing-bar heating elements, the protective teflon strips, the shrink-zone heating elements, the detection sensors) are kept permanently in stock at UZINEX for rapid intervention.

• National service with 24–48h response: UZINEX service engineers intervene on site anywhere in Romania; for packaging stations where the L-bar shrink sealing device KPW-FL450 is the central equipment, any fault stops the entire packaging flow and UZINEX prioritizes these interventions.

• Financing through credit and leasing: financing solutions available for the purchase of the L-bar shrink sealing device KPW-FL450; the equipment qualifies for EU-funded projects as an investment in the automation of primary packaging.

• Complete range for shrink packaging. UZINEX offers complete solutions for shrink packaging: the L-bar shrink sealing device KPW-FL450 for small and medium products, the FL550 model for larger products, the BSE6040A tunnel for industrial shrinking capacity and the sleeve wrapping machines for long products, all available with integrated national service.

The L-bar shrink sealing device KPW-FL450 is the choice for operators packaging small and medium individual products in POF, PVC or PE shrink film: automatic L sealing and integrated shrinking in the same compact equipment, no compressed air, with film up to 450 mm and full digital control of all working parameters.
