The KPW-TP1650F pallet wrapping machine uses LLDPE stretch film with pre-stretch up to 250% for packaging…
| Pallet width | 1,650 mm |
| Film | LLDPE stretch film |
| Film pre-stretch | Adjustable, up to 250% |
| Control | PLC, automatic detection of goods height |
| Turntable speed | 0–12 rpm, adjustable through frequency conversion |
| Turntable motor power | 0.75 kW |
| Film carriage lifting motor power | 0.55 kW |
| Chassis steel plate thickness | 10 mm |
| Chassis chain | 12A |
| Lifting chain | 10A, double-chain structure |
| Column box | 1.5 mm wall, 6 mm top and bottom plates, 6 mm inner corner reinforcement plate |
| Surface protection | Electrostatic powder coating |

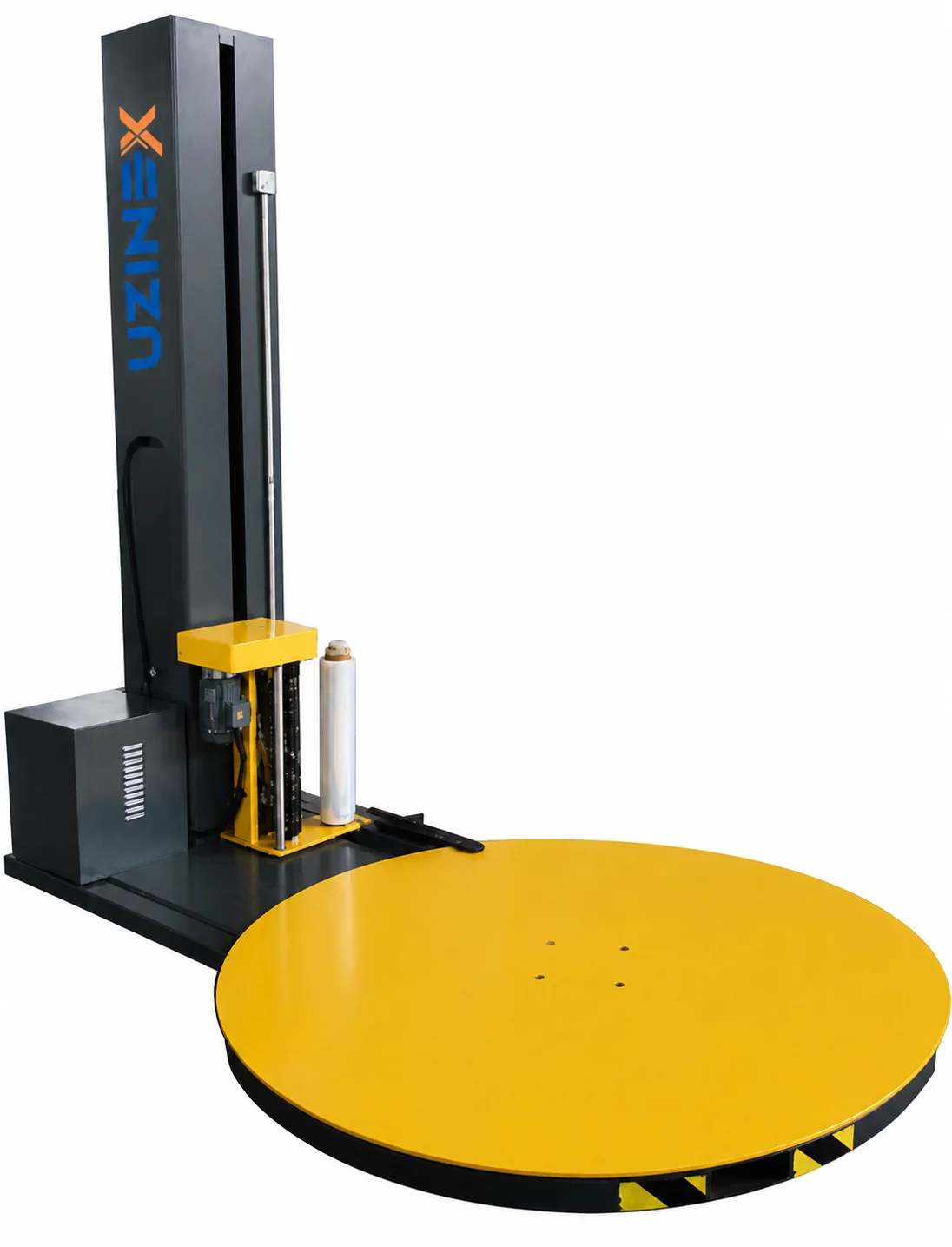

KPW-TP1650F Pallet Wrapping Machine with LLDPE Stretch Film | PLC Control and 250% Pre-stretch
The KPW-TP1650F pallet wrapping machine is the professional equipment for automatically packaging palletized goods with LLDPE stretch film, designed for production lines and warehouses with high shipping volume. The PLC control system, automatic detection of goods height and the film pre-stretch mechanism of up to 250% ensure a precise, efficient packaging cycle with minimal film consumption.
Widely used in the glass, hardware, electronics, paper manufacturing, ceramics, chemicals, food, beverages and construction materials industries, the KPW-TP1650F pallet wrapping machine improves logistics efficiency and reduces transport losses through complete protection against dust, moisture and shifting of goods.
Key Advantages
• PLC control with separate programming: individual setting of the number of layers and of the top and bottom wraps
• Automatic detection of goods height: photoelectric switch on the film carriage, no manual adjustment
• Film pre-stretch up to 250%: reduced film consumption per pallet, significantly lower packaging cost
“The KPW-TP1650F pallet wrapping machine is professional equipment for the automatic wrapping of palletised goods with LLDPE stretch film.”
• Automatic turntable reset: precise positioning through chain drive, convenient for loading and unloading
• Automatic film break and film-out alarm: settable directly from the operating screen, no unplanned stops
• One-key factory settings restore: quick reset of parameters after incorrect adjustments
• Robust structure: 10mm steel chassis, double 10A chain, anti-rust treatment by powder coating
• Forklift slot at the base of the turntable: direct compatibility with manual and electric forklifts
Detailed Technical Features
Control System
• PLC control with separate programming: setting of the number of packaging layers
• Photoelectric switch for automatic detection of goods height
• Top layer, bottom layer and number of alternating wraps: individually settable
Unitised pallet wrapping before dispatch.
Fast flows with strict hygiene and traceability requirements.
Continuous packing line with constant volume.
• Film break and film-out alarm: configurable from the operating screen
• Fault detection function with a dedicated monitoring interface
• One-key factory settings restore

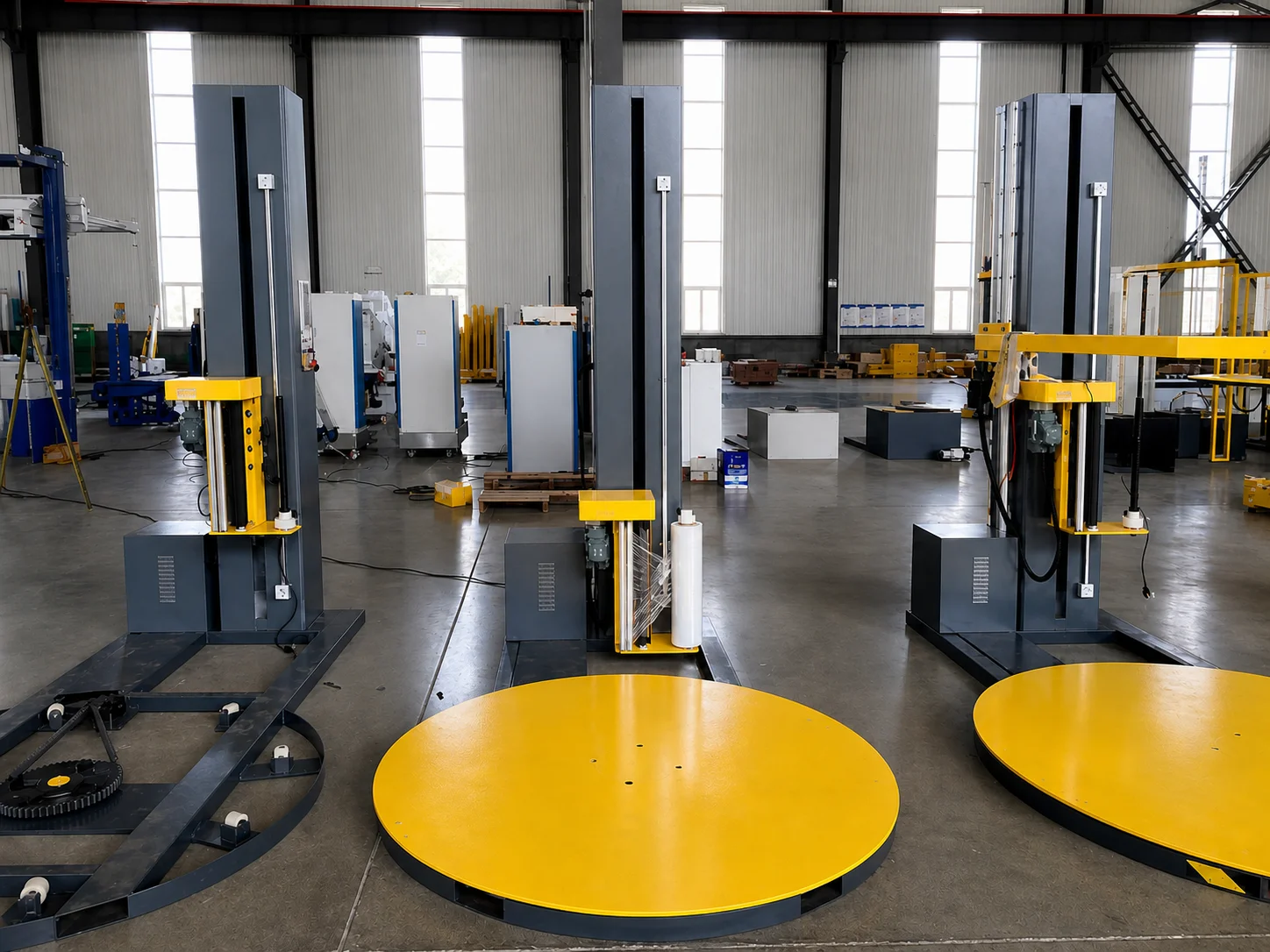

Turntable Unit
• Speed adjustable through frequency conversion: 0–12 rpm
• Turntable motor power: 0,75 kW
• Chain-drive actuation: precise positioning
• Automatic position reset at the end of the cycle
• Forklift slot at the base of the turntable
• Chassis steel plate thickness: 10 mm
• Chassis chain: 12A
Film Transport System
• AC motor pre-stretch mechanism with adjustment through frequency conversion
• Adjustable film pre-stretch up to 250%
• Double 10A chain structure: stable and reliable
• Film carriage lifting motor power: 0,55 kW
• Film lifting, lowering and feeding speeds: adjustable through frequency conversion
• Top and bottom packaging layer count: controlled separately
• Photoelectric switch on the film carriage for automatic detection of goods height
Column Structure
• Double-chain structure: stable and reliable
• 10A lifting chain with long service life and high wear resistance
• Accessible maintenance module
• Column box: 1,5 mm wall, 6 mm top and bottom plates, 6 mm inner corner reinforcement plate
Surface Treatment
• Electrostatic powder coating on the entire structure: resistant to abrasion and rust
| Parameter | Value |
|---|---|
| Model | KPW-TP1650F |
| Pallet width | 1,650 mm |
| Film | LLDPE stretch film |
| Film pre-stretch | Adjustable, up to 250% |
| Control | PLC, automatic detection of goods height |
| Turntable speed | 0–12 rpm, adjustable through frequency conversion |
| Turntable motor power | 0.75 kW |
| Film carriage lifting motor power | 0.55 kW |
| Chassis steel plate thickness | 10 mm |
| Chassis chain | 12A |
| Lifting chain | 10A, double-chain structure |
| Column box | 1.5 mm wall, 6 mm top and bottom plates, 6 mm inner corner reinforcement plate |
| Surface protection | Electrostatic powder coating |
Industries and Applications
The KPW-TP1650F pallet wrapping machine is commonly used in logistics and distribution, the food and beverage industry, the manufacture of glass and ceramic products, hardware and electronics production, the chemical and pharmaceutical industry, paper manufacturing and construction materials.
Wherever goods are shipped on pallets in constant volume, this machine eliminates manual film wrapping, standardizes packaging quality and significantly reduces the cost per pallet thanks to the pre-stretch system of up to 250%.
