The KPW-Z4510 robotic wrapping machine is the self-propelled solution for wrapping large, heavy pallets with stretch f…
| Description | Parameter |
| Model | KPW-Z4510 |
| Minimum package size | 600 × 600 mm |
| Control system | PLC |
| Maximum wrapping height | 2.100 mm / 2.400 mm |
| Maximum load | Minimum 100 kg |
| Rotation speed | 60 m/min |
| Machine weight | 350 kg |
| Machine power | 0,18 kW |
| Machine voltage | 220V / 110V, 50Hz / 60Hz, single-phase |
| Suitable film | LLDPE, thickness 20–35 microns, width 500 mm |

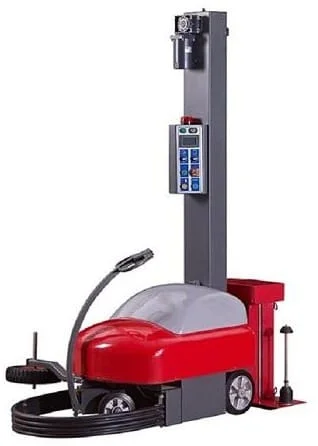

KPW-Z4510 Robotic Wrapping Machine | Self-Propelled, PLC Control, Compatible with Any Type of Pallet
The KPW-Z4510 robotic wrapping machine is the mobile LLDPE stretch-film wrapping solution for warehouses, production halls and construction sites where placement flexibility is essential. Unlike fixed turntable machines, the KPW-Z4510 self-propelled wrapping machine moves around the pallet, eliminating the need for any fixed ground infrastructure and allowing immediate use in any location.
With a PLC control system, automatic detection of pallet height through a dedicated sensor and an internal battery as a power source, the KPW-Z4510 robotic wrapping machine offers complete autonomy, low noise and a fully automated wrapping cycle, for pallets of any shape, weight and size.
Key Advantages
• Self-propelled: no fixed platform, moves around the pallet, requires no ground installation, ramp or special foundation
• Total mobility: can be moved at any time within the warehouse, hall or construction site and starts immediately
• Internal battery as a power source: high power, low noise, no power cable during operation
“With a PLC control system, automatic detection of pallet height through a dedicated sensor and an internal battery as the power source.”
• PLC control with LCD display: all parameters adjustable directly from the operating panel, easy to use
• Automatic detection of pallet height: dedicated sensor, no manual adjustment between different pallets
• Multiple wrapping methods: alternating up-down movement, simple up or down, fixed central reinforcement; manually selectable
• Rapid film loading mechanism: quick roll change, high efficiency in continuous production
• Compatible with any type of pallet: any shape, weight and size, minimum object size 600×600 mm
Minimum package 600 × 600 mm
Unitised pallet wrapping before dispatch.
Fast flows with strict hygiene and traceability requirements.
• External charging plug: quick and easy docking without accessing the inside of the machine
Parameters Adjustable from the Operating Panel
• Number of top, bottom and alternating wrapping turns
• Film frame raising and lowering speed
• Machine travel speed
• Film output tension (adjusted from the die frame)
• Emergency stop switch and pause switch
• Warning light at the lower limit during operation
Technical Specifications: KPW-Z4510 Robotic Wrapping Machine
| Description | Parameter |
|---|---|
| Model | KPW-Z4510 |
| Minimum package size | 600 × 600 mm |
| Control system | PLC |
| Maximum wrapping height | 2.100 mm / 2.400 mm |
| Maximum load | Minimum 100 kg |
| Rotation speed | 60 m/min |
| Machine weight | 350 kg |
| Machine power | 0,18 kW |
| Machine voltage | 220V / 110V, 50Hz / 60Hz, single-phase |
| Suitable film | LLDPE, thickness 20–35 microns, width 500 mm |
When Is the Robotic Wrapping Machine the Right Choice?
The KPW-Z4510 robotic wrapping machine is the ideal choice when the workspace changes frequently, when wrapping is done at multiple points in the warehouse or hall, or when installing a fixed turntable machine is not feasible for structural or logistical reasons.
It is used successfully in logistics and distribution, the food industry, construction materials production, hardware, electronics, chemicals and any sector that ships palletized goods in variable locations or without dedicated fixed infrastructure.
