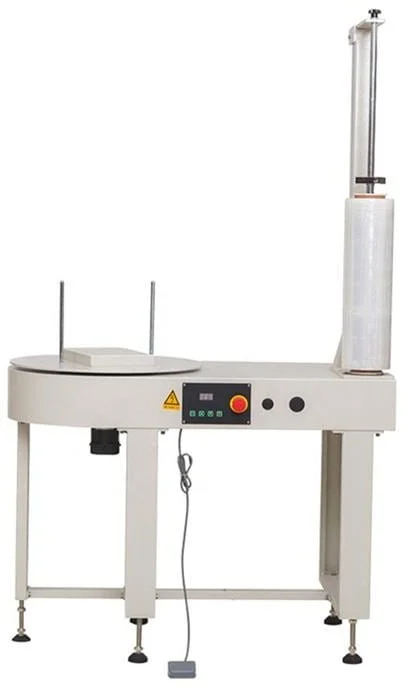

The KPW-M800 semi-automatic stretch film wrapping machine: compact, 220V single-phase, 250% pre-stretch, PLC touc…
| Maximum package size (L × W × H) | 900 × 900 × 900 mm |
| Maximum platform load | 80 kg |
| Turntable speed | 30 r/min |
| Machine footprint (L × W × H) | 1.150 × 600 × 2.347 mm |
| Installed power | 0,12 kW |
| Electrical supply | 220V, 50/60Hz, single-phase |
| Compatible film type | LLDPE (Linear Low-Density Polyethylene) |
| Film thickness | 17–35 microns |
| Compatible film width | 100–900 mm |
| Film roll inner diameter | 76,2 mm |
| Maximum film roll outer diameter | 300 mm |
| Film pre-stretch | Up to 250% (motorized system, electronic adjustment) |
| Control | PLC + touch-screen display |
| Load height detection | Automatic photoelectric sensor |
The KPW-M800 semi-automatic stretch film wrapping machine is the technical solution for operators who need professional pallet wrapping without the investment and floor space demanded by large-scale industrial machinery. With a footprint of just 1.150 × 600 × 2.347 mm and single-phase 220V power, the KPW-M800 semi-automatic stretch film wrapping machine becomes operational immediately after delivery, with no changes to the existing electrical installation.
The KPW-M800 combines PLC control with a touch-screen panel, automatic load height detection via a photoelectric sensor and a motorized pre-stretch system for LLDPE film up to 250%. The concrete result: stable, well-protected pallets, with significantly lower film consumption per cycle than models without motorized pre-stretch.
Key Advantages of the KPW-M800 Semi-Automatic Stretch Film Wrapping Machine
• Immediate installation, no special infrastructure: the KPW-M800 semi-automatic stretch film wrapping machine runs on single-phase 220V, with no three-phase extension works or trenches for industrial cabling.
• 250% film pre-stretch with a motorized system: electronic frequency adjustment of the wrapping tension; LLDPE film consumption per pallet drops significantly compared to mechanical pre-stretch systems or manual application.
• Touch-screen panel with integrated PLC: set the number of wraps at the base and at the top, the film carriage speed, the wrapping tension, save favorite cycles and run error diagnostics directly from the screen with no auxiliary tools.
• Automatic load height detection: the integrated photoelectric sensor makes the KPW-M800 semi-automatic stretch film wrapping machine a unit that adapts automatically to pallets of different sizes, with no manual adjustment between cycles.
• Turntable at 30 r/min: uniform speed, stable and repeatable wrapping for every cycle, regardless of the shape or load distribution on the pallet.
• Broad compatibility with LLDPE films: accepts films with a thickness of 17–35 microns and a width of 100–900 mm, including high-performance films with high extensibility available on the Romanian market.
• Energy consumption of 0,12 kW: the most economical model in the semi-automatic turntable machine range; the impact on the electricity bill is negligible relative to the benefits brought to the wrapping process.
• Robust construction for daily use: corrosion-resistant powder-coated body, double-chain transmission and a heavy-duty chassis sized for repeated cycles in an active warehouse regime.
Technical Specifications: KPW-M800 Semi-Automatic Stretch Film Wrapping Machine
“Wherever pallets weigh under 80 kg and have compact dimensions, the KPW-M800 offers an efficiency-to-cost ratio that is hard to match.”
| Parameter | Value |
|---|---|
| Model | KPW-M800 |
| Maximum package size (L × W × H) | 900 × 900 × 900 mm |
| Maximum platform load | 80 kg |
| Turntable speed | 30 r/min |
| Machine footprint (L × W × H) | 1.150 × 600 × 2.347 mm |
| Installed power | 0,12 kW |
| Electrical supply | 220V, 50/60Hz, single-phase |
| Compatible film type | LLDPE (Linear Low-Density Polyethylene) |
| Film thickness | 17–35 microns |
| Compatible film width | 100–900 mm |
| Film roll inner diameter | 76,2 mm |
| Maximum film roll outer diameter | 300 mm |
| Film pre-stretch | Up to 250% (motorized system, electronic adjustment) |
| Control | PLC + touch-screen display |
| Load height detection | Automatic photoelectric sensor |
Applications and Industries: Where the KPW-M800 Pallet Wrapping Machine Excels
The KPW-M800 semi-automatic stretch film wrapping machine is designed for small logistics warehouses, production workshops with moderate pallet flow and facilities where the available space or electrical infrastructure does not allow the installation of large-scale industrial equipment. With a maximum load of 80 kg and a maximum package size of 900 × 900 × 900 mm, the KPW-M800 efficiently covers boxes, plastic containers, consolidated parcels and shipping pallets for e-commerce.
The sectors that benefit directly from this semi-automatic stretch film wrapping machine include: regional distribution and logistics, online retail with medium shipping volumes, the chemical and cosmetic products industry, electronics and components, decorative ceramics, the dry food industry and small FMCG producers. Wherever pallets weigh under 80 kg and have compact dimensions, the KPW-M800 offers an efficiency-to-cost ratio that is hard to match.
Small factories and warehouses with one or two operators find in this semi-automatic stretch film wrapping machine an ideal partial-automation solution that eliminates the fatigue of manual wrapping and standardizes the quality of every delivered pallet, reducing complaints caused by goods damaged in transit.
Materials Compatible with the KPW-M800 Machine
The primary compatible material is LLDPE film (Linear Low-Density Polyethylene), the industry standard for pallet wrapping with semi-automatic turntable machines. LLDPE combines high extensibility, puncture resistance and good inter-layer adhesion, ensuring effective protection of goods against mechanical shocks and moisture throughout transport or storage.
The accepted thickness range (17–35 microns) and the wide compatible width (100–900 mm) allow the use of most standard LLDPE films available on the Romanian market, with no dependence on a particular consumables supplier. The 76,2 mm roll inner diameter corresponds to the most widespread industrial format, simplifying routine resupply.
How the KPW-M800 Semi-Automatic Stretch Film Wrapping Machine Works
The wrapping cycle of the KPW-M800 semi-automatic stretch film wrapping machine is simple, repeatable and can be quickly learned by any operator, regardless of prior technical experience:
• Pallet positioning: the operator places the loaded pallet on the turntable of the semi-automatic stretch film wrapping machine, centered on the axis of rotation, within the accepted maximum dimensions.
The KPW-M800 semi-automatic stretch film wrapping machine is designed for small logistics warehouses.
The sectors that benefit directly from this semi-automatic stretch film wrapping machine include: distribution and.
Small factories and warehouses with one or two operators find in this semi-automatic stretch film wrapping machine a.
• Program selection. Using the touch-screen, the operator selects a saved cycle or manually enters the parameters: number of wraps at the base, number of wraps at the top, film tension and carriage speed.
• Film attachment: the operator attaches the end of the LLDPE film roll to the corner of the pallet and starts the automatic cycle from the panel.
• Automatic height detection: the photoelectric sensor scans the load height in real time; the film carriage travels exactly the required distance, with no material overconsumption and no operator intervention.
• Uniform wrapping: the turntable rotates at 30 r/min while the carriage moves up and down according to the program; the semi-automatic stretch film wrapping machine applies constant tension through the motorized 250% pre-stretch system, guaranteeing a tight and uniform wrap over the entire height of the pallet.
• Cycle completion: when the program ends, the machine stops automatically; the operator manually cuts and seals the film end, preparing the pallet for transport or storage.
Frequently Asked Questions about the Semi-Automatic Stretch Film Wrapping Machine
What concrete advantage does 250% motorized pre-stretch offer?
The motorized pre-stretch system of the KPW-M800 semi-automatic stretch film wrapping machine means that from 1 meter of film, 3,5 meters of material are applied to the pallet. At the optimal stretch level, LLDPE reaches its maximum mechanical strength, resulting in a more resistant and more economical wrap than mechanical pre-stretch systems or manual wrapping.
Is a three-phase electrical installation required for the KPW-M800?
No. The KPW-M800 semi-automatic stretch film wrapping machine runs on single-phase 220V, 50/60Hz, with a consumption of just 0,12 kW. It connects to any standard industrial outlet in the warehouse, with no changes to the electrical panel and no additional permits, a decisive advantage over three-phase models.
What maximum dimensions can the KPW-M800 semi-automatic machine wrap?
The KPW-M800 semi-automatic stretch film wrapping machine accepts packages with maximum dimensions of 900 × 900 × 900 mm and a weight of up to 80 kg. These characteristics cover small pallets, consolidated boxes, plastic containers and grouped parcels intended for light industrial wrapping or regional distribution.
Can the KPW-M800 machine be operated without prior technical training?
Yes. The touch-screen interface of the KPW-M800 semi-automatic stretch film wrapping machine is designed for intuitive operation. The UZINEX team performs commissioning and basic operator training at the customer's premises, included at no additional cost in the standard delivery package.
What LLDPE film is recommended for the KPW-M800?
The KPW-M800 semi-automatic stretch film wrapping machine is optimized for 17–25 micron LLDPE film with a width of 500 mm, the most common industrial format on the Romanian market. Films up to 35 microns thick and widths between 100–900 mm are also accepted, offering complete freedom in choosing the consumables supplier.
Why Choose UZINEX for the KPW-M800 Semi-Automatic Stretch Film Wrapping Machine?
UZINEX delivers the KPW-M800 semi-automatic stretch film wrapping machine with a complete after-sales service package. Every unit comes with a 60-month warranty, spare parts in stock and nationwide technical support available within 24–48 hours, with no waiting times for importing components.
• Delivery and commissioning included: free delivery throughout Romania, installation and operator training at the customer's premises, with no hidden costs or additional fees.
• 60-month warranty: one of the most extensive commercial coverages for packaging equipment available in Romania; the KPW-M800 semi-automatic stretch film wrapping machine is fully covered against manufacturing defects for the entire warranty period.
• Spare parts permanently in stock: wear components (transmission rollers, photoelectric sensors, PLC modules) are immediately available, eliminating unplanned stoppages of the wrapping line.
• Specialized nationwide technical support: engineers experienced with industrial packaging equipment, available by phone and on site through the UZINEX service network across Romania.
• Credit and leasing financing: accessible financing options for purchasing the semi-automatic stretch film wrapping machine, with installments tailored to the size and cash flow of your business.
• Complete portfolio of packaging equipment: if your business needs evolve, the UZINEX range includes scalable solutions from compact machines to high-capacity automatic lines.
The KPW-M800 semi-automatic stretch film wrapping machine represents the ideal balance point between the efficiency of industrial wrapping and the accessibility of a compact unit, the solution validated daily by operators in logistics, distribution and light manufacturing who need reliability without operating complexity.
