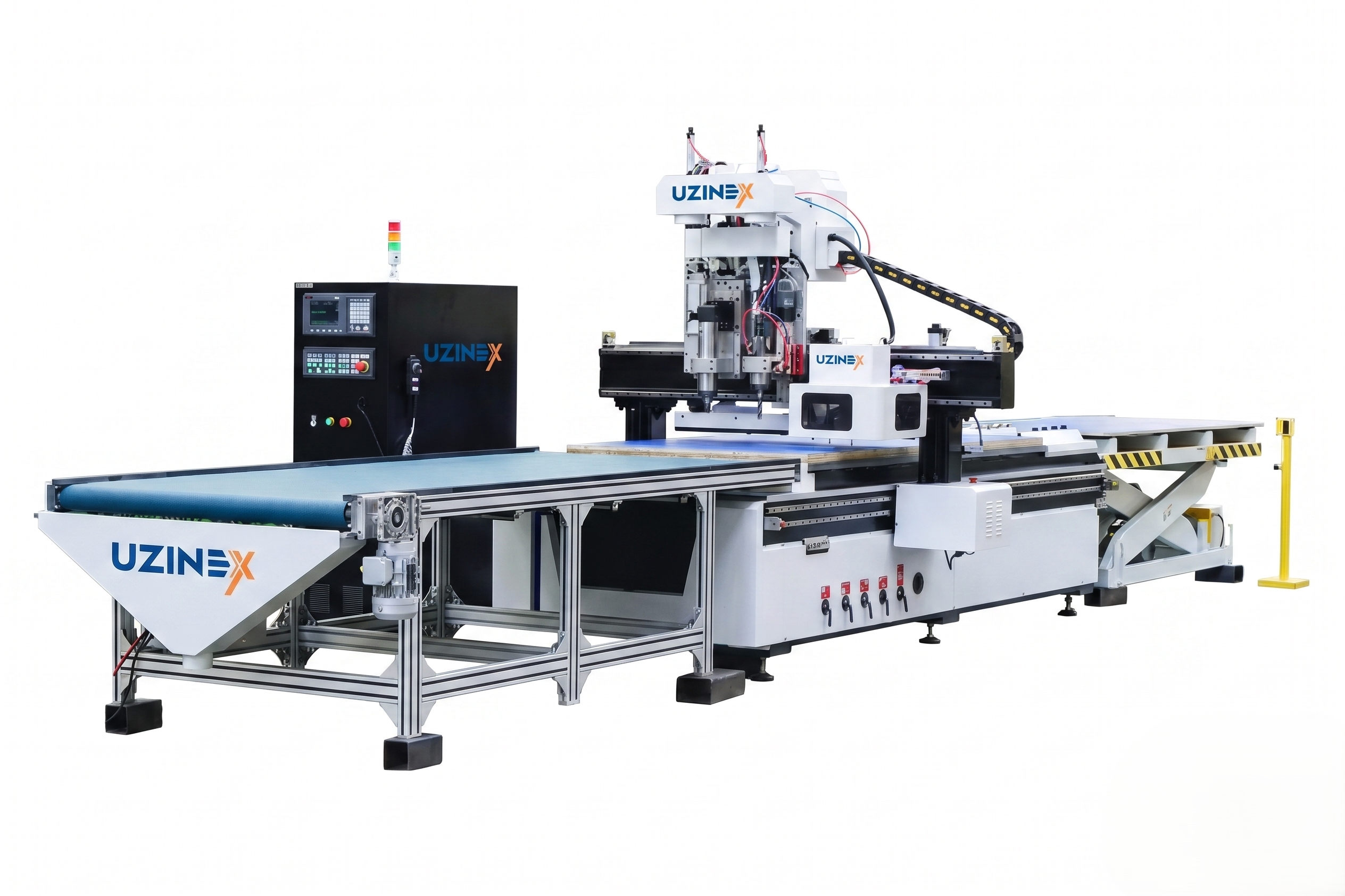

CNC router equipped with an automatic feeding system, ideal for mass production of furniture.
| X, Y travel | 1.300 × 2.500 mm |
| Z travel | 200 mm |
| Main spindle | ATC 9 kW, air cooling, ISO30, ER32 |
| Inverter | Delta 11 kW |
| Drilling bank | Italy 9+3+1 vertical drills |
| ATC magazine | Carousel (~6 second change) |
| Collet holder | ISO30, ER32: φ4, φ6, 1/8, 1/2 |
| Control system | Syntec Taiwan |
| Drive system | 4 × Yaskawa 850 W AC Servo, Japan |
| Gearbox | Shimpo Japan |
| Machine structure | Robust body with hardening treatment |
| Work table | Vacuum |
| Positioning cylinders | 5 pcs (X2, Y3) |
| Linear guide | Taiwan 25 mm |
| Pneumatic clamps | Wood door pressing plate, no vacuum pump |
| X, Y drive | Helical rack-and-pinion Taiwan / Germany |
| Z drive | TBI Taiwan ball screw |
| Lubrication | Automatic 1,5 L |
| Tool calibration | Automatic (integrated sensor) |
| Cables | Igus Germany, CE + cUL |
| Labeling | Automatic labeling system |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire |
| Command language | G Code & M Code |
| Traverse speed | 80 m/min |
| Working speed | 0–25 m/min |
| Repositioning accuracy | ±0,03 mm |
| System resolution | ±0,0025 mm |
| Air pressure | 0,6 MPa |
| Supply voltage | 220 V / 380 V, 3PH, 50/60 Hz |
The auto-feeding CNC furniture router is the machining center for industrial production of furniture made from particleboard and MDF: it combines CNC milling and cutting, drilling with a vertical Italian drilling bank (9+3+1 drills), automatic tool change with a 9 kW ATC carousel and automatic labeling of machined panels in a single machine. Automatic panel feeding removes the loading/unloading operator and enables continuous-flow operation, increasing production capacity without increasing the workforce.
The auto-feeding CNC furniture router is equipped with a 9 kW ATC ISO30 ER32 spindle, a Delta 11 kW inverter, 4 sets of Yaskawa 850 W servo motors, a Shimpo Japan gearbox, a Syntec Taiwan controller, Taiwan 25 mm linear guides, helical rack-and-pinion drive (Taiwan/Germany) on the X and Y axes, and a TBI Taiwan ball screw on the Z axis. A traverse speed of 80 m/min and a repositioning accuracy of ±0,03 mm place it on a par with high-volume machining centers for custom and series furniture production. Technical specifications: auto-feeding CNC furniture router
| Parameter | Standard | Options |
|---|---|---|
| X, Y travel | 1.300 × 2.500 mm | 1.500×3.000 / 2.100×3.000 / 2.100×4.000 mm |
| Z travel | 200 mm | - |
| Main spindle | ATC 9 kW, air cooling, ISO30, ER32 | ATC 9 kW (HSK F63), 12 kW (ISO30/HSK F63) |
| Inverter | Delta 11 kW | - |
| Drilling bank | Italy 9+3+1 vertical drills | - |
| ATC magazine | Carousel (~6 second change) | Linear ATC |
| Collet holder | ISO30, ER32: φ4, φ6, 1/8, 1/2 | - |
| Control system | Syntec Taiwan | - |
| Drive system | 4 × Yaskawa 850 W AC Servo, Japan | Syntec Servo 1 kW Taiwan |
| Gearbox | Shimpo Japan | - |
| Machine structure | Robust body with hardening treatment | - |
| Work table | Vacuum | Becker Germany pump, Tongyou, ring blower |
| Positioning cylinders | 5 pcs (X2, Y3) | - |
| Linear guide | Taiwan 25 mm | - |
| Pneumatic clamps | Wood door pressing plate, no vacuum pump | - |
| X, Y drive | Helical rack-and-pinion Taiwan / Germany | - |
| Z drive | TBI Taiwan ball screw | - |
| Lubrication | Automatic 1,5 L | - |
| Tool calibration | Automatic (integrated sensor) | - |
| Cables | Igus Germany, CE + cUL | - |
| Labeling | Automatic labeling system | - |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire | - |
| Command language | G Code & M Code | - |
| Traverse speed | 80 m/min | - |
| Working speed | 0–25 m/min | - |
| Repositioning accuracy | ±0,03 mm | - |
| System resolution | ±0,0025 mm | - |
| Air pressure | 0,6 MPa | - |
| Supply voltage | 220 V / 380 V, 3PH, 50/60 Hz | - |
[embed]https://vimeo.com/1026833584[/embed]
The auto-feeding CNC furniture router is configured at quotation stage: travel, ATC magazine type and vacuum pump matched to the volume and type of your production. Free technical consultancy available. Advantages of the auto-feeding CNC furniture router
• Automatic panel feeding: continuous production without a loading operator. The auto-feeding CNC furniture router picks panels from the stack, positions them on the work table, machines them and discharges them automatically without continuous operator intervention. This feeding automation is the main differentiator versus conventional CNC routers and enables continuous-flow operation throughout the production shift, with a single supervising operator instead of two operators dedicated to loading and unloading.
• Italian 9+3+1 drilling bank: drilling integrated in the same cycle as milling. The auto-feeding CNC furniture router has a vertical Italian drilling bank with 9+3+1 drills built into the machine structure. In the same machining cycle, the router mills, cuts the panel profile and drills the positions for confirmat screws, dowels and hinges, without transferring the panel to a separate drilling machine. This integration removes a workstation from the production flow and reduces positioning errors between holes and profiles.

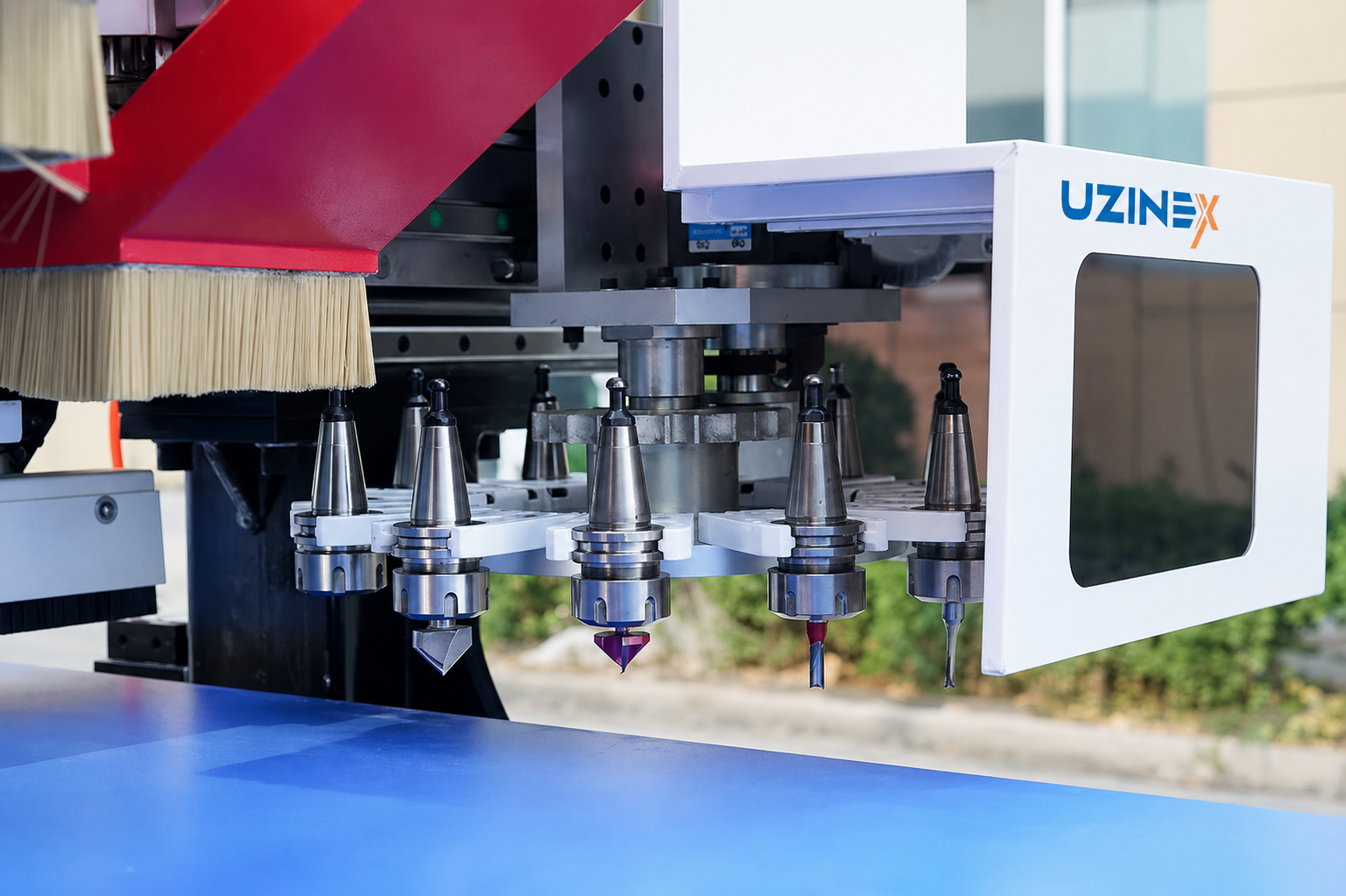

• ATC carousel 9kW, ~6 second change: multiple operations without pauses. The ATC carousel magazine of the auto-feeding CNC furniture router automatically changes the active tool in about 6 seconds, allowing rapid switching between milling, large-diameter drilling (35 mm hinges), grooving and other operations on the same panel without stopping the cycle. The 9 kW ATC ISO30 ER32 spindle delivers the power needed for aggressive milling of 18 mm particleboard and 22 mm MDF in series production.
• 4 sets of Yaskawa 850W + Syntec Taiwan: industrial-precision kinematics. The auto-feeding CNC furniture router uses 4 sets of Yaskawa 850 W servo motors with a Shimpo Japan gearbox and the Syntec Taiwan controller, the reference configuration for high-volume CNC furniture machining centers. Yaskawa and Shimpo are the components that determine the ±0,03 mm repositioning accuracy and ±0,0025 mm resolution maintained consistently throughout the service life of the auto-feeding CNC furniture router.
“At a production of 200–400 panels per day, the difference in travel speed translates into additional production hours per shift.”
• Traverse speed 80 m/min, the fastest in its class. The auto-feeding CNC furniture router reaches a head traverse speed of 80 m/min, significantly higher than conventional 60 m/min routers, reducing transit times between operations and increasing the number of panels machined per hour. At a production rate of 200–400 panels per day, the difference in traverse speed translates into additional production hours per shift.
• Automatic labeling system: full production traceability. The auto-feeding CNC furniture router includes an automatic labeling system that applies an identification label to every machined panel immediately after processing. The label contains the order information, panel type and position within the furniture body structure, enabling automatic sorting at packaging and eliminating assembly errors at the end customer. Automatic labeling is a standard requirement in flat-pack furniture production for high-volume retailers and distributors.
• Adjustable pneumatic clamps without a vacuum pump: secure clamping with no additional energy consumption. The auto-feeding CNC furniture router has pneumatic clamps with a specialized pressing plate for wooden doors and panels that secure the workpiece on the work table without needing to start the vacuum pump for each piece. This solution saves energy and reduces clamping times, while the vacuum table remains available as an additional option for small or irregularly shaped panels.
• Automatic 1,5L lubrication + automatic tool calibration: minimal maintenance, constant precision. The auto-feeding CNC furniture router has an automatic 1,5-liter lubrication system on all guides and racks, eliminating the need for daily manual lubrication. Automatic tool sensor calibration detects the exact length of each tool after mounting and automatically updates the machining parameters, eliminating depth errors when changing tools in continuous production.
• 60-month UZINEX warranty: Yaskawa and Syntec spare parts in stock in Iași, 24–48 hour national technical support, transport, installation and commissioning included.
Applications: auto-feeding CNC furniture router
Custom furniture factories with medium and high volumes (100–500 cabinets per day) are the primary users of the auto-feeding CNC furniture router. Production of kitchens, wardrobes, bedroom cabinets and bookcases requires machining a large number of different panels per day, each with profiles, holes and grooves specific to the ordered model. The auto-feeding CNC furniture router integrates all these operations into a continuous flow: no manual transfer, no separate drilling station, with automatic labeling for sorting at packaging.
Furniture manufacturers for retailers and distributors that have chosen the auto-feeding CNC furniture router, and furniture stores that deliver in flat-pack format, find in the auto-feeding CNC furniture router the complete solution for non-stop production flow. Automatic feeding allows scheduling the night shift without a loading operator, and automatic labeling ensures that every panel leaves the machine with the identification label required by the automated packaging line.
Custom machining workshops that invest in the auto-feeding CNC furniture router produce furniture pieces for interior designers and architects, benefiting from the extensive software compatibility of the auto-feeding CNC furniture router: Artcam, Alphcam, Type 3, Ucancam and Aspire allow design files to be imported directly into the auto-feeding CNC furniture router, without manually converting the plans into CNC programs. Workflow: auto-feeding CNC furniture router
Made-to-order furniture factories with medium and large volumes: 100–500 cabinets per day.
Furniture manufacturers for retailers and distributors that chose the CNC furniture router with feed.
220 V / 380 V, 3PH, 50/60 Hz
• The machining program is imported from CAD/CAM software (Artcam, Alphcam, Type 3 or Aspire) into the Syntec Taiwan controller of the auto-feeding CNC furniture router. The programs are saved directly in the controller's memory.
• The stack of cut-to-size panels is loaded onto the feeding system of the auto-feeding CNC furniture router: a single operator positions the stack initially.

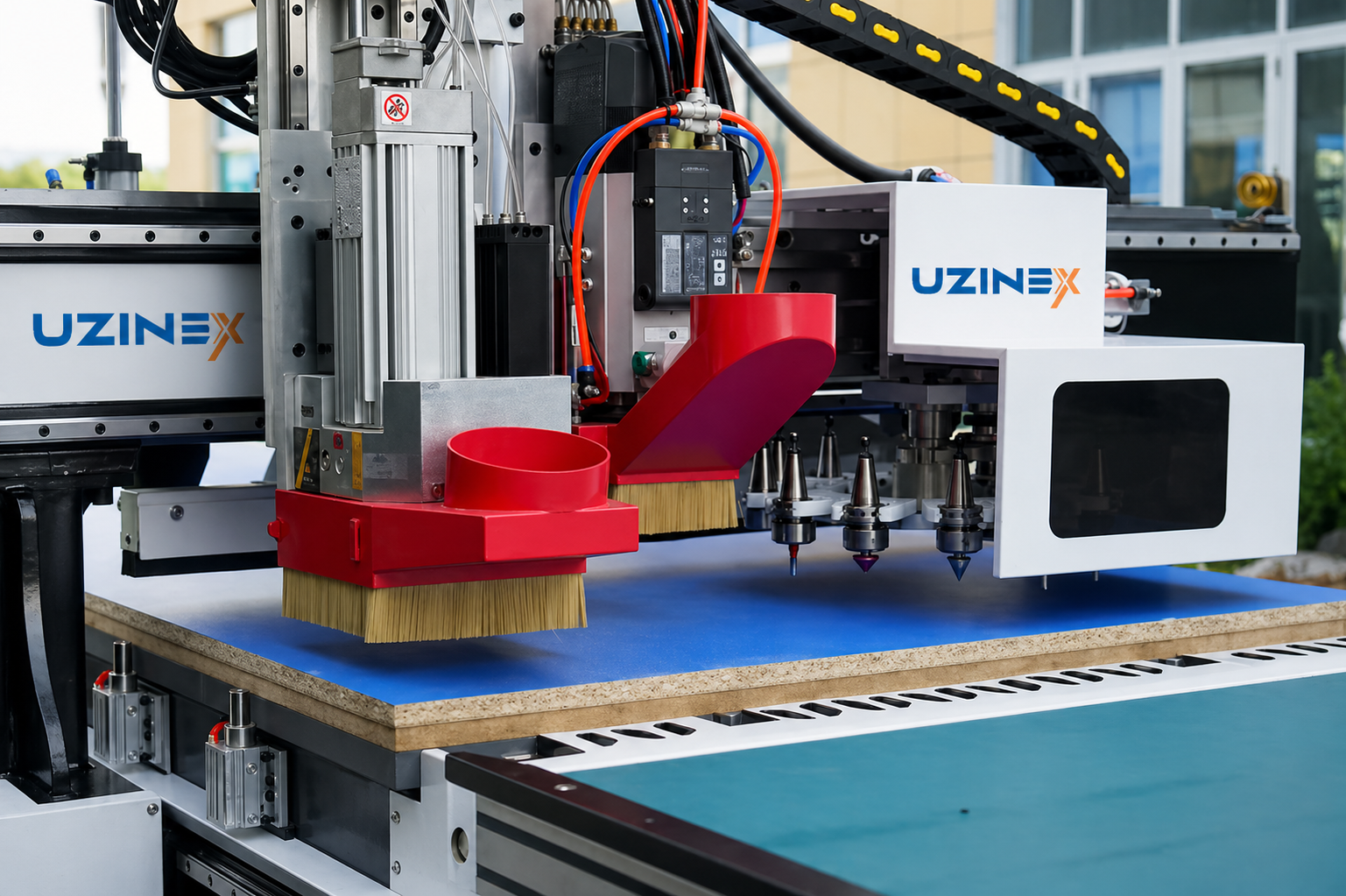

• The auto-feeding CNC furniture router automatically picks each panel, positions it on the vacuum work table using the 5 positioning cylinders (X2, Y3) and secures it with the pneumatic clamps.
• The ATC carousel selects the tools in the programmed order (profile milling, Italian-bank drilling (confirmat screws, dowels, hinges), grooves) in a continuous cycle with tool change in ~6 seconds.
• At the end of the cycle, the automatic labeling system applies the identification label to the panel.
• The machined and labeled panel is discharged automatically; the next panel is immediately picked up by the auto-feeding CNC furniture router.
Frequently asked questions about the auto-feeding CNC furniture router
What is the difference between the auto-feeding CNC furniture router and a conventional CNC router?
A conventional CNC router (without automatic feeding) requires an operator to manually load each panel onto the table, secure it, start the cycle and unload it after machining. The auto-feeding CNC furniture router fully automates loading and unloading: the operator loads the stack initially and supervises production, while the machine processes panels in a continuous flow. In addition, the integrated Italian drilling bank and the automatic labeling system add operations that on a conventional router require separate stations. Is the Italian 9+3+1 drilling bank sufficient for all types of holes in furniture production?
The 9+3+1 configuration of the Italian drilling bank covers the standard vertical holes for confirmat screws, dowels and shelf connectors, the basic operations in series furniture production. For large-diameter drilling (35 mm hinges) and other special operations, the auto-feeding CNC furniture router uses the 9 kW ATC spindle with the tools from the carousel magazine. The combination of the Italian bank + ATC carousel fully covers the drilling needs of a kitchen or bedroom furniture manufacturer. Is the automatic labeling system compatible with order-management software?
The automatic labeling system of the auto-feeding CNC furniture router generates labels based on the active machining program. Integration with order-management software (ERP, CAM with label output) is configured at commissioning by UZINEX engineers. The integration details are specified at quotation stage according to the software used in your factory. Is the auto-feeding CNC furniture router eligible for European funding?
Yes. UZINEX is a member of the Enterprise Europe Network and delivers equipment for EU-funded projects: PNRR digitalization, the Regional Program, the Just Transition Program. The auto-feeding CNC furniture router can be added directly to SEAP/SICAP. Leasing and credit options are available on the UZINEX credits and leasing page. Why UZINEX for the auto-feeding CNC furniture router
The auto-feeding CNC furniture router is the most complex single piece of equipment in a furniture production line: correct integration into the flow, ATC configuration and calibration of the drilling bank of the auto-feeding CNC furniture router directly determine long-term productivity.
• Production-flow assessment included: at quotation stage UZINEX analyzes the integration of the auto-feeding CNC furniture router into the existing line and configures the ATC magazine for the tools specific to your production.
• Initial programming included: the Syntec controller and the Italian bank are programmed for the panel types and operations in your catalog before delivery.
• Transport, installation and commissioning included: the auto-feeding CNC furniture router requires specialized installation and calibration of the automatic feeding system; UZINEX handles the entire process.
• 60-month warranty: extended coverage in continuous industrial production with automatic feeding.
• Yaskawa and Syntec spare parts in stock in Iași: servo motors, drives and critical components available immediately.
• 24–48 hour national technical support: technicians with national coverage and guaranteed response time.
• Eligible for European funding: complete technical documentation for PNRR, POR and other active programs, direct addition to SEAP/SICAP.
UZINEX auto-feeding CNC furniture router: 9 kW ATC ISO30 ER32 spindle, Delta 11 kW inverter, Italian 9+3+1 drilling bank, ATC carousel ~6s, 4 × Yaskawa 850 W, Syntec Taiwan, Taiwan 25 mm guides, 80 m/min speed, ±0,03 mm, automatic labeling, automatic lubrication, automatic tool calibration, Igus CE+cUL cables, 1.300×2.500 mm travel (options up to 2.100×4.000 mm), 60-month warranty, transport, installation and commissioning included throughout Romania.
