Trailer twin-shaft shredder, Cummins 154 kW, 1200 × 1500 mm opening, 680 × 1550 mm shaft, 160,000 N·m torque, 80–130 t/h C&D, 18 t.
| Type | twin-shaft shredder, trailer-mounted |
| Engine | Cummins QSB5.9, 154 kW (210 HP), Euro 3; optional Perkins 140 kW (190 HP), Euro V |
| Feed opening | 1200 × 1500 mm; hopper 1500 × 2800 mm |
| Cutting shafts | 680 × 1550 mm, 0–40 rpm |
| Cutters | Hardox 500 / NM500 |
| Torque | 160,000 N·m, through reducer |
| Conveyors | B800 × 9000 mm, 2800 mm discharge |
| Magnetic separator | B650 × 2000 mm |
| Capacity | C&D 80–130 t/h; wood 15–20 t/h; municipal 15–25 t/h |
| Weight | 18,000 kg |
| Dimensions | 8.7 × 2.2 × 3.6 m working |

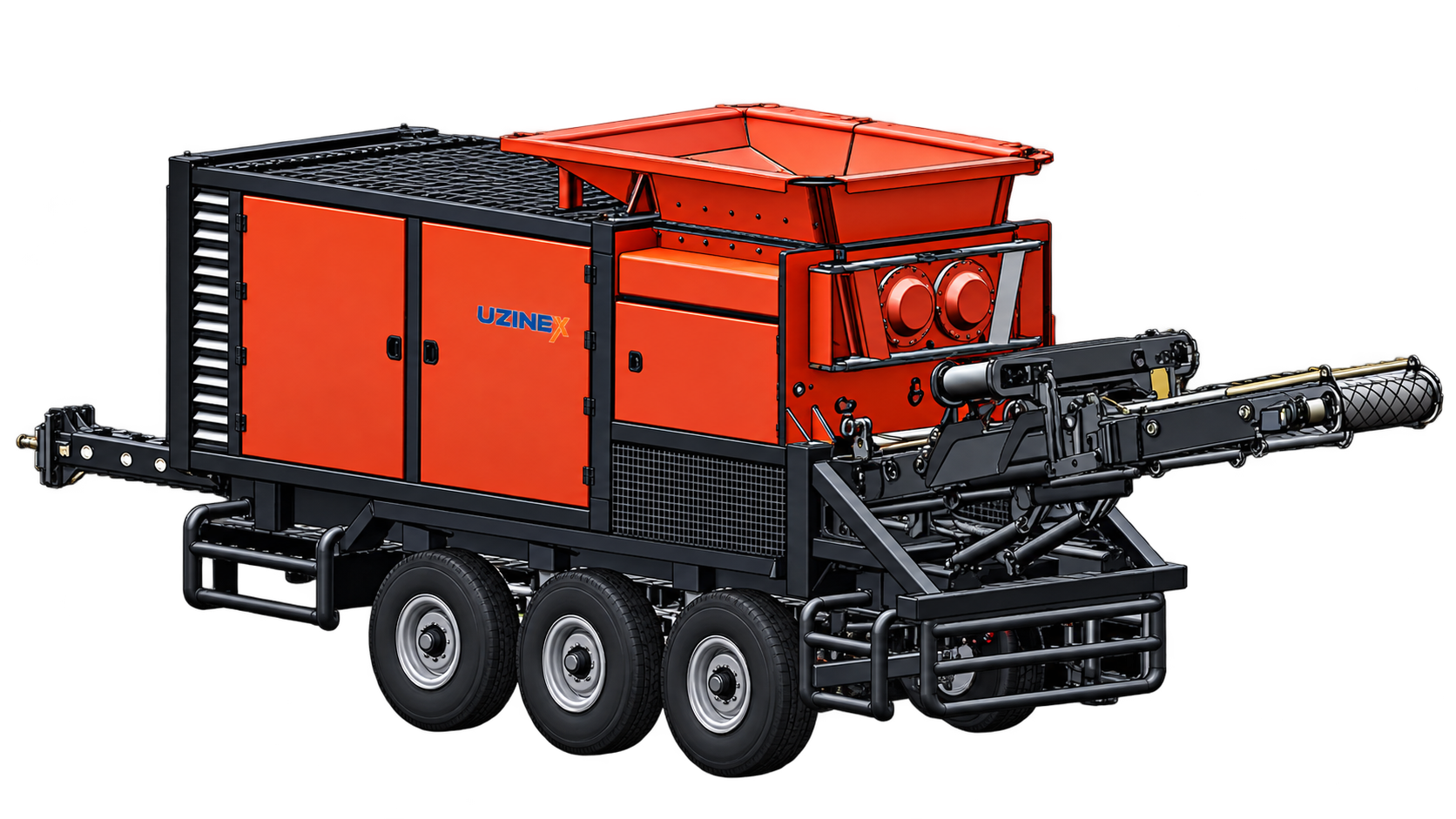

The UZX-UTS-250 is a mobile twin-shaft shredder on a trailer, with the same capacity as the tracked UZX-UMS-250. It is towed between yards and sites, so one shredder serves several work locations.
The 680 × 1550 mm shaft with Hardox 500 / NM500 cutters receives 160,000 N·m through the reducer and turns at 0–40 rpm. It makes 80–130 t/h on construction waste, 15–20 t/h on wood and 15–25 t/h on municipal waste. The engine is a 154 kW Cummins QSB5.9, Euro 3, or a 140 kW Perkins, Euro V.
| Parameter | Value |
|---|---|
| Type | twin-shaft shredder, trailer-mounted |
| Engine | Cummins QSB5.9, 154 kW (210 HP), Euro 3; optional Perkins 140 kW (190 HP), Euro V |
| Feed opening | 1200 × 1500 mm; hopper 1500 × 2800 mm |
| Cutting shafts | 680 × 1550 mm, 0–40 rpm |
| Cutters | Hardox 500 / NM500 |
| Torque | 160,000 N·m, through reducer |
| Conveyors | B800 × 9000 mm, 2800 mm discharge |
| Magnetic separator | B650 × 2000 mm |
| Capacity | C&D 80–130 t/h; wood 15–20 t/h; municipal 15–25 t/h |
| Weight | 18,000 kg |
| Dimensions | 8.7 × 2.2 × 3.6 m working |
The shredder has two parallel shafts with cutters that turn slowly towards each other with high torque. Material is gripped between the cutters, torn and sheared rather than struck, so the shredder copes with pieces containing metal while energy use stays low. When a block does not pass, the shafts reverse and take another bite. The shredded material drops onto the belt, and the overhead magnet removes the steel.
The same cutting as the tracked shredder, but on a trailer, for several yards.
Two engine options, Euro 3 or Euro V, to suit local rules.
The B650 magnet removes steel from the shredded material.
It is used for shredding demolition waste and rubble, timber, pallets and green waste, and municipal and bulky waste, by companies working across several recycling yards.
The first criterion is the material. For wood, municipal waste and bulky waste inside a hall, choose the UZX-UFS-750 electric shredder. For construction waste and wood on site, choose the UZX-UMS-250 and UZX-UMS-750 tracked shredders, and for end-of-life vehicles and heavy scrap the UZX-UMS-950. The second criterion is mobility: the UZX-UTS-250 has the same capacity as the UZX-UMS-250, but on a towable trailer, for several yards.
The price depends on the model, the engine and the equipment: magnetic separator, spare meshes and decks, extra conveyors, remote control. Send us the material, the hourly throughput and the fractions you need, and a Uzinex engineer will quote the right configuration. Delivery, commissioning and operator training are included in Romania.
• Delivery and commissioning included, at your site, with operator training.
• 60-month warranty, standard across the whole catalogue.
• Service with nationwide coverage in Romania, on-site visit within 24 hours.
• Spare parts in stock, so a breakdown does not stop the job.
• Technical documentation for EU-funded projects, PNRR and public tenders (SEAP/SICAP).
• Configuration on request: meshes and decks to suit your fractions, magnetic separator, engine and extra conveyors.
