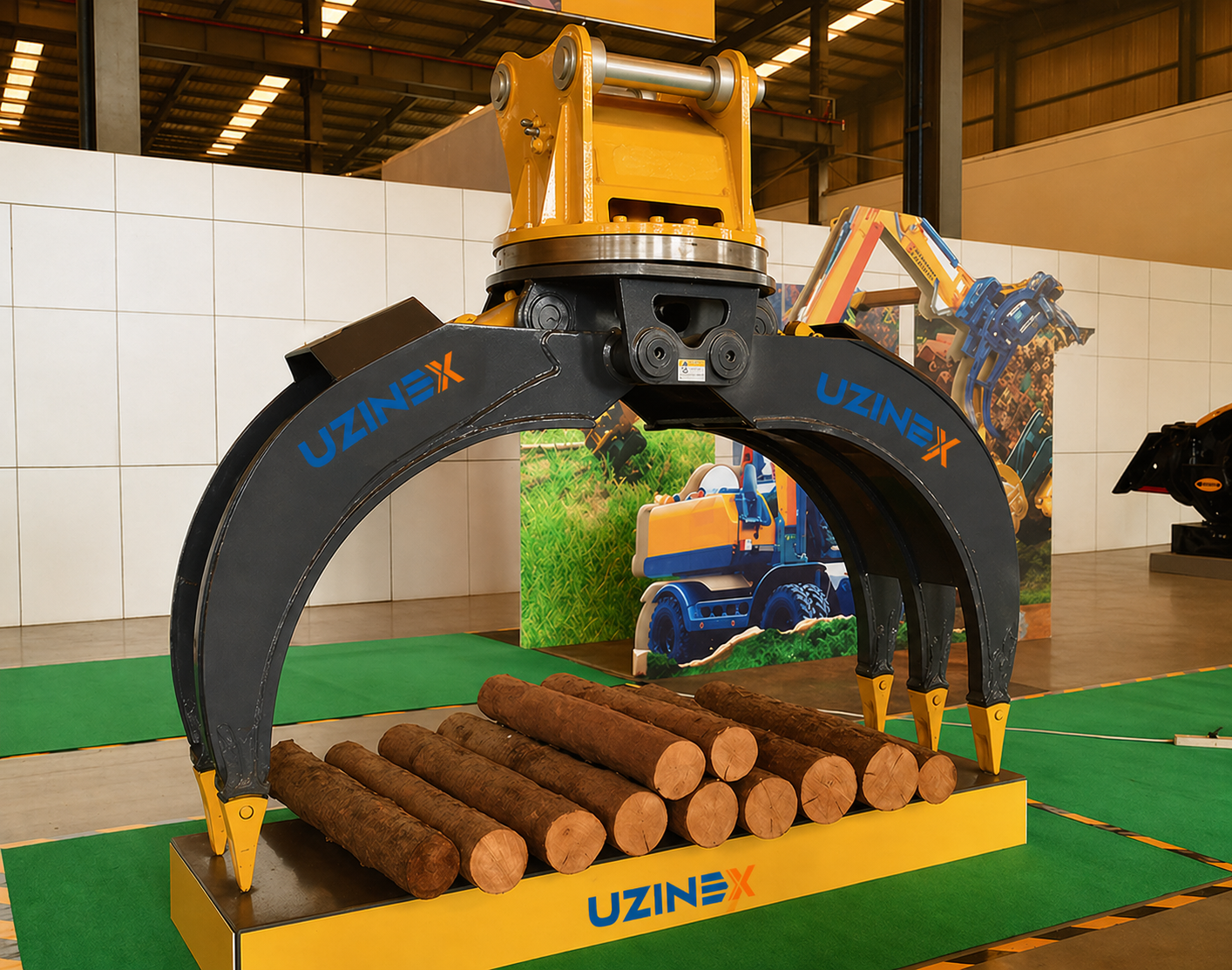

The hydraulic grapple for high-tonnage excavators is available in single-cylinder and dual-cylinder versions.
| Type | Rotary hydraulic grab |
| Compatible excavators | 1–40 tonnes (depending on model) |
| Maximum jaw opening | 1.400–2.500 mm (varies by model) |
| Weight | 120–2.080 kg (depending on model) |
| Working pressure | 21–25 MPa |
| Hydraulic flow | 40–160 L/min (depending on model) |
| Materials | Hardox, NM400, Q345, Q460, WH60 |
| Rotation | 360° (depending on model) |
| Cylinder | Single or dual |
| Mounting systems | CW, PC, CAT, Hitachi, SK, Volvo |
| Applications | Wood, metal, concrete, waste, demolition, construction, concrete pipes |
The Monde hydraulic excavator grab is the gripping and handling attachment with the widest tonnage coverage in the UZINEX range, available for excavators from 1 tonne up to 40 tonnes, with weights between 120 and 2.080 kg and jaw openings of 1.400–2.500 mm depending on the model.
This complete range of the Monde hydraulic excavator grab means that the same product line covers both the urban-site mini-excavator and the heavy quarry or industrial-yard excavator.
The Monde hydraulic excavator grab is built from Hardox, NM400, Q345, Q460 and WH60, operates at pressures of 21–25 MPa with hydraulic flows of 40–160 L/min depending on the model, and is available with a single or dual cylinder. The mounting system is compatible with the CW, PC, CAT, Hitachi, SK and Volvo standards. Technical specifications: Monde hydraulic excavator grab
| Parameter | Value |
|---|---|
| Type | Rotary hydraulic grab |
| Compatible excavators | 1–40 tonnes (depending on model) |
| Maximum jaw opening | 1.400–2.500 mm (varies by model) |
| Weight | 120–2.080 kg (depending on model) |
| Working pressure | 21–25 MPa |
| Hydraulic flow | 40–160 L/min (depending on model) |
| Materials | Hardox, NM400, Q345, Q460, WH60 |
| Rotation | 360° (depending on model) |
| Cylinder | Single or dual |
| Mounting systems | CW, PC, CAT, Hitachi, SK, Volvo |
| Applications | Wood, metal, concrete, waste, demolition, construction, concrete pipes |
UZINEX engineers recommend the right model of hydraulic excavator grab for your machine tonnage and specific application. Free technical consultancy available. Main advantages of the Monde hydraulic excavator grab
• Complete coverage 1–40 tonnes: the Monde hydraulic excavator grab is the only gripping attachment in the UZINEX range that covers the entire tonnage range, from 1-tonne mini-excavators used in urban works and tight spaces to 40-tonne heavy excavators in industrial yards and quarries. Whatever the class of excavator available on site or in the yard, there is a Monde hydraulic excavator grab model calibrated for it.
• Opening 1.400–2.500 mm adapted to load volume: the Monde hydraulic excavator grab opens its jaws to a minimum of 1.400 mm on the small models for mini-excavators and up to 2.500 mm on the models for 40-tonne excavators. The maximum opening determines the volume of material gripped per cycle: the larger the opening, the more material is handled in a single grab, reducing the number of cycles needed per hour.
“the larger the opening, the more material is handled in a single grip, reducing the number of cycles needed per hour.”
• Hardox, NM400, Q345, Q460, WH60: materials calibrated per model. The Monde hydraulic excavator grab uses combinations of steels adapted to the specific demands of each model: Hardox (400–500 HB) on the components with the highest wear, NM400 in medium-impact zones, Q345 and Q460 for the load-bearing structure, WH60 for applications with combined impact and wear. Each model in the range has a material composition optimised for the corresponding tonnage class and application.
• Pressure 21–25 MPa, flow 40–160 L/min. The Monde hydraulic excavator grab covers the full spectrum of hydraulic parameters of 1–40 tonne excavators: 40 L/min at 21 MPa for the mini-excavator models and 160 L/min at 25 MPa for the heavy models. These parameters fall within the specifications of the standard auxiliary circuits of excavators in each tonnage class, without requiring modifications to the hydraulic system.
• Single or dual cylinder: the Monde hydraulic excavator grab is available with a single cylinder for the smaller models, where simplicity and reduced weight are priorities, and with a dual cylinder for the larger models, where symmetrical gripping force and rigidity under asymmetric loads are required. The correct configuration is selected at the quotation stage according to the excavator tonnage and the materials to be handled.
• Compatible with CW, PC, CAT, Hitachi, SK, Volvo. The Monde hydraulic excavator grab is available with mounting geometries compatible with all the main coupling standards: CW (Caterpillar Works), PC (Komatsu), Cat, Hitachi, Kobelco SK and Volvo. UZINEX engineers verify the exact coupling geometry for your excavator model at the quotation stage.
• 360° rotation on models with an integrated rotator: the Monde hydraulic excavator grab with a 360° rotation system allows the operator to orient the load at any angle from the excavator cab, without repositioning the machine. The availability of rotation depends on the model; UZINEX engineers confirm the configuration at the quotation stage.
• 60-month UZINEX warranty: spare parts in stock at Iași for all models in the range, guaranteed national technical support within 24–48 hours.
Main applications of the Monde hydraulic excavator grab
Handling and sorting wood in timber yards, sawmills and forestry operations is one of the main applications of the Monde hydraulic excavator grab. Logs, boards, processed timber and processing residues can be gripped, moved and stacked precisely, regardless of whether the available excavator is a 5-tonne mini-excavator or a 20-tonne medium excavator: the complete 1–40 tonne range of the Monde hydraulic excavator grab ensures that there is a model calibrated for every machine.
Handling and sorting timber in lumber yards, sawmills and forestry operations is one of the.
Demolition and separation of demolition materials: reinforced concrete, masonry, mixed structures.
Construction works involving heavy material handling: laying precast elements.
Demolition and the separation of materials from demolition (reinforced concrete, masonry, mixed structures) is a frequent application in which the Monde hydraulic excavator grab grips and sorts the materials into fractions, facilitating recycling and transport. The large-opening models allow massive concrete blocks to be gripped in a single movement, reducing work cycles compared with standard buckets.
Installing and handling concrete pipes is an application distinctive from the other grapples in the UZINEX range. The Monde hydraulic excavator grab allows precise gripping and positioning of precast concrete tubes and elements during the installation of sewerage and drainage networks, eliminating the need for chains and operators in the trench to guide the elements during laying.
Recycling and sorting waste on collection platforms and at sorting stations is a common application: the Monde hydraulic excavator grab handles bulk waste, recyclable materials and industrial residues from the receiving platforms to the sorting belts or to baling presses, with fast cycles and without damaging the recyclable material.
Construction works involving the handling of heavy materials (laying precast elements, moving stone blocks, handling foundation materials) benefit from the Monde hydraulic excavator grab on medium and large excavators, where the combination of the large opening and the gripping force allows massive elements to be handled without an auxiliary crane. The hydraulic excavator grab vs. the other UZINEX gripping attachments
The UZINEX range of gripping attachments comprises several products with specific applications: the right choice depends on the type of material, the excavator tonnage and the need for specialisation vs. versatility.
The Monde MWR20 hydraulic log grapple (17–23t, 360° rotation, 2.300 mm, ISO 9001+CE+SGS) is optimised exclusively for elongated wood materials, with profiled jaws for gripping round logs and certified for public tenders in the forestry sector.
The Monde fixed orange-peel grapple (16–23t, Hardox 450/500, no rotation) is specialised for heavy abrasive bulk materials (ore, coal, limestone) where maximum gripping force and the durability of Hardox take priority.
The Monde MPB multifunctional grapple (16–36t, 360° rotation, 1.960–2.400 mm, 220 bar) is the solution for mixed materials and port applications where material versatility is the main criterion.
The Monde hydraulic excavator grab is the solution when the tonnage range (from mini-excavator to heavy excavator) or the need to install concrete pipes are the decisive selection criteria. Combined with a Monde DEHN quick coupler, the hydraulic excavator grab can be mounted and dismounted from the excavator cab in less than a minute. Frequently asked questions about the Monde hydraulic excavator grab
How do I select the right hydraulic excavator grab model for my excavator?
The selection of the Monde hydraulic excavator grab model is based on three parameters: the excavator tonnage, the parameters of the available auxiliary hydraulic circuit (flow and pressure) and the typical dimensions of the loads to be handled. UZINEX engineers carry out the selection at the quotation stage. Contact the team for a free recommendation. Does the Monde hydraulic excavator grab with 360° rotation require an additional hydraulic circuit?
Yes, the Monde hydraulic excavator grab models with 360° rotation require an additional auxiliary hydraulic circuit beyond the jaw-actuation circuit. The models without rotation require a single auxiliary circuit. UZINEX verifies the availability of the circuits on your excavator at the quotation stage. Is the Monde hydraulic excavator grab suitable for mini-excavators?
Yes. The range includes models from 120 kg for 1-tonne excavators, with openings of 1.400 mm and flows of 40 L/min, parameters compatible with standard mini-excavators. UZINEX engineers confirm the exact model for your mini-excavator at the quotation stage. Is the Monde hydraulic excavator grab eligible for public tenders?
Yes. UZINEX provides complete technical documentation on delivery. The product can be added directly in SEAP/SICAP. UZINEX is a member of the Enterprise Europe Network and supplies equipment for EU-funded projects. Why UZINEX for the Monde hydraulic excavator grab
The hydraulic excavator grab is a productivity attachment with a direct impact on the efficiency of material-handling operations. Selecting the correct model from the 1–40 tonne range and confirming hydraulic compatibility are the essential steps for operational performance.
• Model selection included from the 1–40 tonne range: UZINEX engineers recommend the right hydraulic excavator grab model for your tonnage and specific application.
• Hydraulic compatibility check: the auxiliary circuit parameters confirmed on your specific excavator before delivery.
• Certified materials: Hardox, NM400, Q345, Q460, WH60 with documentation on delivery.
• 60-month warranty: extended coverage for the Monde hydraulic excavator grab under intensive industrial use.
• Transport and installation included: delivery to destination, installation on the excavator, hydraulic adjustments and operator training included.
• Spare parts permanently in stock at Iași: immediate availability for all models in the range.
• National technical support within 24–48 hours: a network of technicians with nationwide coverage and a guaranteed response time.
• Financing options: leasing and credit available on the UZINEX credit and leasing page.
The Monde hydraulic excavator grab available through UZINEX: 1–40 tonnes, 120–2.080 kg, opening 1.400–2.500 mm, 21–25 MPa, 40–160 L/min, Hardox/NM400/Q345/Q460/WH60, 360° rotation available, single or dual cylinder, compatible with CW/PC/CAT/Hitachi/SK/Volvo, 60-month warranty, transport and installation included throughout Romania.
