Automatic all-in-one machine for 3D letters in steel and aluminium up to 200 mm
| Applicable materials | Stainless steel, iron, copper, flat aluminium, aluminium profiles |
| Coil width / letter depth | 20–200 mm |
| Material thickness | up to 2.0 mm |
| Slotting system | dual, knife and saw blade |
| Feeding | dual, servo-driven, ball screw and linear guide |
| Letter types | trimless, trim-cap, reverse, halo-lit |
| Drive / sensors | Delta servo motors, Omron sensors |
| Footprint | 5,25′ × 2,92′ |
| Lead time | 7–10 days |
| Certification | CE |
| Material | Thickness / notes |
| Stainless steel | up to 2.0 mm |
| Flat aluminium | up to 2.0 mm |
| Copper | for decorative accents |
| Aluminium profiles | for channelume letters |

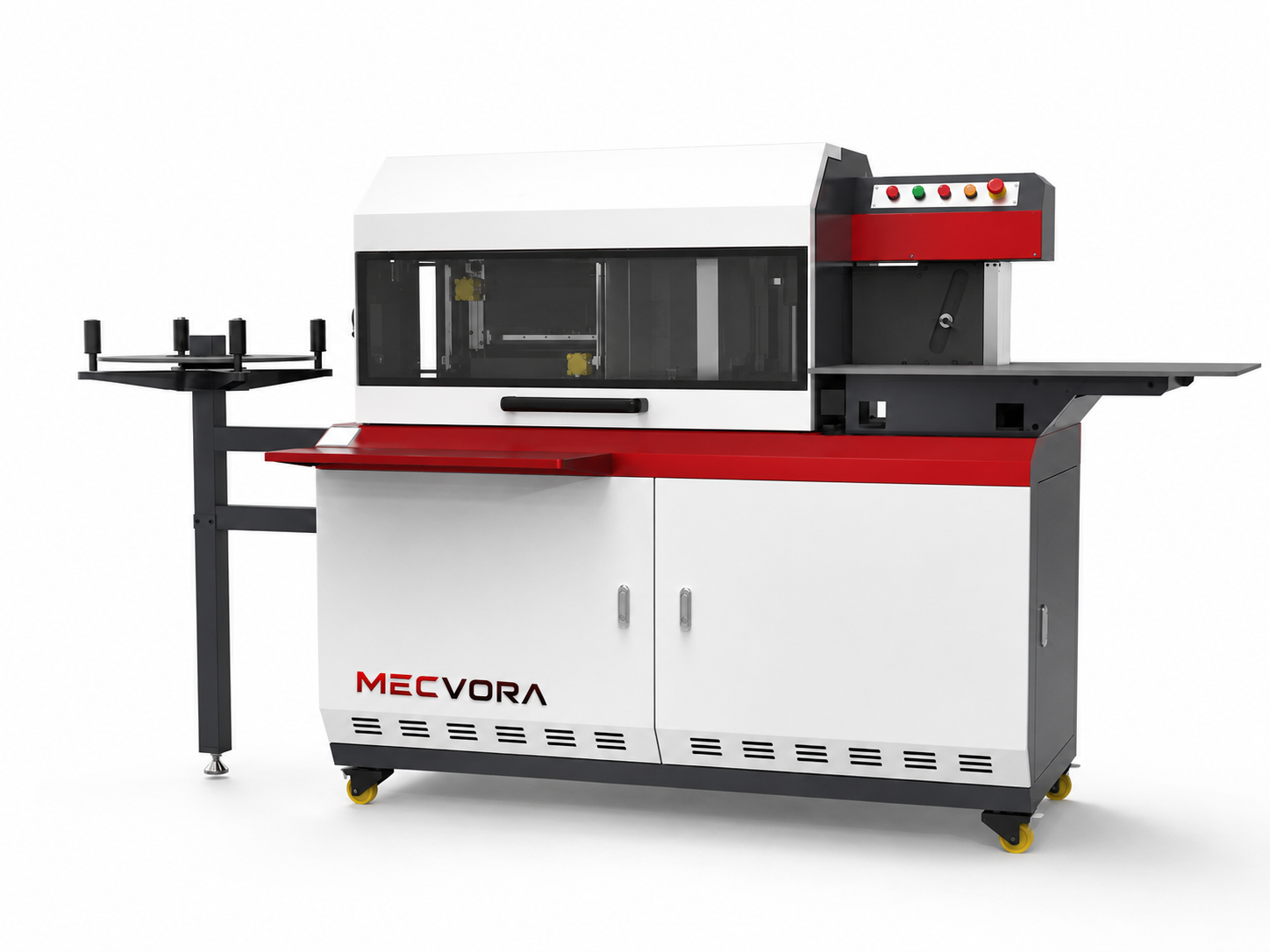

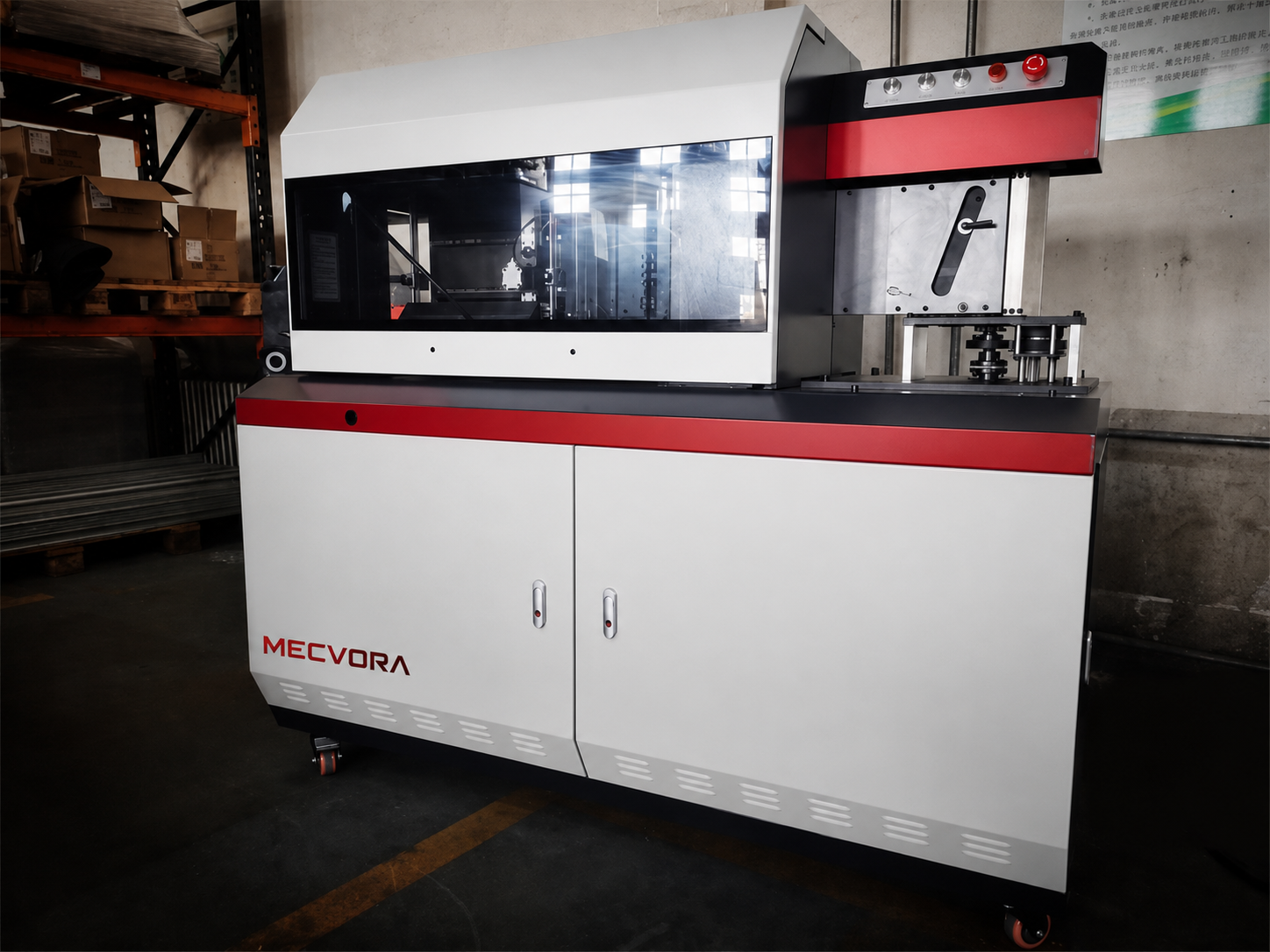

This MECVORA channel letter bending machine produces every type of 3D sign letter fully automatically: trimless, trim-cap, reverse and halo-lit. It bends stainless steel, aluminium, copper or aluminium profile strip 20–200 mm wide and up to 2 mm thick, with dual notching by knife and saw blade and a dual servo feed.
Positioned at the premium end, the machine replaces slow hand bending and reliance on subcontractors with a fast, precise, automated workflow. It is the natural choice for medium and growing signage businesses that take on varied orders and need one investment covering both small letters and large façade letters.
• Fully automated workflow, the channel letter bender handles feeding, notching and bending in a single software-driven cycle, so one operator turns out dozens of letters a day instead of the handful possible by hand.
• Repeatable precision, the servo-and-encoder system holds the same geometry on every letter, removing the small variations of hand bending and delivering clean, seam-free returns.
• Direct labour savings, automation cuts production time and reliance on highly skilled staff, and the payback shows up quickly in shops with a steady order flow.
• Intuitive software, artwork imports straight from vector files (DXF), and the parameters for each material and thickness are saved and recalled for a repeat job in a couple of clicks.
• Robust build, a rigid frame and quality drive components keep precision at high volumes, while software adjustments shorten the changeover time from one letter to the next.

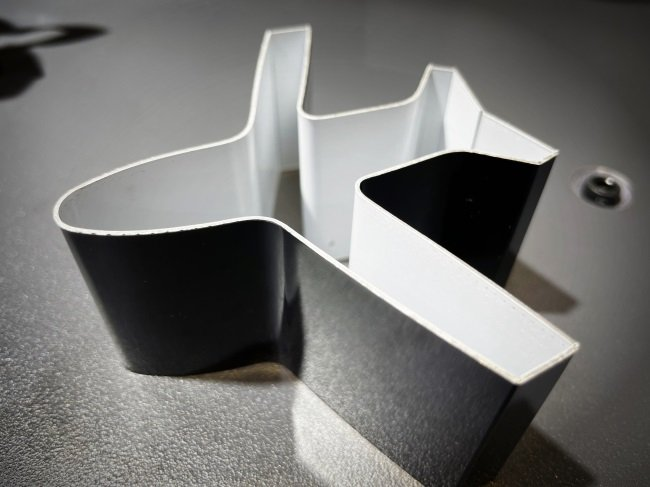

• Every 3D letter type, telescopic bending arms form trimless, reverse, halo-lit and trim-cap letters with sharp corners, without complicated tooling changes.
• Dual slotting system, a knife for hard materials (steel, thicker aluminium) and a saw blade for aluminium, switchable from the software to match the coil.
• Coil pre-straightening, the coil is straightened before processing so it will not jam or deform, a detail that saves both time and material.
| Parameter | Value |
|---|---|
| Applicable materials | Stainless steel, iron, copper, flat aluminium, aluminium profiles |
| Coil width / letter depth | 20–200 mm |
| Material thickness | up to 2.0 mm |
| Slotting system | dual, knife and saw blade |
| Feeding | dual, servo-driven, ball screw and linear guide |
| Letter types | trimless, trim-cap, reverse, halo-lit |
| Drive / sensors | Delta servo motors, Omron sensors |
| Footprint | 5,25′ × 2,92′ |
| Lead time | 7–10 days |
| Certification | CE |
The precision of a channel letter is decided in two steps: exact notching at the bend points and tight control of strip feeding. The machine combines a precise notching system with servo-controlled bending arms, so every corner comes out at the programmed angle, with no play and no manual correction.
The encoder tracks the real strip length throughout and the software compensates automatically, which is why this channel letter bender stays a machine you can rely on for long runs with identical geometry. The result shows in clean edges, discreet seams and letters ready to be lit straight off the machine.
The channel letter bender serves advertising firms, illuminated-sign makers and signage shops producing storefront signs, corporate logos and façade letters. Because it works steel, aluminium and copper alike, a single machine covers both decorative indoor letters and rugged outdoor ones.
For shops that take varied orders, versatility is decisive: the same machine makes small window letters and large letters for totems or mall façades, without splitting the job across several tools. Producers working with retail chains or ad agencies gain predictability, every letter comes out identical, batch after batch.
In series production, the repeatable workflow shortens the path from artwork to installation: recipes saved per material and thickness let you rerun a recurring order quickly, and the consistent result cuts scrap and manual touch-ups.
The machine meets the requirements applicable to industrial equipment placed on the EU market, in line with the Machinery Directive 2006/42/EC. See also our full range of channel letter equipment for other configurations.
The machine processes most materials used in illuminated signage. The thicknesses below are indicative and confirmed in your personalised quote, depending on the letter type:
| Material | Thickness / notes |
|---|---|
| Stainless steel | up to 2.0 mm |
| Flat aluminium | up to 2.0 mm |
| Copper | for decorative accents |
| Aluminium profiles | for channelume letters |
The workflow on a MECVORA channel letter bender is simple and repeatable, from file to finished letter:
1. The operator imports the vector file (DXF) with the outline of the letter or logo into the software.
2. They pick the material and thickness from the library; the system automatically sets the notching and bending parameters for steel, aluminium, copper and profiles.
3. The metal coil is loaded into the feeding system, which straightens and advances it without slipping.
4. The notching head cuts precisely at the bend points, and the servo-controlled arms form the letter profile.
5. The finished letter is ejected, ready for assembly, LED lighting and installation, with no extra manual finishing.
The digital workflow turns the machine from a simple bender into a predictable production tool. The software takes the letter outline straight from the vector file and calculates the notching points automatically, with no manual tracing and no interpretation errors.
Parameters are saved per material and thickness, in a recipe library you reuse whenever an order comes back. So a channel letter bender set up correctly once then produces identical letters, even if the operator changes between shifts.
Efficient nesting of letters on the strip reduces material waste, and switching from one project to the next drops to a few clicks. The result is a shop that responds quickly to urgent orders and meets its deadlines without improvisation.
A channel letter bender is a long-term investment, and UZINEX treats it as one. We arrange transport of the machine across Europe together with the required technical documentation, and we handle commissioning at your premises so the production line starts without delays or improvisation.
After installation we train your operators directly on your own machine, from importing DXF files to fine-tuning for each material and thickness. We stay available for service, spare parts, consumables and production-recipe optimisation throughout the machine's working life.
Outsourcing channel letters means longer lead times, margins shared with subcontractors and dependence on their availability. Bringing production in-house, onto a channel letter bender, changes the equation: you control the deadline, the quality and the cost of every order, and the profit stays entirely with you.
For firms with a steady order flow, such a machine pays back quickly through the number of letters produced in-house, plus the new orders you can take on without depending on an outside supplier. The UZINEX team helps you estimate the right volume and configuration for your case.
A production machine has to be easy to maintain to stay productive. Routine tasks, checking the notching knives, cleaning the feeding system and lubricating the guides, are simple and quick, and wear parts are replaced without complex intervention.
UZINEX supplies spare parts, consumables and technical support throughout the machine's life, so a well-maintained channel letter bender runs for years with the same precision. A simple maintenance plan reduces unplanned downtime and protects the investment.
• Delivery, installation and commissioning, with operator training on your own production.
• 60-month warranty and service with on-site response in under 24 hours in Romania (24–72 hours in other countries).
• Technical documentation for EU-funded, PNRR and public procurement projects.
