Acrylic bending machine with 1200 mm heating zone, ideal for channel letters and signage
| Working length | 1200 mm (48″) |
| Materials | acrylic, PVC, PC, PP (and PE, PS, ABS) |
| Bending thickness | 0,8–20 mm |
| Bending angle | 30°–180° |
| Heating system | infrared |
| Power | 6 kW (2 kW working) |
| Footprint | 66″ × 18″ |
| Cooling | water circulation + overheating alarm |
| Control | automatic and manual (CNC) |
| Thickness without groove | 0.8–6 mm (6–20 mm with groove) |
| Material | Details / notes |
| Acrylic (PMMA) | 0.8–20 mm |
| PVC | 0.8–20 mm |
| Polycarbonate (PC) | 0.8–20 mm |
| Polypropylene (PP) | 0.8–20 mm |
| PE / PS / ABS | depending on thickness |

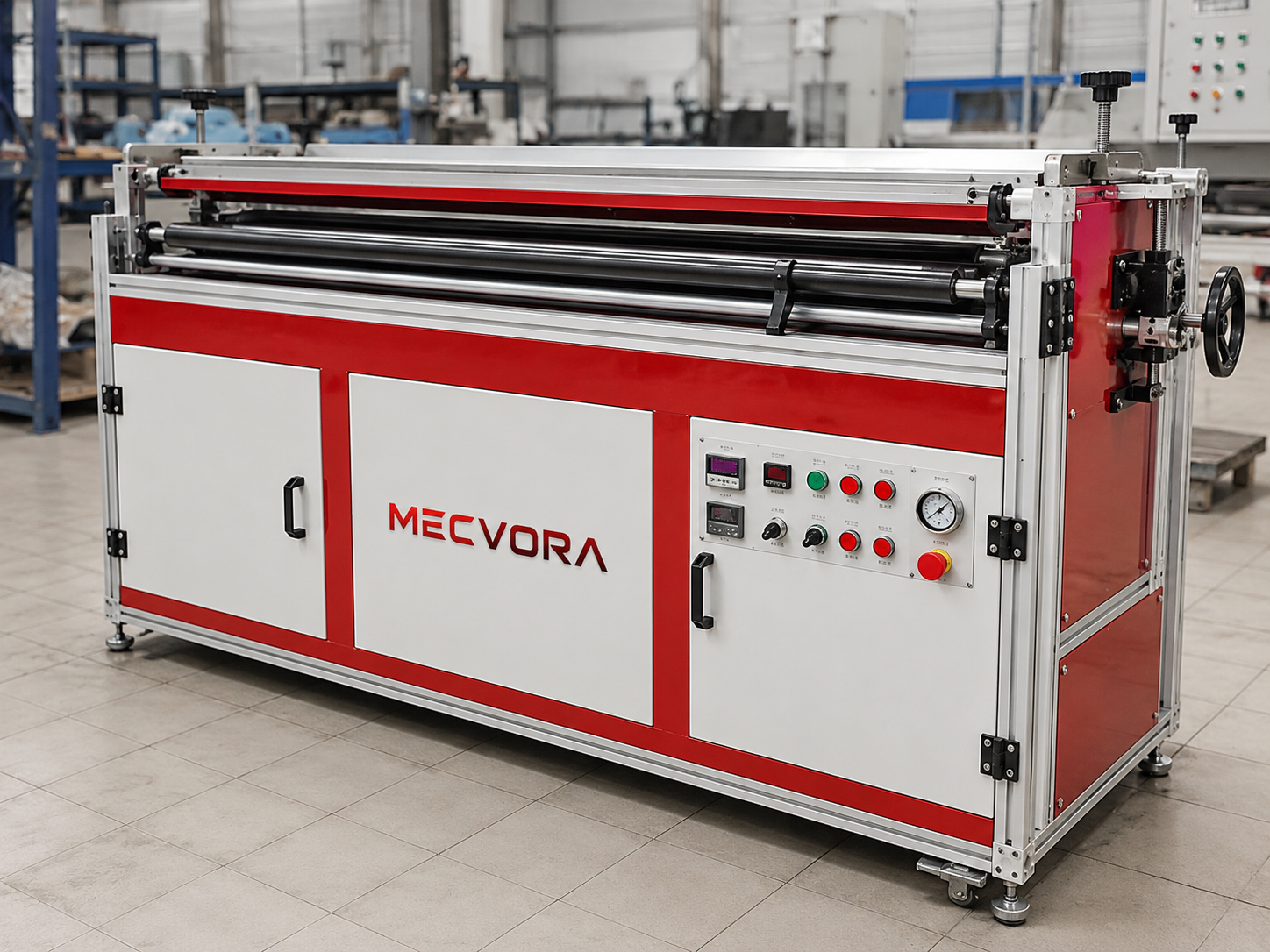

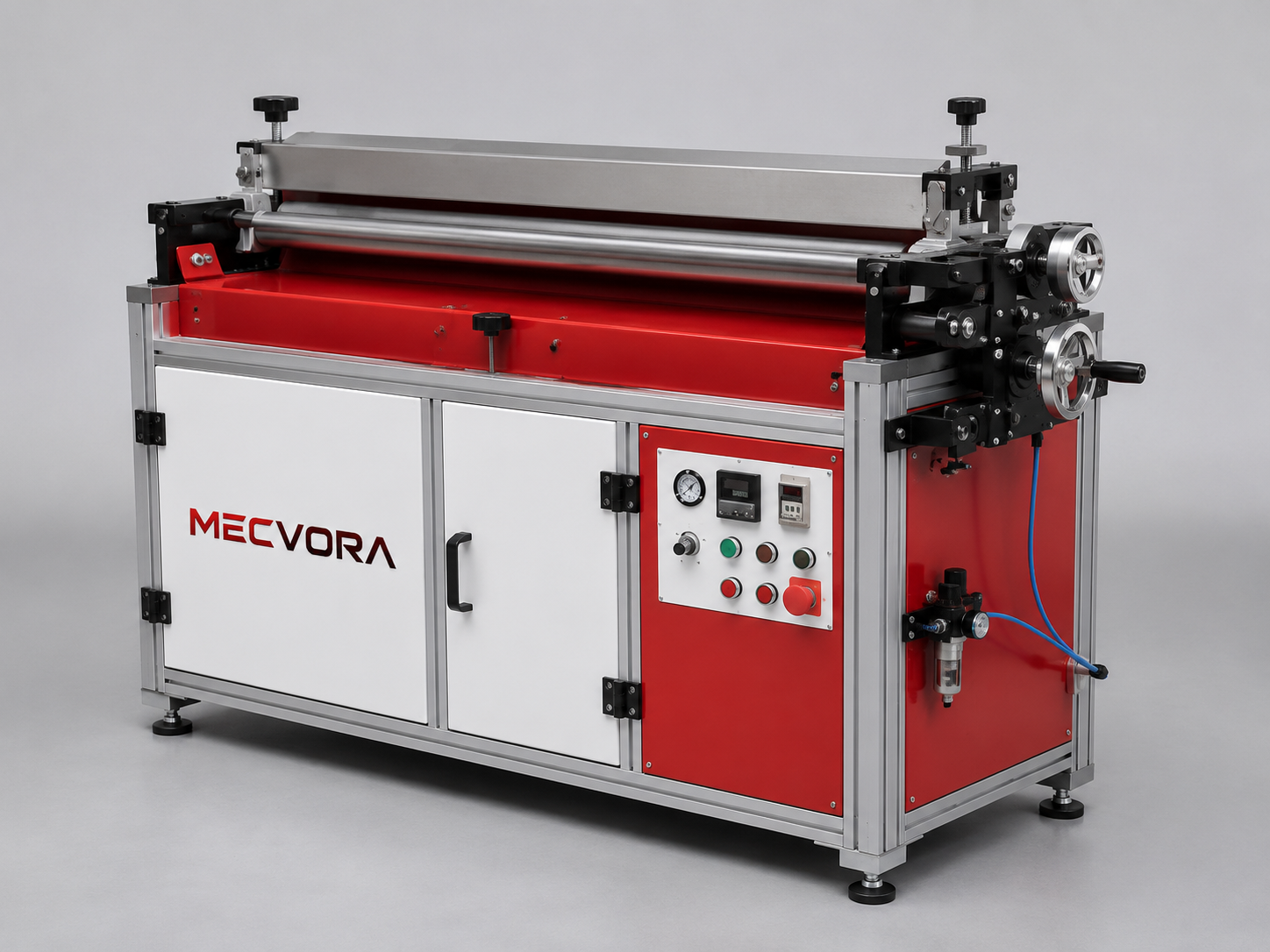

The VS-1200B is an automatic acrylic bending machine with a 1200 mm working length, designed for sign and production shops that need a reliable, precise and easy-to-use acrylic bending machine. It hot-bends acrylic, PVC, PC, PP and other thermoplastics at angles between 30° and 180°.
With infrared heating, thickness-based adjustment and automatic or manual control, this acrylic bending machine delivers clean, repeatable bend lines, from thin 0.8 mm sheets up to 20 mm.
• Precise bending at any angle, a MECVORA acrylic bending machine forms angles from 30° to 180° on one machine, with straight, repeatable bend lines for identical parts batch after batch.
• Infrared heating, the infrared radiation system heats evenly and lasts longer than classic filament elements, cutting waiting times between bends.
• Adjustable by thickness, the softening gap adjusts to the sheet thickness, and temperature and voltage are set per material, for clean results from 0.8 to 20 mm.
• Multiple materials, the same machine bends acrylic, PVC, PC, PP and other thermoplastics, covering most signage and décor projects from a single tool.
• Safe operation, water circulation protects the components and an overheating alarm stops the process when the temperature is exceeded, protecting both operator and machine.
• Automatic and manual, automatic mode raises series productivity, while manual mode gives fine control for one-off parts or prototypes, both driven from the CNC panel.
• 1200 mm working length, suited to letters, light box sides and displays of common sizes, in a compact shop footprint (66″ × 18″).
• 6 kW power, low draw, 6 kW installed power, with only 2 kW in working mode, for low running costs.
• Groove only above 6 mm, sheets of 0.8–6 mm bend with no groove; between 6 and 20 mm a groove is cut along the bend line.
| Parameter | Value |
|---|---|
| Working length | 1200 mm (48″) |
| Materials | acrylic, PVC, PC, PP (and PE, PS, ABS) |
| Bending thickness | 0,8–20 mm |
| Bending angle | 30°–180° |
| Heating system | infrared |
| Power | 6 kW (2 kW working) |
| Footprint | 66″ × 18″ |
| Cooling | water circulation + overheating alarm |
| Control | automatic and manual (CNC) |
| Thickness without groove | 0.8–6 mm (6–20 mm with groove) |
Hot bending of acrylic relies on localised heating of a line on the sheet: the material softens exactly where it must bend, then it is formed to the desired angle, between 30° and 180°. A MECVORA acrylic bending machine controls the temperature and the width of the heated zone precisely, so the bend line is clean, with no scorching or bubbles.
For thin sheets, from 0.8 to 6 mm, no groove is needed; from 6 mm up to 20 mm a groove is cut along the bend line. The infrared heating system and the per-material settings give repeatability from one part to the next, essential in series production for signage and décor.
In signage, the VS-1200B produces light box sides and frames, acrylic letters and display elements, with precise bends that assemble quickly and cleanly.
In interiors and décor, the machine makes acrylic edging, display stands and shelves, corners, boxes and decorative objects, as well as fish tanks or shop-window elements.
In production and industry, the same tool bends machine guards, covers and enclosures for production lines, storage boxes and stands, from a wide range of thermoplastics.
The machine meets the requirements applicable to industrial equipment placed on the EU market, in line with the Machinery Directive 2006/42/EC. See also our range of acrylic bending machines for other configurations.
The VS-1200B bends a wide range of thermoplastic materials, in thicknesses from 0.8 to 20 mm:
| Material | Details / notes |
|---|---|
| Acrylic (PMMA) | 0.8–20 mm |
| PVC | 0.8–20 mm |
| Polycarbonate (PC) | 0.8–20 mm |
| Polypropylene (PP) | 0.8–20 mm |
| PE / PS / ABS | depending on thickness |
The workflow on a MECVORA acrylic bending machine is simple and repeatable, from sheet to finished part:
1. Place the sheet on the work table and align the bend line with the heating zone.
2. Select the heating temperature and time according to acrylic, PVC, PC and PP and the sheet thickness.
3. The infrared element locally heats the bend line until the material softens evenly.
4. The sheet is bent to the programmed angle, between 30° and 180°, automatically or manually from the CNC panel.
5. The part cools and sets its shape, ready for assembly into light boxes, letters, displays or other products.
In a shop working in shifts, safety and reliability matter as much as precision. The water-circulation cooling protects the electronics, and the overheating alarm stops the process when the set threshold is exceeded, preventing damage to the material and the machine.
Infrared heating, with a longer life than filament elements, reduces stops for replacements. This keeps a acrylic bending machine productive for long periods, while the operator works safely, with a simple control panel and settings that can be saved per material.
The working length sets the maximum part size: models with a longer table allow large light box sides and displays from a single bend, with no joints. Choosing the right length for your usual products avoids both limitations and needless investment in an oversized machine.
A acrylic bending machine is a long-term investment, and UZINEX treats it as one. We arrange transport of the machine across Europe together with the required technical documentation, and we handle commissioning at your premises so production starts without delays or improvisation.
After installation we train your operators directly on your own machine, from the first settings on material to fine-tuning each working recipe. We stay available for service, spare parts, consumables and technical support throughout the machine's working life.
Outsourcing production means longer lead times, margins shared with subcontractors and dependence on their availability. Bringing the work in-house, onto a acrylic bending machine, changes the equation: you control the deadline, the quality and the cost of every order, and the profit stays entirely with you.
For firms with a steady order flow, such a machine pays back quickly through the number of parts produced in-house, plus the new orders you can take on without depending on an outside supplier. The UZINEX team helps you estimate the right volume and configuration for your case.
A production machine has to be easy to maintain to stay productive. Routine tasks, checking the heating elements, cleaning the working surfaces and verifying the protection systems, are simple and quick, and wear parts are replaced without complex intervention.
UZINEX supplies spare parts, consumables and technical support throughout the machine's life, so a well-maintained acrylic bending machine runs for years with the same precision. A simple maintenance plan reduces unplanned downtime and protects the investment.
What material thicknesses can the VS-1200B bend?
It bends sheets from 0.8 to 20 mm thick. Up to 6 mm no groove is needed on the bend line; between 6 and 20 mm a groove is cut, for a clean, controlled angle.
What is the maximum bend length of the 1200 mm model?
The working length is 1200 mm (48″), enough for most letters, light box sides and displays. For longer parts there are 1800 mm and 2400 mm models in the same range.
Which materials does it accept besides acrylic?
Besides acrylic, it bends PVC, PC, PP, as well as PE, PS and ABS. Temperature and voltage are set per material and thickness, for consistent results.
What does delivery of a MECVORA acrylic bending machine include?
We arrange transport across Europe together with the technical documentation. We provide commissioning, operator training and ongoing support for service and spare parts, so your shop becomes productive quickly.
Do I need a specialised operator for this acrylic bending machine?
No. The settings are simple and saved per material and thickness, and the control panel is intuitive. A new operator reaches consistent results after short training, and the saved recipes reduce errors.
What warranty and after-sales support does UZINEX offer?
Every UZINEX machine comes with a 60-month standard manufacturer warranty, phone support and on-site service intervention in under 24 hours anywhere in Romania.
When you choose a acrylic bending machine from UZINEX, you get more than the machine. You can discuss the right configuration any time with the UZINEX team:
• Real technical advice, we help you choose the right acrylic bending machine configuration for your materials, part sizes and production volume before you place an order.
• Delivery across Europe, we arrange transport of the machine to your workshop, together with its technical documentation.
• Commissioning and training, we train your operators on your own machine, from the first settings to the first good part.
• Service and spare parts, we provide technical support and access to components so your production keeps running.
• Sourcing on request, if you need a configuration or consumable that isn't listed, we source it and come back with an offer.
• A long-term partner, we stay with you from installation to capacity expansion as your order book grows.
Whether you make acrylic letters, light box faces and frames, displays or decorative parts, a acrylic bending machine brings bending in-house, with precise, repeatable angles. Talk to the UZINEX team about your materials and sizes, and we will recommend the working length and configuration that fit your production volume.
