Fully automatic machine for channel letters in stainless steel, aluminium and galvanized iron with built-in punching
| Processed materials | stainless steel, aluminium alloy, galvanized iron |
| Letter type | flat-edge channel letters |
| Strip width | 10–160 mm |
| Aluminium thickness | 0,3–1,5 mm |
| Stainless thickness | 0,3–1,2 mm |
| Encoder precision | 0,01 mm |
| Auto-punching | yes (selectable in software) |
| Motors | servo motors |
| Certifications | CE, FDA |
| Warranty | 2 years (per manufacturer) |
| Material | Thickness / notes |
| Stainless steel | 0,3–1,2 mm |
| Aluminium alloy | 0,3–1,5 mm |
| Galvanized iron | 0,3–1,2 mm |

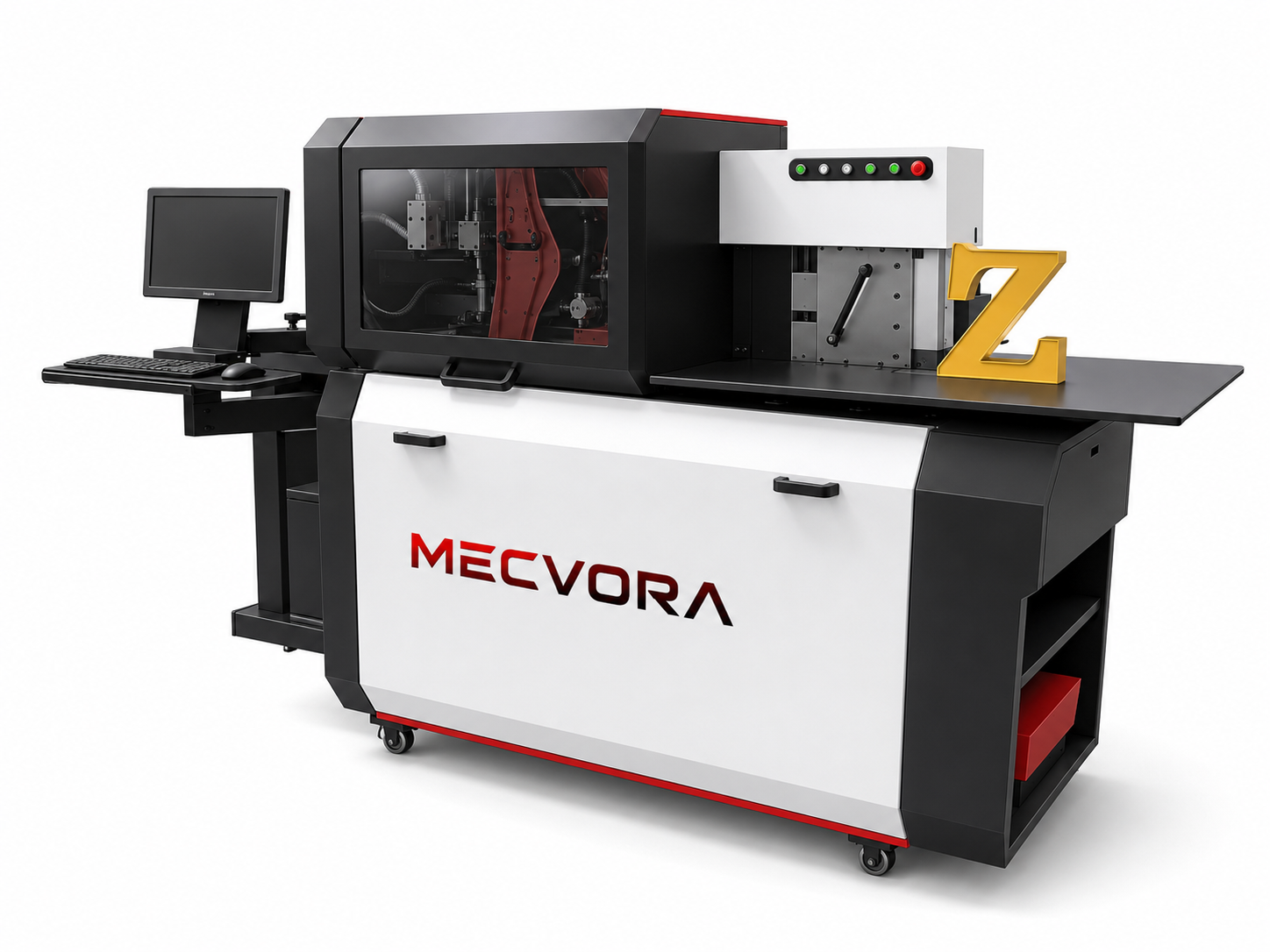

The MECVORA automatic channel letter bender for stainless steel makes flat-edge 3D letters from thin sheet, with clean edges and no scratches on the face. It works 0.3–1.2 mm stainless steel, 0.3–1.5 mm aluminium alloy and galvanised sheet on 10–160 mm strip, bending to size straight from your vector file.
With a high-precision encoder and built-in auto-punching, the machine removes manual strip preparation and later touch-ups. It is the right choice for sign shops that work stainless steel often and need a fast, clean, easy-to-program steel letter bender that repeats the same result batch after batch.
• Fully automated workflow, the steel letter bender handles feeding, notching and bending in a single software-driven cycle, so one operator turns out dozens of letters a day instead of the handful possible by hand.
• Repeatable precision, the servo-and-encoder system holds the same geometry on every letter, removing the small variations of hand bending and delivering clean, seam-free returns.
• Direct labour savings, automation cuts production time and reliance on highly skilled staff, and the payback shows up quickly in shops with a steady order flow.
• Intuitive software, artwork imports straight from vector files (DXF), and the parameters for each material and thickness are saved and recalled for a repeat job in a couple of clicks.
• Robust build, a rigid frame and quality drive components keep precision at high volumes, while software adjustments shorten the changeover time from one letter to the next.
• Mark-free surface, the clamping and bending system does not mark polished stainless, so finished letters need no extra polishing before they are lit.
• Built-in auto-punching, holes for LEDs or fixings are made in the same cycle, switchable on or off in software, with no separate operation.
• Three materials, one machine, a single steel letter bender covers stainless, aluminium and galvanized iron, cutting the number of machines on your shop floor.
| Parameter | Value |
|---|---|
| Processed materials | stainless steel, aluminium alloy, galvanized iron |
| Letter type | flat-edge channel letters |
| Strip width | 10–160 mm |
| Aluminium thickness | 0,3–1,5 mm |
| Stainless thickness | 0,3–1,2 mm |
| Encoder precision | 0,01 mm |
| Auto-punching | yes (selectable in software) |
| Motors | servo motors |
| Certifications | CE, FDA |
| Warranty | 2 years (per manufacturer) |
The precision of a channel letter is decided in two steps: exact notching at the bend points and tight control of strip feeding. The machine combines a precise notching system with servo-controlled bending arms, so every corner comes out at the programmed angle, with no play and no manual correction.
The encoder tracks the real strip length throughout and the software compensates automatically, which is why this steel letter bender stays a machine you can rely on for long runs with identical geometry. The result shows in clean edges, discreet seams and letters ready to be lit straight off the machine.
The steel letter bender is built for sign companies and signage workshops that make facade letters, corporate logos and illuminated signs where stainless steel gives a premium, weather-resistant look outdoors.
Because it also processes aluminium and galvanized iron, the same machine covers both decorative indoor letters and rugged outdoor ones, without splitting an order across several machines. Shops serving retail chains get identical letters, batch after batch.
For series production, a steel letter bender with material presets shortens the path from artwork to installation: a repeat order is reloaded in a few clicks, and the consistent result cuts scrap and manual finishing time.
The machine meets the requirements applicable to industrial equipment placed on the EU market, in line with the Machinery Directive 2006/42/EC. See also our full range of channel letter equipment for other configurations.
This steel letter bender processes three metal families in the thin strip typical of channel letters, each with its own recommended thickness range:
| Material | Thickness / notes |
|---|---|
| Stainless steel | 0,3–1,2 mm |
| Aluminium alloy | 0,3–1,5 mm |
| Galvanized iron | 0,3–1,2 mm |
The workflow on a MECVORA steel letter bender is simple and repeatable, from file to finished letter:
1. The operator imports the vector file (DXF) with the outline of the letter or logo into the software.
2. They pick the material and thickness from the library; the system automatically sets the notching and bending parameters for stainless steel, aluminium and galvanized iron.
3. The metal coil is loaded into the feeding system, which straightens and advances it without slipping.
4. The notching head cuts precisely at the bend points, and the servo-controlled arms form the letter profile.
5. The finished letter is ejected, ready for assembly, LED lighting and installation, with no extra manual finishing.
The digital workflow turns the machine from a simple bender into a predictable production tool. The software takes the letter outline straight from the vector file and calculates the notching points automatically, with no manual tracing and no interpretation errors.
Parameters are saved per material and thickness, in a recipe library you reuse whenever an order comes back. So a steel letter bender set up correctly once then produces identical letters, even if the operator changes between shifts.
Efficient nesting of letters on the strip reduces material waste, and switching from one project to the next drops to a few clicks. The result is a shop that responds quickly to urgent orders and meets its deadlines without improvisation.
A steel letter bender is a long-term investment, and UZINEX treats it as one. We arrange transport of the machine across Europe together with the required technical documentation, and we handle commissioning at your premises so the production line starts without delays or improvisation.
After installation we train your operators directly on your own machine, from importing DXF files to fine-tuning for each material and thickness. We stay available for service, spare parts, consumables and production-recipe optimisation throughout the machine's working life.
Outsourcing channel letters means longer lead times, margins shared with subcontractors and dependence on their availability. Bringing production in-house, onto a steel letter bender, changes the equation: you control the deadline, the quality and the cost of every order, and the profit stays entirely with you.
For firms with a steady order flow, such a machine pays back quickly through the number of letters produced in-house, plus the new orders you can take on without depending on an outside supplier. The UZINEX team helps you estimate the right volume and configuration for your case.
A production machine has to be easy to maintain to stay productive. Routine tasks, checking the notching knives, cleaning the feeding system and lubricating the guides, are simple and quick, and wear parts are replaced without complex intervention.
UZINEX supplies spare parts, consumables and technical support throughout the machine's life, so a well-maintained steel letter bender runs for years with the same precision. A simple maintenance plan reduces unplanned downtime and protects the investment.
• Delivery, installation and commissioning, with operator training on your own production.
• 60-month warranty and service with on-site response in under 24 hours in Romania (24–72 hours in other countries).
• Technical documentation for EU-funded, PNRR and public procurement projects.
