The four-side cutting machine with loading and unloading is ideal for any business that produces doors o…
| Processing length | 1.700 – 2.800 mm |
| Processing width | 390 – 1.100 mm |
| Processing thickness | ≤ 70 mm |
| Main motor | 5,5 kW |
| Adjustment motor | 1,5 kW |
| Main blade | OD 300 mm × ID 30 mm |
| Adjustment blade | OD 120 mm × ID 22 mm |
| Total power | 25 kW |
| Weight | 3.000 kg |
| Loading | Automatic with barcode scanning |
| Unloading | Automatic |
| Waste removal | Integrated conveyor belt |
| Material | Maximum thickness |
| Solid wood (oak, fir, beech, pine) | ≤ 70 mm |
| Composite doors (solid wood + MDF + veneer) | ≤ 70 mm |
| Structural plywood | ≤ 70 mm |
| Medium- and high-density panels (MDF) | ≤ 70 mm |
| Composite panels for doors | ≤ 70 mm |

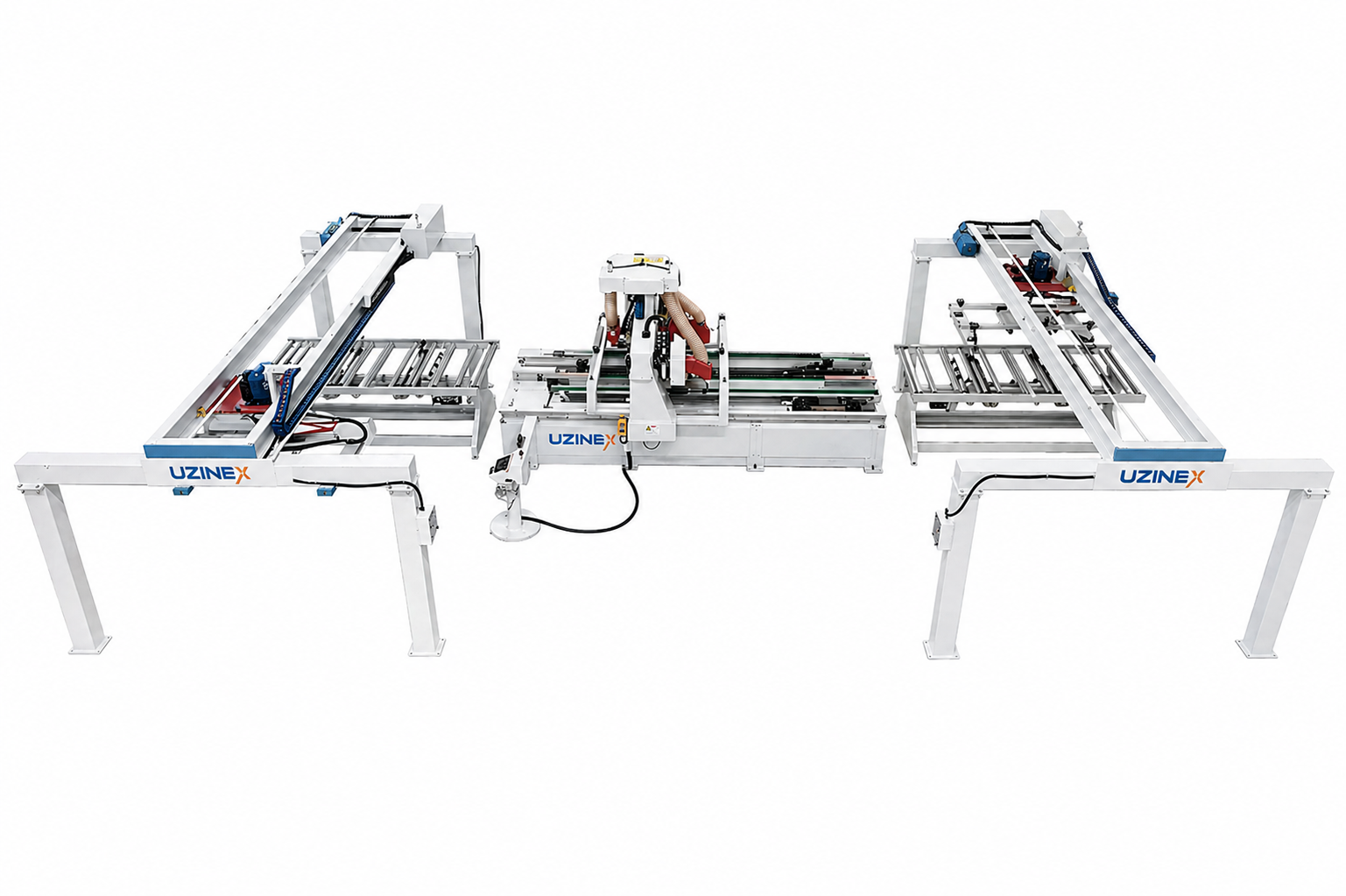

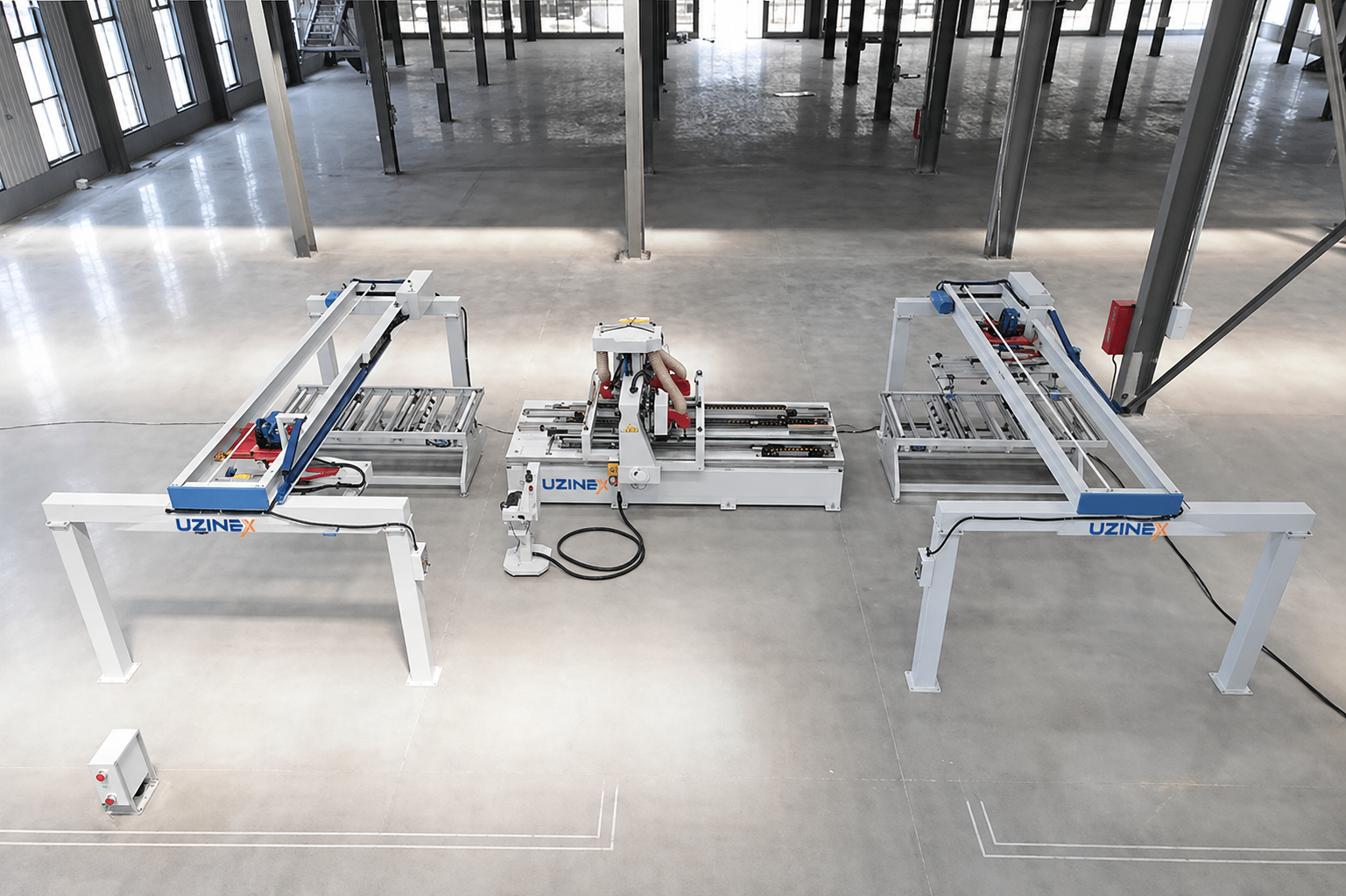

The four-side door cutting machine with automatic loading and unloading is the final sizing machine for wooden doors, composite panels and plywood that simultaneously cuts all four sides of the door, with fully automated loading and unloading via barcode scanning.
The four-side door cutting machine with automatic loading and unloading (model M2-1128) processes doors with a length of 1700–2800mm, a width of 390–1100mm and a thickness of ≤70mm, main motor 5,5kW, adjustment motor 1,5kW, blade OD300/ID30mm + OD120/ID22mm, total 25kW and 3000kg.
The four-side door cutting machine with automatic loading and unloading has an automatic barcode scanning system that identifies each door on entry and automatically loads the corresponding cutting dimensions, eliminating manual setup between door types. The integrated conveyor belt removes waste from the work area without manual intervention. Transport, installation and commissioning included. 60-month warranty. Technical specifications: four-side door cutting machine with automatic loading and unloading
| Parameter | Value |
|---|---|
| Model | M2-1128 |
| Processing length | 1.700 – 2.800 mm |
| Processing width | 390 – 1.100 mm |
| Processing thickness | ≤ 70 mm |
| Main motor | 5,5 kW |
| Adjustment motor | 1,5 kW |
| Main blade | OD 300 mm × ID 30 mm |
| Adjustment blade | OD 120 mm × ID 22 mm |
| Total power | 25 kW |
| Weight | 3.000 kg |
| Loading | Automatic with barcode scanning |
| Unloading | Automatic |
| Waste removal | Integrated conveyor belt |
Compatible materials
| Material | Maximum thickness |
|---|---|
| Solid wood (oak, fir, beech, pine) | ≤ 70 mm |
| Composite doors (solid wood + MDF + veneer) | ≤ 70 mm |
| Structural plywood | ≤ 70 mm |
| Medium- and high-density panels (MDF) | ≤ 70 mm |
| Composite panels for doors | ≤ 70 mm |
The four-side door cutting machine with automatic loading and unloading is configured at the quotation stage according to the range of doors in the specific production. Free technical consultancy available. Advantages of the four-side door cutting machine with automatic loading and unloading
• Simultaneous four-side cutting: all four final door dimensions in a single cycle. The four-side door cutting machine with automatic loading and unloading is equipped with multiple sets of blades that simultaneously cut all four sides of the door: the ends (length) and the side faces (width). The simultaneous four-side cutting of the four-side door cutting machine with automatic loading and unloading eliminates two separate cutting operations on conventional saws and the manual repositioning of the door between cuts, significantly reducing cycle times and the risk of dimensional error caused by repositioning.

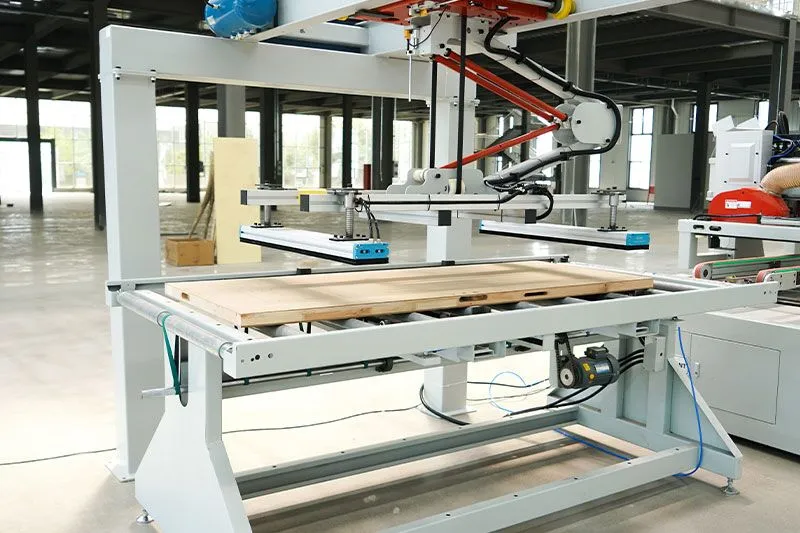

• Automatic loading and unloading with barcode scanning: production without continuous supervision. The four-side door cutting machine with automatic loading and unloading has a system for automatically loading doors from the stack and automatically unloading them after cutting, with each door identified by barcode scanning. The automatic scanning of the four-side door cutting machine with automatic loading and unloading loads the cutting dimensions corresponding to the identified door type, eliminating manual setup between the different formats in the production batch and allowing mixed batches to be processed without human intervention on each door.
• Processing of doors 1700–2800mm long and 390–1100mm wide: the complete range for interior door production. The four-side door cutting machine with automatic loading and unloading covers all standard interior door formats: from bathroom and WC doors (600–700mm wide, 1900–2000mm long) to room and wardrobe entry doors (800–900mm wide, 2000–2100mm long) and garage or technical-space doors (1000–1100mm wide, 2400–2800mm long). The complete range of the four-side door cutting machine with automatic loading and unloading eliminates the need for separate equipment for different door formats.
“Four-sided door cutting with automatic loading and unloading removes the need for separate equipment for different door formats.”
• Main blade OD300/ID30mm and adjustment blade OD120/ID22mm: clean edge on solid wood and doors with veneer or foil. The four-side door cutting machine with automatic loading and unloading has a 300mm main blade for the complete cut and a 120mm adjustment blade that acts as a pre-scorer, eliminating chipping of the veneer or foil on the visible face. The combination of the two blades of the four-side door cutting machine with automatic loading and unloading produces a clean edge with no tear-out, ready without additional sanding.
• Main motor 5,5kW and adjustment motor 1,5kW: adequate power for solid wood and thicknesses up to 70mm. The four-side door cutting machine with automatic loading and unloading has a total power of 25kW that drives the 5,5kW main motor for cutting the four sides and the 1,5kW adjustment motor for adjusting the blade position to the dimensions in the cutting programme. The available power of the four-side door cutting machine with automatic loading and unloading ensures cutting without slowdown on dense solid-wood doors (oak, beech) at the maximum thickness of 70mm.
• Waste removal conveyor belt and 3000kg construction: clean operation and industrial durability. The four-side door cutting machine with automatic loading and unloading has an integrated conveyor belt that continuously removes the cut ends and edges from the work area, keeping the area free of waste without manual intervention. The robust 3000kg construction of the four-side door cutting machine with automatic loading and unloading ensures stability against vibration at high cutting speeds and durability for intensive serial door production. 60-month UZINEX warranty, national technical support within 24–48 hours.
Applications: four-side door cutting machine with automatic loading and unloading
Factories of solid wood and composite interior doors use the four-sided door cutting machine with loading and.
Door manufacturers for construction projects: residential developments, hotels, office buildings.
Installed power 25 kW
Factories producing interior doors from solid wood and composite use the four-side door cutting machine with automatic loading and unloading as the last sizing operation before applying the finish. After the door is assembled (frame + panels + veneer or foil), the four-side door cutting machine with automatic loading and unloading cuts it to the exact final dimensions on all four sides in a single cycle, ensuring perpendicular corners and dimensions that meet the tolerances for fitting the frame and hinges.
Door manufacturers for construction projects (residential developments, hotels, office buildings) use the four-side door cutting machine with automatic loading and unloading for the serial production of doors with standardised dimensions or with multiple dimensions managed through barcode scanning. The complete automation of loading and unloading of the four-side door cutting machine with automatic loading and unloading allows a large volume of doors to be produced per shift with a single line-supervision operator. Frequently asked questions about the four-side door cutting machine with automatic loading and unloading
Can the four-side door cutting machine with automatic loading and unloading process pre-veneered doors or doors with applied foil?
Yes. The four-side door cutting machine with automatic loading and unloading has a 120mm adjustment blade that eliminates chipping of the veneer or foil on the visible face of the door. The speed and feed parameters are adjusted according to the type of door finish. At installation, UZINEX provides the recommended settings for the materials in the customer's specific production. Is the four-side door cutting machine with automatic loading and unloading eligible for European funding?
Yes. UZINEX is a member of the Enterprise Europe Network and supplies equipment for EU-funded projects. The four-side door cutting machine with automatic loading and unloading can be listed in SEAP/SICAP. Leasing and credit options on the UZINEX credit and leasing page. Why UZINEX for the four-side door cutting machine with automatic loading and unloading
• Configuration for the door range included: UZINEX enters the cutting programmes for the door formats in the customer's production and calibrates the scanning system at commissioning.
• Transport, installation and commissioning included: complete installation and operator training.
• 60-month warranty: extended coverage for industrial door production.
• Spare parts in stock: blades, components and accessories quickly available in Romania.
• National technical support within 24–48 hours: technicians with nationwide coverage.
• Eligible for European funding: complete technical documentation for PNRR, POR and other active programmes.
Four-side door cutting machine with automatic loading and unloading UZINEX: model M2-1128, simultaneous 4-side cutting, length 1700–2800mm, width 390–1100mm, thickness ≤70mm, main motor 5,5kW, adjustment motor 1,5kW, blade OD300/ID30mm + OD120/ID22mm, total 25kW, 3000kg, automatic loading with barcode scanning, automatic unloading, waste conveyor belt, 60-month warranty, transport, installation and commissioning included throughout Romania.
