Solar Panel Recycling Plant URSTAG

Product code: UZX-383

The first generations of solar panels are now reaching end of life, generating a valuable but hard-to-process waste stream.

USR-60
300
USR-1500
390
USR-F60
240
Operating voltage
380 ± 10 V standard; optional 415 V and 440 V
AI takes care
AI manual & maintenance
Transport & commissioning
Free across Romania
SEAP / SICAP
Eligible for public procurement
European funds
PNRR · POR · Just Transition
Industries served

Recommended applications

AIR · WATER CYCLEEVAP19–35kWCOND+55°C-7°CCOP 4.2 · R32 · A+++UZX-HPCREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

End-of-life solar panels

CONVEYOR BELTM1M22 400v = 0.5 m/sXYUZX-CNVREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Solar parks

MAGNETIC SEPARATIONNSFE+→ NON-FERROUS2 000UZX-MAGREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Aluminium and glass recovery

SCREENING · SORTINGL 1 600Ø 800 · MAX 80 RPMUZX-RSCREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

WEEE operators

Technical data

Technical specifications

USR-60300
USR-1500390
USR-F60240
Operating voltage380 ± 10 V standard; optional 415 V and 440 V
ProcessPurely physical (mechanical), with integrated dust removal
Recovery rateOver 95%
Panel componentRecovered material
Aluminum frameAluminum
Toughened glassGlass
EVA encapsulation layerPolymers / plastic
Solar cellsSilicon, silver
Back sheetPlastic
Junction boxCopper, plastic
SectionRole
1. Junction box removingFor panels with one or more junction boxes
2. Aluminum frame removingRemoving the frame from the panel edges
3. Glass removingSeparating the glass from the panel surface
4. Crushing and sortingHigh-purity silicon, metal, plastic
About this equipment

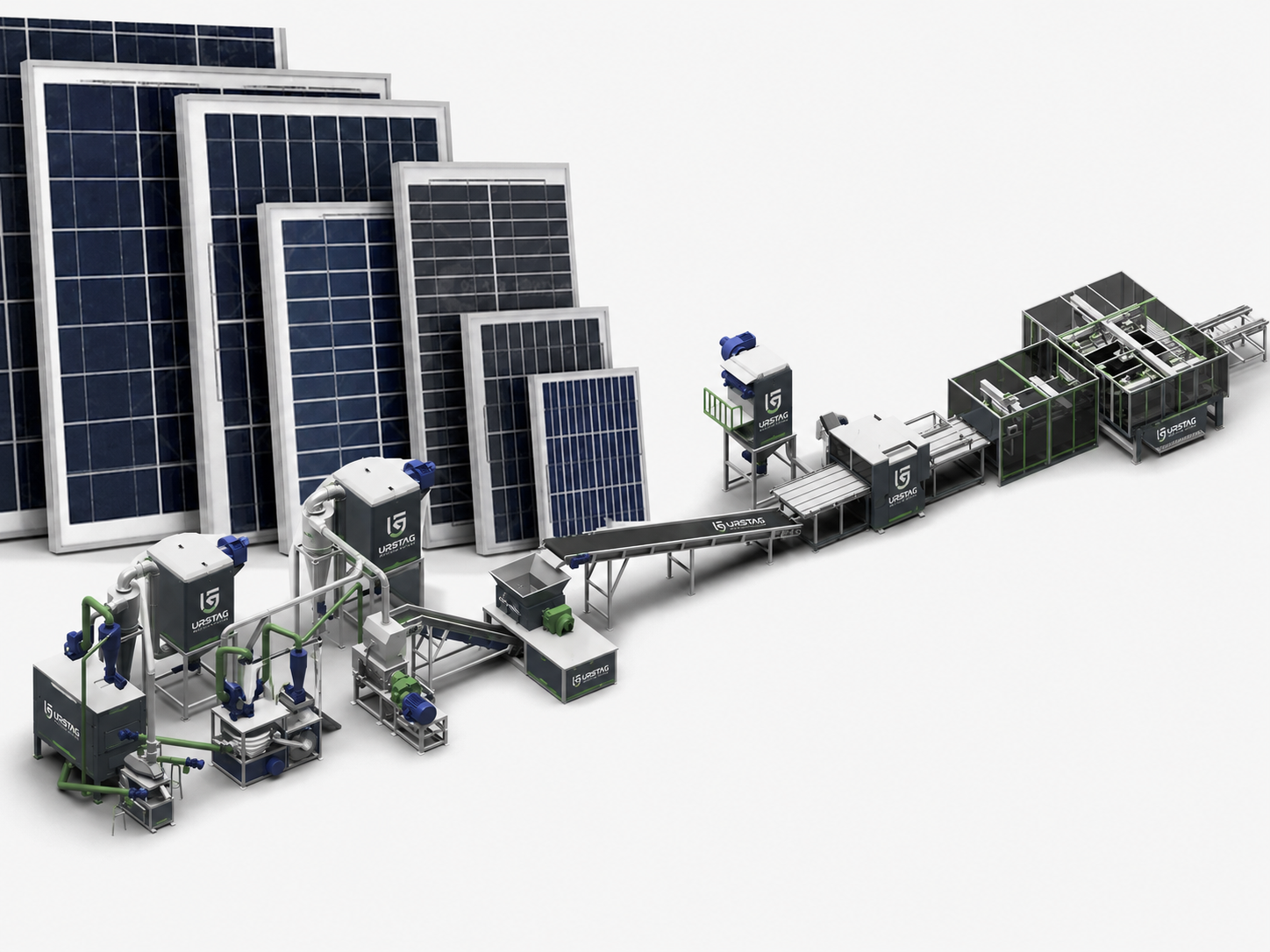

This URSTAG solar panel recycling machine plant recovers silicon, silver, copper, glass, plastic and aluminium from end-of-life panels in an automated physical process with no chemicals. It removes the junction box, frame and glass, then shreds, grinds and sorts, and the USR models process 50–60 panels per hour or 1000–1500 kg/h.

Key Advantages of a Solar Panel Recycling Machine

• Integrated dust removal, the equipment includes pulse dust removal and air purification, with no dust or pollution during operation.

• High-purity products, the integrated crushing and sorting processes yield high-purity silicon powder, metal and plastic.

• Mono and polycrystalline compatible, it processes both monocrystalline and polycrystalline panels.

• Modular configurations, capacities from 50-60 PCS/h to 1000-1500 kg/h, plus turnkey solutions.

• Structured dismantling, four functional sections: junction box, frame, glass, crushing and sorting.

Technical Specifications, Solar Panel Recycling Plant

ModelPower (kW)Dimensions (mm)Capacity
USR-6030055000×8671×500050-60 PCS/h
USR-150039057000×8000×60001000-1500 kg/h
USR-F60240108000×11000×550050-60 PCS/h
Operating voltage380 ± 10 V standard; optional 415 V and 440 V380 ± 10 V standard; optional 415 V and 440 V380 ± 10 V standard; optional 415 V and 440 V
ProcessPurely physical (mechanical), with integrated dust removalPurely physical (mechanical), with integrated dust removalPurely physical (mechanical), with integrated dust removal
Recovery rateOver 95%Over 95%Over 95%

Recovered Materials

Panel componentRecovered material
Aluminum frameAluminum
Toughened glassGlass
EVA encapsulation layerPolymers / plastic
Solar cellsSilicon, silver
Back sheetPlastic
Junction boxCopper, plastic

Applications for a PV Panel Recycling Line

A solar panel recycling plant is intended for electronic waste management operators, specialized recyclers and companies processing decommissioned solar panels. As first-generation photovoltaic systems reach the end of their life cycle, this waste stream grows, and recovering the valuable materials from panels becomes both an economic opportunity and an environmental necessity.

Decommissioned photovoltaic panels fall under the European regulations on waste electrical and electronic equipment; a solar panel recycling plant delivered in Europe is designed in line with the requirements of the WEEE Directive 2012/19/EU. For integration into a complete recycling flow, see also the complete industry solutions.

The value of the materials recovered by a solar panel recycling plant is significant: a panel contains good-quality glass, an aluminum frame, polymers, silicon, copper and silver paste (used for the printed conductors on each cell), of which over 95% can be successfully recovered. Silver and copper, in particular, are precious, valuable metals whose recovery economically justifies processing panels at end of life.

The fully automated process of a solar panel recycling plant is designed for efficiency and low cost: the automated flow significantly reduces labor costs and accelerates processing speed. From the initial dismantling of the junction box and frame to the final sorting of high-purity materials, the entire process runs continuously, with minimal human intervention.

The eco-friendly nature of a solar panel recycling plant is essential for compliance: the entire system relies on purely physical means, with no chemicals. In addition, the equipment is fitted with pulse dust removal systems and air purification units, ensuring the absence of dust and pollution during operation and compliance with stringent environmental emission standards.

The high purity of the final products of a solar panel recycling plant opens valuable markets: the integrated crushing and sorting processes yield high-purity silicon powder, metal and plastic, all sellable as secondary raw materials. The precise separation, through mechanical, pneumatic and electrostatic stages, ensures a purity that allows the materials to be reintroduced into production processes.

The Four Functional Sections

SectionRole
1. Junction box removingFor panels with one or more junction boxes
2. Aluminum frame removingRemoving the frame from the panel edges
3. Glass removingSeparating the glass from the panel surface
4. Crushing and sortingHigh-purity silicon, metal, plastic

How It Works

1. The removing machine takes the junction box off the panel.

2. The removing machine separates the aluminum frame from the panel edges.

3. The glass removing machine mechanically separates most of the glass from the surface.

4. The twin-shaft shredder tears the pre-treated panel into strips, then the crusher reduces it to 1-2 cm pieces.

5. The fine grinder, with a return system, grinds the material; non-conforming particles are re-processed.

6. The air separator and then the electrostatic separator sort the silicon powder, metal and plastic at high purity.

Qualified material is transferred by negative pressure between stages, and the final electrostatic sorting ensures precise separation of pure plastic and high-purity metal. A solar panel recycling plant thus produces quality final materials, ready to be reintroduced into production processes.

What Uzinex provides

• Delivery, installation and commissioning, with operator training on your own production.

• 60-month warranty and service with on-site response in under 24 hours in Romania (24–72 hours in other countries).

• Technical documentation for EU-funded, PNRR and public procurement projects.
