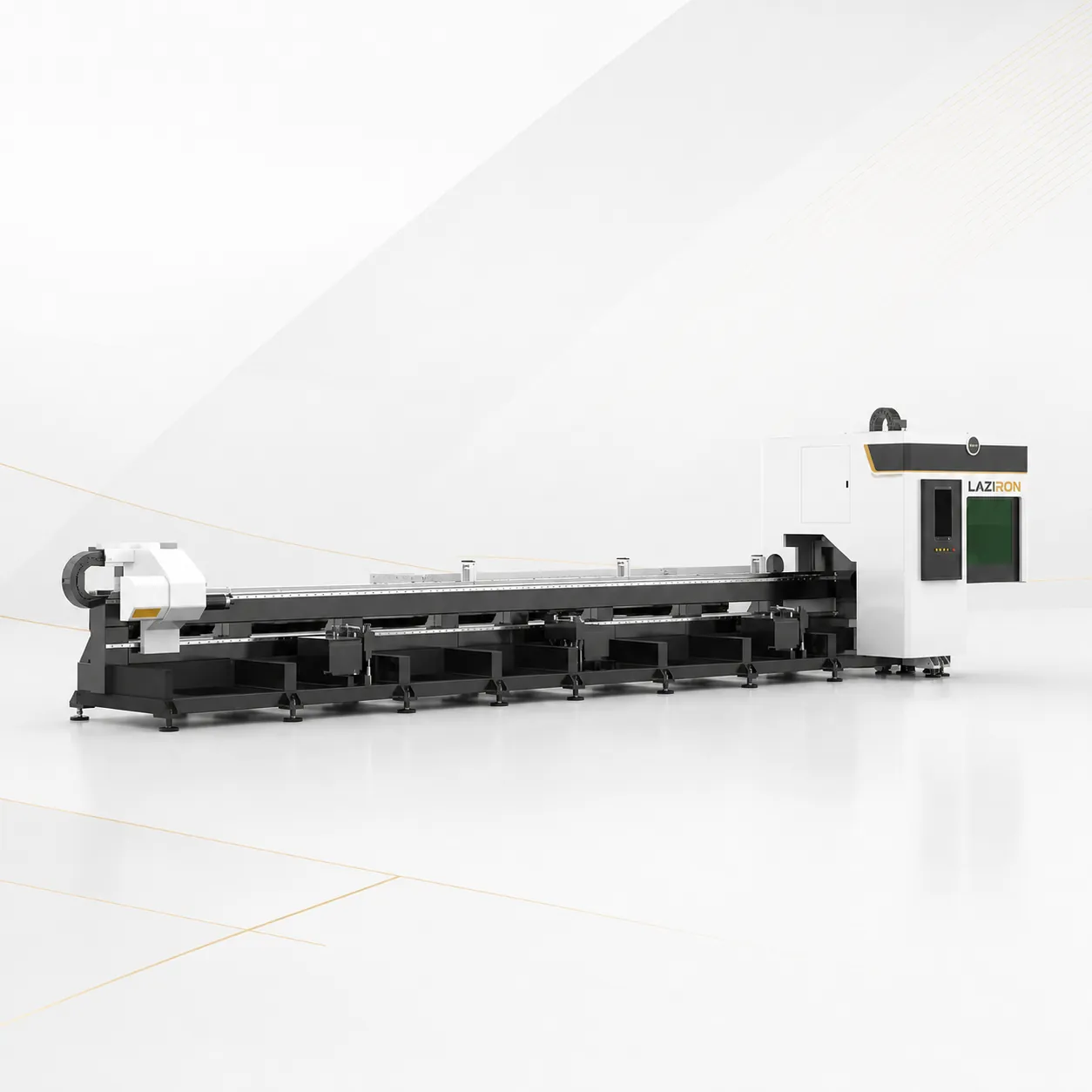

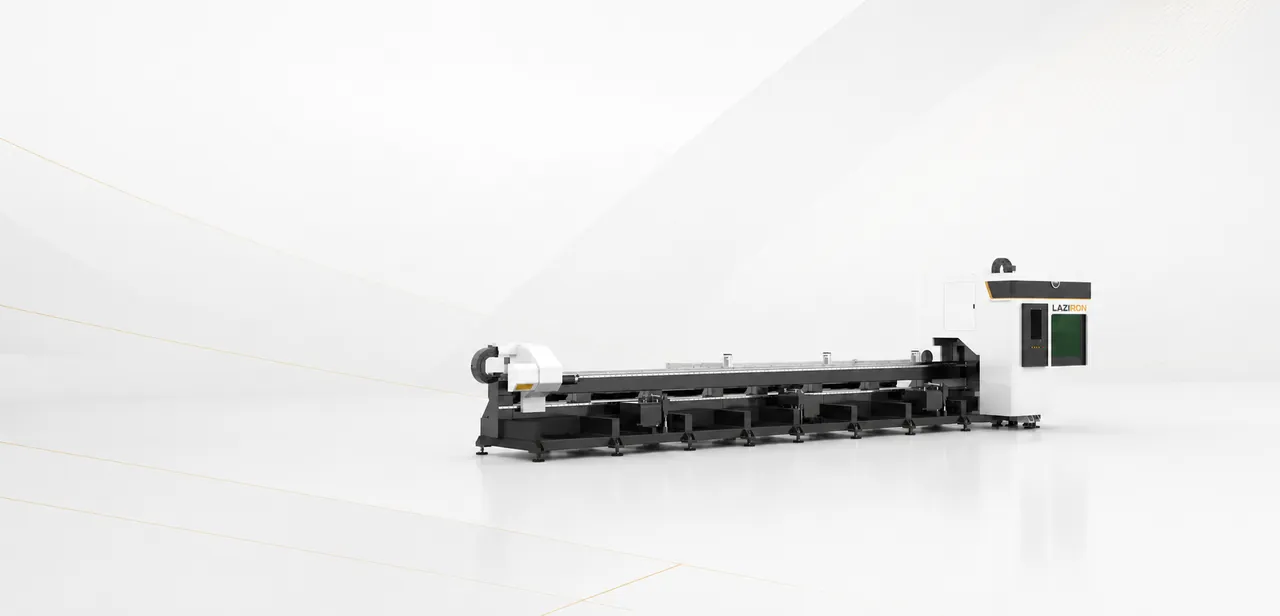

LAZIRON T2S side-hanging tube laser machine: Cypcut, RayTools, premium fiber. Industrial quality at an affordable price for European tube-processing workshops.
| Fiber laser source power | 1.5 / 2 / 3 kW (optional) |
| Round tube diameter | Ø20 – Ø230 mm |
| Rectangular profiles | 20×20 – 200×200 mm |
| Permissible wall thickness | 1 – 8 mm |
| Maximum tube length | 6500 mm |
| Maximum tube weight | 250 kg |
| Frame type | Side-hanging |
| Floor footprint | 30-40% smaller than standard T2 |
| Number of chucks | 2 (pneumatic) |
| Positioning accuracy | ±0.05 mm |
| Numerical control system | Cypcut PC-based with tube module |
| Cutting head | RayTools with capacitive autofocus |
| Cooling system | S&A water chiller |
Side-hanging tube laser machine LAZIRON solves the specific problem of workshops with limited shop-floor space by eliminating the classic gantry frame and replacing it with a side-hanging system that allows tubes to be loaded from the side without obstructing the surrounding production flow.
With a fiber laser source between 1.5 and 3 kW and the capacity to process tubes up to 230 mm in diameter, every side-hanging tube laser machine LAZIRON T2S retains the cutting performance of a standard T2 model, but in a footprint 30-40% smaller, the ideal solution for workshops that want to add laser cutting without relocating existing equipment.
Side-hanging tube laser machine LAZIRON T2S concentrates in a single system the advantages that matter on a tube production line: repeatable precision, parameter automation, predictable operating costs and long service life for critical components.
• Side-hanging system, eliminates the classic gantry frame and allows tubes to be loaded from the side, freeing the front and rear space for crane or palletizer handling.
• Footprint reduced by 30-40%, compared with a standard T2 machine, ideal for workshops with expensive shop-floor space or fixed equipment already in place.
• Fiber laser power 1.5–3 kW, optimized for medium-volume workshops with a typical mix of tubes for metalwork, furniture and lightweight metal structures.
• Tube capacity Ø20–Ø230 mm, covers the typical range for furniture factories, railings, gates and sports components.
• RayTools head with capacitive autofocus, automatic transitions between materials, identical to the higher-end models, with no compromise on edge quality.
• Pneumatic 4-jaw chuck, adjusts automatically to the tube profile (round, square, rectangular, U), eliminating manual jaw changes.
• Cypcut software with tube module, includes a parametric library for typical parts and allows direct DXF import for custom contours.
This side-hanging tube laser machine LAZIRON is available in standardized configurations, the choice being made according to the mix of tubes processed and the workshop's monthly production volume.
| Parameter | Value |
|---|---|
| Fiber laser source power | 1.5 / 2 / 3 kW (optional) |
| Round tube diameter | Ø20 – Ø230 mm |
| Rectangular profiles | 20×20 – 200×200 mm |
| Permissible wall thickness | 1 – 8 mm |
| Maximum tube length | 6500 mm |
| Maximum tube weight | 250 kg |
| Frame type | Side-hanging |
| Floor footprint | 30-40% smaller than standard T2 |
| Number of chucks | 2 (pneumatic) |
| Positioning accuracy | ±0.05 mm |
| Numerical control system | Cypcut PC-based with tube module |
| Cutting head | RayTools with capacitive autofocus |
| Cooling system | S&A water chiller |
A side-hanging tube laser machine LAZIRON is the optimal choice for workshops with rented halls in industrial parks, where every m² costs money monthly and where expanding capacity with a standard machine would mean relocating other equipment.
Metal furniture workshops and railing factories in urban spaces use a single side-hanging tube laser machine LAZIRON T2S to integrate laser cutting into the existing flow without renting additional space. The side-loading system allows the machine to be positioned against a wall or between other equipment, eliminating the front-to-rear corridor requirement typical of gantry machines.
Subcontractors offering tube laser cutting services to local manufacturers find in the side-hanging tube laser machine a practical way to fit the equipment into a standard 100-150 m² hall without reorganization. Industrial hardware workshops and small sports-equipment factories pay off the difference in space saved within the first 2-3 years of rent.
With fiber laser sources between 1.5 and 3 kW, every side-hanging tube laser machine LAZIRON LAZIRON T2S processes the typical range of tubes for metal fabrication and industrial furniture workshops.
A Cypcut library pre-programmed with standard furniture parts, railings and tubular structures allows production to start with minimal CAD editing.
Maximum wall thickness per material (in the maximal configuration)
• Carbon steel (max. wall thickness): 8 mm
• Stainless steel 304/316: 6 mm
• Aluminum: 5 mm
• Standard profiles (round, square, rectangular): all
The workflow of a side-hanging tube laser machine LAZIRON LAZIRON T2S makes the most of the side-access advantage for fast loading and unloading.
1. The operator inserts the tube through the side of the machine, without blocking the front handling corridor.
2. The main pneumatic chuck automatically clamps the tube and reports the zero point to the Cypcut system.
3. The program is selected from the parametric library or loaded from a custom DXF.
4. The RayTools head follows the contour with continuous autofocus, while the chuck rotates the tube in sync.
5. Finished parts drop onto the side conveyor, unloaded without getting in the way of other equipment in the workshop.
6. The residual tube is removed through the same side, closing the cycle without lengthy maneuvers.
For integration with other metal-processing equipment, the machine connects natively to tube-bending machines and to the other LAZIRON lines through a shared MES.
What concrete advantage does the side-hanging system bring over a gantry frame?
Three measurable advantages: a footprint 30-40% smaller on the floor (saving 20-30 m² of hall), elimination of the mandatory front-to-rear corridor (another 15-20 m² recovered), and the ability to position it against a wall or between other equipment. Overall, a LAZIRON T2S side-hanging tube laser machine fits in halls where a T2 gantry could not be installed.
Do I lose processing capacity compared with a T2 gantry model?
No, the cutting performance is identical (diameters, thicknesses, precision). The only limitation is the maximum tube weight (250 kg vs 300 kg on the T2 gantry), which nonetheless covers 95% of common applications for small-to-medium workshops.
Can I integrate a side-hanging tube laser machine with an automatic loading system?
Yes, LAZIRON optionally offers a side magazine with 8-12 pre-loaded tubes, synchronized with Cypcut for automatic loading between cycles. This option adds 20-25% to the base cost, but enables continuous production for batches of more than 30-50 identical tubes.
What hall size do I need?
For the standard 6500 mm tube length configuration: minimum hall 10 × 4 m (machine + side loading space + parts unloading area), clear height 3 m. By comparison, a T2 gantry model with the same capacity requires a minimum of 14 × 6 m. Three-phase 380 V power supply with an absorbed power of 15-30 kVA depending on the laser source.
What delivery, installation and training are included?
Transport and commissioning are included in the purchase price across Romania, together with initial operator training. For other destinations, delivery is quoted per order.
The decision to invest in a side-hanging tube laser machine is not made on technical specifications alone; what counts is how the equipment translates into real monthly cash-flow figures for your tube-processing workshop.
For workshops that currently subcontract tube laser cutting at 1.0-1.5 EUR per linear meter cut plus material cost, bringing it in-house with a LAZIRON side-hanging tube laser machine reduces the effective cost per processed meter by 60-75%. At a monthly volume of 800-1500 linear meters processed in-house instead of subcontracted, the investment is recovered in 18-30 months under current European market conditions.
The extra margin comes from three directions: savings over subcontracting, offering cutting services to local external clients (1.2-1.8 EUR/m at the level of the European market in 2026), and reducing delivery times to end customers by 40-60%, which allows premium pricing on urgent or short-deadline orders.
LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious tube-processing workshop can sustain, even without the multi-million-euro CAPEX budgets of large factories.
• Affordable price for the compact configuration, the critical components are those used by premium manufacturers, but the LAZIRON package costs 30-40% less than European alternatives.
• 60-month warranty, with on-site service intervention in under 24 hours anywhere in Romania.
• Technical support and service, phone support, spare parts and on-site intervention in under 24 hours anywhere in Romania.
• Free pre-delivery inspection, with full validation of the side-hanging system on your reference material.
• European funds compatibility, meets the requirements of PNRR, ERDF and national industrial digitalization funds.
• Standards-compliant components, the fiber source meets the reliability specifications of the world's leading manufacturers.
The fiber laser source in the standard configuration meets the reliability specifications set by the leaders of the laser industry, with a declared lifetime of over 100,000 operating hours.
See the entire LAZIRON range of metal tube processing equipment to compare models and request a personalized quote.
Side-hanging tube laser machine LAZIRON T2S turns tube cutting into a real competitive advantage: premium-grade precision, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed-cost structure.
