LAZIRON T2 tube laser cutting machine: Cypcut, RayTools, premium fiber. Industrial quality at an affordable price for European tube processing workshops.
| Fiber laser source power | 1.5 / 3 / 6 kW (optional) |
| Round tube diameter | Ø20 – Ø250 mm |
| Rectangular profiles | 20×20 – 220×220 mm |
| Allowed wall thickness | 1 – 12 mm |
| Maximum tube length | 6500 mm |
| Maximum tube weight | 300 kg |
| Number of chucks | 2 (synchronized pneumatic) |
| Intermediate support | Motorized, with automatic adjustment |
| Positioning accuracy | ±0.03 mm |
| Chuck rotation speed | 150 rpm |
| Numerical control system | Cypcut PC-based with tube module |
| Cutting head | RayTools with capacitive autofocus |
| Cooling system | S&A water chiller |

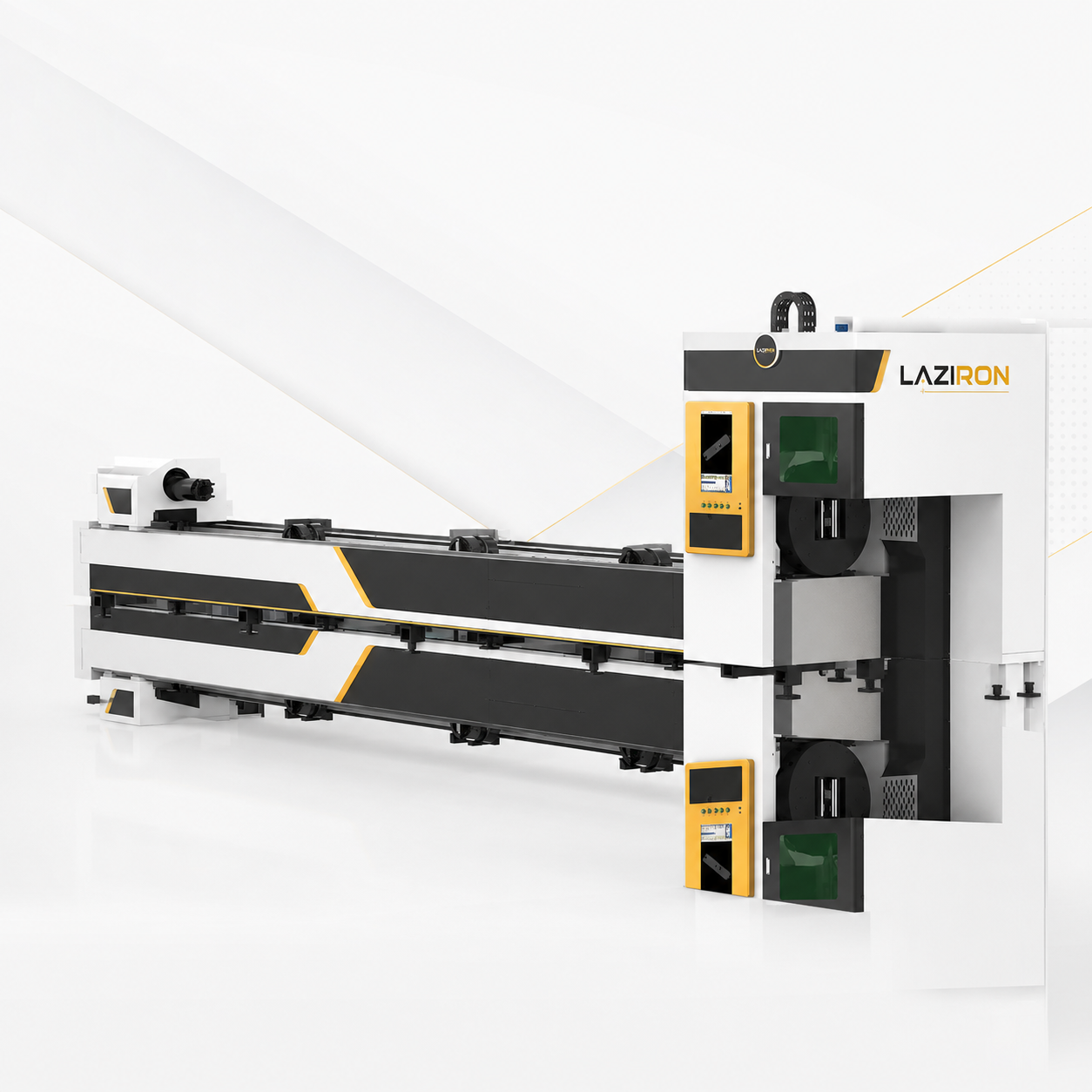

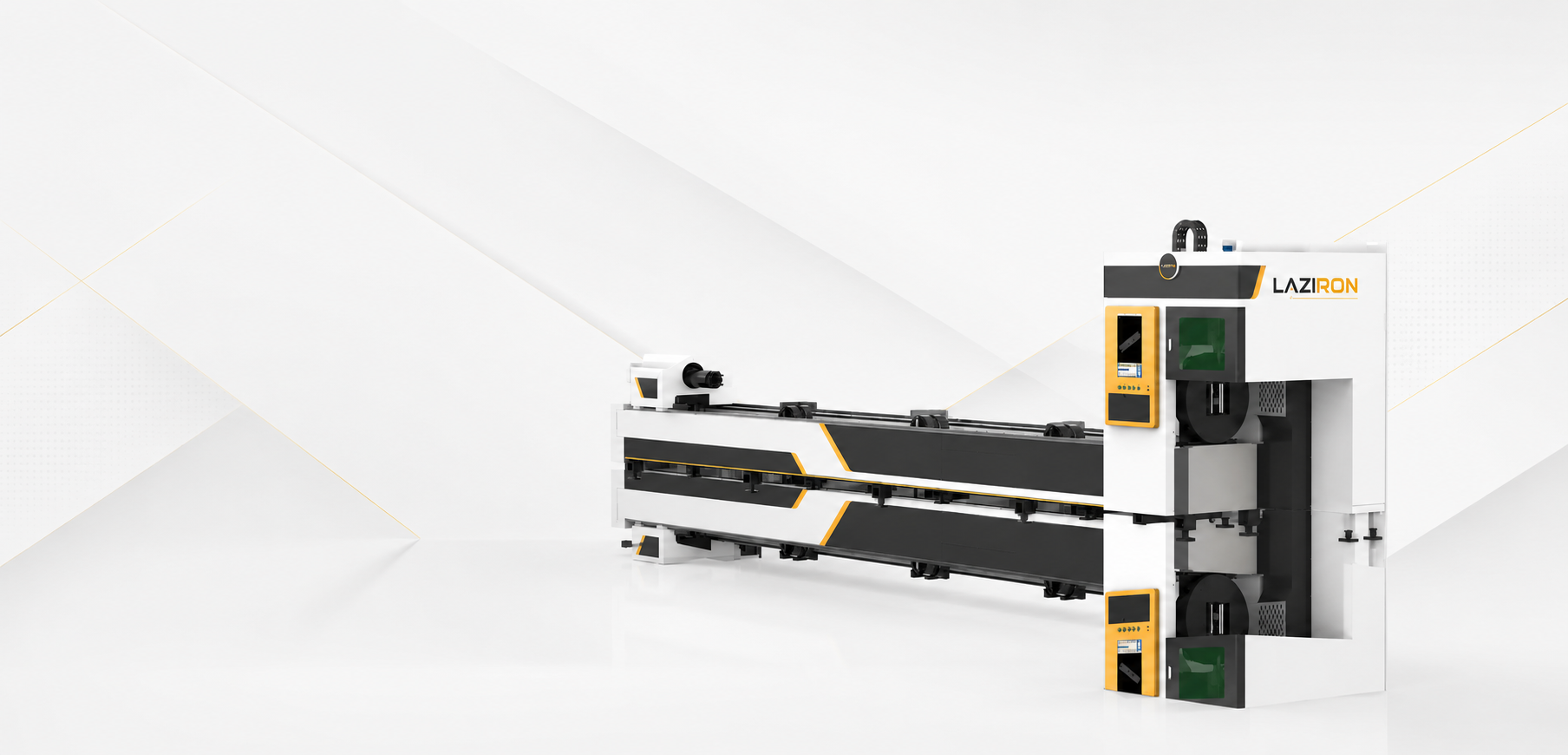

Tube laser cutting machine LAZIRON is the standard model in the LAZIRON range for workshops that routinely process medium volumes of metal tubes and profiles. The configuration with 2 chucks plus a motorized intermediate support covers most typical industrial applications.
With a fiber laser source between 1.5 and 6 kW, the capacity to process tubes up to 250 mm in diameter and a maximum length of 6500 mm, every tube laser cutting machine LAZIRON T2 delivers industrial-grade productivity at an investment that medium-to-large volume workshops can afford: metal furniture factories, fabrication producers and laser cutting subcontractors.
The LAZIRON T2 tube laser cutting machine brings together in a single system the advantages that matter on a tube production line: repeatable precision, parameter automation, predictable operating costs and a long service life for critical components.
• System with 2 pneumatic chucks: with precise digital synchronization between the fixed end and the moving one, eliminating torsion on long, thin-walled tubes.
• Fiber laser power 1.5–6 kW: configurable for workshops that process both thin tubes for furniture and structural profiles for metal construction.
• Motorized intermediate support: the rollers rise and lower automatically in sync with the program, preventing axial deflection along the entire length of the tube.
• Tube capacity Ø20–Ø250 mm: covers the entire typical range for metal fabrication, industrial furniture, construction and sports equipment.
• RayTools head with capacitive autofocus: instant transitions between materials and wall thicknesses, without manual adjustments at every program change.
• Cypcut software with advanced tube module: includes a parametric library, nesting across multiple tubes, fly-cutting and common edge to reduce material waste.
• Automatic profile detection system: scans the tube on the first pass and adjusts parameters to the real dimensional tolerances of the material.
This tube laser cutting machine LAZIRON is available in standardized configurations, the choice being made according to the mix of tubes processed and the workshop's monthly production volume.
| Parameter | Value |
|---|---|
| Fiber laser source power | 1.5 / 3 / 6 kW (optional) |
| Round tube diameter | Ø20 – Ø250 mm |
| Rectangular profiles | 20×20 – 220×220 mm |
| Allowed wall thickness | 1 – 12 mm |
| Maximum tube length | 6500 mm |
| Maximum tube weight | 300 kg |
| Number of chucks | 2 (synchronized pneumatic) |
| Intermediate support | Motorized, with automatic adjustment |
| Positioning accuracy | ±0.03 mm |
| Chuck rotation speed | 150 rpm |
| Numerical control system | Cypcut PC-based with tube module |
| Cutting head | RayTools with capacitive autofocus |
| Cooling system | S&A water chiller |
A tube laser cutting machine LAZIRON is the preferred choice of metal furniture factories, fabrication workshops for construction, fitness equipment producers and medium-to-large volume subcontractors.
Producers of structures for agricultural and industrial halls use a single tube laser cutting machine LAZIRON T2 to cut 100×100 rectangular profiles with 4-6 mm walls for welded assemblies, with precise cutouts for joint connections. The same machine also serves urban furniture factories (benches, lighting supports, bicycle racks) with steady volume.
The second-tier automotive industry (brackets, reinforcements, auxiliary frames) uses the LAZIRON T2 tube laser cutting machine for medium-series parts with ±0.03 mm repeatability. The fitness equipment and children's playground sector (tubular structures) benefits from the ability to quickly cut batches of 50-200 identical parts with complex details. Tube laser cutting subcontracting workshops in the industrial zones of Iași, Cluj and Timișoara pay off the investment in 16-26 months at typical volumes of 4-7 tonnes of tube processed monthly, serving local producers in construction and furniture.
With fiber laser sources between 1.5 and 6 kW, every tube laser cutting machine LAZIRON LAZIRON T2 covers the full range of metal tubes and profiles used in industry.
Cypcut switches parameters automatically when the material changes, and the anti-back-reflection protection allows safe cutting of copper and brass on configurations above 3 kW.
Maximum wall thickness per material (in the maximum configuration)
• Carbon steel (max. wall thickness): 12 mm
• Stainless steel 304/316: 8 mm
• Aluminum: 6 mm
• Copper and brass (with 6 kW source): 4 mm
The workflow of a tube laser cutting machine LAZIRON LAZIRON T2 is built for productive cycles with minimal operator intervention.
1. The operator loads the tube through the main chuck with a crane or manually, depending on weight.
2. The automatic detection system scans the real profile of the tube and adjusts the parameters in Cypcut.
3. The synchronized pneumatic chucks clamp the tube and report the zero point to the control system.
4. The motorized intermediate support positions itself automatically to support the tube along its entire length.
5. The RayTools head runs the program with continuous autofocus, while the chuck rotates the tube in sync.
6. The finished parts drop onto the discharge conveyor, and the waste is collected on a secondary conveyor.
For integration with other metal processing equipment, the machine connects natively to tube bending machines and to the other LAZIRON lines through a shared MES.
What is the difference between a LAZIRON T2 tube laser cutting machine and the T2L with automatic loading?
The T2 requires manual loading or crane loading of each tube. The T2L includes an automatic loading system from a side storage, eliminating operator intervention between cycles. The T2L costs 25-35% more but allows 24/7 production without supervision. For workshops running fewer than 2 shifts a day, the T2 offers the best ROI.
What laser power should I choose for a LAZIRON T2 tube laser cutting machine?
For tubes with walls under 6 mm and a mixed range of materials: 3 kW is optimal and the most popular configuration. For 6-12 mm walls or maximum speeds on stainless steel: choose 6 kW. The 1.5 kW source is only justified if you exclusively process tubes with walls under 3 mm for lightweight metal furniture.
Can I process long profiles over 6 meters?
The standard configuration supports tubes up to 6500 mm. For longer profiles (8-12 m), LAZIRON offers the T2L variant with an extended automatic loading system or the T3 model with an additional central chuck. Contact the technical team for specific requirements beyond the standard length.
How long does it take to pay off a LAZIRON T2 tube laser cutting machine?
At a volume of 3-5 tonnes of tubes processed in-house monthly (instead of subcontracting at 1.0-1.5 EUR/m), the 3 kW source pays off in 24-32 months. At 5-8 tonnes/month, the period drops to 16-22 months. The additional margin from selling cutting services to external customers (1.2-1.8 EUR/m at market level) accelerates the ROI.
What training is required for operators?
For an operator with prior experience in manual cutting or with a circular saw, training on a LAZIRON T2 tube laser cutting machine takes 3-5 days, including loading programs from Cypcut, calibrating the zero point and optimizing parameters. LAZIRON provides on-site training at purchase plus an online platform with tutorials.
The decision to invest in a tube laser cutting machine is not made on technical specifications alone: what matters is how the equipment translates into real monthly cash-flow figures for your tube processing workshop.
For workshops that currently subcontract tube laser cutting at 1.0-1.5 EUR/m of linear cut plus material cost, bringing the work in-house with a tube laser cutting machine LAZIRON reduces the effective cost per processed meter by 60-75%. At a monthly volume of 800-1500 linear meters processed in-house instead of subcontracted, the investment is recovered in 18-30 months under current European market conditions.
The additional margin comes from three directions: savings compared to subcontracting, offering cutting services to local external customers (1.2-1.8 EUR/m at the level of the European market in 2026) and reducing delivery times to end customers by 40-60%, which allows premium prices on urgent orders or those with short deadlines.
LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious tube processing workshop can afford, even without the multi-million-euro CAPEX budgets of large factories.
• Affordable price for the standard configuration: the critical components are those used by premium manufacturers, but the LAZIRON package costs 30-40% less than European alternatives.
• 60-month warranty, with on-site service intervention in under 24 hours anywhere in Romania.
• Technical support and service, phone support, spare parts and on-site intervention in under 24 hours anywhere in Romania.
• Free pre-delivery inspection: with a live test on your reference tubes and a complete acceptance report.
• European funds compatibility: meets the requirements of the PNRR, ERDF and national industrial digitalization funds.
• Standards-compliant components: the fiber source meets the reliability specifications of the leading manufacturers on the world market.
The fiber laser source in the standard configuration meets the reliability specifications set by the leaders of the laser industry, with a declared lifetime of over 100,000 operating hours.
See the entire LAZIRON range of equipment for processing metal tubes to compare models and request a personalized quote.
Tube laser cutting machine LAZIRON T2 turns tube cutting into a real competitive advantage: premium-level precision, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed cost structure.
