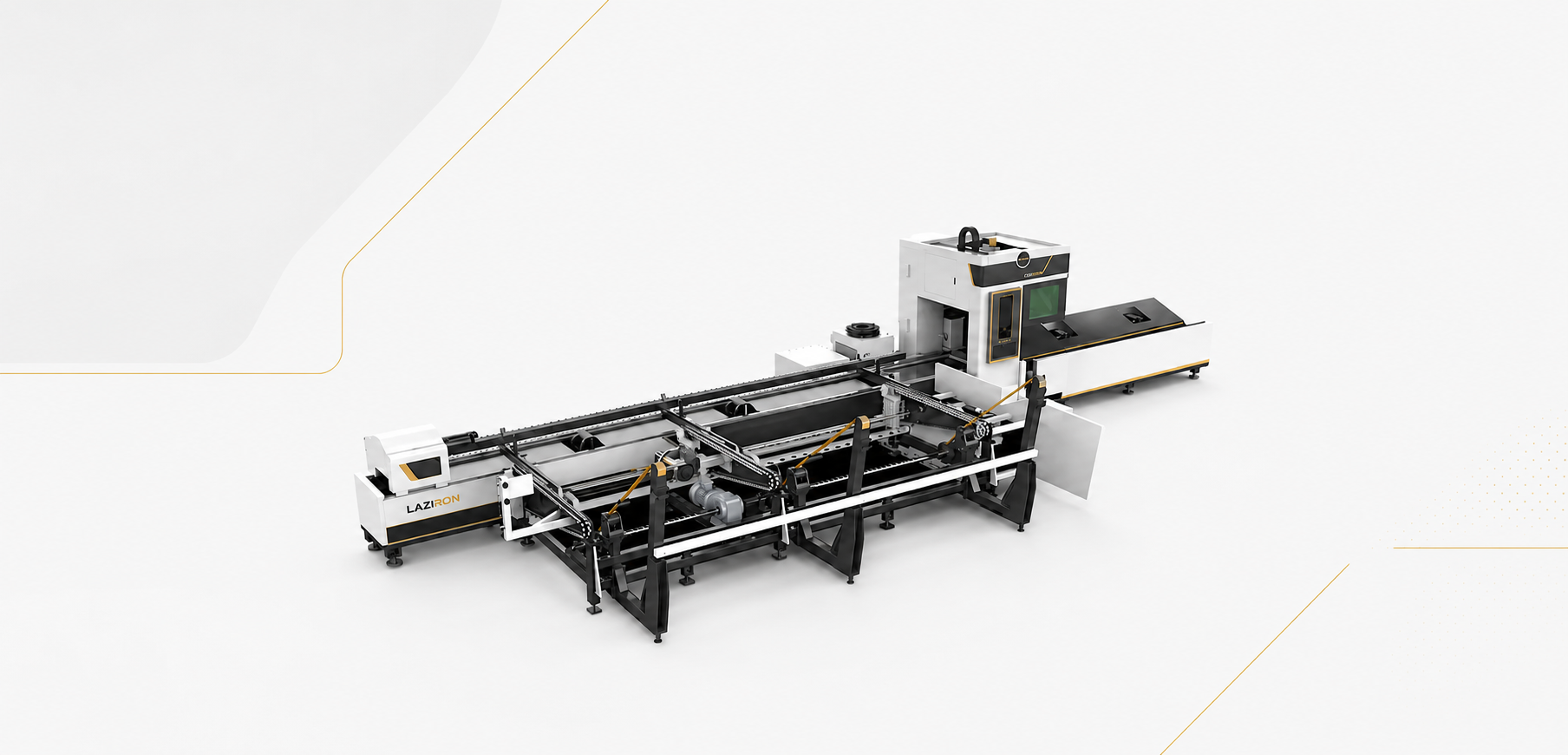

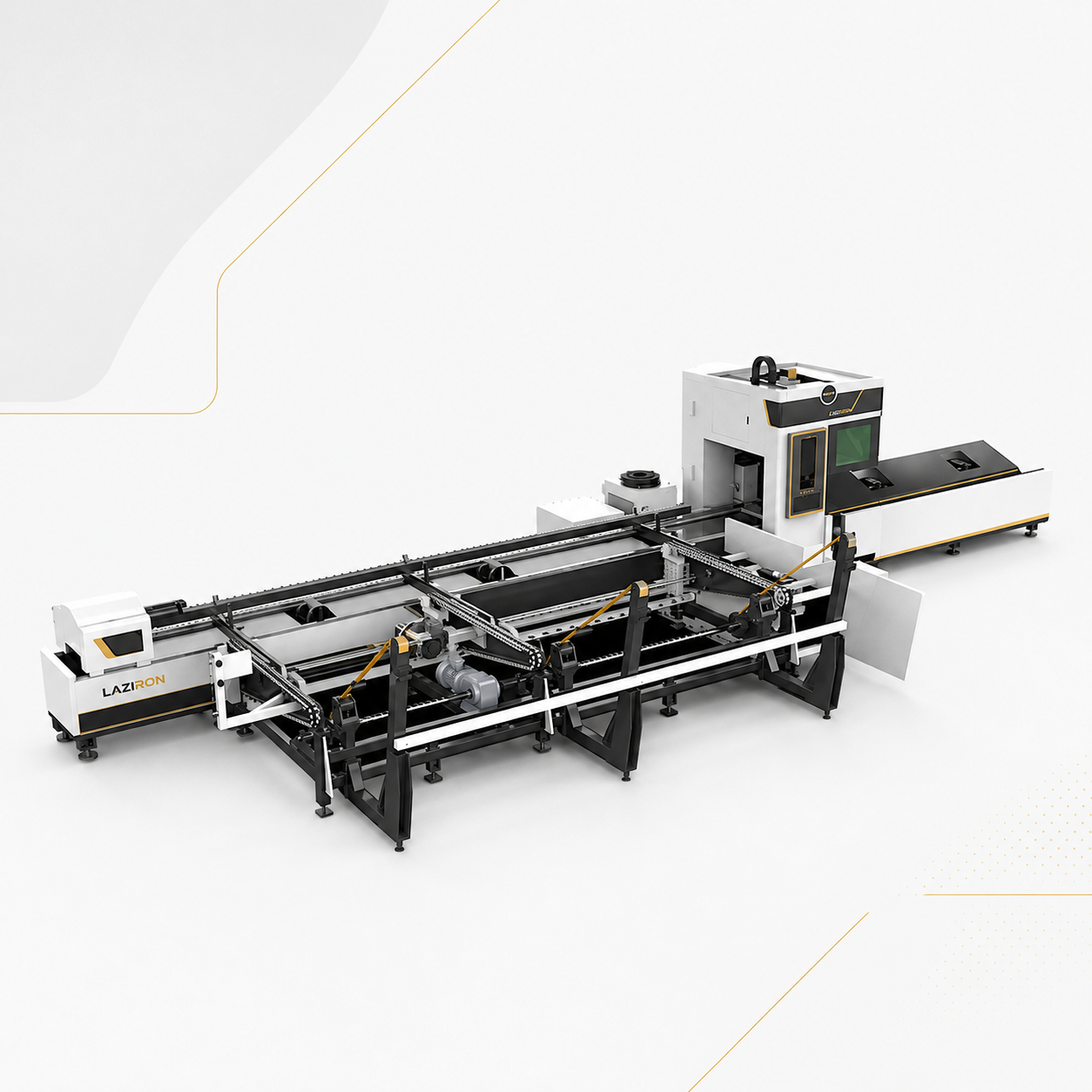

LAZIRON T2L tube laser cutting machine with automatic loading: Cypcut, RayTools, premium fiber. Industrial quality at an accessible price for European tube processing workshops.
| Fiber laser source power | 1.5 / 3 / 6 kW (optional) |
| Round tube diameter | Ø20 – Ø250 mm |
| Rectangular profiles | 20×20 – 220×220 mm |
| Permissible wall thickness | 1 – 12 mm |
| Maximum tube length | 6500 mm (optional 8000-9000 mm) |
| Magazine capacity | 10-20 pre-stocked tubes |
| Maximum tube weight | 300 kg |
| Tube change time | Under 60 seconds, automatic |
| Positioning accuracy | ±0.03 mm |
| Numerical control system | Cypcut PC-based with tube module |
| Cutting head | RayTools with capacitive autofocus |
| Cooling system | S&A water chiller |
Tube laser cutting machine with automatic loading LAZIRON removes the last point of human intervention from the tube cutting line, the loading of raw bars. The side magazine with 10-20 pre-stocked tubes feeds the machine automatically, synchronized with Cypcut, enabling continuous production without direct supervision.
With a fiber laser source between 1.5 and 6 kW, an automatic loading system from a side magazine and tube capacity up to Ø250 mm, every LAZIRON T2L tube laser cutting machine with automatic loading turns laser cutting from an assisted operation into an autonomous one, ideal for workshops with high volume and repetitive multi-shift production.
The LAZIRON T2L tube laser cutting machine with automatic loading brings together in a single system the advantages that matter on the tube production line: repeatable precision, parameter automation, predictable operating costs and a long service life for the critical components.
• Side magazine for 10-20 tubes, feeds the machine automatically, without operator intervention between cycles, allows night-shift operation without direct supervision.
• Synchronization with Cypcut, the magazine responds to commands from the cutting program, loading the next tube as soon as the finished parts are evacuated.
• Fiber laser power 1.5–6 kW, configurable for the entire industrial range, from light metal furniture to heavy structural profiles.
• Tube capacity Ø20–Ø250 mm, with standard lengths of 6500 mm or optionally 8000-9000 mm for long structural profiles.
• RayTools head with capacitive autofocus, keeps the edge quality constant throughout continuous production, with automatic compensation for dimensional variations.
• Automatic profile detection system, scans each loaded tube and adjusts the parameters for the actual tolerances, preventing defects caused by dimensional variations.
• 24/7 productivity, eliminates the dead time of manual loading (5-8 min per tube) and allows processing of 80-120 tubes per shift without pause.
This LAZIRON tube laser cutting machine with automatic loading is available in standardized configurations, the choice being made according to the mix of tubes processed and the workshop's monthly production volume.
| Parameter | Value |
|---|---|
| Fiber laser source power | 1.5 / 3 / 6 kW (optional) |
| Round tube diameter | Ø20 – Ø250 mm |
| Rectangular profiles | 20×20 – 220×220 mm |
| Permissible wall thickness | 1 – 12 mm |
| Maximum tube length | 6500 mm (optional 8000-9000 mm) |
| Magazine capacity | 10-20 pre-stocked tubes |
| Maximum tube weight | 300 kg |
| Tube change time | Under 60 seconds, automatic |
| Positioning accuracy | ±0.03 mm |
| Numerical control system | Cypcut PC-based with tube module |
| Cutting head | RayTools with capacitive autofocus |
| Cooling system | S&A water chiller |
A LAZIRON tube laser cutting machine with automatic loading is the choice for workshops with two- or three-shift production, factories with large batches of identical parts and cutting subcontractors with a constant volume above 100 tubes/day.
Manufacturers of industrial metal furniture with large series (shelving, warehouse structures, commercial furniture) use a single LAZIRON T2L tube laser cutting machine with automatic loading to process batches of 500-2000 identical tubes without operator intervention, freeing staff for higher value-added operations (welding, assembly, finishing).
The steel construction industry (tubular structures for agricultural halls, greenhouses, solar parks) and fitness equipment factories justify the investment in the tube laser cutting machine with automatic loading through payback in 14-22 months at typical volumes above 4-6 tonnes/month. Subcontracting workshops with a stable portfolio of recurring customers recover the investment even faster through 24/7 operation.
With fiber laser sources between 1.5 and 6 kW, every LAZIRON T2L tube laser cutting machine with automatic loading processes the entire industrial range of metal tubes and profiles for large batches.
The automatic profile detection system compensates for dimensional variations across batches of tubes from different lots, preventing stoppages due to focusing errors.
Maximum wall thickness per material (in the maximal configuration)
• Carbon steel (max. wall thickness): 12 mm
• Stainless steel 304/316: 8 mm
• Aluminum: 6 mm
• Standard profiles (round, square, rectangular, U, L): all
The workflow of a LAZIRON T2L tube laser cutting machine with automatic loading is built for autonomous operation, the operator intervenes only when initially loading the magazine and when emptying the pallet of finished parts.
1. The operator loads the side magazine with 10-20 raw tubes using a crane or forklift.
2. The automatic system picks up the first tube from the magazine and transfers it to the main chuck.
3. The profile detection sensor scans the tube and updates the Cypcut parameters for the actual tolerances.
4. The RayTools head runs the program with continuous autofocus, and the chuck rotates the tube in sync.
5. At the end, the parts fall onto the discharge conveyor, and the residual tube is ejected automatically.
6. The system picks up the next tube from the magazine in under 60 seconds, repeating the cycle without human intervention.
For integration with other metal processing equipment, the machine connects natively to tube bending machines and to the other LAZIRON lines through a common MES.
How much do I save with a tube laser cutting machine with automatic loading compared to a manual T2 model?
Over an 8-hour shift, eliminating the manual loading time (5-8 min per tube) brings 60-90 extra productive minutes, meaning 10-15 additional tubes processed/day. At 2 shifts per day, that means 20-30 extra tubes/day, which at an average processing cost of 3-5 EUR/tube generates 60-150 EUR/day or 18,000-45,000 EUR/year, the price difference is paid back in 8-14 months.
How big is the tube magazine?
The standard configuration supports 10-15 tubes of Ø100-Ø150 mm or 18-20 thinner tubes. For workshops with very high volumes, a second side magazine can optionally be added, doubling the capacity to 30-40 pre-stocked tubes. At typical consumption of 1 tube every 8-12 minutes, a full magazine ensures 1.5-3 hours of operation without reloading.
Can I operate the LAZIRON T2L tube laser cutting machine with automatic loading on the night shift without staff?
Technically yes, the system includes anomaly detection sensors that stop the machine and send an alert through the Cypcut cloud platform if a problem arises (jammed tube, lack of material, laser head error). In practice, most of our integrators operate with a single operator per shift to supervise 1-2 machines simultaneously, achieving double the throughput vs traditional manual operation.
What is the difference between the T2L and the T3L model with three chucks?
The T2L has 2 chucks and a side magazine, optimal for standard tubes up to 6500 mm. The T3L adds a third central chuck for very long tubes (8000-12000 mm) or for parts with very thin walls that require dynamic intermediate support. The T3L costs 35-45% more but is necessary for specific applications with very long tubes.
What training and what maintenance does it require?
For the operator: 3-5 days of on-site training, with emphasis on magazine setup, Cypcut programming and anomaly diagnosis. Maintenance: complete kit at 1000 hours (lubrication of magazine chains, sensor calibration), annual inspection of the loading system. LAZIRON includes the first maintenance kit under warranty.
The decision to invest in a tube laser cutting machine with automatic loading is not made on the basis of technical specifications alone, what matters is how the equipment translates into real monthly cash-flow figures for your tube processing workshop.
For workshops that currently subcontract laser tube cutting at 1.0-1.5 EUR/linear meter cut plus material cost, bringing it in-house with a LAZIRON tube laser cutting machine with automatic loading reduces the effective cost per processed meter by 60-75%. At a monthly volume of 800-1500 linear meters processed in-house instead of subcontracting, the investment is recovered in 18-30 months under current European market conditions.
The additional margin comes from three directions: savings versus subcontracting, offering cutting services to external local customers (1.2-1.8 EUR/m at the level of the European market in 2026) and reducing delivery times to end customers by 40-60%, which allows premium prices on urgent orders or those with short deadlines.
LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious tube processing workshop can sustain, even without the multi-million-euro CAPEX budgets of large factories.
• Accessible price for a system with automatic loading, the components (laser source, RayTools head, side magazine) are those used by premium manufacturers, but the LAZIRON package costs 35-45% less than the European alternatives.
• 60-month warranty, with on-site service intervention in under 24 hours anywhere in Romania.
• Technical support and service, phone support, spare parts and on-site intervention in under 24 hours anywhere in Romania.
• Free pre-delivery inspection, with a complete test of the automatic loading cycle on your reference tubes.
• European funding compatibility, meets the requirements of the NRRP, ERDF and national industrial digitization funds.
• Components compliant with standards, the fiber source meets the reliability specifications of the leading manufacturers on the global market.
The fiber laser source in the standard configuration meets the reliability specifications set by the leaders of the laser industry, with a declared service life of over 100,000 operating hours.
See the entire LAZIRON range of equipment for processing metal tubes to compare the models and request a personalized offer.
The LAZIRON T2L tube laser cutting machine with automatic loading turns tube cutting into a real competitive advantage: premium-level precision, sustained productivity and an accessible investment for any workshop that wants to grow without doubling its fixed cost structure.
