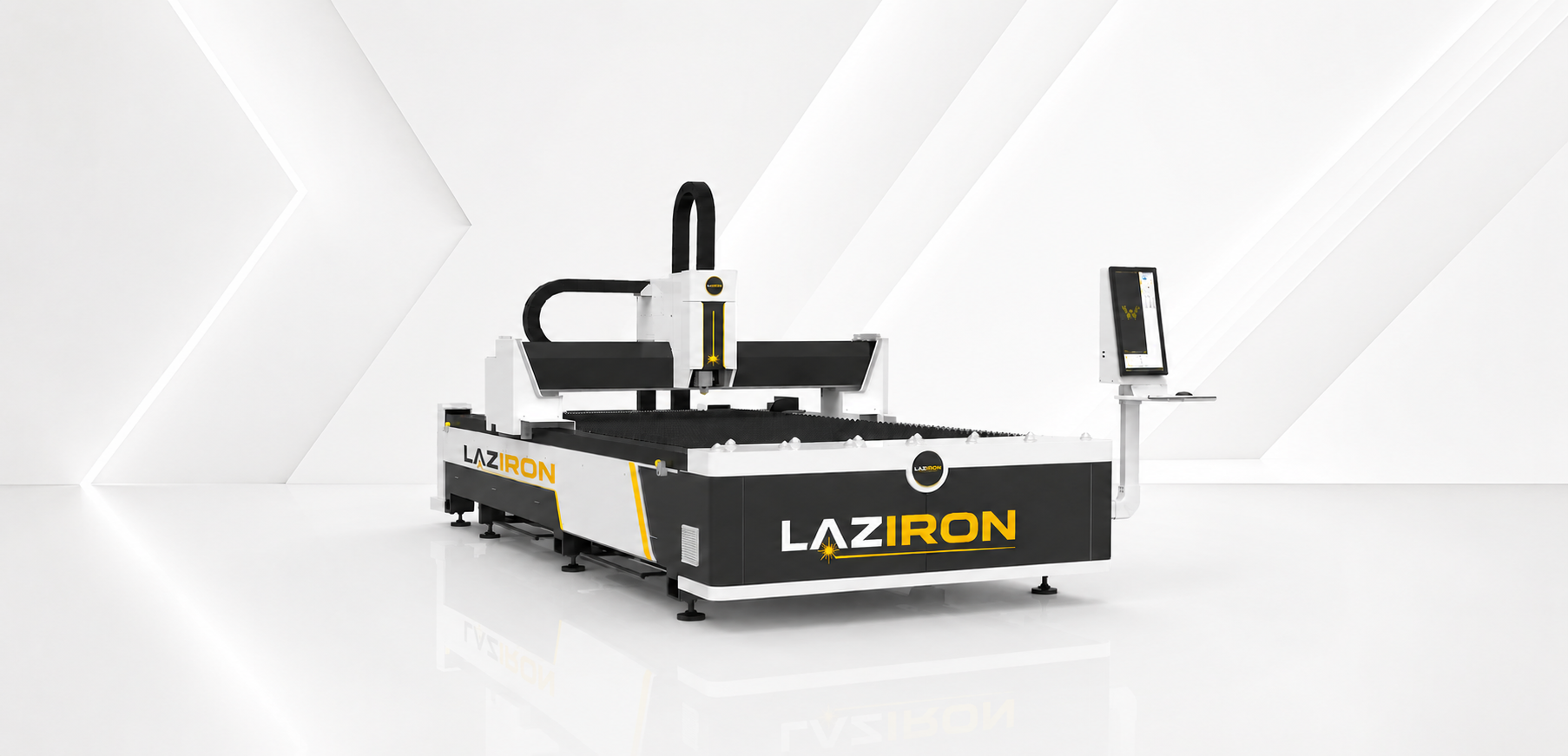

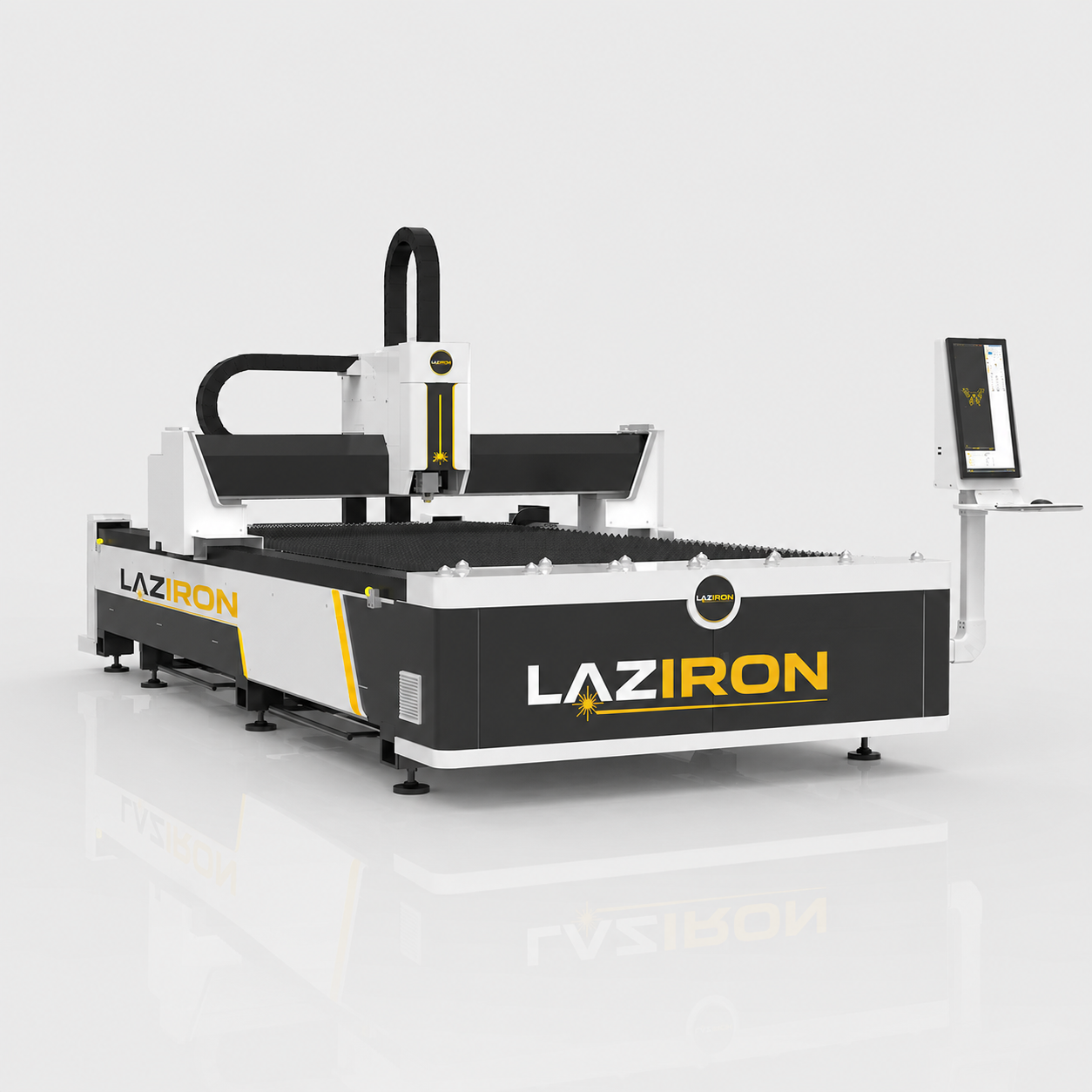

LAZIRON F flat fiber laser cutting machine: Cypcut, RayTools, premium fiber source. Industrial quality at an affordable price for European metalworking workshops.
| Fiber laser source power | 1.5 / 3 / 6 / 12 kW (optional) |
| Effective working area | 3000 × 1500 mm or 4000 × 2000 mm |
| Construction type | Single open platform |
| X/Y positioning accuracy | ±0.03 mm |
| Repositioning accuracy | ±0.02 mm |
| Focusing accuracy | 0.01 mm |
| Maximum acceleration | 1.5 G |
| Maximum travel speed | 100 m/min |
| Numerical control system | Cypcut PC-based |
| Cutting head | RayTools with capacitive autofocus |
| Cooling system | S&A water chiller |
| Supply voltage | 380 V three-phase |
Flat fiber laser cutting machine LAZIRON is the entry-level model of the LAZIRON range, built for workshops getting started with laser cutting or wanting an efficient machine for medium batches, without the extra investment of a dual-table system or enclosed cabin.
With a fiber laser source between 1.5 and 12 kW and a usable surface of 3000 × 1500 mm on a single rigid platform, every LAZIRON flat fiber laser cutting machine offers unbeatable value for money: the same premium components (Cypcut, RayTools, S&A) as the higher models, but at the lowest entry price in the LAZIRON range.
The LAZIRON F flat fiber laser cutting machine concentrates in a single system the advantages that matter on the production line: repeatable precision, automated parameters, predictable operating costs and a long service life for critical components.
• Single rigid platform 3000 × 1500 mm in the standard configuration, or 4000 × 2000 mm for workshops that frequently work with 4 × 2 m sheets, same frame, extended size.
• Fiber laser power 1.5–12 kW, configurable for workshops with a mix of materials, with the option to upgrade later without replacing the machine.
• Compact construction, minimal floor footprint, ideal for workshops with limited space where every m² has a rental cost or alternative use.
• RayTools head with capacitive autofocus, instant transitions between materials and thicknesses without manual adjustments, with parameters stored in Cypcut.
• PC-based Cypcut control system, with automatic nesting, fly-cutting, common edge cutting and a library of parametric parts, the software used on all professional machines.
• Dedicated S&A cooling, keeps the temperature of the laser source and optics constant over long cycles, extending the service life beyond the declared 100,000 hours.
• CE viewing panels, allow process monitoring without exposure to radiation, ensuring compliance with minimum safety requirements.
This LAZIRON flat fiber laser cutting machine is available in standardized configurations, the choice being made according to the mix of processed materials and the workshop's monthly production volume.
| Parameter | Value |
|---|---|
| Fiber laser source power | 1.5 / 3 / 6 / 12 kW (optional) |
| Effective working area | 3000 × 1500 mm or 4000 × 2000 mm |
| Construction type | Single open platform |
| X/Y positioning accuracy | ±0.03 mm |
| Repositioning accuracy | ±0.02 mm |
| Focusing accuracy | 0.01 mm |
| Maximum acceleration | 1.5 G |
| Maximum travel speed | 100 m/min |
| Numerical control system | Cypcut PC-based |
| Cutting head | RayTools with capacitive autofocus |
| Cooling system | S&A water chiller |
| Supply voltage | 380 V three-phase |
A LAZIRON flat fiber laser cutting machine is the choice for workshops getting into laser cutting for the first time, for small to medium factories with varied batches and for subcontractors wanting optimal value for money without expensive extra features.
Local metal fabrication workshops cut the typical range of construction parts (wall panels, ventilation slots, brackets) with a single LAZIRON F flat fiber laser cutting machine, and the monthly volume of 3-8 tonnes is processed without issues. Manufacturers of metal furniture, industrial lighting supports and components for agricultural machinery use the same frame for current production.
Rapid prototyping workshops, small factories for auxiliary medical equipment, industrial hardware manufacturers and cutting subcontractors for local clients find in the LAZIRON F flat fiber laser cutting machine the balance between an affordable entry price and professional performance sufficient for 90% of production requirements.
With fiber laser sources between 1.5 and 12 kW, every LAZIRON LAZIRON F flat fiber laser cutting machine covers the usual range of metals without significant limitations compared to the higher models.
The RayTools head with capacitive autofocus switches parameters automatically from Cypcut, and the anti-back-reflection protection allows safe cutting of copper and brass.
Maximum thicknesses per material (in the maximum configuration)
• Carbon steel (with 12 kW source): up to 25 mm
• Stainless steel (with nitrogen): up to 20 mm
• Aluminum (with 12 kW source): up to 14 mm
• Copper and brass (with 6 kW+ source): up to 8 mm
The workflow of a LAZIRON LAZIRON F flat fiber laser cutting machine is simple and direct, optimized for short cycles and frequent changes between programs.
1. The operator loads the sheet onto the worktable by crane or manually and sets the origin in Cypcut through automatic scanning.
2. The cutting program is loaded from DXF or generated from the library with automatic nesting over the 4.5 m² surface.
3. The RayTools head starts with capacitive autofocus adjusted to the material thickness from the program sheet.
4. Cutting proceeds with 1.5 G acceleration and adaptive speed depending on geometry and material, without operator intervention.
5. The anti-collision system permanently monitors the nozzle-to-material distance and stops the head in case of irregularity.
6. At the end, the finished parts are unloaded manually or by crane, and the scrap is collected for recycling.
For integration with other metalworking equipment, the machine connects natively to press brakes and to the other LAZIRON lines through a common MES.
What is the difference between the LAZIRON F flat fiber laser cutting machine and the higher LAZIRON E/EP models?
The LAZIRON F has a single platform (LAZIRON E and EP have two exchangeable tables). The E brings 25-30% higher productivity but costs 25-35% more. In addition to the table exchange, the EP also adds an enclosed cabin with fume extraction. For workshops with a volume under 5-6 tonnes/month, the LAZIRON F offers the best investment-to-performance ratio.
Which laser source should I choose for a LAZIRON F flat fiber laser cutting machine?
For workshops that predominantly cut sheet under 6 mm: the 1.5-3 kW source is sufficient and the most energy-efficient. For 6-12 mm sheet: the 6 kW source. For frequent applications over 12 mm or for maximum speeds on medium thicknesses: the 12 kW source. Sources above 12 kW are justified only on the higher models with adapted rigid frames.
How long does it take to pay off a LAZIRON F flat fiber laser cutting machine?
At a monthly volume of 3-5 tonnes processed in-house (instead of subcontracting at 0.8-1.2 EUR/m of cutting), the 6 kW version pays off in 24-36 months. At a volume of 5-8 tonnes/month, the period drops to 18-24 months. The calculation includes the savings compared to subcontracting plus the margin recovered from any services offered to external clients.
Can I add an exchangeable table or enclosed cabin later?
No, the LAZIRON F frame is optimized for a single platform. To upgrade to an exchangeable table system or enclosed cabin, we recommend reselling the F model and purchasing the E or EP model, with a buy-back program available through LAZIRON. The laser source, the RayTools head and Cypcut are 100% compatible with the higher models.
What delivery, installation and training are included?
Transport and commissioning are included in the purchase price across Romania, together with initial operator training. For other destinations, delivery is quoted per order.
The decision to invest in a flat fiber laser cutting machine is not made on the basis of technical specifications alone, what matters is how the equipment translates into real monthly cash-flow figures for your workshop.
For workshops currently subcontracting laser cutting at 0.8-1.4 EUR per linear m cut plus material cost, bringing it in-house with a LAZIRON flat fiber laser cutting machine reduces the effective cost per m² processed by 55-70%. At a monthly volume of 5-8 tonnes of sheet processed in-house instead of subcontracting, the investment is recovered in 18-30 months under current European market conditions.
The additional margin comes from three directions: the savings compared to subcontracting, offering cutting services to local external clients (1.2-1.8 EUR/m at the level of the European market in 2026) and reducing delivery times to end clients by 40-60%, which allows premium prices on urgent orders.
LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious workshop can support, even without the multi-million-euro CAPEX budgets of large factories.
• The most affordable price in the LAZIRON range, the base package costs 35-45% less than the European alternatives at the same configuration and keeps the same critical components as the higher models.
• 60-month warranty, with on-site service intervention in under 24 hours anywhere in Romania.
• Technical support and service, phone support, spare parts and on-site intervention in under 24 hours anywhere in Romania.
• Free pre-delivery inspection, with a live test on your reference material and a complete acceptance report.
• European funds compatibility, meets the requirements of PNRR, ERDF and national industrial digitalization funds for workshops starting their digital transformation.
• Standards-compliant components, the fiber source meets the reliability specifications of the world's leading manufacturers.
The fiber laser source in the standard configuration meets the reliability specifications set by the leaders of the laser industry, with a declared lifespan of over 100,000 operating hours.
See the entire LAZIRON range of metalworking equipment to compare models and request a personalized offer.
The LAZIRON F flat fiber laser cutting machine turns cutting into a real competitive advantage: premium-level precision, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed cost structure.
