200 m/min positioning, ±0.03 mm accuracy, fully enclosed cabin
| Laser source power | 3,000 – 30,000 W (by configuration) |
| Working area | 3,000 × 1,500 mm (up to 6,000 × 2,500 mm) |
| Positioning speed | 200 m/min |
| Maximum acceleration | up to 4 G |
| Positioning accuracy | ±0.03 mm |
| Repeatability | ±0.02 mm |
| Source type | Premium fiber (Raycus / IPG) |
| Cutting head | Autofocus with automatic Z-axis control |
| Control system | Dedicated CNC with automatic nesting |
| Protection | Fully enclosed cabin |
| Automatic nozzle changer | Yes |
| Certification | CE |
| Material | Indicative thickness (6 kW) |
| Carbon steel | up to ~25 mm |
| Stainless steel | up to ~12 mm |
| Aluminium | up to ~10 mm |
| Brass / copper | up to ~8 mm |

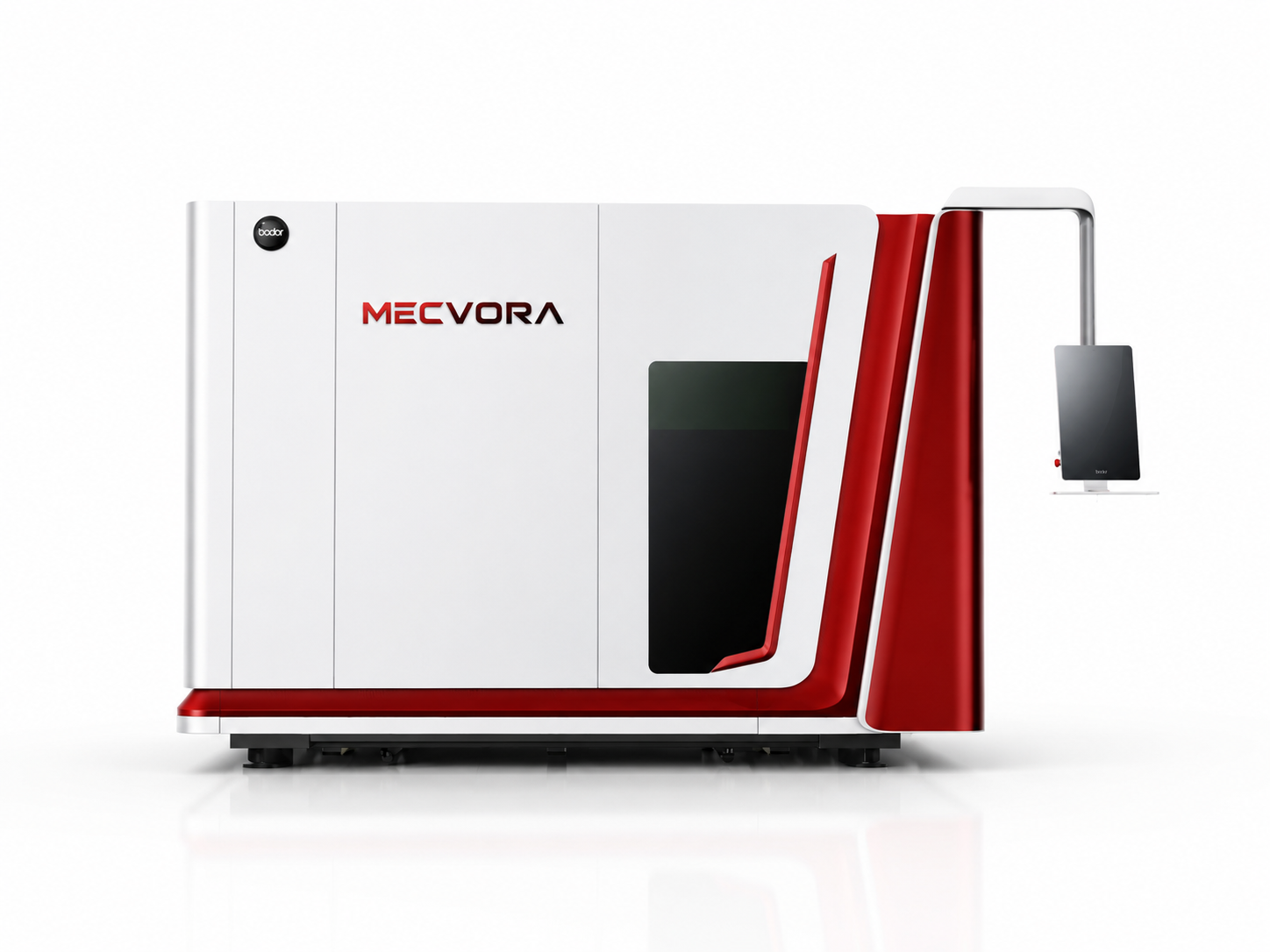

The MECVORA fully enclosed fiber laser cutting machine cuts sheet with 3 to 30 kW sources on tables from 3000 × 1500 to 6000 × 2500 mm. It positions at 200 m/min with up to 4 G acceleration and ±0.03 mm accuracy, while the autofocus head and CNC nesting keep quality the same from batch to batch.
On the shop floor, this fiber laser cutting machine replaces punching, plasma cutting and outsourced services, consolidating your entire sheet-processing workflow into one workstation. It fits naturally into any shop that runs carbon steel, stainless steel or aluminium, from one-off parts to high-volume series, explore the full range of sheet metal cutting machines we offer.
• 4G positioning at 200 m/min, the cutting head reaches the start point instantly and a 1 m idle move takes under 500 ms, so dead time between parts drops dramatically.
• Full automation, the automatic nozzle changer and one-second edge finding remove manual steps; the operator starts the cutting cycle with a single click.
• Consistent ±0.03 mm accuracy, repeatability holds even at the ten-thousandth part, eliminating secondary operations on precision components.
• Superior edge quality, nitrogen cutting on stainless steel and aluminium leaves a clean, oxide-free edge with no burrs, ready for welding or coating.
• Lower running costs, the fiber source draws far less power than CO₂ technology and uses no consumable laser gas, so cost per part falls noticeably.
• Maximum safety, a fully enclosed cabin, visual collision detection and active anti-collision protect both the operator and the cutting head.
• Remnant value recovery, the remnant nesting function re-lays parts onto offcuts, turning scrap into added value.
• One supplier for the whole workflow, installation, training and service from the same team, with no juggling between multiple partners.
| Parameter | Value |
|---|---|
| Laser source power | 3,000 – 30,000 W (by configuration) |
| Working area | 3,000 × 1,500 mm (up to 6,000 × 2,500 mm) |
| Positioning speed | 200 m/min |
| Maximum acceleration | up to 4 G |
| Positioning accuracy | ±0.03 mm |
| Repeatability | ±0.02 mm |
| Source type | Premium fiber (Raycus / IPG) |
| Cutting head | Autofocus with automatic Z-axis control |
| Control system | Dedicated CNC with automatic nesting |
| Protection | Fully enclosed cabin |
| Automatic nozzle changer | Yes |
| Certification | CE |
A fiber laser cutting machine serves metal fabrication for construction, metal furniture, automotive components, electrical enclosures, signage and sheet structures. Workshops that bring sheet cutting in-house stop splitting orders between subcontractors and gain full control over lead times. It is the natural choice for metalworking firms that want a predictable workflow with better margins on every job.
The system suits both varied one-off production and high-volume series runs. The unit complies with the applicable requirements for CE-marked industrial equipment, in line with the Machinery Directive 2006/42/EC. For larger volumes and thicker plate, see the high-power metal laser cutting machine in the same family.
In agricultural equipment, metal cabinets and structural work, the fiber laser cutting machine shortens the path from design to prototype and delivers compliant parts with no manual finishing. Automotive suppliers get batch-after-batch repeatability, while signage shops win on fine detail, cut-out text, perforations and complex contours on thin stainless steel.
Cutting service providers use the fiber laser cutting machine to accept varied orders, from a single part to series production, without turning work away for lack of capacity. High positioning speed combined with automatic nozzle changing keeps cycle time low even on mixed lots, with different materials and thicknesses on the same table.
Because a single fiber laser cutting machine covers such a wide material and thickness range, it consolidates jobs that would otherwise need punching, sawing and plasma. Consolidating processes onto one platform also simplifies quoting: one machine rate, one operator and one predictable throughput figure make it far easier to price work accurately and protect your margin on every contract.
The system processes most common shop metals. Maximum thickness depends on source power and assist gas; the values below are indicative for a 6 kW source and are confirmed in the personalized quotation.
On carbon steel, oxygen cutting gives maximum speed on thick plate, while nitrogen produces a clean edge on stainless steel and aluminium. For reflective materials such as brass and copper, the autofocus head and premium fiber source ensure stable beam coupling with no back-reflection risk.
| Material | Indicative thickness (6 kW) |
|---|---|
| Carbon steel | up to ~25 mm |
| Stainless steel | up to ~12 mm |
| Aluminium | up to ~10 mm |
| Brass / copper | up to ~8 mm |
The workflow on a fiber laser cutting machine is simple and repeatable, from file to finished part:
1. The operator imports the part's DXF/DWG file into the control software.
2. They select material and thickness; the system proposes the cutting parameters automatically.
3. The sheet is placed on the table, and the nesting function optimizes material usage.
4. The autofocus head automatically adjusts cutting distance along the contour.
5. The machine cuts the parts to plan, changing the nozzle automatically where needed.
6. The operator removes the finished parts, ready for bending, welding or assembly.
Because the software stores cutting recipes by material and thickness, repeating a recurring order takes a few clicks, and a new operator quickly reaches consistent results, a real advantage for shops with staff turnover.
Beyond day-to-day cutting, the automatic nesting and stored recipes turn the fiber laser cutting machine into a planning tool: you can estimate material consumption before a run, batch similar parts to reduce sheet changes, and keep a consistent quality standard across shifts. That predictability is what lets a growing shop take on larger contracts with confidence.
• Delivery, installation and commissioning, with operator training on your own production.
• 60-month warranty and service with on-site response in under 24 hours in Romania (24–72 hours in other countries).
• Technical documentation for EU-funded, PNRR and public procurement projects.
