LAZIRON G ground-rail laser machine: Cypcut, RayTools, premium fiber. Industrial quality at an affordable price for European metalworking workshops.
| Fiber laser source power | 6 / 12 / 20 / 30 / 60 kW (optional) |
| Effective working width | 2500 mm / 3200 mm / 4000 mm |
| X axis length | customizable, up to 25 m |
| X/Y positioning accuracy | ±0.05 mm |
| Repositioning accuracy | ±0.05 mm |
| Maximum travel speed | 80 m/min |
| Maximum acceleration | 0.8 G |
| Numerical control system | Cypcut PC-based |
| Cutting head | RayTools with capacitive autofocus |
| Optional bevel cutting | 0-45° (A, V, Y, X, K) |
| Laser wavelength | 1064 nm |
| Cooling system | S&A water chiller |
| Supply voltage | 380 V three-phase |

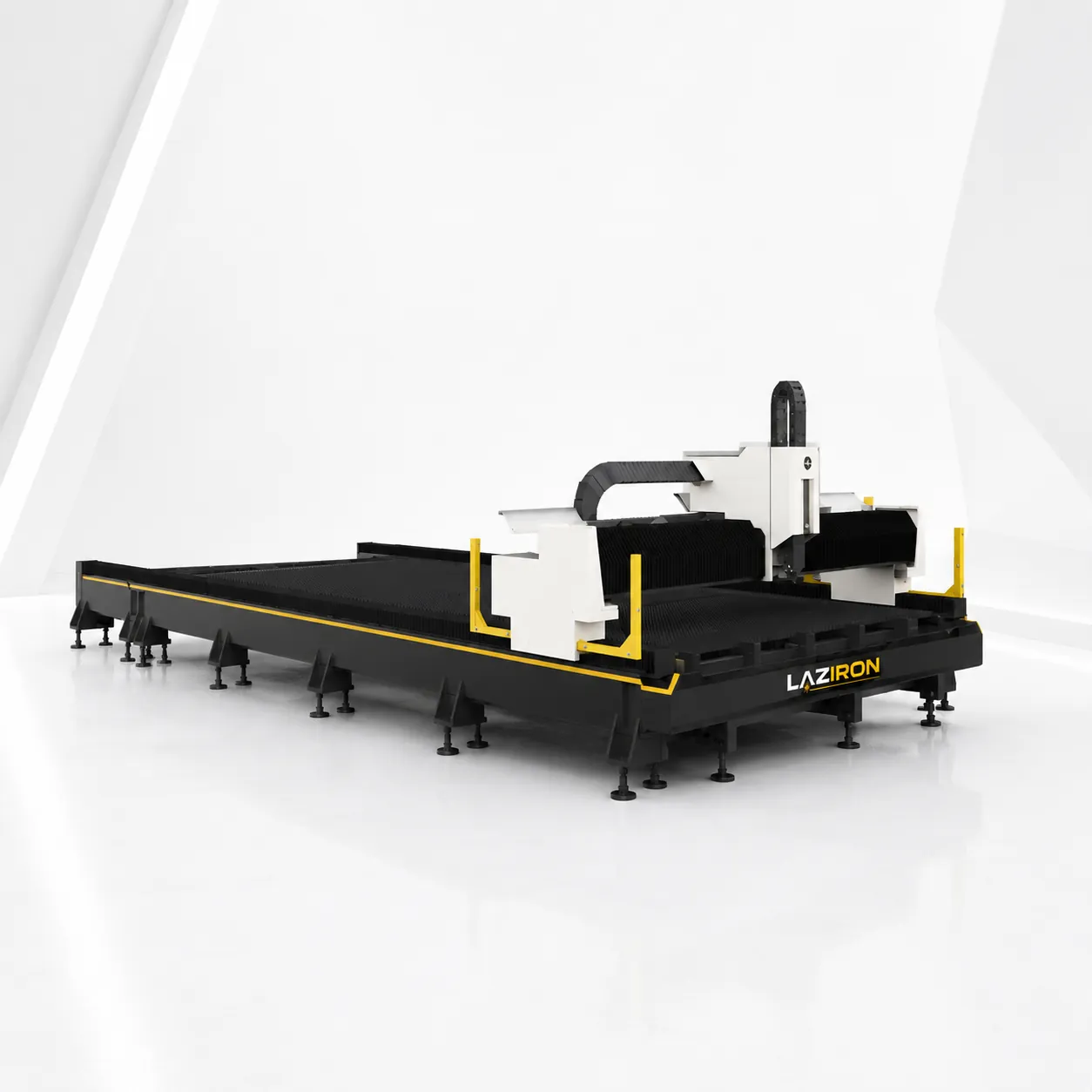

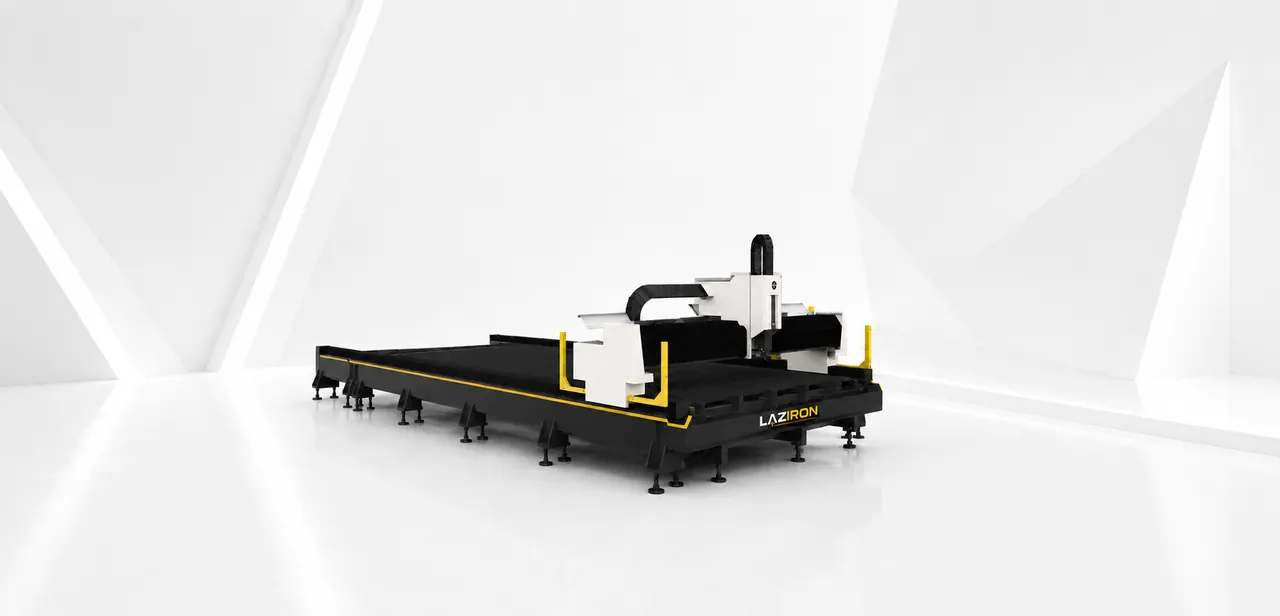

Ground-rail laser machine LAZIRON is built for workshops that cut very large sheets and very thick plates, where the standard 3015 or 6020 formats are no longer enough. The ground rail removes the constraint of the long axis and allows customizable working formats up to 25 m in length.
Equipped with a fiber laser source between 6 and 60 kW, with a RayTools autofocus head and Cypcut control, every ground-rail laser machine LAZIRON delivers industrial processing power for shipyards, heavy machinery factories and manufacturers of large-scale metal structures, at an acquisition cost affordable for medium and large workshops.
The LAZIRON G ground-rail laser machine brings together in a single system the advantages that matter on the production line: repeatable precision, parameter automation, predictable operating costs and long service life for critical components.
• Ground-mounted translation rail, allows extending the X axis to customizable lengths up to 25 m, without the limitations of the enclosed frame of standard machines.
• Fiber laser power 6-60 kW, configurable in steps of 6/12/20/30/60 kW for cutting very thick plates, up to 100 mm carbon steel with the 60 kW source.
• Working format width 2500-4000 mm, in three standard configurations (GM-2500G, GM-3200G, GM-4000G) with length customizable to the buyer's request.
• Extensible modular design, allows adding extra rail segments to extend the long axis without replacing the machine.
• Front-rear safety curtain, detects objects in the operating zone and triggers an emergency stop, essential for a machine of such a large format.
• Wireless remote for adjustments, the operator controls the head, gas flow and speed from any point of the machine, useful on 15-25 m machines where the fixed console is far away.
• CAD/CAM software with nesting, fly-cutting and common edge cutting to reduce material waste on large sheets, where the cost of every m² counts.
This ground-rail laser machine LAZIRON is available in standardized configurations, the choice being made based on the mix of processed materials and the workshop's monthly production volume.
| Parameter | Value |
|---|---|
| Fiber laser source power | 6 / 12 / 20 / 30 / 60 kW (optional) |
| Effective working width | 2500 mm / 3200 mm / 4000 mm |
| X axis length | customizable, up to 25 m |
| X/Y positioning accuracy | ±0.05 mm |
| Repositioning accuracy | ±0.05 mm |
| Maximum travel speed | 80 m/min |
| Maximum acceleration | 0.8 G |
| Numerical control system | Cypcut PC-based |
| Cutting head | RayTools with capacitive autofocus |
| Optional bevel cutting | 0-45° (A, V, Y, X, K) |
| Laser wavelength | 1064 nm |
| Cooling system | S&A water chiller |
| Supply voltage | 380 V three-phase |
A ground-rail laser machine LAZIRON is used predominantly in industries that process very large or very thick plates and that cannot fit the parts into the standard 3015 or 6020 formats.
Shipyards use a single ground-rail laser machine LAZIRON G to cut plates for the hull plating, deck beams and hold components, all with lengths exceeding 6 m and thicknesses of 15-40 mm. The same machine also serves wind turbine manufacturers, where flanges and tower components require formats of 8-12 m in length.
The heavy machinery industry (excavators, mobile cranes, mining equipment) and industrial tank factories cut plates of 30-80 mm with the 30-60 kW laser source. Manufacturers of metal bridges and structures for industrial halls use the configuration with an 18-25 m X axis to cut whole beams from a single sheet.
With laser sources between 6 and 60 kW, every ground-rail laser machine LAZIRON LAZIRON G covers the entire range of industrial thicknesses, from medium sheets to very thick plates.
The RayTools head with capacitive autofocus automatically adjusts the focus for each material thickness, and the cutting parameters change from Cypcut without pauses between programs.
Maximum thicknesses per material (in the maximum configuration)
• Carbon steel (with 60 kW source): up to 100 mm
• Stainless steel (with 30 kW source): up to 50 mm
• Aluminum (with 20 kW source): up to 40 mm
• Low-alloy steel (with 12 kW source): up to 35 mm
The workflow of a ground-rail laser machine LAZIRON LAZIRON G is optimized for large parts, where every handling of the sheet counts toward cost.
1. The large sheet is placed on the fixed table with a crane or an integrated palletizing system, depending on weight.
2. The operator calibrates the part origin through an automatic edge-detection system, scanned from the console or from the remote.
3. Nesting in Cypcut optimizes the positioning of the parts across the entire surface of the sheet, with waste below 12% for complex parts.
4. The RayTools head moves on the gantry for the Y axis and on the ground rail for the X axis, maintaining ±0.05 mm precision over the entire stroke.
5. The front-rear safety curtain continuously monitors the operating zone and stops the machine if it detects intrusion.
6. Finished parts are unloaded by crane or manually, and the scrap is collected on the side conveyor.
For integration with other metal-processing equipment, the machine connects natively to bending presses and to the other LAZIRON lines through a shared MES.
What maximum size can the X axis have on a LAZIRON ground-rail laser machine?
The standard configuration supports customizable lengths between 4 m and 25 m, in steps of 1 m. For requirements over 25 m, contact the LAZIRON technical team directly for a quote based on specifications. The standard usable width is 2.5 / 3.2 / 4 m, and widths over 4 m are possible on request.
What laser source power should I choose for a ground-rail laser machine?
For cutting plates under 20 mm I choose 6 kW. For 20-40 mm I choose 12 kW. For 40-60 mm I choose 20-30 kW. For plates over 60 mm or for maximum speeds on thick plates I choose 60 kW. When cutting with the 60 kW source, 80 mm carbon steel is cut at a speed comparable to that for 30 mm with the 12 kW source.
What precision can I expect over a 20 m stroke?
The ±0.05 mm positioning accuracy is guaranteed at any point of the stroke, regardless of the length of the X axis. Relative repositioning is also ±0.05 mm. On very large parts, the cumulative end-to-end error remains below ±0.2 mm over the entire 20 m length, thanks to laser calibration of the position.
Can I add the bevel module for chamfering later?
Yes, the LAZIRON G ground-rail laser machine accepts the upgrade to a tilting head ±45° for bevel cuts A, V, Y, X, K, installable at the buyer's premises without modifying the mechanical structure. This flexibility is useful for workshops that start with standard cutting and later expand their service portfolio.
What space and foundation conditions do I need?
The foundation must be reinforced concrete with a minimum thickness of 250 mm across the entire machine surface, plus a 1.5 m perimeter for intervention. Minimum clear height: 4.5 m for crane installation. Three-phase 380 V voltage, maximum absorbed power variable depending on the chosen laser source (from 25 kVA for 6 kW up to 200 kVA for 60 kW).
The decision to invest in a ground-rail laser machine is not made on the basis of technical specifications alone, what matters is how the equipment translates into real monthly cash-flow figures for your workshop.
For workshops that currently subcontract laser cutting at 0.8-1.4 EUR per linear meter cut plus material cost, bringing it in-house with a ground-rail laser machine LAZIRON reduces the effective cost per m² processed by 55-70%. At a monthly volume of 5-8 tons of sheet processed in-house instead of subcontracted, the investment is recovered in 18-30 months under current European market conditions.
The additional margin comes from three directions: savings versus subcontracting, offering cutting services to local external clients (1.2-1.8 EUR/m at the level of the European market in 2026) and reducing delivery times to end clients by 40-60%, which allows premium prices on urgent orders.
LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious workshop can sustain, including those without the multi-million-euro CAPEX budgets of large factories.
• Affordable price for extra-large format, the critical components are identical to those used by premium manufacturers, yet the LAZIRON package costs 30-40% less than European alternatives of the same size.
• 60-month warranty, with on-site service intervention in under 24 hours anywhere in Romania.
• Technical support and service, phone support, spare parts and on-site intervention in under 24 hours anywhere in Romania.
• Free pre-delivery inspection, mandatory for extra-large format machines, to validate all axes before transport.
• European funds compatibility, meets the technical requirements for PNRR and ERDF industrial digitalization projects.
• Standards-compliant components, the fiber source meets the reliability specifications of the world market leaders.
The fiber laser source in the standard configuration meets the reliability specifications set by the leaders of the laser industry, with a declared lifetime of over 100,000 operating hours.
See the entire LAZIRON range of metalworking equipment to compare models and request a personalized quote.
Ground-rail laser machine LAZIRON G turns cutting into a real competitive advantage: premium-level precision, sustained productivity and an investment affordable for any workshop that wants to grow without doubling its fixed cost structure.
