LAZIRON EP enclosed laser machine with exchangeable table: Cypcut, RayTools, premium fiber. Industrial quality at an affordable price for metalworking workshops.
| Fiber laser source power | 1.5 / 3 / 6 / 12 / 20 kW (optional) |
| Effective working area per table | 3000 × 1500 mm or 4000 × 2000 mm |
| Enclosure type | Full coverage with motorized doors |
| Table change system | Motorized, under 30 seconds |
| Number of tables | 2 (interchangeable) |
| X/Y positioning accuracy | ±0.03 mm |
| Repositioning accuracy | ±0.02 mm |
| Maximum acceleration | 1.5 G |
| Numerical control system | Cypcut PC-based |
| Cutting head | RayTools with capacitive autofocus |
| Cooling system | S&A dual-circuit |
| Certification | CE (laser class 1) |

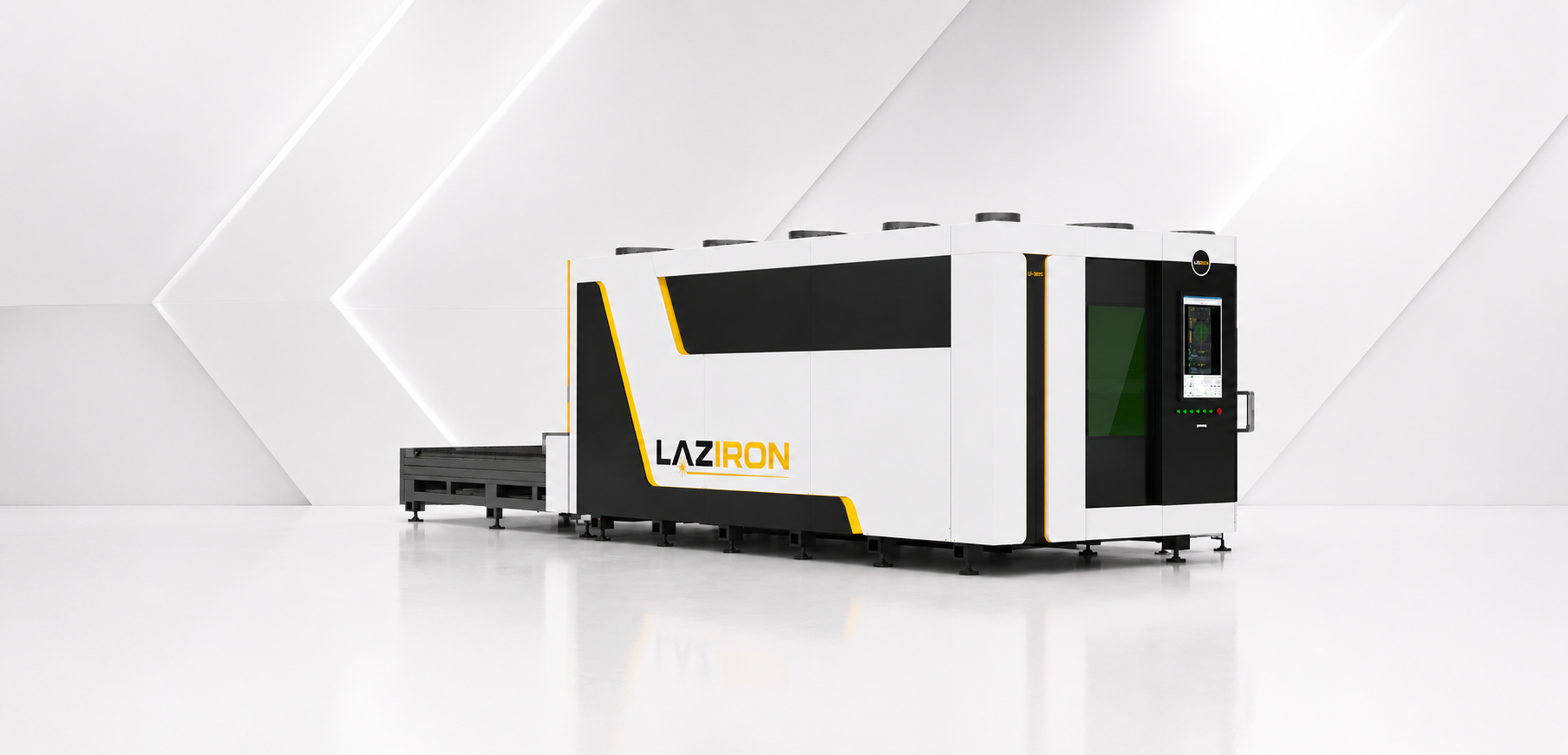

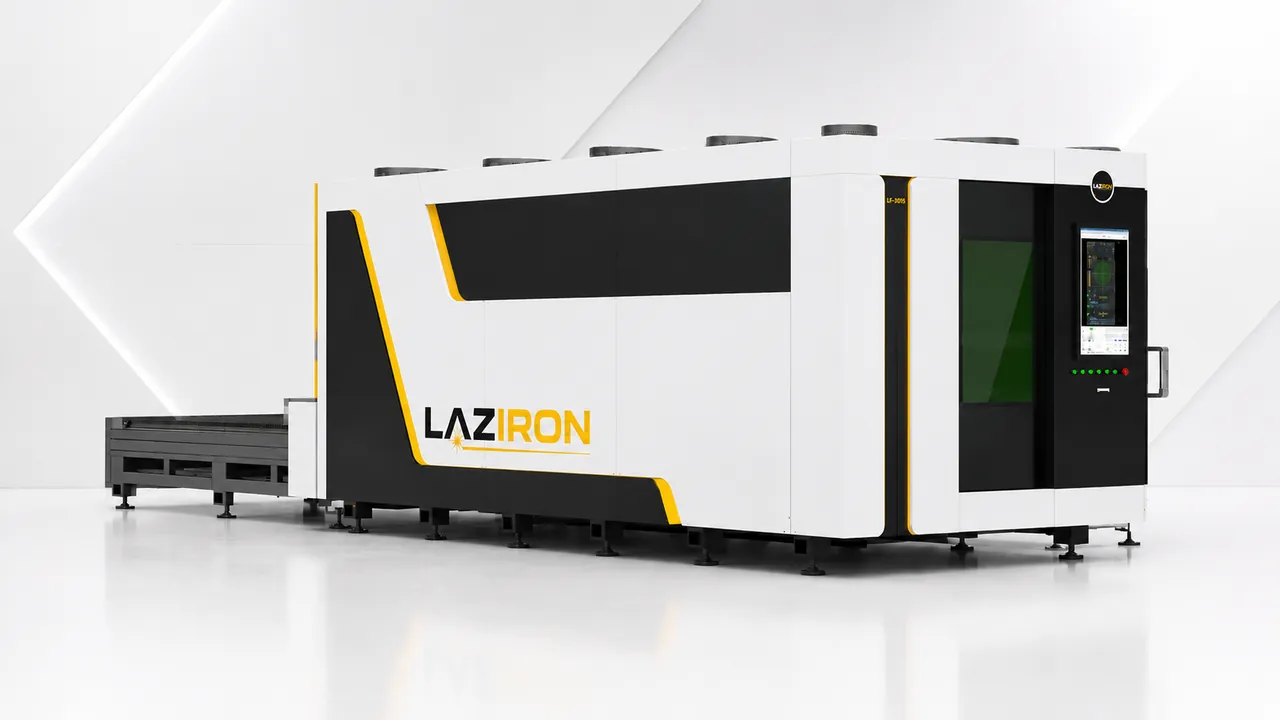

The enclosed laser machine with exchangeable table from LAZIRON combines the maximum safety of a full enclosure with the continuous productivity of a dual exchangeable table system. While one table works inside, the other is loaded outside, eliminating downtime between cycles.
With a fiber laser source from 1.5 to 20 kW, a 3000 × 1500 mm usable surface and a table change system under 30 seconds, every LAZIRON enclosed laser machine with exchangeable table offers a combination rarely found on the market: full operator protection and 24/7 productivity, at an affordable investment price for medium-to-large volume workshops.
The LAZIRON EP enclosed laser machine with exchangeable table brings together in a single system the advantages that matter on the production line: repeatable precision, automated parameters, predictable operating costs and a long service life for critical components.
• Full enclosure with complete coverage, blocks radiation, sparks and smoke, allowing placement in the workshop with staff nearby, without a separate cabin, laser class 1.
• Dual exchangeable table system, while one table is inside cutting, the other is loaded and unloaded outside, eliminating downtime between cycles and increasing productivity by 35-45%.
• Table change time under 30 seconds, the motorized transfer, synchronized with the Cypcut program, keeps the cutting flow going without noticeable pauses.
• Fiber laser power 1.5–20 kW, configurable to specific needs, with the option to upgrade later without replacing the machine frame.
• Integrated smoke extraction system, essential for galvanized, painted and stainless materials where nitrogen cutting generates dense emissions.
• RayTools head with capacitive autofocus, instant transitions between materials without manual adjustments, essential for workshops with a varied production mix.
• Cypcut control system with automatic nesting, optimizes parts on both tables in parallel, maintaining continuous flow without operator intervention.
This LAZIRON enclosed laser machine with exchangeable table is available in standardized configurations, the choice being made according to the mix of materials processed and the workshop's monthly production volume.
| Parameter | Value |
|---|---|
| Fiber laser source power | 1.5 / 3 / 6 / 12 / 20 kW (optional) |
| Effective working area per table | 3000 × 1500 mm or 4000 × 2000 mm |
| Enclosure type | Full coverage with motorized doors |
| Table change system | Motorized, under 30 seconds |
| Number of tables | 2 (interchangeable) |
| X/Y positioning accuracy | ±0.03 mm |
| Repositioning accuracy | ±0.02 mm |
| Maximum acceleration | 1.5 G |
| Numerical control system | Cypcut PC-based |
| Cutting head | RayTools with capacitive autofocus |
| Cooling system | S&A dual-circuit |
| Certification | CE (laser class 1) |
A LAZIRON enclosed laser machine with exchangeable table is the choice for workshops that want maximum productivity without sacrificing operator safety and compliance with European standards.
Manufacturers of metal furniture with batches of dozens of pieces per variant use a single LAZIRON EP enclosed laser machine with exchangeable table to keep the laser head moving 90% of the time, while the operator unloads finished parts and loads raw sheet onto the outer table. Manufacturers of medical equipment and stainless steel furniture also benefit from the enclosure that keeps the environment clean.
Metal fabrication workshops with made-to-order production and appliance factories with medium runs justify the investment through rapid payback thanks to eliminated downtime. Over an 8-hour working day, the dual table system recovers 1.5-2 hours of actual cutting compared to a single-table machine.
With fiber laser sources from 1.5 to 20 kW, every LAZIRON LAZIRON EP enclosed laser machine with exchangeable table covers the full range of metals commonly used in metal fabrication workshops.
The closed enclosure plus the extraction system allow safe processing of emissive materials (galvanized, painted) without contaminating the workshop.
Maximum thicknesses per material (in the maximum configuration)
• Carbon steel (with 12 kW source): up to 25 mm
• Stainless steel (with nitrogen): up to 20 mm
• Aluminum (with 20 kW source): up to 16 mm
• Galvanized sheet: up to 8 mm
The workflow of a LAZIRON LAZIRON EP enclosed laser machine with exchangeable table is optimized for continuous flow, the laser head is almost always in motion.
1. The operator loads raw sheet onto the outer table, while the inner table is already running a program in progress.
2. At the end of the current program, the motorized system exchanges the tables in under 30 seconds, the table with finished parts comes out, the loaded one goes in.
3. The next program starts immediately after the doors close, with the safety interlock armed automatically.
4. While the inner table cuts, the operator unloads the finished parts and loads a new raw sheet onto the outer table.
5. The smoke extraction system runs continuously on the inner table, keeping the workshop clean.
6. The cycle repeats continuously, with human intervention only at loading and unloading, with no machine pauses.
For integration with other metalworking equipment, the machine connects natively to the press brakes and to the other LAZIRON lines through a shared MES.
How much do I save with an enclosed laser machine with exchangeable table compared to a single-table one?
Over an 8-hour shift with average programs of 12-18 minutes each, the dual table system eliminates around 90 minutes of loading and unloading downtime. That translates into 5-7 additional programs per day, or roughly 25-30% higher productivity. At a typical hourly operating cost, the annual savings exceed 40,000-60,000 EUR in a two-shift regime.
Why choose the enclosed laser machine with exchangeable table instead of two separate machines?
Three reasons: an initial investment 60-70% lower than two separate single-table machines, 50% less hall space used, and a single dedicated operator. For workshops with mixed production where you cannot keep two machines loaded in parallel, the dual table system on a single machine is clearly superior.
Do I lose safety compared to a single-table enclosed laser machine?
No, the safety interlocks work identically, and the table change mechanism includes additional sensors that stop the laser instantly if any door is opened during the transfer. Laser class 1 (the safest) is maintained throughout the entire cycle.
What maintenance does the table change system require?
The transfer chains or belts are inspected every 6 months and lubricated with specific grease. The positioning sensors are calibrated annually. Overall, the system adds under 4 hours of maintenance per year compared to a single-table machine. LAZIRON includes a complete maintenance kit during the contracted warranty period.
Can I operate an enclosed laser machine with exchangeable table with a single operator?
Yes, the standard configuration is optimized precisely for a single dedicated operator. They focus on loading and unloading the outer table while the machine cuts on the inner one. For workshops that want maximum productivity, two operators (across two shifts) can run it 16 hours a day with a processing volume equivalent to two single-table machines.
The decision to invest in an enclosed laser machine with exchangeable table is not made on technical specifications alone, what matters is how the equipment translates into real monthly cash-flow figures for your workshop.
For workshops that currently subcontract laser cutting at 0.8-1.4 EUR per linear meter cut plus material cost, bringing it in house with a LAZIRON enclosed laser machine with exchangeable table reduces the effective cost per m² processed by 55-70%. At a monthly volume of 5-8 tons of sheet processed in house instead of subcontracted, the investment is recovered in 18-30 months under current market conditions.
The additional margin comes from three directions: savings compared to subcontracting, offering cutting services to local external clients (1.2-1.8 EUR/m at the level of the market in 2026) and reducing delivery times to end clients by 40-60%, which allows premium prices on urgent orders.
LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious workshop can afford, including those without the multi-million-euro CAPEX budgets of large factories.
• Affordable price for an integrated dual-table system, the components (laser source, RayTools head, table change system) are those used by premium manufacturers, but the LAZIRON package costs 35-45% less than European alternatives.
• 60-month warranty, with on-site service intervention in under 24 hours anywhere in Romania.
• Technical support and service, phone support, spare parts and on-site intervention in under 24 hours anywhere in Romania.
• Free pre-delivery inspection, with a complete test of the table change cycle on your reference material.
• European funds compatibility, meets the requirements of PNRR, ERDF and national industrial digitalization funds.
• Standards-compliant components, the fiber source meets the reliability specifications of the world's leading manufacturers.
The fiber laser source in the standard configuration meets the reliability specifications set by the leaders of the laser industry, with a declared lifespan of over 100,000 operating hours.
See the entire LAZIRON range of metalworking equipment to compare models and request a personalized quote.
The LAZIRON EP enclosed laser machine with exchangeable table turns cutting into a real competitive advantage: premium-grade precision, sustained productivity and an affordable investment for any workshop that wants to grow without doubling its fixed cost structure.
