LAZIRON H 3D 5-axis laser cutting machine: Cypcut, RayTools, premium fiber. Industrial quality at an affordable price for European metalworking shops.
| Fiber laser source power | 12 / 20 / 30 / 60 kW (optional) |
| Working area (vertical) | 13000 × 2800 mm |
| Working area (bevel) | 12000 × 2100 mm |
| Maximum profile length | 12500 mm |
| Cutting accuracy | ≤ 0.5 mm |
| X/Y/Z positioning accuracy | ≤ 0.1 mm (±0.03 mm per axis) |
| Maximum linear speed X/Y/Z | 30 m/min |
| Maximum 5-axis linkage speed | 80 m/min |
| Numerical control system | Cypcut PC-based with 5-axis module |
| Cutting head | RayTools 3D with capacitive autofocus |
| Cooling system | S&A water chiller |
| Certification | CE |

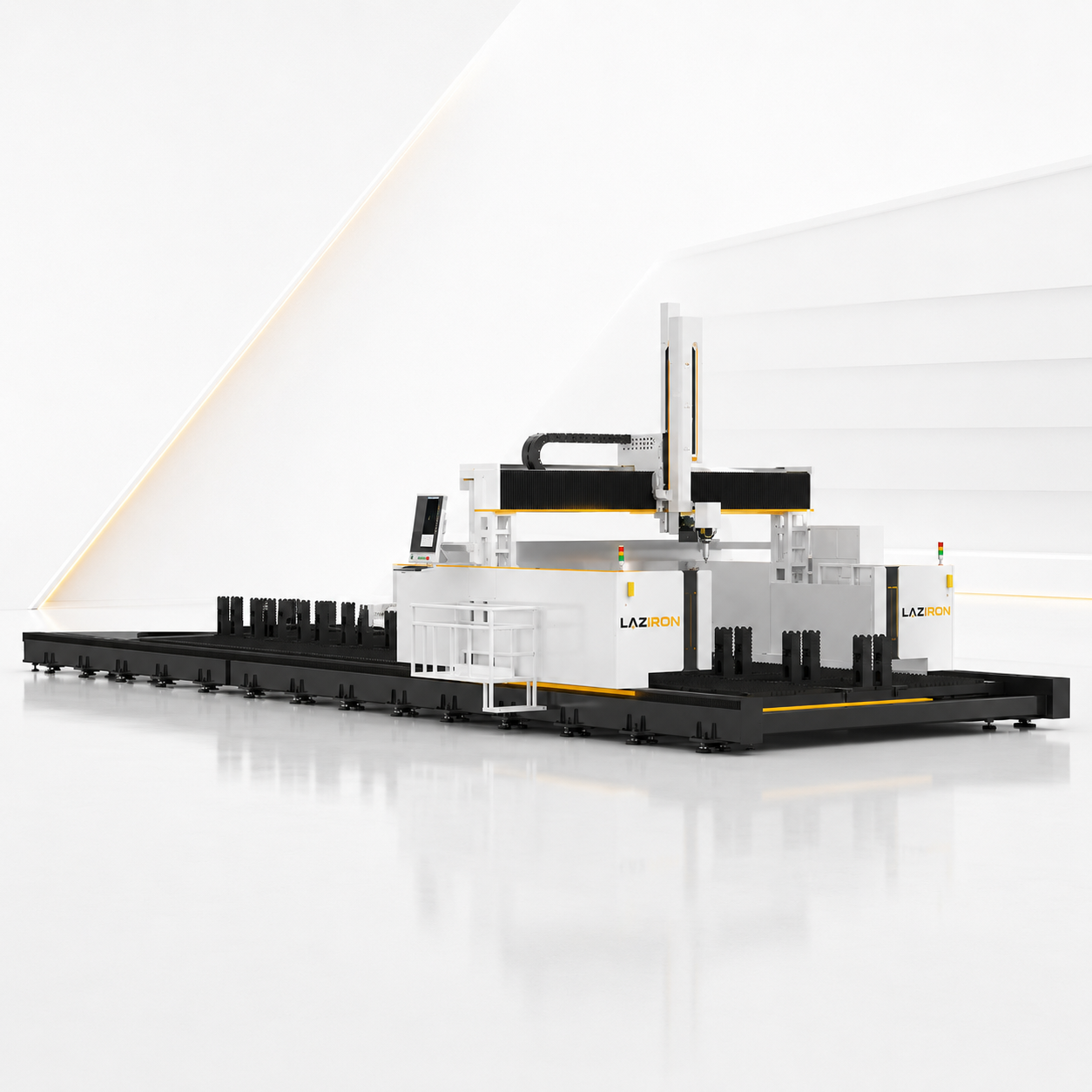

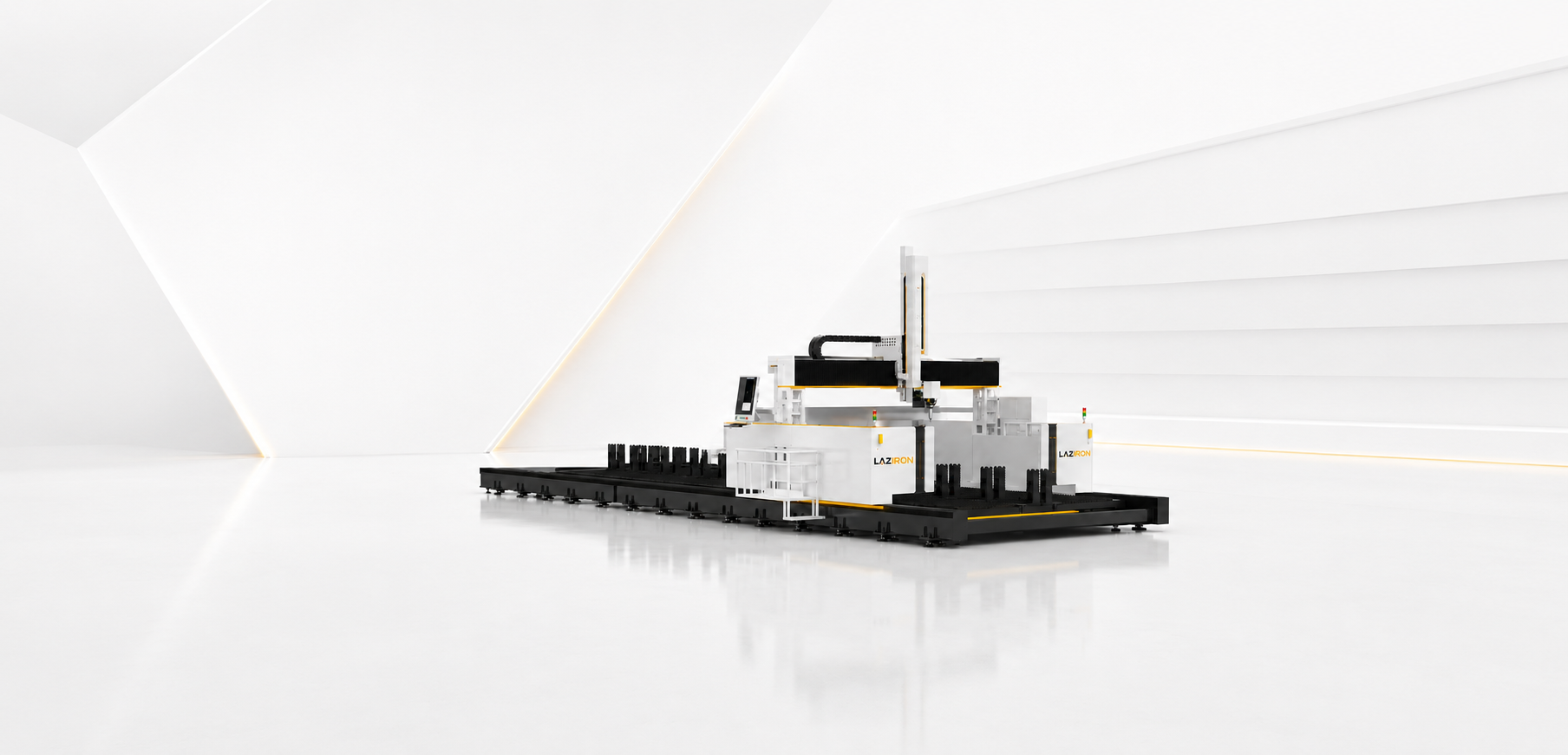

The 3D 5-axis laser cutting machine LAZIRON is built for parts that go beyond 2D: structural profiles, curved automotive components, welded assemblies with complex geometries. The five synchronized axes allow 360° coverage of the part surface, removing the limitations of flat cutting.
With a fiber laser source between 12 and 60 kW, a working area up to 13800 × 2800 mm and a linkage speed of 80 m/min, every 3D 5-axis laser cutting machine LAZIRON LAZIRON H serves the automotive, aerospace, rail transport and heavy steel structure industries, at an investment cost that even a medium shop with specialized production can sustain.
The LAZIRON H 3D 5-axis laser cutting machine concentrates in a single system the advantages that matter on the production line: repeatable accuracy, parameter automation, predictable operating costs and a long service life for critical components.
• Five synchronized axes, provide 360° coverage of 3D surfaces, allowing the cutting of complex parts that would otherwise require several successive setups on different machines.
• Fiber laser power 12–60 kW, cuts heavy structural profiles (HEA, HEB, IPE, U, L) and welded components under 80 mm thick at constant industrial speed.
• Extended working area, 13800 × 2800 mm for vertical cutting and 12000 × 2100 mm for bevel cutting, enough for entire train profiles or naval structures.
• Real-time measurement with compensation, coarse + fine positioning eliminates errors caused by the dimensional tolerances of profiles received from the warehouse.
• RayTools head with 3D autofocus, adjusts the focus for every point along the 3D path, keeping edge quality constant on complex geometries.
• Modular customizable bed, allows the working surface to be adapted to your specific workflow, with integrated palletizing options for loading long profiles.
• Multi-layer protection, anti-spark side panels and a safety curtain, essential on 5 axes where the head path is hard to anticipate visually.
This 3D 5-axis laser cutting machine LAZIRON is available in standardized configurations, the choice being made according to the mix of processed materials and the shop's monthly production volume.
| Parameter | Value |
|---|---|
| Fiber laser source power | 12 / 20 / 30 / 60 kW (optional) |
| Working area (vertical) | 13000 × 2800 mm |
| Working area (bevel) | 12000 × 2100 mm |
| Maximum profile length | 12500 mm |
| Cutting accuracy | ≤ 0.5 mm |
| X/Y/Z positioning accuracy | ≤ 0.1 mm (±0.03 mm per axis) |
| Maximum linear speed X/Y/Z | 30 m/min |
| Maximum 5-axis linkage speed | 80 m/min |
| Numerical control system | Cypcut PC-based with 5-axis module |
| Cutting head | RayTools 3D with capacitive autofocus |
| Cooling system | S&A water chiller |
| Certification | CE |
A 3D 5-axis laser cutting machine LAZIRON is used in industries where the cut parts are not flat and where 3D geometry matters: automotive, rail transport, aerospace and the production of complex metal structures.
Car body manufacturers cut curved chassis components, structural reinforcements and pressed panels with a single 3D 5-axis laser cutting machine LAZIRON H, eliminating subsequent grinding and milling operations. In the rail industry, the structural profiles of railcars (HEA, HEB) are cut to lengths of 12 m with precise reliefs for welded joints.
The aerospace sector uses the 5-axis configuration for components with curved or inclined surfaces, where the beam's angle of attack must remain permanently normal to the surface. Manufacturers of industrial turbines, oil equipment and mobile cranes benefit just as much from the ability to cut complete welded profiles without disassembly.
Configurable with laser sources between 12 and 60 kW, every 3D 5-axis laser cutting machine LAZIRON LAZIRON H processes construction and structural metals without interchangeable heads.
Automatic position compensation for 3D parts and coarse + fine measurement in Cypcut adapt the cutting parameters to the real geometry of the part, not to the ideal one in the DXF.
Maximum thicknesses per material (in the maximum configuration)
• Carbon steel (vertical): up to 80 mm
• Stainless steel: up to 50 mm
• Aluminum: up to 40 mm
• Structural profiles (HEA, HEB, IPE, U, L): up to 600 mm in height
The workflow of a 3D 5-axis laser cutting machine LAZIRON LAZIRON H is built for complex 3D parts that require precise setup before cutting.
1. The profile or 3D part is placed on the bed and clamped with the modular system adaptable to the specific geometry.
2. The coarse measurement system performs a preliminary scan of the part to determine the deviations from the CAD model.
3. The fine positioning phase adjusts the cutting parameters to compensate for the real dimensional differences.
4. Cypcut generates the 3D path with synchronized motion on all 5 axes, keeping the beam normal to the surface.
5. The RayTools head follows the part geometry with continuous autofocus, guaranteeing a constant edge along the entire curve.
6. At the end, the part is unloaded ready for final assembly, with no additional grinding or milling operations.
For integration with other metalworking equipment, the machine connects natively to press brakes and to the other LAZIRON lines through a shared MES.
What type of parts justify a LAZIRON 3D 5-axis laser cutting machine?
The investment is justified for parts that would otherwise require 2-3 successive operations on different machines: welded profiles with complex reliefs, curved automotive components, naval structures with inclined surfaces. If over 30% of your parts are 3D or require multiple bevels in a single setup, a 3D 5-axis laser cutting machine pays for itself in 24-36 months.
Can I process standard structural profiles with the 3D 5-axis laser cutting machine?
Yes, the configuration supports HEA, HEB, IPE, U, L profiles up to 600 mm in height and 12500 mm in length. The cuts can include reliefs, holes for bolted joints, slots and bevels on any face of the profile, all in a single clamping on the machine.
What is the difference between 5 synchronized axes and a 3D machine with a simple head?
On a 3D machine with a simple head, the head can only descend vertically. With 5 synchronized axes, the head rotates simultaneously on two rotation axes (B and C) plus X-Y-Z translation. This allows the beam to be kept perpendicular to the part surface wherever it may be, which is essential for edge quality on parts with curved or inclined surfaces.
How long does it take to set up a new 3D part?
For a new part with an existing CAD model, setup takes 30-60 minutes, including clamping on the bed, coarse + fine scanning, validating the path on the simulator and the first trial pass. For a series part already programmed, the changeover takes under 5 minutes.
What training is required for operators?
Operating a LAZIRON 3D 5-axis laser cutting machine requires 5-10 days of training for an operator with prior experience on a 2D laser. LAZIRON provides on-site training at purchase, plus access to the online platform with guides and tutorials throughout the life of the equipment.
The decision to invest in a 3D 5-axis laser cutting machine is not made on technical specifications alone; what matters is how the equipment translates into real monthly cash-flow figures for your shop.
For shops that currently subcontract laser cutting at 0.8-1.4 EUR per linear meter cut plus material cost, bringing it in-house with a 3D 5-axis laser cutting machine LAZIRON reduces the effective cost per m² processed by 55-70%. At a monthly volume of 5-8 tonnes of sheet processed in-house instead of subcontracting, the investment is recovered in 18-30 months under current European market conditions.
The additional margin comes from three directions: the saving versus subcontracting, offering cutting services to local external clients (1.2-1.8 EUR per meter at the level of the European market in 2026) and reducing delivery times to end clients by 40-60%, which allows premium prices on urgent orders.
LAZIRON is built on a clear philosophy: premium industrial-grade quality at a price that any serious shop can sustain, including those without the multi-million-euro CAPEX budgets of large factories.
• Affordable price for a 5-axis platform, the critical components (laser source, RayTools head, Cypcut control) are the ones used by premium manufacturers, but the LAZIRON package costs 35-45% less than European alternatives.
• 60-month warranty, with on-site service intervention in under 24 hours anywhere in Romania.
• Technical support and service, phone support, spare parts and on-site intervention in under 24 hours anywhere in Romania.
• Free pre-delivery inspection, with a test on your reference profile and a complete acceptance report.
• European funds compatibility, meets the technical requirements for PNRR and ERDF industrial digitalization projects.
• Standards-compliant components, the fiber source meets the reliability specifications of the world market leaders.
The fiber laser source in the standard configuration meets the reliability specifications set by the leaders of the laser industry, with a declared lifetime of over 100,000 operating hours.
See the entire LAZIRON range of metalworking equipment to compare models and request a personalized quote.
The 3D 5-axis laser cutting machine LAZIRON H turns cutting into a real competitive advantage: premium-grade precision, sustained productivity and an affordable investment for any shop that wants to grow without doubling its fixed cost structure.
