LAZIRON FB bevel laser cutting machine: Cypcut, RayTools, premium fiber. Industrial quality at an affordable price for European metalworking workshops.
| Fiber laser source power | 3 / 6 / 12 kW (optional) |
| Effective working area | 3000 × 1500 mm or 4000 × 2000 mm |
| Head tilt angle | -45° to +45° (continuous) |
| Available bevel types | A, V, Y, X, K and combined |
| X/Y positioning accuracy | ±0.03 mm |
| Repositioning accuracy | ±0.02 mm |
| Maximum acceleration | 1.2 G |
| CNC control system | Cypcut PC-based with 3D bevel module |
| Cutting head | RayTools with capacitive autofocus |
| Cooling system | S&A dual-circuit |
| Certification | CE |

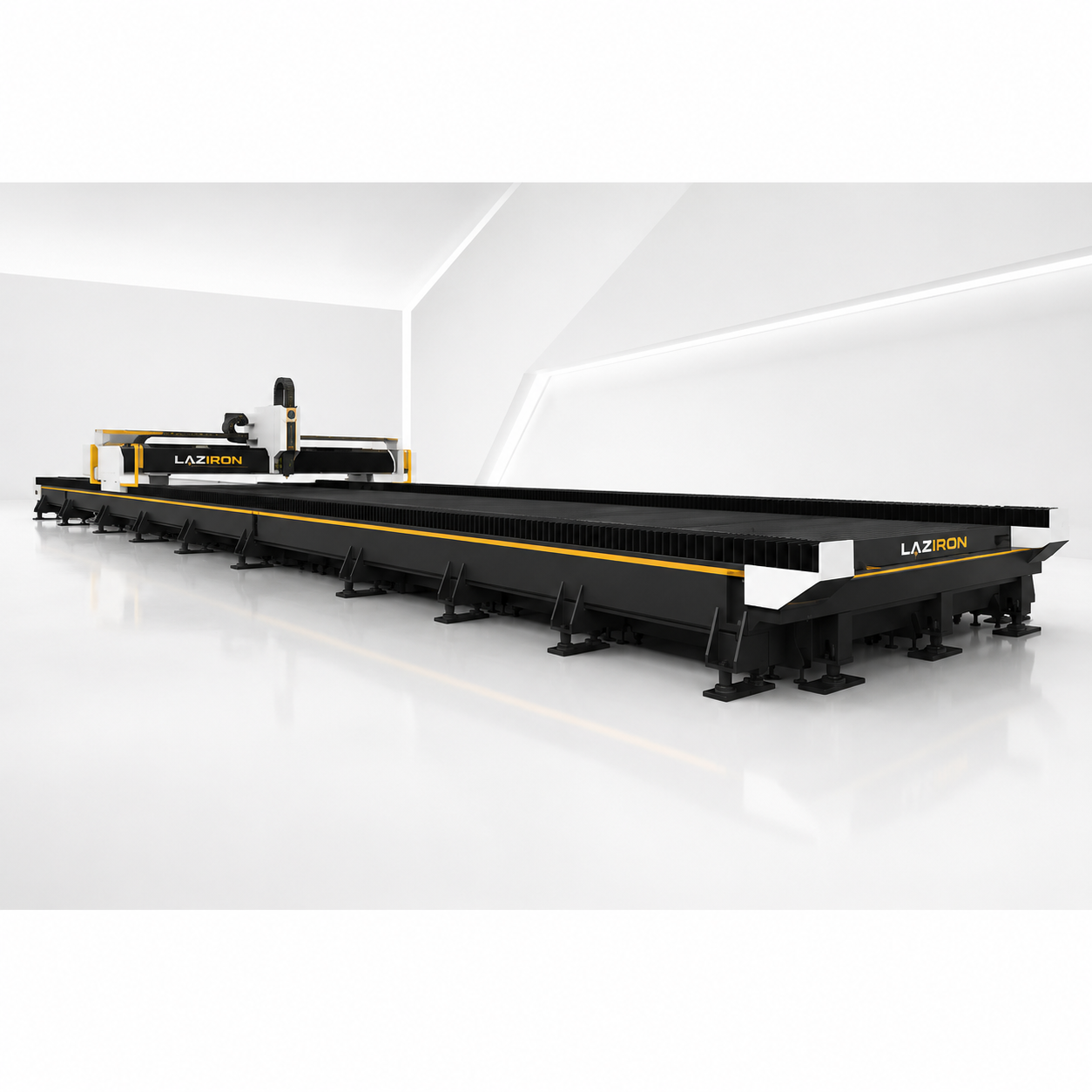

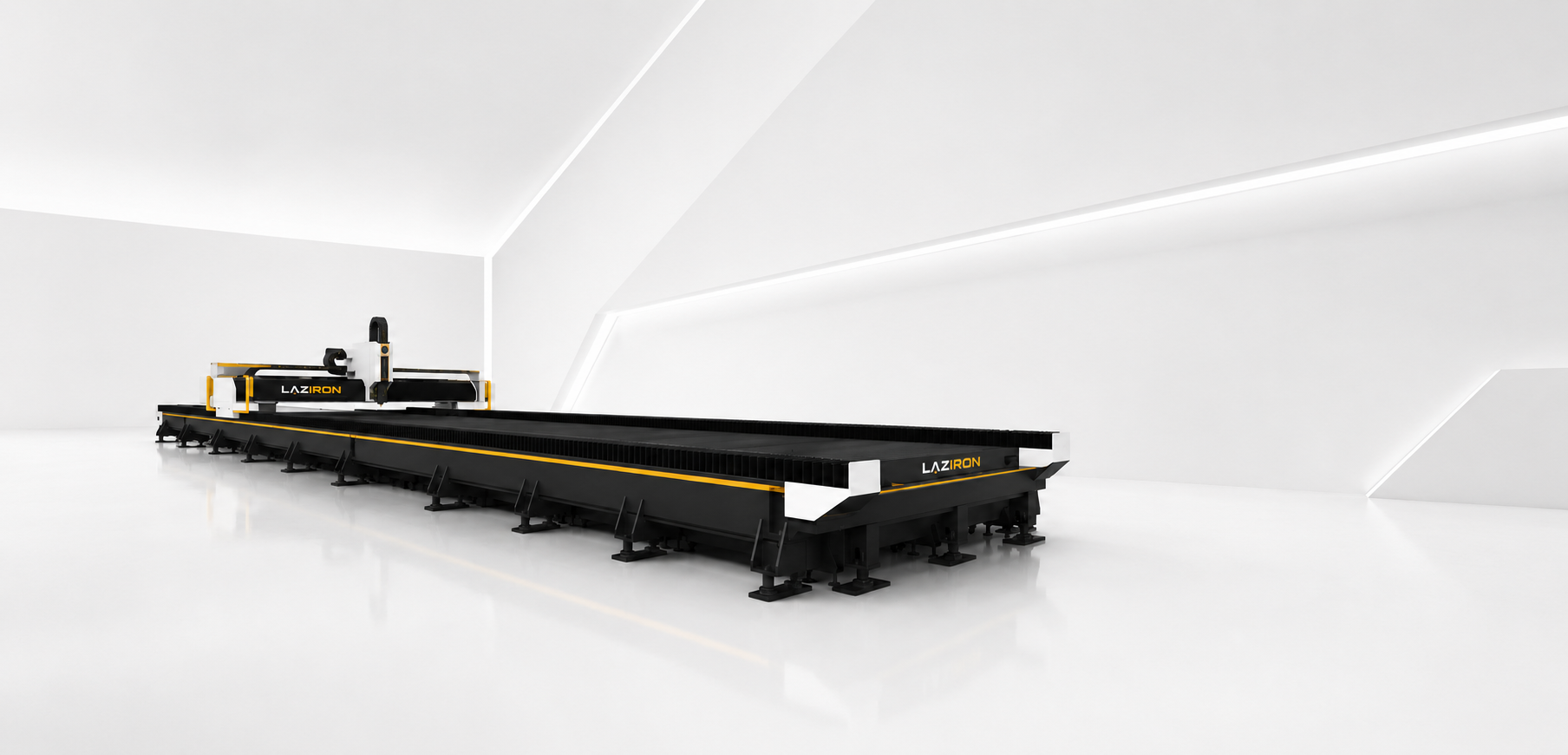

The LAZIRON FB bevel laser cutting machine cuts the part contour and the weld bevel in the same pass. The head tilts continuously between -45° and +45°, so the edge comes out ready for joining, with no grinding or second operation on another machine.
As a fiber laser cutting machine, it takes a 3, 6 or 12 kW source, and the working area is 3000 × 1500 mm or 4000 × 2000 mm. The Cypcut control includes a 3D bevel module, and the RayTools head keeps its focus even when working at 45°.
The machine cuts A, V, Y, X and K bevels, plus combinations of them. You load the DXF in Cypcut, choose the bevel type and thickness, and the program computes the path and compensates the beam angle against the sheet plane. The part origin is set by automatic edge scanning.
Throughout the cut, the anti-collision system watches the gap between nozzle and material and stops the head if an obstacle appears. The part leaves the table with a weld-ready edge.
| Parameter | Value |
|---|---|
| Fiber laser source power | 3 / 6 / 12 kW (optional) |
| Effective working area | 3000 × 1500 mm or 4000 × 2000 mm |
| Head tilt angle | -45° to +45° (continuous) |
| Available bevel types | A, V, Y, X, K and combined |
| X/Y positioning accuracy | ±0.03 mm |
| Repositioning accuracy | ±0.02 mm |
| Maximum acceleration | 1.2 G |
| CNC control system | Cypcut PC-based with 3D bevel module |
| Cutting head | RayTools with capacitive autofocus |
| Cooling system | S&A dual-circuit |
| Certification | CE |
With a 45° bevel, the machine cuts carbon steel up to 30 mm. Low-alloy S355 and S420 steels are cut up to 25 mm, stainless steel up to 16 mm and aluminium up to 12 mm.
Laser-cut bevels shorten weld preparation in shipyards, structural steel for buildings, heavy machinery and welded vessels. On 15–25 mm plate, where Y and K joints are common, the separate bevelling step with a grinder disappears.
Choose the power from the maximum thickness you bevel often: 12 kW for heavy plate, 3 or 6 kW when you mostly work medium sheet. Send us a few reference parts and we recommend the configuration.
• Delivery, installation and commissioning, with operator training on your own parts.
• 60-month warranty and service with on-site response in under 24 hours in Romania (24–72 hours in other countries).
• Technical documentation for EU-funded, PNRR and public procurement projects.
