Press brakes

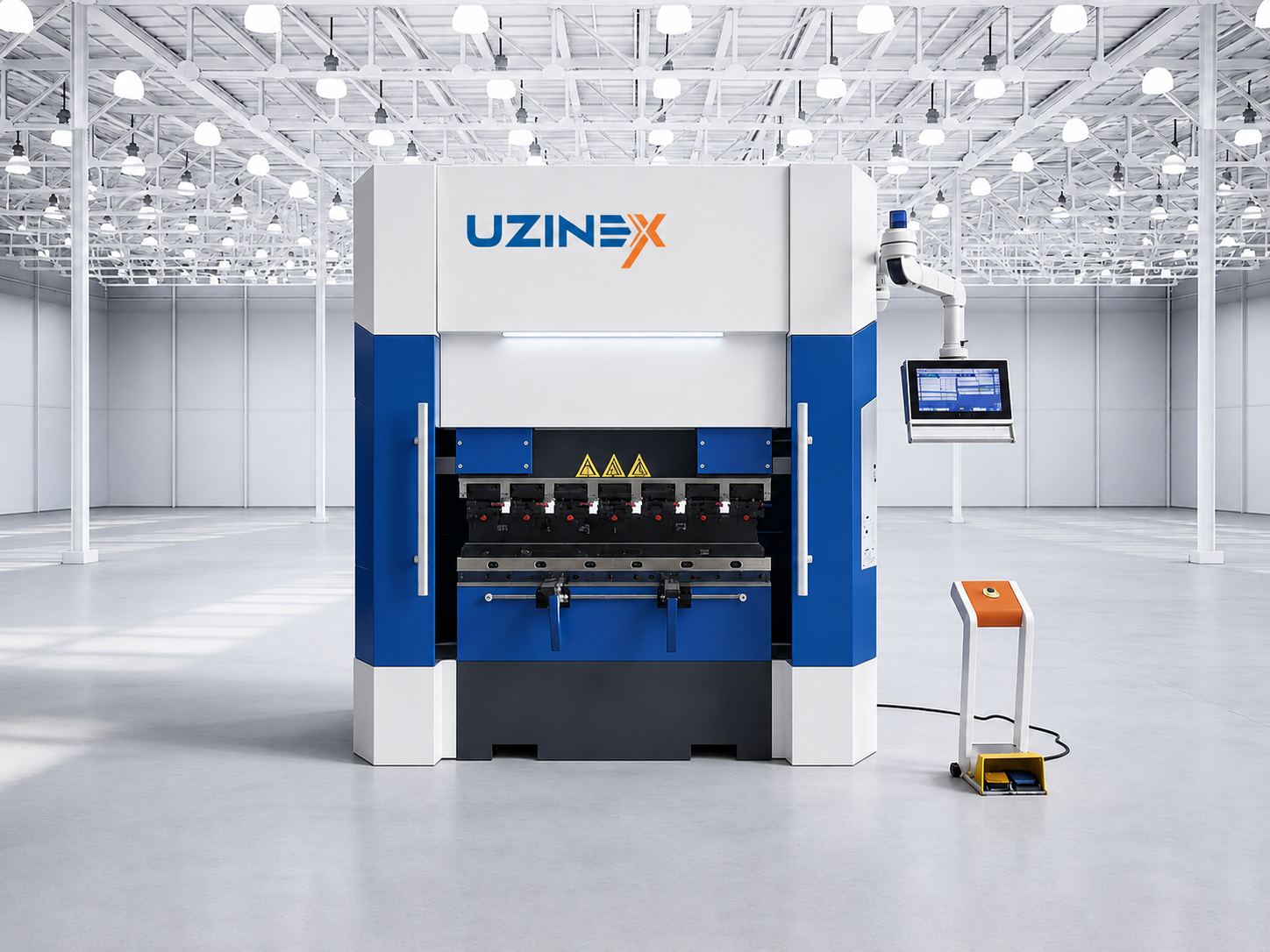

WyBend E Series High-Precision CNC Press Brake

Product code: UZX-227

CNC press brake with individual Yaskawa/FANUC electric servo motors, Renishaw/Heidenhain linear encoder with 0.1 micron resolution (±0.005 mm), 6-axis CNC back gauge ±0.02 mm at 500 mm/s, automatic tool clamping, optional KUKA/ABB/Fanuc robot with 312 tools, 6 models 400–2200 kN.

Bending force (kN)
400
Working length (mm)
1500
Stroke (mm)
200
Front table height (mm)
950
AI takes care
AI manual & maintenance
Transport & commissioning
Free across Romania
SEAP / SICAP
Eligible for public procurement
European funds
PNRR · POR · Just Transition
Industries served

Recommended applications

SERVO-ELECTRIC PRESS BRAKE · KUKA ROBOTRNSKUKA / ABB / FANUCINDIVIDUAL SERVO MOTORSLINEAR ENCODER±0.005 mm · 312 AUTO TOOLSXYUZX-PB-EREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Electric servo press brake: Renishaw linear encoder

AUTOMOTIVE INDUSTRYL 4 200CRITICAL JOINTUZX-AUTREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Premium automotive and aerospace components

INDUSTRIAL PRESSING1 600800F = 250 tXYUZX-PRSREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Medical equipment and precision instruments

WEEE · ELECTRONICSU1U2U3FR-4 · 2 LAYER · 1.6 mmUZX-PCBREV.ASCALE 1:5DIN 919UNIT: mmUZINEX

Electronics and measuring-instrument enclosures

Technical data

Technical specifications

Bending force (kN)400
Working length (mm)1500
Stroke (mm)200
Front table height (mm)950
Opening height (mm)450
Back gauge (mm)500
Dimensions (mm)2200×1300×2400
Control systemCNC Delem DA-69T / Cybelec, 8–12 axes, offline
Servo motorsIndividual, Yaskawa / HIWIN / FANUC, ±0.01 mm, 200 mm/s
Linear encoderRenishaw / Heidenhain, 0.1 micron, ±0.005 mm
Back gauge6 CNC axes, ±0.02 mm, 500 mm/s speed
Tool clampingAutomatic, 10× faster, 10–500 mm/s
Robot (optional)KUKA / ABB / Fanuc · ±0.05 mm, 312 tools
Tool interfaceEuro standard + Promecam, TPA / Fibertool
Sheet supportMotorized, 2–7 m, HIWIN / Fibro
Angle measurementLaser, ±0.1°, LVD / Pama / Bytewise
About this equipment

The WyBend E Series is a high-precision CNC press brake with individual servo motors on each axis, a linear encoder with 0.1 micron resolution and an automatic tool-clamping system, available in 6 configurations, from the E 40 (400 kN, 1500 mm) up to the E 220 (2200 kN, 4000 mm), designed for producers of metal parts with extremely tight tolerances, the precision automotive industry, aerospace and producers of medical equipment. With a Renishaw / Heidenhain linear encoder with ±0.005 mm accuracy, a 6-axis back gauge at ±0.02 mm and the option of full KUKA / ABB / Fanuc robotic integration with automatic changeover of 312 tools, this high-precision CNC press brake represents the technological pinnacle of the WyBend family.

The architectural difference from the WyBend C series with a hydraulic servo is fundamental: the WyBend E Series high-precision CNC press brake uses individual electric servo motors for each axis instead of hydraulic drive, eliminating the variabilities introduced by the hydraulic oil's viscosity changing with temperature, by cylinder-seal wear and by fluid compressibility, with a faster response and 2× better accuracy than electro-hydraulic systems of a similar level.

Key advantages of the WyBend E Series high-precision CNC press brake

• Renishaw / Heidenhain linear encoder: 0.1 micron resolution, ±0.005 mm accuracy. The WyBend E Series high-precision CNC press brake uses Renishaw or Heidenhain linear encoders with 0.1 micron resolution and ±0.005 mm position-feedback accuracy, 2× more precise than the rotary encoders of standard hydraulic systems, with high resistance to electromagnetic interference in industrial environments.

• Individual Yaskawa / HIWIN / FANUC servo motors:±0.01 mm, 200 mm/s speed. The individual servo motors on each axis ensure independent control of each point of the stroke, with ±0.01 mm accuracy and a speed of up to 200 mm/s, with no dependence on hydraulic-oil viscosity or ambient temperature that affect electro-hydraulic systems.

• 6-axis CNC back gauge:±0.02 mm accuracy, 500 mm/s speed. The back gauge with 6 CNC-controlled axes and a travel speed of 500 mm/s ensures fast, precise positioning of the material with ±0.02 mm accuracy, with support for 1–3 mm retract strokes to release the sheet after bending.

• Automatic tool-clamping system: 10× faster changeover than manual. The automatic tool-clamping system with a clamping speed of 10 mm/s at 500 mm/s reduces tool-changeover time by a factor of 10 compared with manual changeover, with individual clamping and release of each tool for maximum flexibility in configuring complex profiles.

• Optional KUKA / ABB / Fanuc robotic integration: 312 automatic tools. The option of full robotic automation with automatic changeover from a library of 312 tools and robotic accuracy of ±0.05 mm turns the WyBend E Series high-precision CNC press brake into an automatic production cell capable of producing small batches with no manual intervention.

• Standard Euro and Promecam tool interface: maximum compatibility. The TPA / Fibertool tool interface compatible with standard Euro and Promecam tools allows the use of the workshop's existing tools and the purchase of specialized tools from any European supplier.

• 6 models: force 400–2200 kN, length 1500–4000 mm. The WyBend E range covers the widest interval in the WyBend family, with the E 220 model at 2200 kN and 4000 mm representing the largest high-precision CNC press brake in the UZINEX portfolio for this series.

Technical specifications of the WyBend E Series high-precision CNC press brake

ParameterE 40E 80E 100E 135E 175E 220
Bending force (kN)4008001000135017502200
Working length (mm)150025003000320040004000
Stroke (mm)200250280300320350
Front table height (mm)950980980100010501100
Opening height (mm)450490520550580620
Back gauge (mm)500650700750800900
Dimensions (mm)2200×1300×24003100×1700×29003600×1900×31003800×2000×32004800×2200×35004800×2400×3700
Control systemCNC Delem DA-69T / Cybelec, 8–12 axes, offlineCNC Delem DA-69T / Cybelec, 8–12 axes, offlineCNC Delem DA-69T / Cybelec, 8–12 axes, offlineCNC Delem DA-69T / Cybelec, 8–12 axes, offlineCNC Delem DA-69T / Cybelec, 8–12 axes, offlineCNC Delem DA-69T / Cybelec, 8–12 axes, offline
Servo motorsIndividual, Yaskawa / HIWIN / FANUC, ±0.01 mm, 200 mm/sIndividual, Yaskawa / HIWIN / FANUC, ±0.01 mm, 200 mm/sIndividual, Yaskawa / HIWIN / FANUC, ±0.01 mm, 200 mm/sIndividual, Yaskawa / HIWIN / FANUC, ±0.01 mm, 200 mm/sIndividual, Yaskawa / HIWIN / FANUC, ±0.01 mm, 200 mm/sIndividual, Yaskawa / HIWIN / FANUC, ±0.01 mm, 200 mm/s
Linear encoderRenishaw / Heidenhain, 0.1 micron, ±0.005 mmRenishaw / Heidenhain, 0.1 micron, ±0.005 mmRenishaw / Heidenhain, 0.1 micron, ±0.005 mmRenishaw / Heidenhain, 0.1 micron, ±0.005 mmRenishaw / Heidenhain, 0.1 micron, ±0.005 mmRenishaw / Heidenhain, 0.1 micron, ±0.005 mm
Back gauge6 CNC axes, ±0.02 mm, 500 mm/s speed6 CNC axes, ±0.02 mm, 500 mm/s speed6 CNC axes, ±0.02 mm, 500 mm/s speed6 CNC axes, ±0.02 mm, 500 mm/s speed6 CNC axes, ±0.02 mm, 500 mm/s speed6 CNC axes, ±0.02 mm, 500 mm/s speed
Tool clampingAutomatic, 10× faster, 10–500 mm/sAutomatic, 10× faster, 10–500 mm/sAutomatic, 10× faster, 10–500 mm/sAutomatic, 10× faster, 10–500 mm/sAutomatic, 10× faster, 10–500 mm/sAutomatic, 10× faster, 10–500 mm/s
Robot (optional)KUKA / ABB / Fanuc · ±0.05 mm, 312 toolsKUKA / ABB / Fanuc · ±0.05 mm, 312 toolsKUKA / ABB / Fanuc · ±0.05 mm, 312 toolsKUKA / ABB / Fanuc · ±0.05 mm, 312 toolsKUKA / ABB / Fanuc · ±0.05 mm, 312 toolsKUKA / ABB / Fanuc · ±0.05 mm, 312 tools
Tool interfaceEuro standard + Promecam, TPA / FibertoolEuro standard + Promecam, TPA / FibertoolEuro standard + Promecam, TPA / FibertoolEuro standard + Promecam, TPA / FibertoolEuro standard + Promecam, TPA / FibertoolEuro standard + Promecam, TPA / Fibertool
Sheet supportMotorized, 2–7 m, HIWIN / FibroMotorized, 2–7 m, HIWIN / FibroMotorized, 2–7 m, HIWIN / FibroMotorized, 2–7 m, HIWIN / FibroMotorized, 2–7 m, HIWIN / FibroMotorized, 2–7 m, HIWIN / Fibro
Angle measurementLaser, ±0.1°, LVD / Pama / BytewiseLaser, ±0.1°, LVD / Pama / BytewiseLaser, ±0.1°, LVD / Pama / BytewiseLaser, ±0.1°, LVD / Pama / BytewiseLaser, ±0.1°, LVD / Pama / BytewiseLaser, ±0.1°, LVD / Pama / Bytewise

WyBend E versus WyBend C: electric servo versus hydraulic servo

The WyBend C Series with a Bosch Rexroth/Yaskawa hydraulic servo offers ±0.01 mm accuracy, excellent for the vast majority of industrial precision applications. The WyBend E Series high-precision CNC press brake with individual electric servo motors and a Renishaw linear encoder adds: ±0.005 mm feedback accuracy (2× finer), the elimination of the variabilities introduced by the hydraulic system (viscosity, temperature, seal wear), a back-gauge speed of 500 mm/s versus the typical 200–300 mm/s of hydraulic systems, and the option of full robotic automation with 312 automatic tools.

The WyBend E is the choice when: the part tolerances require accuracy below ±0.01 mm, production includes small batches with many different tool types where automatic clamping significantly reduces setup times, or when full robotization is the objective for eliminating bending labor.

Applications and industries for the WyBend E Series high-precision CNC press brake

The WyBend E Series high-precision CNC press brake is intended for producers in industries with the strictest bending-tolerance requirements: precision automotive components (bodywork, safety structures), the aerospace industry (special-alloy profiles with tolerances below ±0.1°), medical equipment and precision instruments where every tenth of a degree counts for the correct functioning of the final product.

High-level subcontracting workshops that produce parts for the automotive and aerospace industries use the WyBend E Series high-precision CNC press brake with the KUKA/ABB robotic option for the automatic production of small and medium batches with a wide variety of tools: the robot automatically changes the tools from the library of 312, the operator only supervises the process and feeds the material.

Producers of precision electronic equipment and housings for measuring instruments use the E 40 and E 80 models of the WyBend E Series high-precision CNC press brake for precision bends on thin 0.5–3 mm sheets of stainless steel, aluminum and special alloys, where the angular tolerance of ±0.1° and part-to-part repeatability are mandatory.

How the WyBend E Series high-precision CNC press brake works

1. CNC programming or offline import: the program is created on the Delem DA-69T or imported from CAD/CAM; the system automatically calculates the parameters for each bend with springback compensation specific to the material and thickness.

2. Automatic tool changeover: the automatic clamping system configures the programmed tool sequence at a speed 10× faster than manual changeover; optionally, the robot selects the tools from the library of 312 and mounts them with no human intervention.

3. 6-axis back-gauge positioning at 500 mm/s: the back gauge with 6 axes positions at the programmed coordinates with ±0.02 mm accuracy at the maximum speed of 500 mm/s, reducing idle times between bends compared with slower systems.

4. Bending with ±0.005 mm linear-encoder feedback: the individual servo motors lower the beam; the Renishaw/Heidenhain linear encoders measure the position with 0.1 micron resolution and correct any deviation from the programmed path in real time.

5. Laser angle check and correction: the laser system checks the actual angle and automatically updates the springback parameter for the following parts, ensuring uniformity across the entire production run.

6. Optional robotization: in the configuration with a KUKA/ABB/Fanuc robot, the robot picks up the part, positions it, triggers the bend and unloads it automatically, with the high-precision CNC press brake operating fully automatically on programmed batches.

Why UZINEX for the WyBend E Series high-precision CNC press brake

• Free technical consulting: C, E or H, model and robot configuration. UZINEX evaluates the part tolerances, production volume and automation requirements to recommend the optimal series and model, including the robotic configuration if justified.

• Free transport, assembly and commissioning included: the high-precision CNC press brake is delivered, installed and metrologically calibrated at the customer's site, including robot integration if included in the order.

• Extended 60-month warranty: warranty for all components with technical support and intervention in under 24 hours in Romania (24–72 hours in other countries).

• National technical support in under 24 hours in Romania (24–72 hours in other countries): a 24/7 phone line and fast intervention.

• Smart AI manual included: AI assistance for 96%+ of technical requests.

• Full eligibility for European funding: documentation and support for EU, PNRR, structural funding.

The WyBend E Series high-precision CNC press brake is the solution for producers who demand the maximum available technology: Renishaw/Heidenhain linear encoders at ±0.005 mm, individual Yaskawa/FANUC servo motors, a 6-axis back gauge at 500 mm/s, automatic tool clamping 10× faster and an optional KUKA/ABB/Fanuc robot with 312 tools, in 6 models from 400 kN/1500 mm to 2200 kN/4000 mm.
